Honeywell 51401477-100 / MP-DNCF02-200 / 51402455-100 – DCS Backplane Chassis Assembly | TDC 3000 / Experion PKS Platform
Engineering Background: The Honeywell TDC 3000 and Experion PKS platforms have been the backbone of process automation in refining, petrochemical, power generation, and continuous manufacturing for over three decades. The chassis assembly is the structural and electrical foundation of every I/O and controller cabinet in these systems — a failed or degraded chassis directly impacts system availability and process uptime.

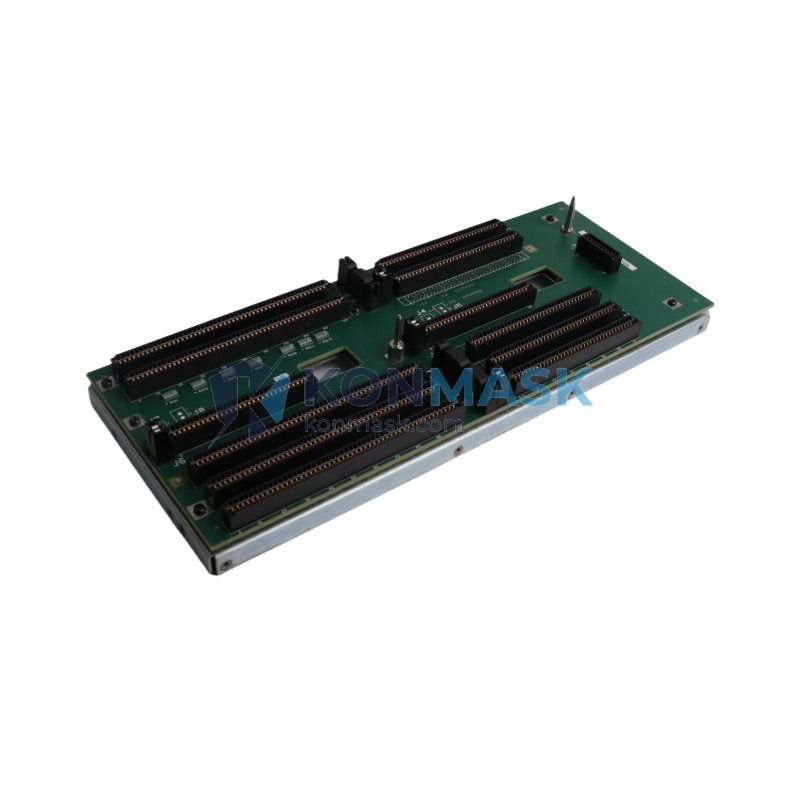

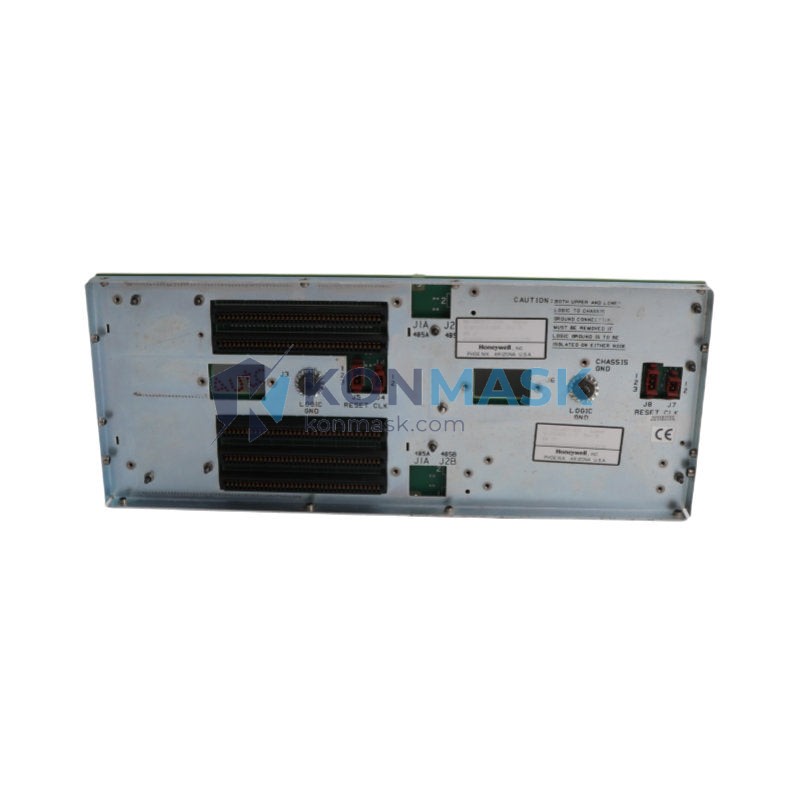

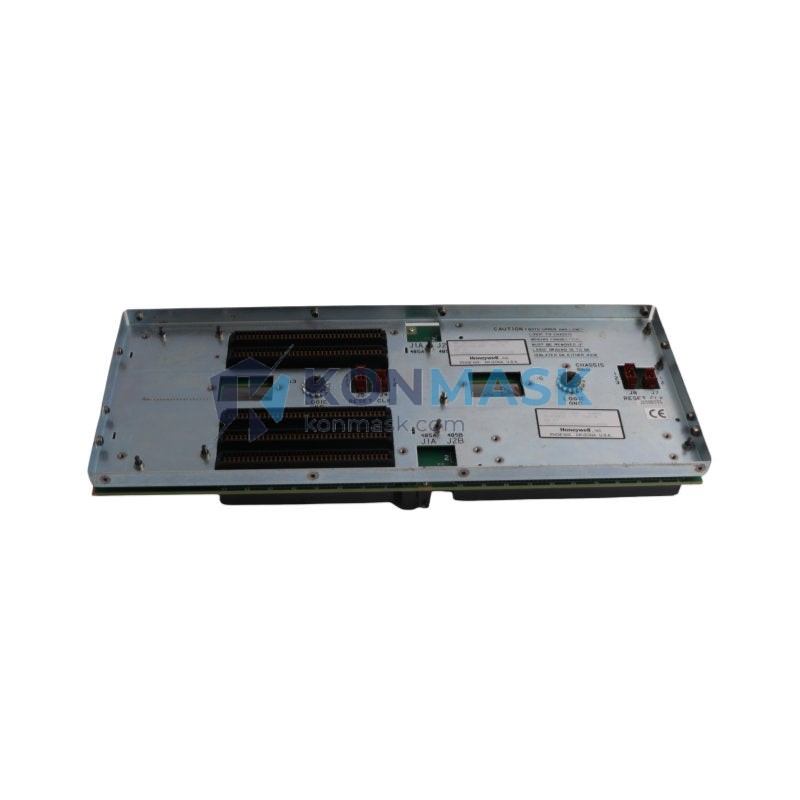

Product Positioning: Part numbers 51401477-100, MP-DNCF02-200, and 51402455-100 are cross-referenced designations for the same Honeywell DCS backplane chassis assembly. This unit provides the mechanical mounting, backplane bus interconnect, and power distribution rail for Honeywell I/O and controller modules. Konmask.com supplies this chassis as a verified, tested replacement or spare for active plant maintenance programs and capital project builds.
Complete Technical Specifications
- Manufacturer: Honeywell Process Solutions
- Primary Part Number: 51401477-100
- Cross-Reference Part Numbers: MP-DNCF02-200 / 51402455-100
- Product Category: DCS Backplane Chassis Assembly
- Compatible Platform: Honeywell TDC 3000, Experion PKS, Experion HS
- Form Factor: Rack-mount chassis / backplane card cage
- Weight: 1,940 g (approx. 4.28 lb)
- Country of Origin: United States
- Condition: Surplus / Refurbished (tested prior to shipment)
- Warranty: 12-month Konmask operational warranty
Proven Application Environments
- Petroleum refining and upstream oil & gas DCS cabinets
- Petrochemical and specialty chemical continuous process control
- Power generation (coal, gas turbine, combined cycle) plant automation
- Pulp & paper and mining process control systems
- Pharmaceutical batch and continuous manufacturing (FDA-regulated environments)
- Emergency spare / hot-standby inventory programs for critical infrastructure
Engineering Advantages
- Direct OEM Replacement: Exact form, fit, and function match — no firmware changes or reconfiguration required upon swap-out.
- Multi-PN Compatibility: Three cross-referenced part numbers (51401477-100 / MP-DNCF02-200 / 51402455-100) confirm broad interchangeability across TDC 3000 and Experion generations.
- Backplane Bus Integrity: Provides clean, low-impedance backplane bus connections critical for deterministic I/O scan performance.
- Mechanical Robustness: Industrial-grade chassis construction rated for continuous operation in high-vibration, high-temperature cabinet environments.
- Immediate Availability: In-stock at Konmask warehouse — eliminates OEM lead times of 12–26 weeks for obsolete or long-lead assemblies.
System Architecture & Signal Flow
In a Honeywell TDC 3000 / Experion PKS cabinet, the chassis assembly serves as the central integration point:
- Power Rail: Distributes regulated DC power from the cabinet PSU to all seated I/O and controller modules via backplane connectors.
- Data Bus: Routes the internal communication bus between the controller module (e.g., C200, C300, PM) and I/O link modules (IOM, FIM, LLMUX).
- Grounding & Shielding: Provides chassis ground reference for EMI/RFI shielding of all seated modules.
- Module Retention: Card guides and ejector levers ensure positive module seating and hot-swap capability where supported by firmware.
Sourcing & Quality Verification
- Each unit is individually inspected for physical damage, connector integrity, and backplane bus continuity.
- Functional power-on test performed prior to packaging.
- Original Honeywell labeling and serial number preserved for traceability.
- Anti-static packaging with humidity indicator card for safe long-distance shipping.
- Certificate of conformance available upon request for regulated industries.
Procurement Process
- Confirm Part Number: Verify your cabinet’s existing chassis label matches 51401477-100, MP-DNCF02-200, or 51402455-100.
- Request Quote: Contact [email protected] for volume pricing, lead time confirmation, and export documentation.
- Order & Payment: T/T bank transfer, PayPal, or trade credit terms available for qualified accounts.
- Shipping: DHL / FedEx express worldwide; EXW Xiamen or CIF destination available. Typical dispatch within 1–3 business days.
- Receiving Inspection: Konmask provides a detailed packing list and test report for incoming inspection at your facility.
Technical FAQ
Q: Are 51401477-100, MP-DNCF02-200, and 51402455-100 fully interchangeable?
A: Yes. These are Honeywell’s own cross-reference designations for the same physical assembly used across TDC 3000 and Experion PKS generations.
Q: Is this chassis compatible with both TDC 3000 and Experion PKS?
A: Yes, subject to your specific cabinet configuration. Please share your cabinet model and existing module list for confirmation before ordering.
Q: Can I hot-swap this chassis without a system shutdown?
A: Chassis replacement typically requires a controlled shutdown of the affected cabinet. Hot-swap capability depends on your system’s redundancy architecture. Consult your Honeywell system engineer before proceeding.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us to confirm current stock levels.
Q: Do you provide export documentation for international shipments?
A: Yes — commercial invoice, packing list, certificate of origin, and ECCN classification available upon request.
