Honeywell 8C-PCNT03 51454363-375 Pulse Counter Controller Module | Replacement, Equivalent & Selection Guide

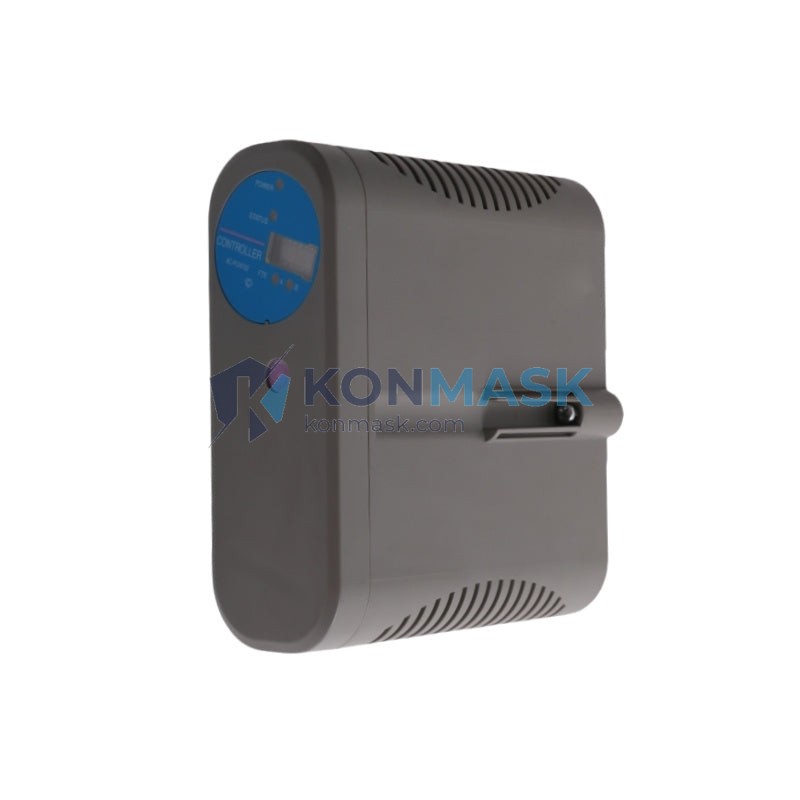

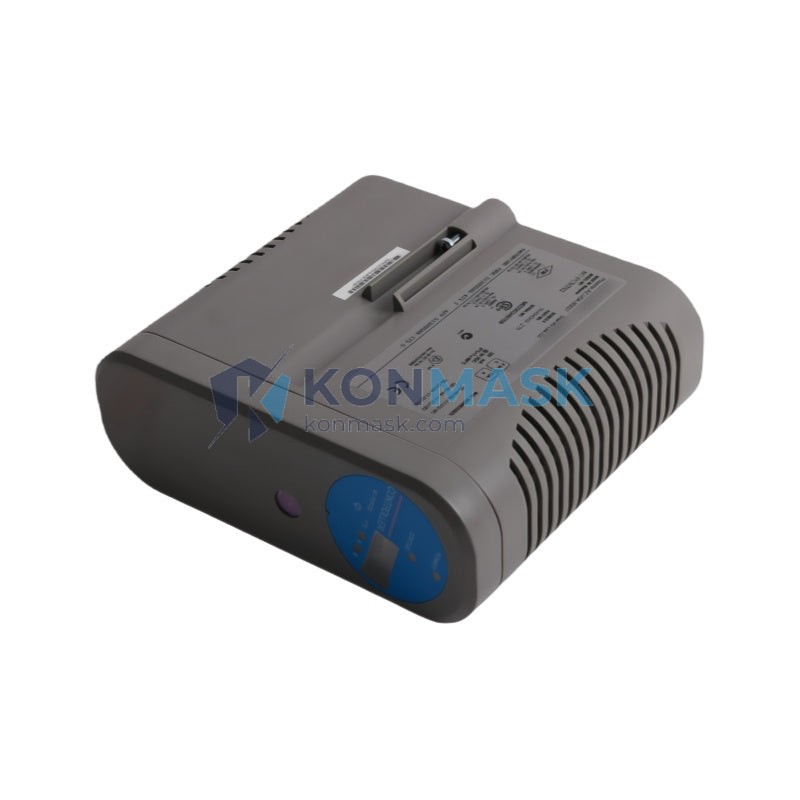

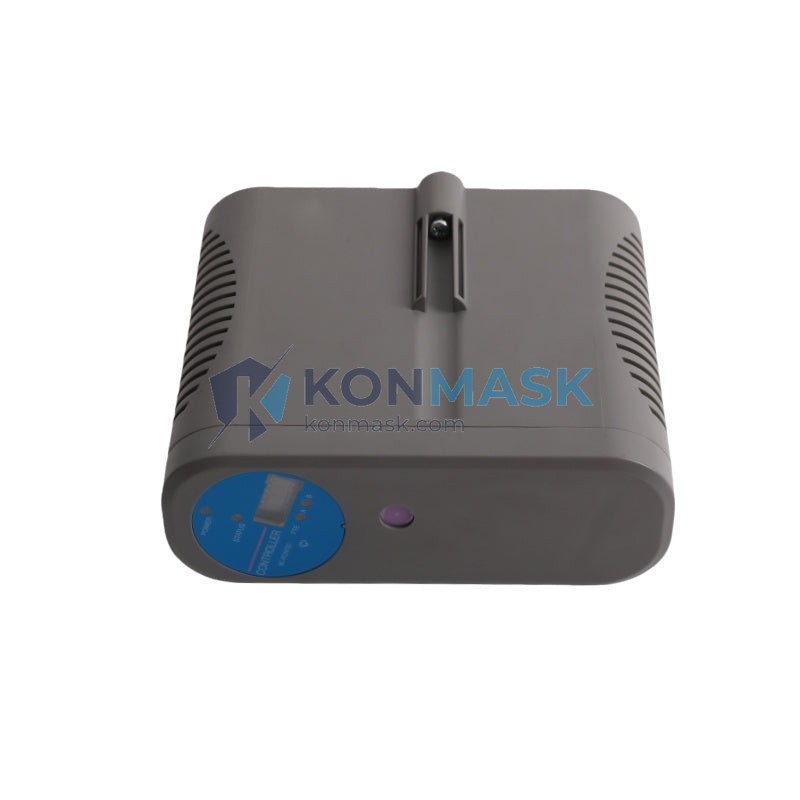

The Honeywell 8C-PCNT03 (Part No. 51454363-375) is a high-precision pulse counter controller module designed for Honeywell’s C300 DCS platform. It provides reliable pulse counting and frequency measurement for flow meters, turbines, and encoder-based field instruments in process automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for industrial procurement engineers and automation specialists.
Technical Specifications
- Manufacturer: Honeywell Process Solutions
- Part Number: 8C-PCNT03
- Reference Number: 51454363-375
- Module Type: Pulse Counter / Frequency Input Controller Module
- Platform: Honeywell Experion PKS / C300 DCS
- Series: 8C Series I/O
- Input Channels: 8 channels (pulse/frequency input)
- Input Signal: Dry contact, NPN/PNP transistor, NAMUR proximity switch
- Max Frequency: Up to 10 kHz per channel
- Power Supply: Supplied via C300 controller backplane
- Communication: FTE (Fault Tolerant Ethernet) via C300 controller
- Mounting: DIN rail / C300 I/O chassis
- Operating Temperature: 0°C to 60°C
- Weight: Approx. 3 kg (with packaging)
- Certifications: CE, UL, FM (refer to Honeywell datasheet for full list)
Compatible Replacement & Equivalent Models
When the original 8C-PCNT03 / 51454363-375 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on your system configuration. Always verify compatibility with your system integrator before substitution.
- Honeywell 8C-PCNT01 (51454363-150) — 4-channel pulse counter variant; suitable for lower-density applications
- Honeywell 8C-PCNT02 (51454363-275) — 8-channel mid-range variant; verify firmware revision compatibility
- Honeywell CC-PCNT01 (51405038-175) — EPKS Series C I/O pulse counter; requires chassis adapter for C300 systems
- Honeywell 51304485-100 — Legacy TDC 3000 pulse input module; not directly compatible, requires signal conditioning
- Third-party NAMUR-compatible pulse input modules — Must support FTE protocol or be used with a gateway; consult Konmask for validated alternatives
Note: Cross-referencing part numbers does not guarantee drop-in compatibility. Firmware, chassis, and I/O termination must be verified.
Why Choose the Original Model
- Native C300 Integration: Plug-and-play with Honeywell Experion PKS — no additional configuration or gateway required
- Certified Accuracy: Factory-calibrated pulse counting with hardware-level debounce and noise filtering
- Redundancy Support: Compatible with Honeywell’s fault-tolerant I/O redundancy schemes
- Long-term Support: Backed by Honeywell’s global service network and spare parts program
- Regulatory Compliance: Meets SIL, CE, and FM standards for use in hazardous process environments
Typical Applications
- Flow measurement via turbine or vortex flow meters (pulse output)
- Encoder position feedback in rotating machinery
- Batch counting in packaging and filling lines
- Speed monitoring for pumps, compressors, and fans
- Utility metering (gas, water, electricity pulse outputs)
- Petrochemical, refining, power generation, and pharmaceutical plants
System Compatibility
- DCS Platform: Honeywell Experion PKS R310 and above
- Controller: C300 Process Controller
- I/O Chassis: 8-slot and 16-slot C300 I/O chassis
- Network: FTE (Fault Tolerant Ethernet) — 100 Mbps
- Software: Honeywell Control Builder, Experion Configuration Studio
- Not compatible with: Honeywell HC900, PlantScape, or TDC 3000 without additional hardware
Selection Guide
Use the following criteria to confirm the 8C-PCNT03 is the right module for your application:
- Step 1 — Channel Count: Confirm you need 8 pulse/frequency input channels. If 4 channels suffice, consider 8C-PCNT01.
- Step 2 — Signal Type: Verify field instruments output dry contact, NPN/PNP, or NAMUR signals. Analog 4–20 mA flow signals require a different module (e.g., 8C-TAIX04).
- Step 3 — Frequency Range: Confirm max pulse frequency does not exceed 10 kHz per channel.
- Step 4 — Platform Version: Ensure your Experion PKS is R310 or later. Earlier versions may require firmware upgrades.
- Step 5 — Redundancy: If redundant I/O is required, confirm chassis and controller support redundant module pairing.
- Step 6 — Hazardous Area: For Zone 1/Division 1 installations, verify IS (intrinsically safe) barrier requirements — the 8C-PCNT03 is not intrinsically safe by default.
Quality Assurance & Sourcing
- All modules sourced through Konmask.com are inspected for physical integrity, label authenticity, and packaging condition prior to shipment
- Original factory packaging preserved where available
- Traceability documentation (COC, test reports) available upon request
- Surplus, refurbished, and new-in-box (NIB) stock clearly labeled — no misrepresentation
- Export compliance screening performed for all international orders
How to Order
- Part Number: 8C-PCNT03
- Reference / Revision: 51454363-375
- Quantity: Single unit or bulk — contact us for volume pricing
- Lead Time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
- Payment: T/T, PayPal, credit card, and trade terms available for qualified buyers
- Shipping: DHL, FedEx, UPS worldwide; sea freight available for bulk orders
- 📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 8C-PCNT03 with 8C-PCNT01?
A: The 8C-PCNT01 has 4 channels vs. 8 on the PCNT03. It is physically compatible with the same chassis but will reduce your I/O density. Suitable only if 4 channels are sufficient.
Q: Is 51454363-375 the same as 8C-PCNT03?
A: Yes — 51454363-375 is Honeywell’s internal reference/revision number for the 8C-PCNT03. Both numbers refer to the same physical module.
Q: Can this module be used in a TDC 3000 system?
A: No. The 8C-PCNT03 is designed exclusively for the C300/Experion PKS platform. TDC 3000 uses a different I/O architecture and is not compatible.
Q: Do you offer repair or exchange services?
A: Yes. Contact us for repair evaluation, advance exchange, or consignment options for failed modules.
Q: What is the warranty on modules purchased from Konmask?
A: All modules carry a minimum 90-day warranty against defects. Extended warranty available upon request.
