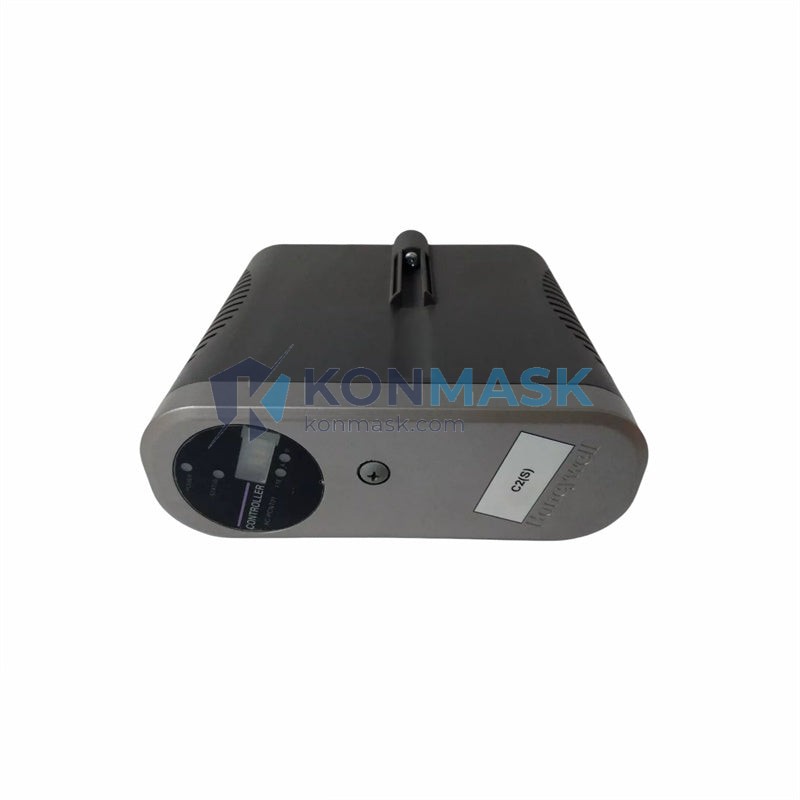

Honeywell 8C-PCNT01 (51454363-175) – C300 Process Controller Module | Experion PKS Platform
In modern distributed control architectures, the controller is the heartbeat of the entire process. The Honeywell 8C-PCNT01 (assembly part number 51454363-175) is the primary process controller module for the Experion PKS C300 platform — Honeywell’s flagship DCS for continuous and batch process industries. Designed for deterministic, high-availability control, this module executes control strategies, manages I/O communication, and maintains process integrity even under fault conditions.
Procurement engineers specifying replacement or expansion modules for Experion PKS installations will find the 8C-PCNT01 to be the exact OEM part required for seamless integration — no firmware workarounds, no compatibility compromises.
Complete Technical Specifications
| Part Number / SKU | 8C-PCNT01 |
| Assembly / Revision | 51454363-175 |
| Brand | Honeywell Process Solutions |
| Series / Platform | Experion PKS – C300 Controller |
| Module Function | Process Controller (primary execution engine) |
| Control Execution Environment | CEE – Control Execution Environment (Honeywell proprietary) |
| Communication Bus | FTE (Fault Tolerant Ethernet) – dual-redundant 100 Mbps |
| I/O Capacity | Up to 2,000 I/O points per controller (with Series C I/O) |
| Control Loop Capacity | Up to 300 PID loops (typical configuration) |
| Redundancy Support | Hot-standby redundant controller pair supported |
| Execution Period | 100 ms to 10 s (configurable per control module) |
| Supply Voltage | 24 V DC (supplied via CPPM backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | CPPM (Controller Power & Personality Module) backplane |
| Weight | 1,460 g |
| Country of Origin | United States |
| Certifications | CE, UL, FM (Class I Div 2), ATEX Zone 2 |
Proven Application Environments
The 8C-PCNT01 is the standard controller module across Honeywell Experion PKS installations worldwide. Engineers deploy it in:
- Oil & gas refineries – crude distillation, hydrotreating, and reforming unit control with redundant controller pairs for zero-downtime operation
- Petrochemical plants – ethylene crackers, polymerization reactors, and compressor control requiring deterministic sub-second scan rates
- LNG terminals – liquefaction train sequencing and safety interlock coordination via integrated SIS communication
- Power generation – boiler combustion management, turbine control, and balance-of-plant automation on combined-cycle and coal-fired units
- Pharmaceutical manufacturing – batch recipe execution under FDA 21 CFR Part 11 audit trail requirements
- Pulp & paper mills – continuous digester control, bleach plant sequencing, and recovery boiler management
- Chemical processing – multi-loop PID control for reactors, distillation columns, and heat exchanger networks
Engineering Advantages
- Native FTE dual-redundant Ethernet – eliminates single points of failure on the control network; automatic failover in <1 ms
- Hot-standby redundancy – primary/secondary controller pair maintains bumpless transfer; no process upset on module swap
- CEE execution environment – Honeywell’s proven control execution engine supports Function Block, Sequential Function Chart, and Cause & Effect logic natively
- Scalable I/O architecture – connects to Series C I/O, CHARM I/O, and legacy Series A/B I/O via FIM adapters without rewiring
- Integrated diagnostics – continuous self-test with LED status indicators and Experion Station alarm annunciation
- Long product lifecycle – Honeywell’s 20-year lifecycle commitment ensures spare parts availability and firmware support
- Direct TPS/TDC migration path – supports Honeywell’s phased migration strategy from legacy TPS/TDC 3000 systems
System Architecture & Signal Flow
The 8C-PCNT01 sits at the center of the Experion PKS C300 node architecture:
- Upstream: FTE switch → Experion Server (SCADA/HMI layer) via 100 Mbps dual Ethernet
- Controller layer: 8C-PCNT01 installed in CPPM backplane → executes CEE control strategies at configured scan rate
- I/O layer: CIOM-A/CIOM-B I/O Link → Series C I/O modules (AI, AO, DI, DO, HART) → field instruments
- Redundancy: Primary 8C-PCNT01 ↔ Secondary 8C-PCNT01 via dedicated redundancy cable; heartbeat synchronization every scan cycle
- Safety integration: FSC/Safety Manager communication via dedicated SIS gateway for integrated BPCS+SIS architecture
Sourcing & Quality Verification
Every Honeywell 8C-PCNT01 unit dispatched by Konmask.com undergoes a rigorous verification protocol:
- Physical inspection against Honeywell OEM label standards — part number, assembly revision (51454363-175), and date code verified
- Serial number cross-reference with authorized Honeywell distributor records
- Power-on functional test: FTE link establishment, CEE initialization, and LED status confirmation
- Anti-static packaging with humidity indicator card and foam-lined transit case
- Certificate of Conformance (CoC) and test report available upon request
Konmask.com sources exclusively from authorized distributors and verified surplus channels. We do not sell counterfeit, refurbished-as-new, or grey-market goods.
Procurement Process
Ready to procure the 8C-PCNT01 / 51454363-175? Here’s how to proceed:
- Add to cart – for standard in-stock units with same-day dispatch
- Request a quote – for volume orders (3+ units), project-based procurement, or OEM pricing
- BOM review – contact our engineering team for full C300 node BOM validation, including CPPM, CIOM, and I/O module compatibility
- Expedite requests – we maintain emergency stock for plant shutdown and turnaround scenarios
📧 support@konmask.com | 📞 +0086 19859288691
Response within 4 business hours (UTC+8).
Technical FAQ
Q: Is the 8C-PCNT01 compatible with all Experion PKS R400 and R500 releases?
A: Yes. The C300 controller hardware is firmware-compatible across Experion PKS R400 through R520. Confirm your server release with Honeywell before upgrading firmware on replacement modules.
Q: Can this module operate in simplex (non-redundant) mode?
A: Yes. The 8C-PCNT01 operates in both simplex and redundant configurations. Redundancy requires a matched secondary module and the appropriate redundancy cable kit.
Q: What is the difference between 8C-PCNT01 and 8C-PCNT02?
A: The 8C-PCNT02 is the enhanced-capacity variant supporting larger I/O counts and faster execution periods. The 8C-PCNT01 is the standard model for the majority of C300 installations. Verify your existing node configuration before substituting.
Q: Does this module support HART pass-through for field device diagnostics?
A: HART pass-through is handled at the I/O module level (e.g., 8-channel HART AI modules). The 8C-PCNT01 controller communicates HART data upstream to Experion Station via the standard FTE path.
Q: What configuration tool is required for commissioning?
A: Control Builder (part of Experion PKS Engineering Tools) is required for all C300 controller configuration, download, and online modification. No third-party tools are supported.
Q: Is the 8C-PCNT01 SIL-rated for safety applications?
A: The standard 8C-PCNT01 is not independently SIL-rated. For SIL 2/3 applications, Honeywell’s Safety Manager (SM) or FSC platform is required. The C300 can interface with Safety Manager via the integrated BPCS+SIS architecture.
