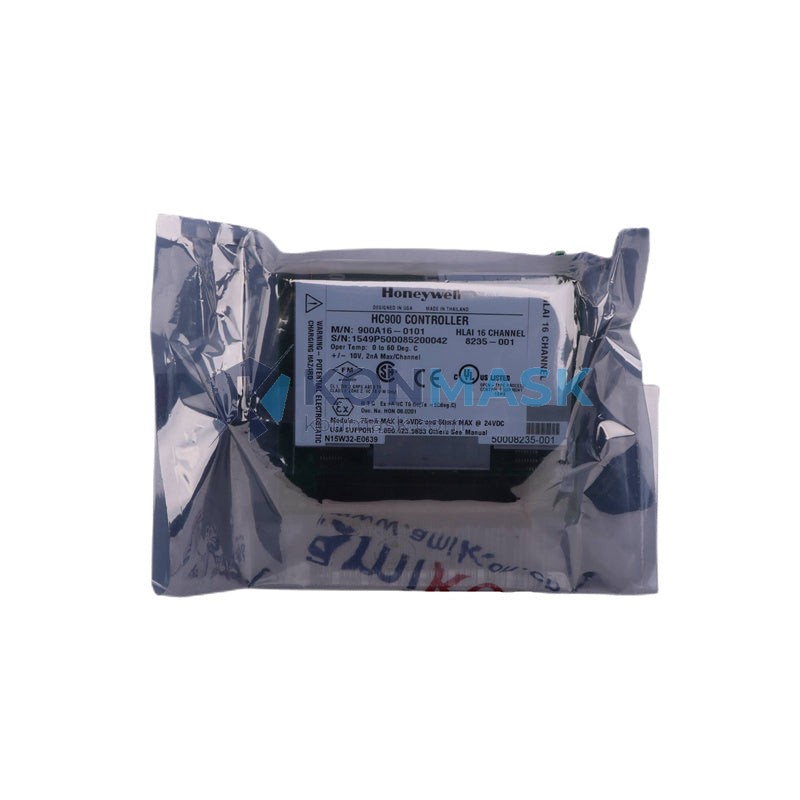

HONEYWELL 900A16-0001 — 16-Channel Analog Input Module | HC900 Hybrid Controller Platform
Engineering Background
The HONEYWELL 900A16-0001 is a high-density analog input module designed for the HC900 Hybrid Controller platform — Honeywell’s proven distributed control architecture widely deployed in refining, petrochemical, power generation, and advanced manufacturing environments. The HC900 platform bridges the gap between traditional DCS and modern process automation, and the 900A16-0001 serves as its primary field-signal acquisition front-end.
Product Positioning
This module is the preferred choice for process engineers who require simultaneous multi-channel analog acquisition with high signal fidelity, deterministic scan rates, and seamless integration into Honeywell’s HC900 rack-based architecture. It eliminates the need for external signal conditioning in most standard 4–20 mA and thermocouple/RTD loop configurations, reducing panel footprint and wiring complexity.
Complete Technical Specifications
- Part Number: 900A16-0001
- Manufacturer: Honeywell Process Solutions
- Platform: HC900 Hybrid Controller / DCS
- Module Type: Analog Input (AI)
- Channel Count: 16 Channels
- Input Signal Types: 4–20 mA, 0–20 mA, 0–5 V, 1–5 V, 0–10 V, Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100, Pt1000, Ni120)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale (typical)
- Isolation: Channel-to-bus isolation; optical isolation on field side
- Scan Rate: Configurable per HC900 controller scan cycle
- Power Consumption: Supplied via HC900 backplane (5 VDC bus)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Mounting: HC900 I/O rack (backplane slot)
- Certifications: CE, UL/cUL listed; compatible with ATEX-rated enclosures (zone-dependent)
- Weight: 200 g (approx.)
- Dimensions: Standard HC900 module form factor
- Firmware: Managed via Honeywell HC Designer configuration software
Proven Application Environments
- Refining & Petrochemical: Temperature and pressure loop monitoring across distillation columns, heat exchangers, and reactor vessels
- Power Generation: Boiler feed water temperature profiling, turbine inlet/outlet monitoring
- Pharmaceutical Manufacturing: Validated batch process temperature acquisition (21 CFR Part 11 compatible environments)
- Water & Wastewater Treatment: Multi-point flow, level, and pH signal aggregation
- Food & Beverage: CIP/SIP temperature monitoring with high-channel-density requirements
- Chemical Processing: Exothermic reaction temperature surveillance with redundant input capability
Engineering Advantages
- High Channel Density: 16 AI channels per slot minimizes rack space and reduces per-channel installed cost
- Universal Input Flexibility: Single module supports mA, voltage, TC, and RTD inputs — configurable per channel via software
- Deterministic Performance: Tight integration with HC900 controller scan engine ensures predictable loop execution
- Hot-Swap Capable: Supports module replacement without full system shutdown (rack-dependent configuration)
- Diagnostic Transparency: Per-channel open-wire, over-range, and under-range diagnostics reported to HC900 controller and SCADA
- Long Product Lifecycle: Honeywell HC900 platform carries extended support commitments — critical for brownfield and long-lifecycle plant assets
System Architecture & Signal Flow
The 900A16-0001 installs into any standard HC900 I/O rack slot. Field wiring terminates at the module’s front-face terminal block (or via optional marshalling panel). Analog signals are conditioned, multiplexed, and digitized by the onboard 16-bit ADC. Digitized values are transferred to the HC900 controller CPU via the backplane I/O bus at each controller scan cycle. The HC900 Designer software maps each channel to a process variable (PV) tag, configures engineering unit scaling, alarm limits, and filter time constants. Data is then available to the HC900 PID loops, function blocks, and upstream SCADA/DCS via Modbus TCP, OPC DA/UA, or Honeywell proprietary protocols.
Sourcing & Quality Verification
- Source: Konmask.com sources 900A16-0001 modules from authorized Honeywell distributors and verified industrial surplus channels with documented chain of custody
- Inspection: Each unit undergoes visual inspection, label verification (date code, revision level), and functional continuity check prior to shipment
- Packaging: ESD-safe anti-static bag, foam-lined carton; original Honeywell packaging preserved where available
- Documentation: Datasheet, installation guide, and certificate of conformance available upon request
- Warranty: 90-day Konmask operational warranty; OEM warranty terms apply to new-in-box units
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Step 2 — Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL / FedEx / sea freight)
- Step 3 — Order Confirmation: Confirm PO; payment via T/T bank transfer, PayPal, or Shopify checkout
- Step 4 — Shipment: Modules dispatched with tracking number and packing list; export documentation (commercial invoice, packing list, COO) included for international orders
- Step 5 — After-Sales: Technical support available for installation, configuration, and compatibility queries
Technical FAQ
Q: Is the 900A16-0001 compatible with all HC900 rack sizes?
A: Yes. The module is compatible with all HC900 I/O rack configurations (4-slot, 8-slot, 12-slot) and both local and remote rack deployments.
Q: Can I mix 900A16-0001 with other HC900 I/O modules in the same rack?
A: Yes. HC900 racks support mixed I/O module types in any slot order, subject to total rack power budget.
Q: What software is required for configuration?
A: Honeywell HC Designer (HC900 configuration tool). No additional drivers are required — the module is auto-detected upon rack scan.
Q: Does Konmask offer quantity discounts for OEM or EPC procurement?
A: Yes. Volume pricing is available for orders of 5+ units. Contact us directly for project-based pricing.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For sourced units, typical lead time is 7–15 business days depending on origin.
Q: Can Konmask provide a test report or functional verification certificate?
A: Yes, upon request for orders of 3+ units. Please specify at time of inquiry.
