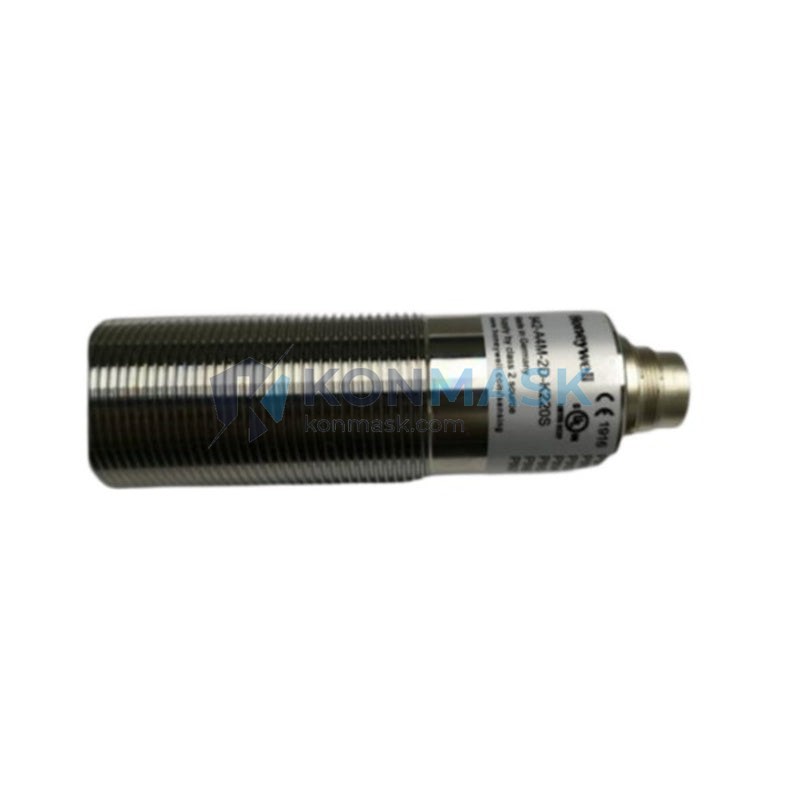

HONEYWELL 942-A4M-2D-K220S – Ultrasonic Proximity Sensor | Micro-Series
Engineering Background: Honeywell’s 942 Micro-Series ultrasonic sensors are deployed across process-critical detection loops in petrochemical, power generation, and water treatment facilities where contact-free, medium-independent level and proximity measurement is mandatory. The 942-A4M-2D-K220S occupies the mid-range detection tier within the Micro-Series platform, engineered for applications where analog output resolution and compact form factor must coexist without compromise. In distributed control architectures, this sensor typically interfaces directly with PLC analog input modules or DCS field I/O cards, providing a continuous 4–20 mA signal that maps linearly to target distance—eliminating the need for signal conditioning intermediaries.
Product Positioning: Within the 942 series, the 942-A4M-2D-K220S is distinguished by its 4-meter detection range, dual-output configuration (analog + discrete), and M30 cylindrical housing—making it the preferred choice over shorter-range variants (e.g., 942-A1M) when installation geometry demands standoff distances exceeding 1.5 m, or over larger housing variants when panel space is constrained. Its operating envelope is bounded by environments with ambient temperatures between −25 °C and +70 °C and non-condensing humidity; it is not rated for submerged or ATEX Zone 0 applications.
Complete Technical Specifications
Electrical
- Supply Voltage: 15–30 V DC
- Current Consumption: ≤ 60 mA (without load)
- Analog Output: 4–20 mA, 2-wire, loop-powered
- Discrete Output: PNP, normally open (NO), 100 mA max switching current
- Output Short-Circuit Protection: Yes
- Ripple Tolerance: ≤ 10% Vpp
- Connector: M12 × 1, 4-pin
Mechanical
- Housing Form Factor: M30 cylindrical, stainless steel face
- Housing Material: ABS thermoplastic
- Sensing Face Material: PVDF (polyvinylidene fluoride)
- Mounting Thread: M30 × 1.5
- Weight: Approx. 660 g (packaged)
- Cable Entry: M12 connector, IP67 rated mating
Performance / Environmental
- Detection Range: 200 mm – 4,000 mm (0.2 m – 4.0 m)
- Blind Zone: 0–200 mm
- Operating Frequency: ~200 kHz (nominal)
- Response Time: ≤ 80 ms
- Repeatability: ±1% of full scale
- Temperature Compensation: Built-in (automatic)
- Ambient Temperature: −25 °C to +70 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 35–95% RH, non-condensing
- Ingress Protection: IP67
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
Certifications
- CE (EMC Directive 2014/30/EU; LVD 2014/35/EU)
- RoHS Compliant
- UL Recognized (file reference per Honeywell datasheet)
Data source: Honeywell Sensing & Productivity Solutions — 942 Series Ultrasonic Sensor Product Datasheet (latest revision). Specifications subject to manufacturer revision; verify against current datasheet before final BOM submission.
Proven Application Environments
- Petrochemical / Tank Farm: Floating-roof crude oil storage tanks — continuous level monitoring under vapor-laden atmospheres where contact sensors corrode within months.
- Power Generation / Cooling Tower: Makeup water basin level control — non-contact detection eliminates fouling from mineral scale that disables float switches.
- Water & Wastewater Treatment: Sedimentation basin sludge blanket detection — ultrasonic propagation through turbid water provides reliable interface measurement without immersion.
- Chemical Processing / Reactor Feed: Reagent day-tank level interlocking — 4–20 mA output feeds PLC analog card directly, enabling proportional valve control without additional transmitters.
- Pulp & Paper / Stock Chest: Fiber slurry level measurement — PVDF sensing face resists chemical attack from bleaching agents and acidic process liquors.
- Automotive Assembly / Conveyor: Part-presence detection on transfer lines — discrete PNP output triggers PLC input module at 100 mA, compatible with standard 24 V DC I/O cards.
Engineering Advantages
- For high-vapor environments, this ultrasonic sensor maintains measurement accuracy, because built-in temperature compensation corrects for speed-of-sound variation caused by vapor density changes—eliminating the drift that affects uncompensated sensors.
- For installations with limited panel depth, this M30 cylindrical sensor reduces mounting footprint, because the compact housing integrates both analog and discrete outputs in a single device, removing the need for a separate proximity switch.
- For 2-wire loop-powered architectures, this sensor simplifies field wiring, because the 4–20 mA output draws power from the signal loop itself, eliminating a dedicated supply conductor and reducing cable tray fill.
- For aggressive chemical splash zones, this sensor sustains sensing face integrity, because the PVDF transducer face resists hydrocarbons, dilute acids, and alkalis that degrade standard ABS or polycarbonate faces.
- For high-vibration machinery platforms, this sensor maintains positional stability, because the M30 × 1.5 threaded body with locknut mounting meets IEC 60068-2-6 vibration qualification—preventing loosening under continuous mechanical excitation.
- For multi-vendor PLC environments, this sensor integrates without protocol conversion, because the 4–20 mA analog output is universally accepted by Siemens S7, Allen-Bradley ControlLogix, Mitsubishi Q-series, and Schneider Modicon analog input modules without additional signal conditioning.
System Architecture & Signal Flow
Signal Flow: Target surface → Ultrasonic pulse emission (PVDF transducer, ~200 kHz) → Echo reception → Time-of-flight calculation with temperature compensation → Linear conversion to 4–20 mA (200 mm = 4 mA; 4,000 mm = 20 mA) → PLC/DCS analog input card → Engineering unit scaling in controller → Process variable to control loop.
Compatible Receiving Modules (verified interface):
- Siemens SM 331 / SM 1231 AI — 4–20 mA input, 15–30 V DC loop supply compatible
- Allen-Bradley 1756-IF16 / 1769-IF4 — standard 4–20 mA single-ended or differential input
- Mitsubishi Q64AD / Q68ADV — 4–20 mA channel, 24 V DC loop power from external supply
- Schneider Modicon STB AVI 1255 — analog input island, 4–20 mA, 24 V DC powered
Substitution Conditions: The 942-A4M-2D-K220S may be substituted by the Pepperl+Fuchs UB4000-30GM-E5-V15 or Sick UM30-213113 under the following conditions: (1) detection range requirement ≤ 4 m, (2) M30 mounting thread retained, (3) 4–20 mA output scaling reconfigured in the receiving PLC module to match the substitute’s output curve, and (4) IP67 ingress rating confirmed sufficient for the installation zone. Substitution must be documented in the instrument index and approved by the responsible instrument engineer.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized Honeywell distribution channels and verified surplus inventory with full traceability. Each unit undergoes a 4-step incoming inspection before dispatch:
- Label & Date Code Verification: Honeywell part number, revision level, and manufacturing date code confirmed against Honeywell’s product identification guide.
- Electrical Continuity Check: M12 connector pin-out verified against wiring diagram; insulation resistance tested at 500 V DC.
- Functional Output Test: Unit powered at 24 V DC; analog output measured at known target distances (500 mm, 2,000 mm, 4,000 mm) to confirm 4–20 mA linearity within ±1% specification.
- Packaging Integrity Inspection: ESD-safe packaging confirmed; original Honeywell labeling and documentation present.
Documentation available upon request: Manufacturer datasheet (current revision) · Certificate of Conformance (CoC) · Test report · Country of origin declaration · RoHS compliance statement
Procurement Process
- Inquiry Submission: Submit part number, required quantity, and delivery timeline via support@konmask.com or +0086 19859288691. Attach instrument datasheet or loop drawing if substitution evaluation is needed.
- Quotation & Stock Confirmation: A response with confirmed stock status, unit price (HKD/USD), lead time, and shipping options will be provided within 24 hours on business days.
- Order Fulfillment: Upon PO receipt, units are inspected, packed, and dispatched with full documentation. DHL/FedEx express available for urgent requirements; sea freight consolidation available for bulk orders.
Technical support is available for wiring diagram review, PLC module compatibility confirmation, and substitution evaluation. Engineering-level consultation is provided at no charge for qualified procurement inquiries.
Technical FAQ
Q1: Is the 942-A4M-2D-K220S compatible with a Siemens S7-1200 analog input module (SM 1231 AI)?
Yes. The SM 1231 AI accepts 4–20 mA single-ended input with a 24 V DC loop supply. Connect the sensor’s loop+ to the AI channel terminal and loop− to the M terminal. Set the channel to current input mode in TIA Portal hardware configuration. No signal conditioner is required.
Q2: Can the 942-A4M-2D-K220S replace a Pepperl+Fuchs UB4000-30GM-E5-V15 on an existing installation?
In most cases, yes—both are M30 cylindrical, 4–20 mA, 4-meter range ultrasonic sensors. Verify that the output scaling (4 mA = minimum distance, 20 mA = maximum distance) matches the existing PLC module configuration. If the P+F unit uses inverse scaling (20 mA = minimum), the analog input channel scaling in the PLC must be inverted before substitution. Confirm IP rating and supply voltage compatibility before installation.
Q3: Is this sensor approved for use in ATEX Zone 1 or Zone 2 classified areas in a petrochemical plant?
No. The 942-A4M-2D-K220S carries CE and UL recognition but does not hold ATEX or IECEx certification. It is not approved for installation in explosive atmospheres (Zone 0, 1, or 2). For hazardous area applications, specify a sensor with the required ATEX category and gas group rating. Contact Konmask for alternative part recommendations with ATEX certification.
