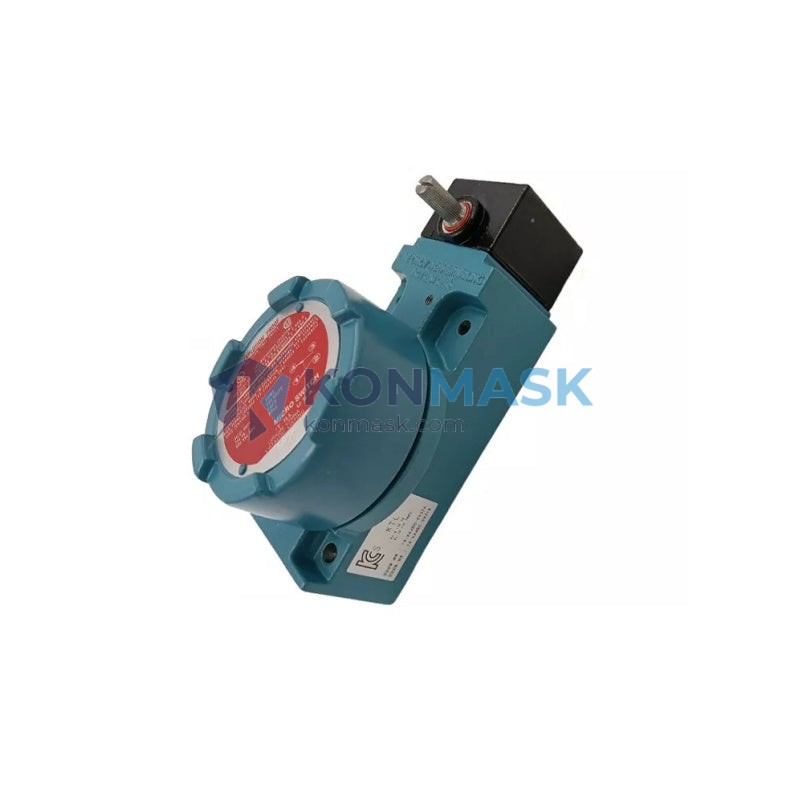

Honeywell BXA3K-1A + BXM4N – Explosion-Proof Limit Switch | MICRO SWITCH BX Series
Engineering Background
The Honeywell MICRO SWITCH BX Series explosion-proof limit switch is purpose-engineered for the most demanding hazardous-location applications in oil & gas, petrochemical, mining, and heavy industrial environments. Combining the BXA3K-1A actuator head with the BXM4N switch body, this assembly delivers certified explosion-proof protection while maintaining the precision switching performance that process engineers and safety system designers require.
Product Positioning
Designed for procurement engineers who cannot compromise on safety certification, mechanical durability, or long-term supply continuity. The BX Series is a globally recognized platform with decades of field-proven reliability in Class I, II, and III hazardous locations. Konmask.com supplies genuine Honeywell BX Series units with full traceability documentation available on request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number – Actuator Head | BXA3K-1A |
| Part Number – Switch Body | BXM4N |
| Full Assembly SKU | BXA3K-1A BXM4N |
| Series / Platform | Honeywell MICRO SWITCH BX Series |
| Switch Type | Explosion-Proof Limit Switch |
| Actuator Type | Adjustable Roller Lever (BXA3K-1A) |
| Contact Configuration | SPDT (1NO + 1NC) |
| Electrical Rating | 10 A @ 600 VAC; 0.5 A @ 125 VDC |
| Voltage Rating | Up to 600 VAC / 250 VDC |
| Enclosure Material | Cast Aluminum Alloy (Copper-Free) |
| Conduit Entry | 3/4–14 NPT (2 entries) |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Hazardous Location Rating | Class I, II, III – Division 1 & 2 |
| Explosion-Proof Groups | A, B, C, D, E, F, G |
| Certifications | UL Listed, CSA Certified, ATEX (consult datasheet) |
| IP Rating | IP67 (dust-tight and water-resistant) |
| Mounting | Side rotary, 4-hole base |
| Weight (approx.) | 1.0 kg |
| Country of Origin | United States |
| HS Code | 8536.50 |
Proven Application Environments
- Oil & Gas Upstream / Midstream: Wellhead valve position feedback, pipeline pig detection, compressor station interlocks
- Petrochemical & Refining: Reactor vessel door interlocks, pump seal monitoring, conveyor over-travel protection
- Mining & Mineral Processing: Belt conveyor alignment, crusher gate position, hoist limit detection
- Grain Handling & Dust-Hazard Facilities: Elevator bucket position, silo level interlocks (Group E/F/G rated)
- Marine & Offshore Platforms: Hatch cover position, ballast valve feedback, emergency shutdown systems
- Pharmaceutical & Chemical Manufacturing: Solvent-area door interlocks, agitator position sensing
Engineering Advantages
- Dual-Certified Safety: UL and CSA listings cover Class I Div 1 Groups A–D and Class II/III Div 1 Groups E–G — one part number satisfies multi-standard project specifications
- Copper-Free Aluminum Housing: Eliminates ignition risk in acetylene (Group A) atmospheres; corrosion-resistant for outdoor and coastal installations
- Adjustable Roller Lever (BXA3K-1A): Field-adjustable actuator arm length and roller position reduces installation time and accommodates varied cam geometries without custom tooling
- Snap-Action Contact Mechanism: Consistent switching point regardless of actuator approach speed — critical for safety interlock reliability
- Sealed Conduit System: Dual 3/4–14 NPT entries with internal sealing capability prevent flame propagation and ingress of process gases
- Wide Temperature Range: –40 °C to +85 °C operational range covers arctic pipeline and high-ambient refinery environments without derating
- Long Service Life: Rated for millions of mechanical operations; silver-alloy contacts resist welding under inductive load switching
System Architecture & Signal Flow
The BXA3K-1A BXM4N operates as a discrete position-sensing node within a safety instrumented system (SIS) or conventional control loop:
- Mechanical Input: Rotating cam or actuating dog contacts the adjustable roller lever (BXA3K-1A), converting linear or rotary motion into lever displacement.
- Snap-Action Switching: The BXM4N switch body’s snap-action mechanism converts lever displacement into an instantaneous contact state change (NO→NC or NC→NO), independent of actuation speed.
- Signal Output: SPDT dry contacts (10 A / 600 VAC) interface directly with PLC digital input modules, safety relay modules (e.g., Pilz PNOZ, Schneider Preventa), or DCS I/O cards.
- Explosion Containment: Any internal arc or ignition is contained within the cast aluminum enclosure; flame path geometry is certified to prevent external atmosphere ignition per UL 1203 / CSA C22.2 No. 30.
- Conduit Sealing: EYS/EYD sealing fittings installed within 18 inches of the enclosure entry complete the explosion-proof conduit system per NEC Article 501.
Sourcing & Quality Verification
- Genuine OEM Units: All Honeywell BX Series switches supplied by Konmask.com are sourced through authorized distribution channels with full manufacturer traceability.
- Certification Documentation: UL file number and CSA certificate of compliance available upon request for project QA packages.
- Inspection & Testing: Units are visually inspected and continuity-verified prior to shipment. Batch test reports available for volume orders (≥10 units).
- Counterfeit Risk Mitigation: Holographic manufacturer labels, date codes, and housing casting marks verified against Honeywell authentication guidelines before dispatch.
- Packaging: Shipped in original Honeywell OEM packaging with datasheet and wiring diagram included.
Procurement Process
- Confirm Specification: Verify actuator type (BXA3K-1A roller lever) and switch body (BXM4N, SPDT) match your P&ID and instrument data sheet requirements.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time confirmation, and freight options.
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for net-terms arrangements.
- Shipping: Standard orders ship within 1–3 business days from stock. Express DHL/FedEx available for urgent requirements. Export documentation (CO, packing list, commercial invoice) provided for international shipments.
- After-Sales Support: Technical support available via email for installation, wiring, and commissioning queries. Warranty claims processed directly with Honeywell authorization.
Technical FAQ
Q: Can the BXA3K-1A actuator head be replaced independently without replacing the BXM4N switch body?
A: Yes. The BX Series uses a modular design — actuator heads and switch bodies are interchangeable within the BX platform, allowing field replacement of worn actuator components without disturbing conduit wiring.
Q: Is this switch suitable for SIL 2 safety instrumented functions?
A: The BXM4N switch body has been evaluated for use in SIL 2 applications when installed per Honeywell’s functional safety manual. Contact us for the relevant SIL data package.
Q: What is the maximum conduit size for the NPT entries?
A: Both conduit entries are 3/4–14 NPT. Reducers or enlargers can be used; ensure all fittings are rated for the applicable hazardous location class and group.
Q: Does this unit require a conduit seal fitting?
A: Yes. Per NEC 501.15 and the UL listing requirements, an approved sealing fitting (e.g., Crouse-Hinds EYS or equivalent) must be installed within 18 inches (450 mm) of each conduit entry.
Q: What is the expected mechanical service life?
A: The BXM4N is rated for a minimum of 1,000,000 mechanical operations under rated load conditions. Actual service life in low-frequency position-sensing applications typically exceeds this significantly.
Q: Are spare parts and replacement actuator heads available?
A: Yes. Konmask.com stocks a range of BX Series actuator heads and switch bodies. Contact us with your specific replacement requirements.
