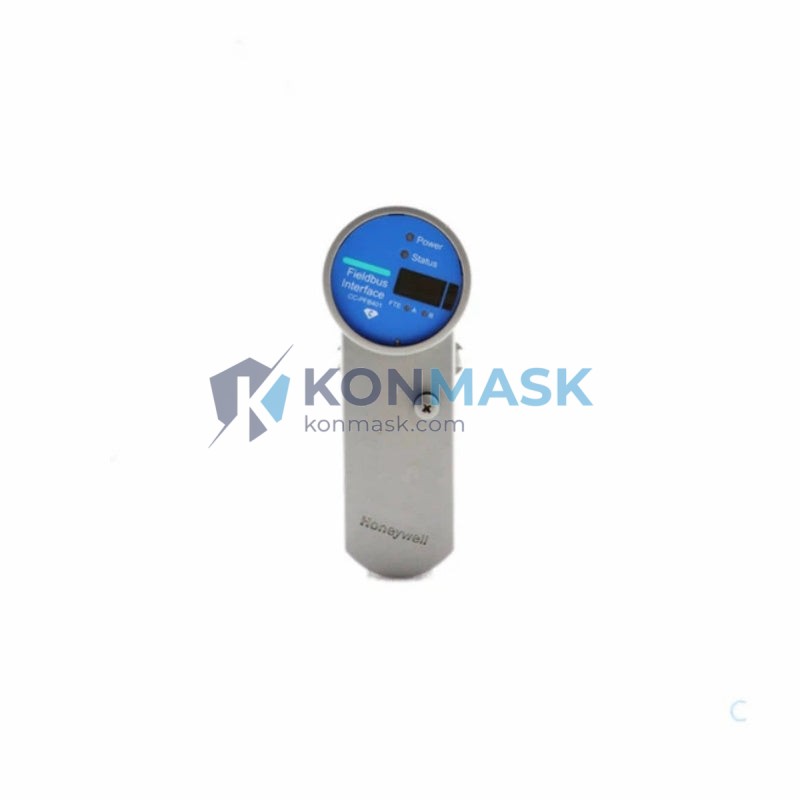

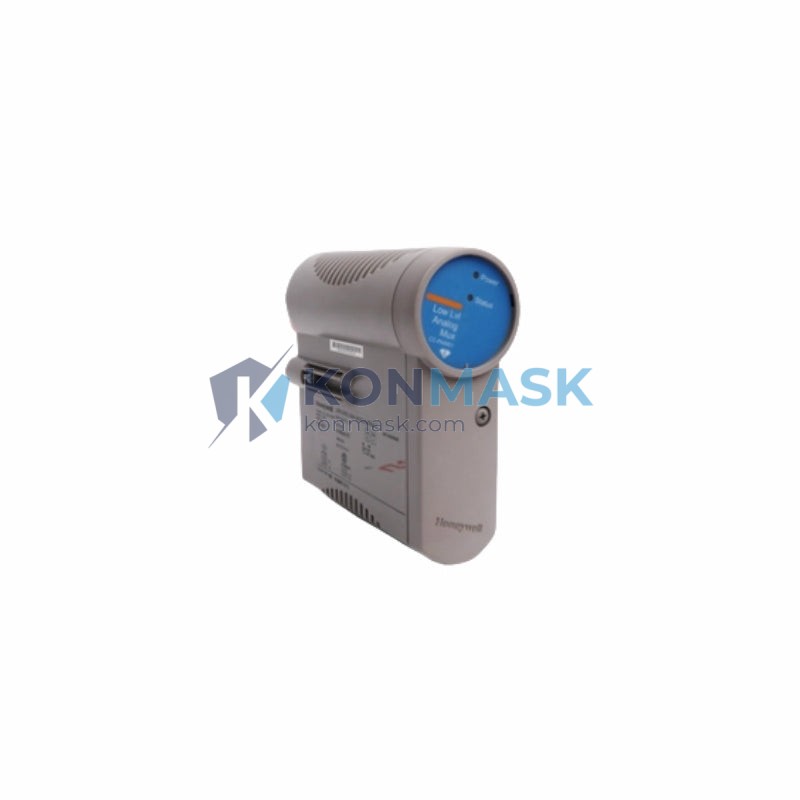

Process Automation I/O Solution – Honeywell CC-PDIL51 | CC-PDOD51 | CC-PAIH51 | CC-PAOH51 | C300 Series
Where This Product Is Used
These Honeywell Experion PKS C300 Series I/O modules are deployed across a wide range of process-critical industries and applications:
- Oil & Gas Refineries – Field I/O for wellhead control, separator monitoring, and pipeline SCADA integration
- Chemical & Petrochemical Plants – Reactor temperature/pressure loop control via CC-PAIH51 analog input and CC-PAOH51 analog output modules
- Power Generation – Turbine control systems, boiler management, and grid synchronization using CC-PDIL51 digital input for status feedback
- Pulp & Paper Mills – Distributed I/O for dryer section control and stock preparation automation
- Pharmaceutical Manufacturing – FDA-compliant batch process control with validated DCS I/O architecture
- Water & Wastewater Treatment – Pump station monitoring, valve control, and SCADA integration via CC-PDOD51 digital output
- Mining & Minerals Processing – Conveyor interlocking, crusher control, and flotation cell automation
Technical Specifications
| Parameter | CC-PDIL51 | CC-PDOD51 | CC-PAIH51 | CC-PAOH51 |
|---|---|---|---|---|
| Module Type | Digital Input | Digital Output | Analog Input | Analog Output |
| Channel Count | 32 DI | 32 DO | 16 AI | 8 AO |
| Signal Range (AI/AO) | — | — | 4–20 mA / 1–5 V | 4–20 mA |
| Input Voltage (DI) | 24 VDC | — | — | — |
| Output Type (DO) | — | 24 VDC Sourcing | — | — |
| Resolution (AI) | — | — | 16-bit | — |
| Resolution (AO) | — | — | — | 16-bit |
| Communication Bus | C300 FTE (Fault Tolerant Ethernet) Backplane | |||
| Isolation | Channel-to-channel and field-to-logic isolation | |||
| Operating Temp. | 0°C to 60°C (32°F to 140°F) | |||
| Humidity | 5% to 95% RH, non-condensing | |||
| Mounting | C300 I/O Link, IOTA carrier required | |||
| Certifications | CE, UL, FM, ATEX (zone 2 with barriers) | |||
| Weight | ~1,060 g per module | |||
Why Engineers Specify This Model
- Native Experion PKS Integration – Plug-and-play compatibility with Honeywell C300 controllers; no third-party gateway required
- Hot-Swap Capability – Modules can be replaced under power without process interruption, minimizing downtime in continuous operations
- Redundancy Support – Supports redundant I/O link configurations for SIL-rated safety loops
- High Channel Density – 32-channel DI/DO and 16-channel AI reduce cabinet footprint and wiring costs
- Proven Field Record – Widely deployed in Tier-1 refineries and chemical complexes globally since the Experion PKS platform launch
- Unified Engineering – All four module types share the same configuration methodology in Honeywell Control Builder, reducing engineering hours
Complete System Bill of Materials
For a fully operational C300 I/O node, the following components are typically required alongside these modules:
- Honeywell C300 Controller (CC-PCF901 or CC-PCF902 redundant pair)
- IOTA Carrier / Termination Assembly (model varies by module type)
- C300 I/O Link Cable (CC-TAIX11 or equivalent)
- Experion PKS Server (ESVT or ESVS series)
- FTE Network Switch (Cisco IE series recommended)
- 24 VDC Power Supply (field-side and logic-side)
- Marshalling Cabinet / DIN Rail Assembly
Compliance & Industry Standards
- IEC 61131-2 – Programmable controllers: equipment requirements and tests
- IEC 61508 / IEC 61511 – Functional safety, applicable to SIL-rated loop configurations
- NAMUR NE 43 – Standardized signal levels for analog process transmitters
- CE Marking – EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL 508 – Industrial control equipment listing
- FM Approved – Hazardous location use with appropriate barriers
- RoHS Compliant – Restriction of Hazardous Substances Directive
Quality Assurance & Sourcing
Konmask.com sources Honeywell Experion PKS I/O modules through verified industrial supply channels. Every unit offered undergoes the following before dispatch:
- Visual inspection for physical damage, corrosion, and label integrity
- Firmware version verification against Honeywell compatibility matrices
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards for long-distance shipping
- Traceability documentation available upon request
How to Source This Part
To place an order or request a quotation for CC-PDIL51, CC-PDOD51, CC-PAIH51, or CC-PAOH51:
- Online: Add to cart directly on this page and proceed to checkout
- Email RFQ: Send your BOM or part list to support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed within 24 hours
- Export: We ship worldwide with DHL, FedEx, and UPS express options; export documentation provided
Application-Specific FAQ
Q: Can CC-PDIL51 and CC-PDOD51 be used in the same I/O chassis?
A: Yes. C300 I/O chassis support mixed module types. Each module occupies one slot and is independently addressed on the I/O Link.
Q: Is CC-PAIH51 compatible with HART field devices?
A: The CC-PAIH51 supports 4–20 mA HART pass-through when used with the appropriate IOTA and Experion HART multiplexer configuration.
Q: What is the difference between CC-PAIH51 and CC-PAOH51?
A: CC-PAIH51 is a 16-channel analog input module (field signals → controller); CC-PAOH51 is an 8-channel analog output module (controller → field actuators such as control valves and variable speed drives).
Q: Do these modules support redundant I/O link configurations?
A: Yes. When paired with a redundant C300 controller pair and dual I/O link cabling, these modules support bumpless switchover for high-availability process loops.
Q: Can I use these modules as spare parts for an existing Experion R500 system?
A: Yes, provided firmware compatibility is confirmed. Konmask can advise on firmware revision matching for your specific Experion release.
