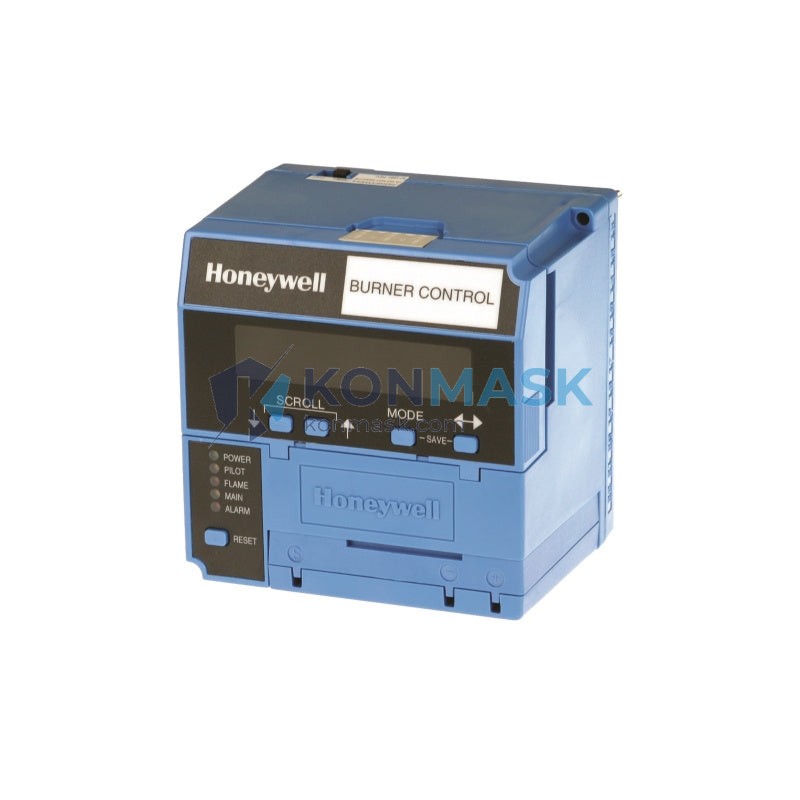

Honeywell EC7850A1072 – Burner Programming Control | EC7850 Flame Safety Series
Engineering Background: The Honeywell EC7850A1072 is a microprocessor-based programming control designed for industrial and commercial burner management systems. It belongs to Honeywell’s EC7850 series — a proven platform widely deployed in process heating, boiler management, and combustion control applications where reliable flame supervision and sequenced burner startup are mission-critical requirements.
Product Positioning: Engineered for procurement engineers and OEM integrators who require a drop-in, specification-compliant flame safety controller with documented safety logic, deterministic startup sequencing, and robust field serviceability. The EC7850A1072 is the preferred choice for facilities requiring compliance with NFPA 85, EN 298, and equivalent combustion safety standards.
Complete Technical Specifications
- Part Number / SKU: EC7850A1072
- Manufacturer: Honeywell (Resideo / Honeywell Process Solutions)
- Series / Platform: EC7850 Burner Programming Control Series
- Function: Microprocessor-based burner sequencing and flame safety programming control
- Flame Detector Compatibility: UV scanner, infrared (IR) detector, and rectification flame rod (model-dependent)
- Supply Voltage: 120 VAC, 60 Hz (verify nameplate for variant-specific ratings)
- Output Contacts: Pilot valve, main fuel valve, ignition transformer, alarm relay
- Safety Shutdown: Automatic lockout on flame failure, ignition failure, or sensor fault
- Startup Sequence: Pre-purge → Pilot trial for ignition (PTFI) → Main flame establishment → Run → Post-purge
- Enclosure / Form Factor: DIN-rail or panel-mount chassis (refer to installation drawing)
- Weight: 300 g (approx.)
- Country of Origin: USA / Honeywell certified manufacturing facility
- Compliance: UL Listed; CE Marked; NFPA 85 compatible
Proven Application Environments
- Industrial process burners and direct-fired air heaters
- Commercial and industrial boiler management systems
- Thermal oxidizers and regenerative thermal oxidizers (RTOs)
- Kiln and furnace combustion control panels
- OEM burner skid assemblies requiring certified flame safety logic
- Retrofit and upgrade projects replacing legacy Honeywell RM7800 / EC7800 series controls
Engineering Advantages
- Deterministic Safety Logic: Microprocessor-controlled sequencing eliminates timing drift inherent in electromechanical relays
- Self-Diagnostics: Continuous internal watchdog monitoring with fault code annunciation for rapid field diagnosis
- Lockout Memory: Non-volatile fault history retention supports root-cause analysis without external data logger
- Modular Architecture: Compatible with Honeywell S7800A1142 keyboard display module for on-site parameter review
- Proven Field Reliability: EC7850 platform has accumulated millions of operating hours across global combustion installations
- Reduced Commissioning Time: Pre-configured timing sequences reduce field calibration effort versus discrete relay-based panels
System Architecture & Signal Flow
The EC7850A1072 operates as the master sequencer within a burner management system (BMS). On a call for heat, the control initiates a pre-purge period to clear combustible gases from the combustion chamber. Following purge completion, the ignition transformer and pilot valve are energized simultaneously. The UV/IR flame detector monitors for pilot flame establishment within the PTFI window. Upon confirmed pilot flame, the main fuel valve opens and the ignition source de-energizes. The control continuously monitors the flame signal throughout the run cycle. Any loss of flame signal or internal fault triggers immediate safety shutdown and lockout, requiring manual reset after fault investigation.
Signal path: Thermostat/Controller Call → Pre-purge → PTFI → Pilot Flame Proven → Main Valve Open → Run Monitoring → Normal Shutdown or Safety Lockout
Sourcing & Quality Verification
- Source: Konmask.com sources EC7850A1072 units from authorized Honeywell distributors and verified OEM surplus channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment check
- Authenticity: Honeywell holographic labels and date codes verified against manufacturer records where applicable
- Condition: New-in-box (NIB) or factory-refurbished units clearly identified at time of quotation
- Documentation: Datasheet, wiring diagram, and installation manual available upon request
Procurement Process
- Confirm Part Number: Verify EC7850A1072 against your BOM or existing panel drawing — cross-reference with Honeywell product selector if substitution is considered
- Request Quote: Contact Konmask.com via the form below or email support@konmask.com with quantity and required delivery date
- Lead Time: In-stock units ship within 1–3 business days; special orders quoted within 24 hours
- Shipping: DHL Express / FedEx International Priority available; export documentation provided for cross-border shipments
- Payment: T/T bank transfer, PayPal, and major credit cards accepted
Technical FAQ
Q: Is the EC7850A1072 a direct replacement for the EC7850A1064?
A: The EC7850A suffix designates specific timing and configuration variants. Confirm the suffix matches your original panel specification before substitution. Contact our technical team for cross-reference assistance.
Q: Can this control work with both UV and flame rod detectors?
A: Detector compatibility is suffix-specific. The EC7850A1072 configuration should be verified against the Honeywell EC7850 product bulletin for approved detector types.
Q: What is the warranty on this unit?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options available — contact us for details.
Q: Do you provide installation support?
A: Yes. Our engineering team can provide wiring diagrams, application notes, and remote commissioning guidance for qualified installers.
