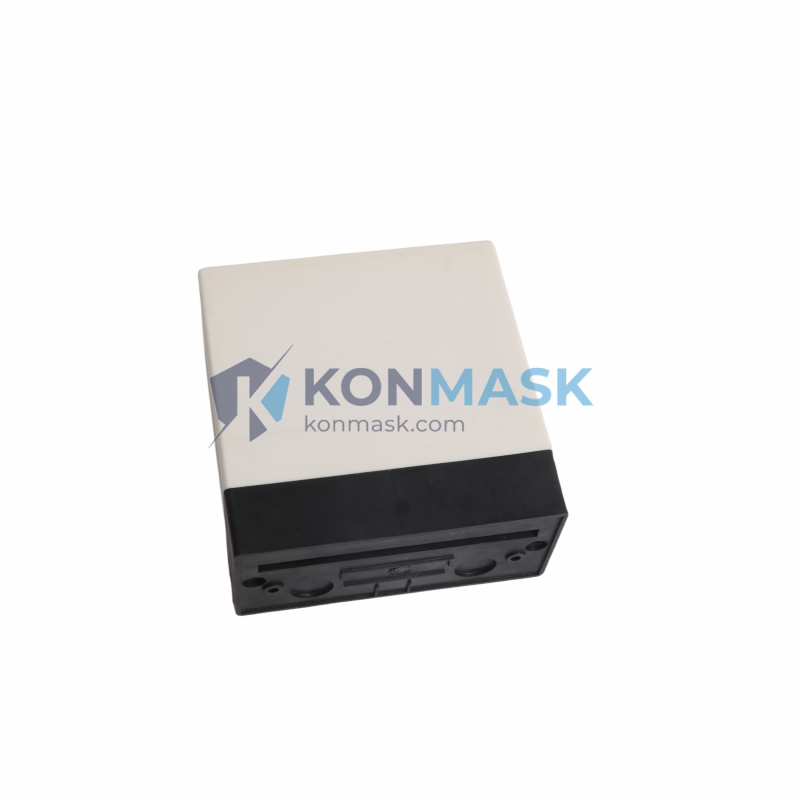

Honeywell FC1000B1001 – Programmable Combustion Controller | FC1000 Burner Management Platform
Engineering Background
The Honeywell FC1000B1001 is a microprocessor-based combustion controller engineered for industrial burner management applications. Designed within Honeywell’s FC1000 platform, this unit delivers precise flame supervision, ignition sequencing, and safety interlock management in compliance with international combustion safety standards. It is purpose-built for process industries where reliable, repeatable burner operation is non-negotiable.
Product Positioning
The FC1000B1001 targets procurement engineers and plant automation teams seeking a certified, drop-in burner management solution for boilers, furnaces, kilns, and thermal oxidizers. As an authorized distributor, Konmask.com supplies this unit with full traceability documentation, making it the preferred sourcing channel for MRO and capital project procurement.
Complete Technical Specifications
- Part Number: FC1000B1001
- Manufacturer: Honeywell Process Solutions
- Series / Platform: FC1000 Burner Management System
- Function: Programmable Combustion / Burner Management Controller
- Flame Detection: Compatible with UV, IR, and rectification flame detectors
- Ignition Sequencing: Configurable pre-purge, trial-for-ignition (TFI), and post-purge timers
- Safety Interlock: Hardwired safety loop with manual lockout reset
- Power Supply: 100–240 V AC, 50/60 Hz (verify with datasheet for exact variant)
- Operating Temperature: 0°C to +60°C
- Enclosure / Mounting: Panel-mount DIN rail compatible
- Communication: Refer to Honeywell FC1000 series documentation for fieldbus options
- Certifications: UL, CE (verify current listing with Honeywell datasheet)
- Weight: 420 g (unit only, excluding packaging)
- Country of Origin: Refer to product label / CoO documentation on request
Proven Application Environments
- Industrial boilers and steam generators
- Process furnaces and kilns (ceramics, glass, metals)
- Thermal oxidizers and regenerative thermal oxidizers (RTO)
- Dryers and ovens in food, chemical, and pharmaceutical plants
- Burner retrofit and upgrade projects replacing legacy flame safeguard controls
- OEM burner skid integration for packaged combustion systems
Engineering Advantages
- Certified Safety Architecture: Meets IEC 61511 / NFPA 85 burner management requirements for safe ignition and flame supervision sequences.
- Configurable Timing Parameters: Pre-purge, TFI, and post-purge durations are field-adjustable to match specific burner and process requirements.
- Multi-Detector Compatibility: Accepts UV, IR, and rectification flame signals, reducing the need for separate signal conditioners.
- Compact Panel-Mount Form Factor: DIN rail mounting simplifies integration into existing control panels with minimal footprint.
- Honeywell FC1000 Ecosystem: Seamless compatibility with Honeywell flame detectors, gas valves, and supervisory systems within the FC1000 platform.
- Manual Lockout Reset: Hardwired lockout with manual reset enforces safe restart procedures and supports plant safety audits.
System Architecture & Signal Flow
The FC1000B1001 operates as the central safety and sequencing node in a burner management loop. On power-up, the controller executes a self-diagnostic check before initiating the pre-purge cycle. Upon satisfactory airflow and interlock confirmation, the ignition transformer is energized and the fuel valve opens for the trial-for-ignition period. The flame detector signal is continuously monitored; confirmed flame presence transitions the controller to the run state. Any flame failure, interlock trip, or manual shutdown triggers immediate fuel valve closure and lockout, requiring a deliberate manual reset before restart. This deterministic sequence ensures compliance with combustion safety standards and provides a clear audit trail for plant safety management systems.
Sourcing & Quality Verification
- Source: Authorized distribution channel — genuine Honeywell OEM product
- Traceability: Full lot traceability and manufacturer documentation available on request
- Inspection: Each unit undergoes incoming inspection prior to dispatch
- Packaging: Ships in original or equivalent ESD-safe protective packaging
- Warranty: Covered under Konmask.com standard warranty policy; manufacturer warranty terms apply
- Counterfeit Prevention: Sourced exclusively through verified supply chains; certificates of conformance available for critical applications
Procurement Process
- Confirm Part Number: Verify FC1000B1001 against your BOM or existing installation nameplate.
- Request Quote: Contact support@konmask.com with quantity, delivery timeline, and any documentation requirements (CoC, CoO, datasheet).
- Order Placement: Purchase directly via this product page or submit a PO to our sales team.
- Lead Time: In-stock units ship within 1–3 business days; lead time for bulk orders confirmed at quotation.
- Shipping: Worldwide DHL / FedEx / UPS express available; export documentation provided for cross-border shipments.
- After-Sales Support: Technical support available via email and phone for installation and commissioning queries.
Technical FAQ
Q: Is the FC1000B1001 a direct replacement for older Honeywell flame safeguard controllers?
A: The FC1000B1001 is designed within the FC1000 platform and may serve as an upgrade path for legacy Honeywell burner controls. Wiring compatibility should be verified against the existing installation drawings and the FC1000 installation manual before replacement.
Q: Can the pre-purge and TFI timers be adjusted in the field?
A: Yes. The FC1000B1001 provides configurable timing parameters accessible via the front-panel interface or configuration tool. Refer to the Honeywell FC1000 programming guide for detailed procedures.
Q: What flame detector types are compatible?
A: The FC1000B1001 is compatible with UV, IR, and rectification-type flame detectors. Confirm the specific detector model compatibility with the Honeywell FC1000 compatibility matrix.
Q: Is a certificate of conformance (CoC) available?
A: Yes. CoC and country-of-origin documentation are available upon request for quality-critical procurement. Contact support@konmask.com.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 5 units or more — contact our sales team for a tiered quote.
