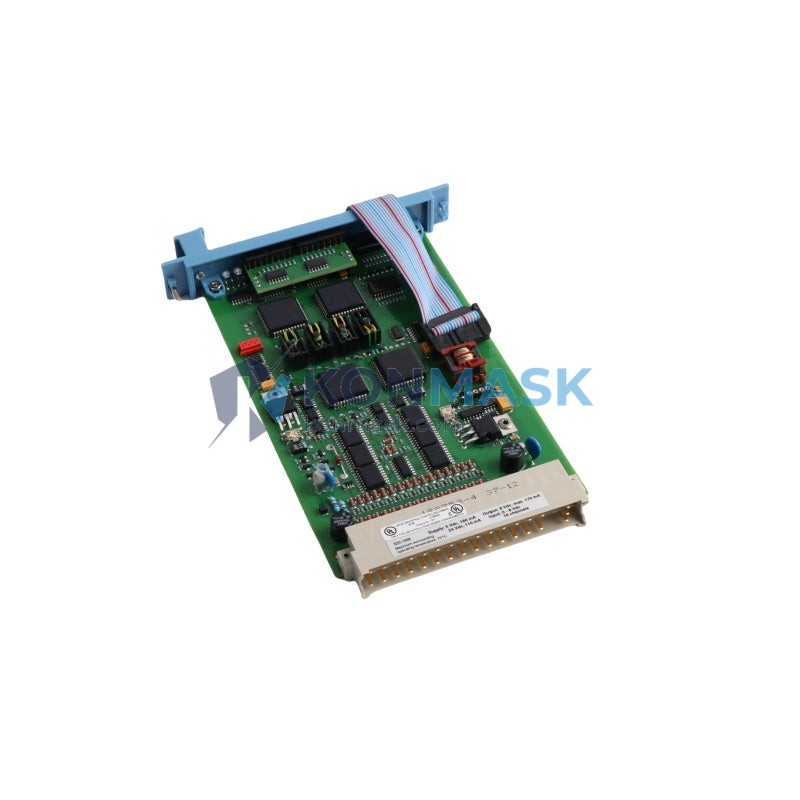

Honeywell FS-SDOL-0424 – 4-Channel Safety Digital Output Module | Safety Manager SC Platform
Engineering Background
The Honeywell Safety Manager SC (formerly FSC) platform is a proven IEC 61508-certified safety instrumented system (SIS) deployed across oil & gas, petrochemical, power generation, and critical infrastructure worldwide. The FS-SDOL-0424 is a dedicated Safety Digital Output (SDO) module engineered to interface the Safety Manager SC controller with field actuators—solenoid valves, motor starters, and shutdown devices—under the most demanding functional safety requirements.
Product Positioning
Designed for procurement engineers specifying SIL 2-capable output channels in safety loops, the FS-SDOL-0424 delivers four independent 24 VDC solid-state output channels with integrated diagnostics, short-circuit protection, and line-fault detection. It is the preferred replacement and expansion module for existing Safety Manager SC cabinets requiring certified digital output capacity without architectural redesign.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | FS-SDOL-0424 |
| Module Type | Safety Digital Output (SDO) |
| Platform Compatibility | Honeywell Safety Manager SC (FSC) |
| Number of Output Channels | 4 channels |
| Output Voltage | 24 VDC |
| Output Current per Channel | Up to 0.5 A (solid-state) |
| Output Type | Solid-state (transistor), sourcing |
| Safety Integrity Level | SIL 2 (IEC 61508) |
| Diagnostic Coverage | Short-circuit, open-load, line-fault detection |
| Isolation | Galvanic isolation between field and logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Power Consumption | Supplied via Safety Manager SC backplane |
| Mounting | DIN-rail / Safety Manager SC chassis slot |
| Weight | Approx. 500 g |
| Certifications | IEC 61508 SIL 2, CE |
| Country of Origin | USA / EU (Honeywell manufacturing) |
Proven Application Environments
- Oil & Gas: Emergency Shutdown (ESD) systems, wellhead control panels, pipeline isolation valve actuation
- Petrochemical & Refining: Burner Management Systems (BMS), high-integrity pressure protection (HIPPS) output stages
- Power Generation: Turbine trip output, boiler safety interlock actuation
- Chemical Processing: Reactor shutdown valve control, toxic gas release prevention loops
- LNG & Terminals: Loading arm ESD, fire & gas system output actuation
- Water & Utilities: Critical pump trip, valve isolation in water treatment SIS
Engineering Advantages
- SIL 2 Certified Output: Meets IEC 61508 requirements for use in SIL 2 safety loops without additional external components
- Integrated Diagnostics: Continuous self-test detects short-circuit and open-load faults, reducing proof-test intervals and maintenance burden
- Galvanic Isolation: Protects controller logic from field-side transients and ground loops common in industrial environments
- Hot-Swap Capable: Supports module replacement under power within the Safety Manager SC chassis, minimizing process downtime
- Compact 4-Channel Density: Optimizes cabinet space in brownfield expansions and new SIS panel builds
- Long-Term Availability: Honeywell-supported lifecycle with documented obsolescence roadmap for long-term plant asset management
System Architecture & Signal Flow
The FS-SDOL-0424 occupies a standard I/O slot in the Safety Manager SC chassis. The controller CPU communicates with the module via the proprietary safety backplane bus. On receipt of a de-energize-to-trip (DTT) or energize-to-trip (ETT) command, the module drives the corresponding solid-state output channel. Integrated diagnostics continuously monitor each channel for open-load and short-circuit conditions, reporting fault status back to the CPU for annunciation and SIL verification. Field wiring connects via the module’s front-face terminal block, supporting both single-ended and loop-powered actuator configurations.
Signal Flow: Safety Manager SC CPU → Backplane Bus → FS-SDOL-0424 Logic → Solid-State Output Driver → Field Terminal → Solenoid Valve / Actuator
Sourcing & Quality Verification
- All units sourced from authorized Honeywell distribution channels or verified surplus with full traceability documentation
- Each module inspected for physical integrity, label authenticity, and firmware revision prior to dispatch
- Serialized units available with original Honeywell packaging and documentation upon request
- Certificate of Conformance (CoC) and test records available for critical SIS applications
- Konmask.com maintains a quality management process aligned with industrial B2B procurement standards
Procurement Process
- Confirm Compatibility: Verify your Safety Manager SC chassis revision and firmware version against Honeywell’s compatibility matrix
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and availability
- Submit PO: Purchase orders accepted via email; proforma invoice issued within 1 business day
- Shipping: DHL / FedEx express worldwide; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: Technical assistance available for installation, commissioning, and warranty claims
Technical FAQ
Q: Is the FS-SDOL-0424 compatible with the legacy Honeywell FSC platform?
A: The FS-SDOL-0424 is designed for the Safety Manager SC platform. Compatibility with legacy FSC hardware depends on chassis revision—contact our technical team to confirm before ordering.
Q: Can this module be used in SIL 3 applications?
A: The FS-SDOL-0424 is rated SIL 2. SIL 3 applications require redundant output architectures (e.g., 1oo2 voting)—consult your functional safety engineer for the appropriate configuration.
Q: What is the proof-test interval for this module?
A: Refer to Honeywell’s Safety Manual for the FS-SDOL-0424 for the recommended proof-test interval based on your target PFD and SIL verification calculations.
Q: Do you provide the Honeywell Safety Manual and SIL data sheet?
A: Yes. Documentation packages including the Safety Manual, SIL data sheet, and installation guide are available upon request with your order.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact us for current availability and expedited shipping options.
