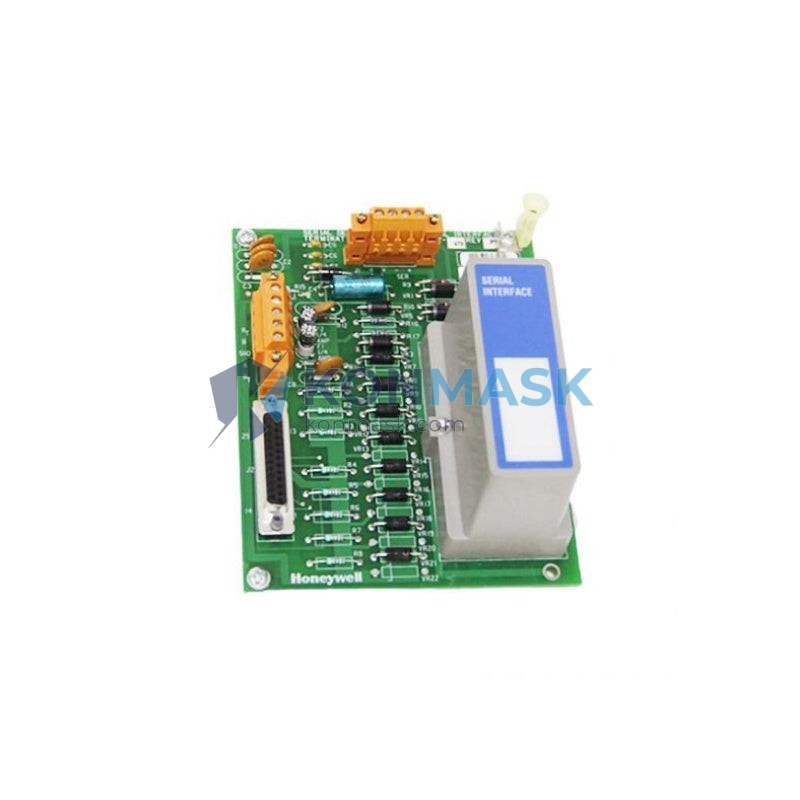

Honeywell FS-TSDI-16115 Safe Digital Input Field Termination Assembly | Replacement, Equivalent & Selection Guide
The Honeywell FS-TSDI-16115 is a Safe Digital Input Field Termination Assembly designed for use within Honeywell’s Safety Manager (FSC) safety instrumented systems. It provides reliable, SIL-rated digital input signal termination for process safety applications in oil & gas, petrochemical, and power generation industries. This page serves as a comprehensive selection, replacement, and sourcing reference for engineers and procurement teams.
Technical Specifications
- Part Number: FS-TSDI-16115
- Manufacturer: Honeywell Process Solutions
- Series: FSC / Safety Manager
- Module Type: Safe Digital Input Field Termination Assembly
- Input Channels: 16 digital input channels
- Safety Integrity Level: SIL 2 / SIL 3 capable (per IEC 61508)
- Signal Type: Discrete / Digital (DI)
- Termination Style: Field wiring termination panel
- Compatibility: Honeywell FSC Safety Manager system
- Mounting: DIN rail / rack-mount (FSC chassis)
- Operating Temperature: 0°C to +60°C
- Weight: Approx. 800 g
- Certifications: TÜV, IEC 61508, ATEX (consult datasheet)
Compatible Replacement & Equivalent Models
When the FS-TSDI-16115 is unavailable or end-of-life, the following models may serve as functional equivalents or replacements depending on your system configuration. Always verify compatibility with your FSC system revision before substitution.
- FS-TSDI-16110 – Earlier revision of the same SDI termination assembly; verify firmware compatibility
- FS-TSDI-16120 – Higher-channel-count variant; may require chassis slot reconfiguration
- FS-TSAI-16115 – Safe Analog Input FTA; different signal type, not a direct replacement but used in mixed I/O panels
- Triconex 3703E (Schneider Electric) – Third-party SIL-rated digital input module; requires engineering assessment for cross-brand migration
- HIMA F3DI 16/8 01 – HIMA SIL 3 digital input module; alternative for greenfield projects
Note: Cross-brand replacements require full HAZOP/SIL verification. Contact our technical team for migration support.
Why Choose the Original FS-TSDI-16115
- Certified Safety Performance: Factory-validated SIL 2/3 rating with full TÜV certification documentation
- Seamless FSC Integration: Plug-and-play compatibility with Honeywell Safety Manager — no re-engineering required
- Proven Field Reliability: Deployed in thousands of safety-critical installations worldwide across oil & gas and chemical sectors
- Regulatory Compliance: Meets IEC 61508, IEC 61511, and OSHA PSM requirements out of the box
- Long-Term Support: Backed by Honeywell’s global service network and spare parts availability
Typical Applications
- Emergency Shutdown Systems (ESD) in oil & gas platforms and refineries
- Burner Management Systems (BMS) in power plants and boiler facilities
- Fire & Gas detection system I/O termination
- High-integrity pressure protection systems (HIPPS)
- Process safety interlocks in petrochemical and LNG facilities
- Turbine and compressor protection systems
System Compatibility
The FS-TSDI-16115 is designed exclusively for the Honeywell FSC (Fail-Safe Controller) / Safety Manager platform. Confirm the following before ordering:
- FSC chassis generation (SM, SM-SC, or legacy FSC)
- System firmware version (consult Honeywell release notes for FTA compatibility matrix)
- Slot assignment and I/O module pairing (FS-SDI series processor module required)
- Cabinet wiring standard (IEC or ANSI terminal labeling)
Selection Guide
Use the table below to select the correct FTA for your Honeywell FSC digital input requirements:
- 16-channel SDI, standard voltage, SIL 2/3 → FS-TSDI-16115 ✓ (this model)
- 16-channel SDI, NAMUR sensor input → FS-TSDI-16115N (NAMUR variant)
- 8-channel SDI, high-density → FS-TSDI-08115
- 32-channel SDI, multiplexed → FS-TSDI-32115 (where available)
- Safe Analog Input (4–20 mA) → FS-TSAI series
- Safe Digital Output → FS-TSDO series
Not sure which model fits your system? Send us your FSC I/O list and we’ll confirm the correct part number.
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified surplus channels
- Inspection: Every unit inspected for physical integrity, label authenticity, and firmware revision before shipment
- Traceability: Serial number and batch documentation available on request
- Warranty: 12-month warranty against manufacturing defects
- Counterfeit Prevention: All units sourced from traceable supply chains; certificates of conformance available
How to Order
- Part Number: FS-TSDI-16115
- Manufacturer: Honeywell
- Lead Time: In-stock units ship within 3–5 business days; ex-stock subject to availability
- MOQ: 1 unit
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS worldwide express; sea freight available for bulk orders
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use FS-TSDI-16115 to replace an older FS-TSDI-16110?
A: In most cases yes, but verify the FSC firmware version supports the newer FTA revision. Honeywell’s compatibility matrix (available from your local Honeywell office) should be consulted.
Q: Is FS-TSDI-16115 compatible with the Honeywell Safety Manager SC?
A: Yes, the FS-TSDI-16115 is compatible with Safety Manager SC platforms. Confirm slot and wiring configuration with your system integrator.
Q: Can this FTA be used in a non-Honeywell safety system?
A: No. This module is proprietary to the Honeywell FSC/Safety Manager architecture and cannot be used as a standalone or cross-platform component.
Q: Do you supply the matching SDI processor module?
A: Yes. We stock a range of Honeywell FSC I/O processor and FTA modules. Contact us with your full BOM for a complete quote.
Q: What is the difference between FS-TSDI and FS-TSAI?
A: FS-TSDI handles discrete/digital inputs (on/off signals), while FS-TSAI handles analog inputs (4–20 mA, thermocouple, RTD). They are not interchangeable.
