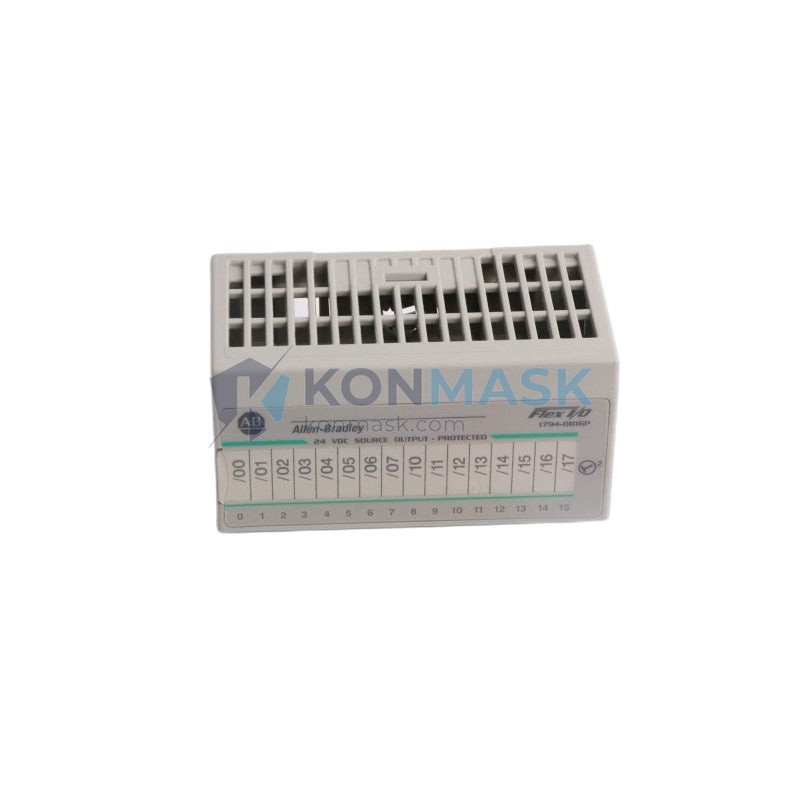

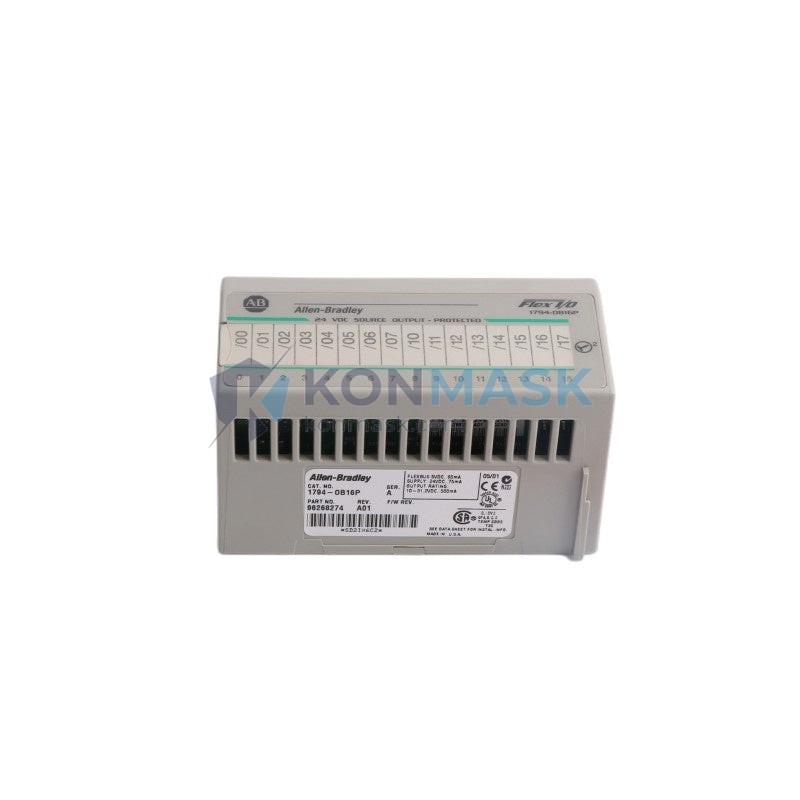

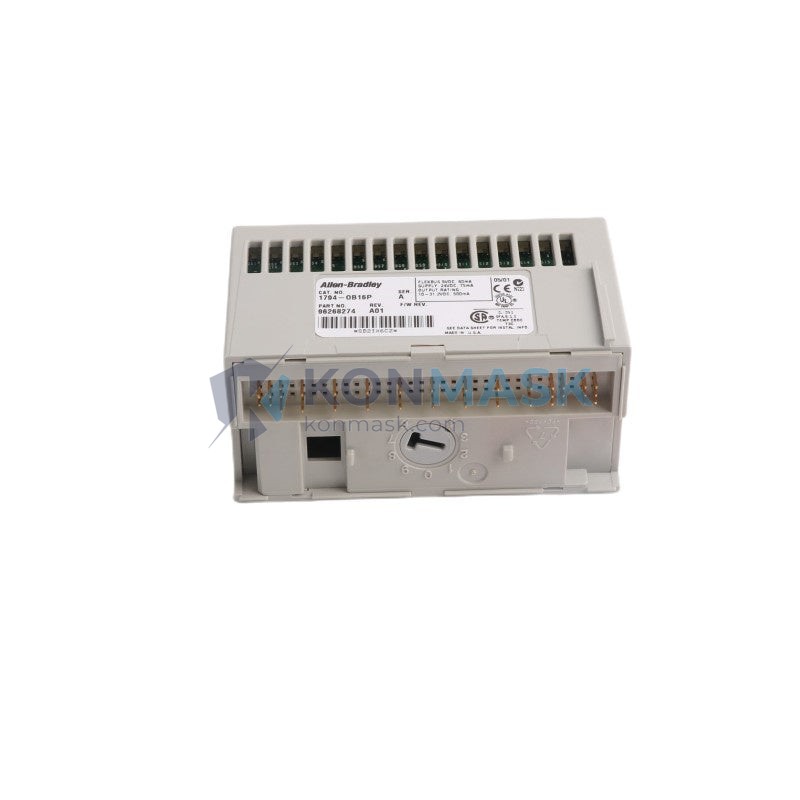

Allen-Bradley 1794-OB16P Digital Output Module – FLEX I/O Series
When a digital output module fails on the production floor, the consequences are immediate and severe: actuators freeze, conveyor lines halt, robotic arms lock in place, and safety interlocks may trip the entire cell. Every minute of unplanned downtime in a discrete manufacturing environment can cost thousands of dollars in lost throughput. The Allen-Bradley 1794-OB16P is the precision component that stands between your process and that scenario — a field-proven, 16-point sourcing digital output module engineered for the demands of continuous industrial operation.
Within the Allen-Bradley FLEX I/O platform — Rockwell Automation’s modular, DIN-rail-mounted I/O architecture designed for distributed control — the 1794-OB16P occupies a critical role as the standard 24 VDC sourcing output module. Its 16 individually protected output points, compact form factor, and compatibility with the full range of 1794 adapter modules make it one of the most widely deployed output modules in North American and global discrete manufacturing. From automotive body shops to food and beverage packaging lines, the 1794-OB16P is a cornerstone of Allen-Bradley FLEX I/O installations worldwide.
Technical Specifications
- Catalog Number: 1794-OB16P
- Series: Allen-Bradley FLEX I/O
- Output Type: Sourcing (PNP), 24 VDC
- Number of Output Points: 16
- Output Voltage Range: 10–31.2 VDC
- Output Current per Point: 0.5 A (max)
- Total Module Current: 4 A (max, all outputs on)
- Output Protection: Electronic short-circuit and overload protection per point
- Backplane Current (5 VDC): 30 mA
- Backplane Current (24 VDC): 85 mA (no load)
- Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5–95% (non-condensing)
- Enclosure Rating: Open-style (requires enclosure)
- Mounting: DIN rail (35 mm)
- Dimensions (H × W × D): 94 mm × 23 mm × 87 mm (approx.)
- Weight: Approx. 80 g
- Certifications: UL, CE, CSA (verify current listing with Rockwell)
Key Features & Benefits
- 16 Protected Sourcing Outputs: Each point features individual electronic short-circuit protection, eliminating the need for external fusing per channel and reducing panel wiring complexity.
- Hot-Swap Capable: FLEX I/O modules can be removed and replaced under power (with appropriate adapter configuration), minimizing maintenance downtime.
- Compact DIN-Rail Form Factor: At only 23 mm wide, the 1794-OB16P delivers high channel density in a minimal footprint — ideal for space-constrained control panels.
- Diagnostic Feedback: Module-level and point-level fault diagnostics are reported back to the controller via the FLEX I/O adapter, enabling rapid fault isolation.
- Wide Operating Voltage Range: Accepts 10–31.2 VDC field supply, providing tolerance for voltage fluctuations common in industrial environments.
- Seamless ControlLogix / CompactLogix Integration: Fully supported in Rockwell Studio 5000 Logix Designer with pre-built Add-On Profiles (AOPs) for rapid commissioning.
- Global Certifications: UL, CE, and CSA listings support deployment in North American, European, and international facilities.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding lines, paint shop conveyors, assembly robot end-of-arm tooling control
- Food & Beverage: Packaging line solenoid valve control, conveyor routing, filling machine actuator outputs
- Pharmaceutical: Cleanroom HVAC damper control, batch process valve sequencing
- Material Handling: Sortation system diverter control, pallet conveyor zone outputs
- Water & Wastewater: Pump start/stop control, valve actuation in distributed remote I/O panels
- Machine Tool: CNC auxiliary output control, coolant pump and spindle relay outputs
- Oil & Gas: Wellhead control panel digital outputs, pipeline valve actuation (non-hazardous areas)
System Integration & Compatible Parts
The 1794-OB16P is designed to operate within the Allen-Bradley FLEX I/O ecosystem. Key compatible components include:
- Adapters: 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-APB (PROFIBUS DP), 1794-ACN15 (ControlNet)
- Power Supplies: 1794-PS13, 1794-PS3 (FLEX I/O power supplies)
- Terminal Bases: 1794-TB3, 1794-TB3S, 1794-TB32 (wiring bases for 1794-OB16P)
- Controllers: ControlLogix (1756), CompactLogix (1769), SoftLogix 5800
- Complementary I/O: 1794-IB16 (16-point digital input), 1794-OW8 (relay output), 1794-IE8 (analog input)
Always verify adapter firmware compatibility and terminal base selection with the current Rockwell Automation product compatibility matrix before ordering.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 1794-OB16P unit we supply undergoes a structured verification process before shipment:
- Authenticity Verification: Visual inspection of Rockwell Automation labeling, date codes, and holographic security features to screen for counterfeit product.
- Physical Inspection: Examination of connector pins, housing integrity, and PCB condition for any signs of damage, rework, or prior installation wear.
- Documentation: Each unit is accompanied by traceable sourcing documentation. Certificates of conformance available upon request.
- Packaging: Shipped in ESD-safe packaging with appropriate cushioning to prevent transit damage.
- Warranty: Contact us for current warranty terms applicable to your order.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond with availability confirmation, lead time, and a formal quotation within 1 business day.
- Upon PO acceptance, we arrange shipment with your preferred carrier or our standard logistics partner.
- Tracking information and shipping documents (commercial invoice, packing list) are provided upon dispatch.
For urgent requirements or large-volume orders, please call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Specialized in Industrial Automation: We focus exclusively on PLC, DCS, and automation hardware — not a generalist distributor. Our team speaks the language of control systems engineers.
- Global Sourcing Network: Access to both new and surplus Allen-Bradley inventory through vetted supply channels, enabling competitive pricing and short lead times.
- B2B-First Service Model: Structured for OEMs, system integrators, MRO buyers, and plant maintenance teams — with volume pricing, consolidated shipping, and dedicated account support.
- Transparent Documentation: Full traceability documentation available. We do not ship product we cannot document.
- Responsive Technical Support: Pre-sales technical consultation available to confirm compatibility before you commit to a purchase order.
Frequently Asked Questions
Q: What is the difference between the 1794-OB16P and the 1794-OB16?
A: The 1794-OB16P includes individual electronic short-circuit protection (“P” suffix = Protected) on each of its 16 output points. The 1794-OB16 does not include per-point protection. For most modern installations, the 1794-OB16P is the preferred choice due to its enhanced diagnostic and protection capabilities.
Q: Is the 1794-OB16P compatible with ControlLogix and CompactLogix controllers?
A: Yes. When paired with an appropriate FLEX I/O adapter (e.g., 1794-AENT for EtherNet/IP), the 1794-OB16P is fully compatible with ControlLogix (1756) and CompactLogix (1769) controller families via Rockwell Studio 5000 Logix Designer.
Q: Can the 1794-OB16P be replaced while the system is powered (hot-swap)?
A: Hot-swap capability depends on the adapter module configuration and system design. Consult the 1794-OB16P installation instructions (Rockwell publication 1794-IN006) and your adapter’s user manual before attempting live replacement.
Q: What terminal base is required for the 1794-OB16P?
A: The 1794-OB16P requires a compatible 1794 terminal base. Common options include the 1794-TB3, 1794-TB3S, and 1794-TB32. Terminal base selection depends on your wiring method (screw terminal vs. spring clamp) and field wiring requirements.
Q: Do you supply new or surplus units?
A: We supply both new (factory-sealed) and tested surplus units depending on availability. All units are clearly identified by condition in our quotation. Contact us to specify your preference.
Q: What is the lead time for the 1794-OB16P?
A: Lead time varies by current stock levels and sourcing channel. Submit an RFQ and we will confirm availability and lead time within 1 business day.
