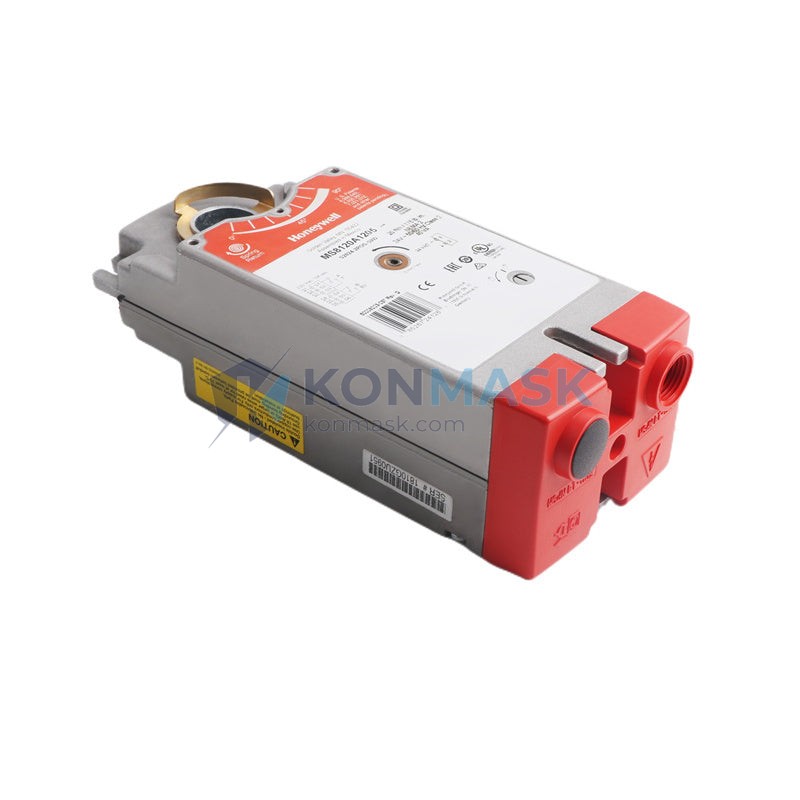

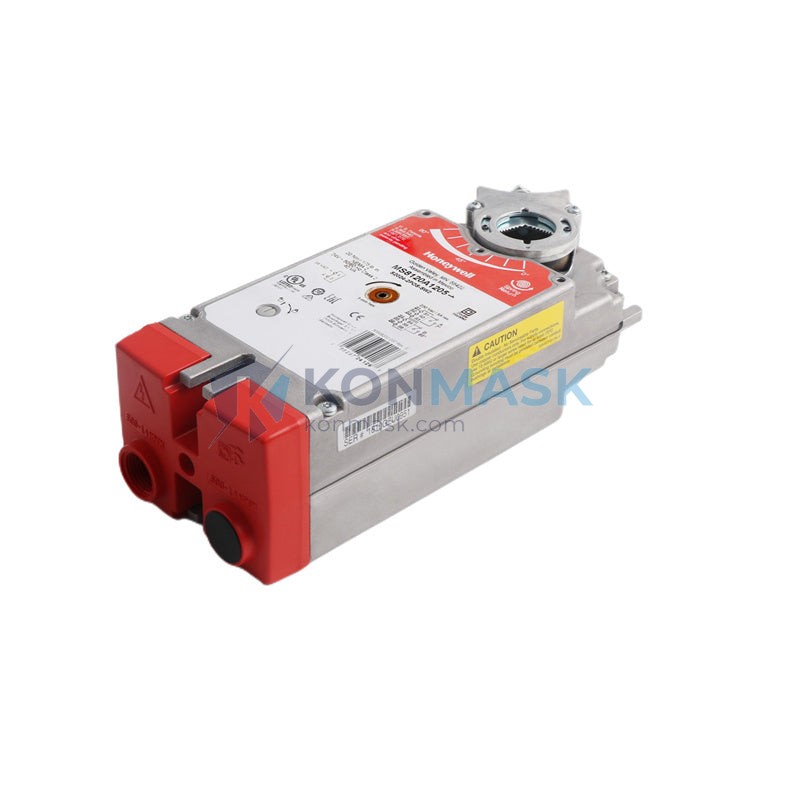

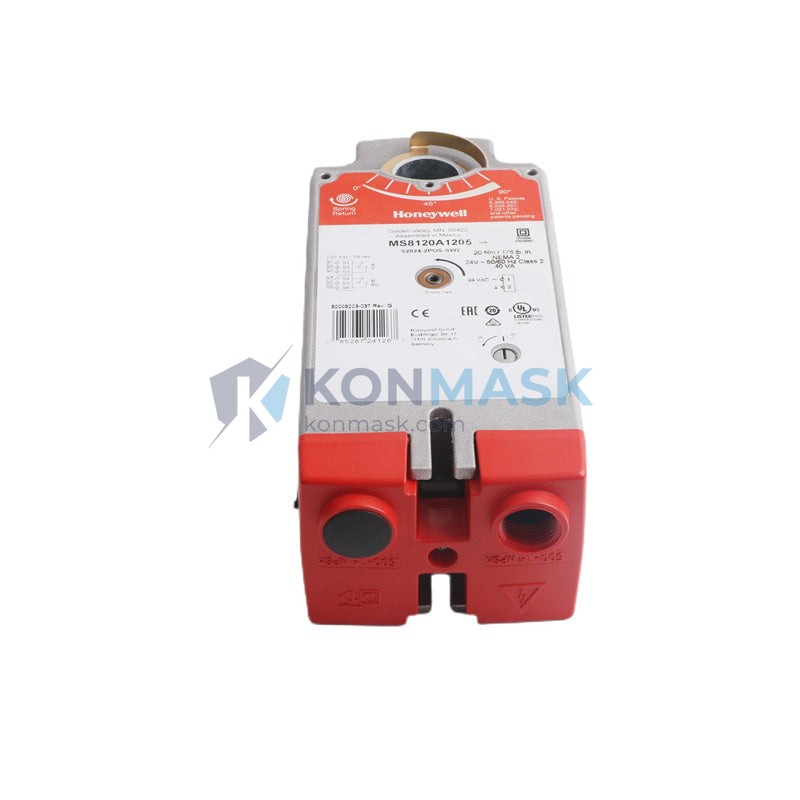

Honeywell MS8120A1205 S2024-2POS-SW2 Direct Coupled Damper Actuator – S2024 Series
When a damper actuator fails mid-operation in a critical HVAC or air handling system, the consequences cascade quickly: airflow control is lost, zone pressurization becomes unstable, and in process-critical environments such as cleanrooms, pharmaceutical manufacturing, or data center cooling, the entire facility may be forced into an unplanned shutdown. The Honeywell MS8120A1205 S2024-2POS-SW2 is engineered precisely to prevent this scenario — a robust, direct coupled actuator that delivers reliable 2-position damper control with spring return failsafe, ensuring your system defaults to a safe state even during power loss.
Within the Honeywell S2024 Series, the MS8120A1205 occupies a well-defined technical niche: it is a high-torque, direct coupled unit designed for demanding commercial and light industrial HVAC applications where on/off damper control is required without the complexity of modulating signals. Globally, the S2024 Series is recognized as a workhorse product line in building automation systems (BAS), widely specified by mechanical engineers and system integrators across North America, Europe, and Asia-Pacific for its proven reliability and compatibility with major BAS platforms.
Technical Specifications
- Model Number: MS8120A1205 S2024-2POS-SW2
- Brand: Honeywell
- Series: S2024
- Control Type: 2-Position (On/Off)
- Mounting: Direct Coupled (no crank arm required)
- Failsafe: Spring Return
- Weight: 2,860 g
- Application: Damper actuator for HVAC air handling units, VAV boxes, and ventilation systems
- Auxiliary Switch: SW2 (dual auxiliary switch configuration)
Note: Additional electrical specifications (voltage, torque rating, rotation angle) should be confirmed via the official Honeywell datasheet or by contacting our technical team.
Key Features & Benefits
- Direct Coupled Design: Eliminates the need for crank arms and linkages, reducing installation time and potential mechanical failure points.
- Spring Return Failsafe: Automatically returns the damper to a preset safe position upon power loss — critical for fire/smoke control and process safety applications.
- 2-Position Control: Simple, reliable on/off operation ideal for zone isolation, fresh air intake control, and exhaust dampers.
- Dual Auxiliary Switch (SW2): Provides end-position feedback signals for BAS integration, enabling status monitoring and interlock logic.
- Robust Construction: Honeywell’s S2024 Series is built for long service life in commercial building environments, minimizing maintenance intervals.
- Wide BAS Compatibility: Compatible with standard 24VAC/VDC control signals used across major building automation platforms.
Industry & Equipment Applications
- Commercial HVAC: Air handling units (AHUs), rooftop units (RTUs), fan coil units — zone damper control and outside air intake regulation.
- Industrial Ventilation: Process exhaust systems, dust collection, and fume hood control in manufacturing facilities.
- Cleanrooms & Laboratories: Precise zone isolation to maintain differential pressure and contamination control.
- Data Centers: Hot aisle/cold aisle containment damper control for energy-efficient cooling management.
- Pharmaceutical & Food Processing: GMP-compliant ventilation control where failsafe operation is a regulatory requirement.
- Building Automation Systems (BAS): Integration with Honeywell, Siemens, Johnson Controls, Schneider Electric, and other BAS platforms.
System Integration & Compatible Parts
The MS8120A1205 S2024-2POS-SW2 is designed to integrate seamlessly within Honeywell’s broader building controls ecosystem. Compatible and commonly paired components include:
- Honeywell S2024 Series actuators (modulating variants for mixed-system installations)
- Honeywell T775 Series electronic controllers
- Honeywell Excel 5000 / WEBs-AX BAS controllers
- Standard 24VAC transformer panels and control wiring accessories
- Damper blade assemblies from major HVAC OEMs (Ruskin, Greenheck, Belimo-compatible mounting)
Contact our technical team to verify compatibility with your specific system configuration before ordering.
Our Quality Assurance Process
At Konmask.com, every industrial automation component we supply undergoes a structured quality verification process:
- Source Verification: We source exclusively from authorized distributors and verified supply chain partners to ensure product authenticity.
- Visual & Packaging Inspection: Each unit is inspected for physical integrity, correct labeling, and original packaging before dispatch.
- Documentation Check: Certificates of conformity, country of origin documentation, and traceability records are verified and available upon request.
- Functional Testing (on request): For bulk orders, functional pre-shipment testing can be arranged with documented test reports.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quotation: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Review and confirm the proforma invoice. Payment terms are discussed based on order volume and customer profile.
- Shipment & Tracking: We arrange international freight (DHL, FedEx, sea freight for bulk) with full tracking and export documentation.
- After-Sales Support: Our technical team remains available post-delivery for installation guidance and warranty claims.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, DCS components, and building automation hardware — not a generalist marketplace.
- B2B-First Service Model: Tailored for procurement teams, MRO buyers, and system integrators who need reliable supply, not just a product listing.
- Global Export Experience: We ship to 50+ countries with full export documentation, customs support, and flexible Incoterms.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility verification, and application guidance before you commit to an order.
- Competitive Lead Times: Extensive supplier network enables us to source hard-to-find and obsolete parts with shorter lead times than traditional distributors.
Frequently Asked Questions
- Q: What does “Direct Coupled” mean for the MS8120A1205?
- A: Direct coupled means the actuator mounts directly onto the damper shaft without requiring a separate crank arm or linkage assembly. This simplifies installation, reduces mechanical play, and improves positional accuracy.
- Q: What is the function of the SW2 auxiliary switch?
- A: The SW2 designation indicates a dual auxiliary switch configuration. These switches provide electrical feedback signals at the end positions of actuator travel, enabling BAS controllers to confirm damper open/closed status and trigger interlock sequences.
- Q: Is the spring return failsafe to open or closed position?
- A: The failsafe direction (normally open or normally closed) depends on the specific installation configuration. Please consult the Honeywell MS8120A1205 datasheet or contact our technical team to confirm the correct configuration for your application.
- Q: Can Konmask.com supply this part for a single-unit replacement order?
- A: Yes. We serve both single-unit MRO replacement orders and large-volume project procurement. Minimum order quantities and pricing will be confirmed in your quotation.
- Q: How long does international shipping take?
- A: Express courier (DHL/FedEx) typically delivers within 3–7 business days to most destinations. Sea freight options are available for bulk orders with longer lead times. Exact timelines are confirmed at the quotation stage.
{
