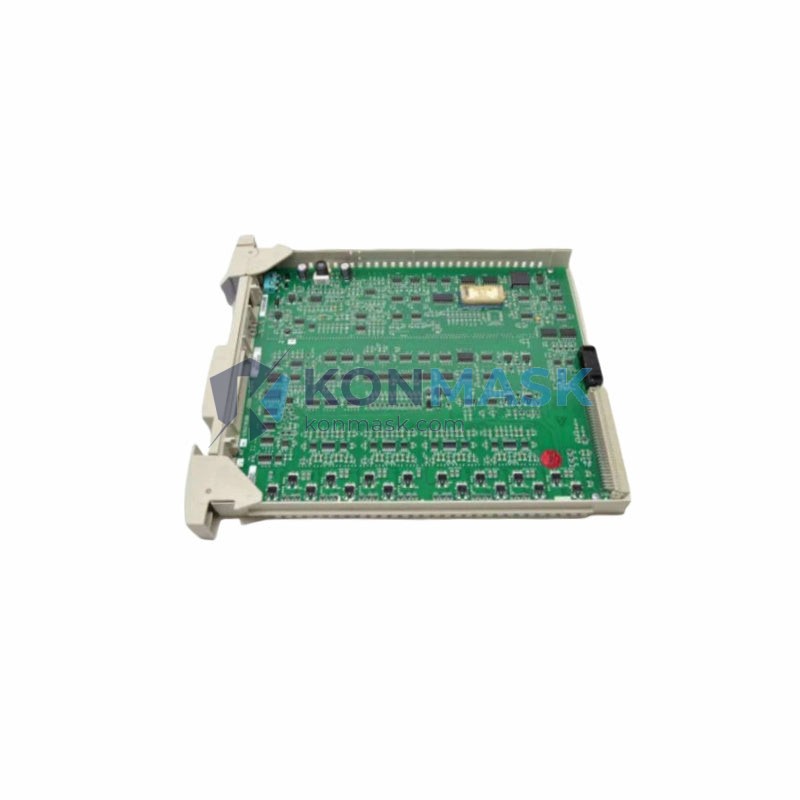

Honeywell MU-PAS221 – 24VDC Digital Input Module | Experion PKS DCS Platform
Engineering Background
The Honeywell MU-PAS221 is a 24VDC digital input module engineered for the Experion PKS (Process Knowledge System) distributed control system platform. Designed to meet the rigorous demands of continuous process industries, this module provides reliable field-level signal acquisition for safety-critical and process-critical applications across oil & gas, petrochemical, power generation, and advanced manufacturing environments.
Product Positioning
As a core I/O component within the Honeywell Experion PKS architecture, the MU-PAS221 bridges field instrumentation and the control network with deterministic, high-integrity digital signal processing. It is the preferred choice for procurement engineers requiring OEM-grade reliability, long-term platform support, and seamless integration with existing Honeywell DCS infrastructure.
Complete Technical Specifications
- Part Number: MU-PAS221
- Manufacturer: Honeywell Process Solutions
- Module Type: Digital Input (DI)
- Platform: Experion PKS / Series C I/O
- Input Voltage: 24VDC nominal
- Signal Type: Discrete / Digital (dry contact or sourcing)
- Isolation: Optical isolation between field and system bus
- Mounting: DIN rail / backplane slot mount (Experion Series C carrier)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% RH, non-condensing
- Certifications: CE, UL, FM (refer to Honeywell datasheet for full listing)
- Communication: Experion PKS system bus (proprietary backplane)
- Weight: Approx. 100 g
- Country of Origin: United States
Proven Application Environments
- Oil & Gas upstream/midstream/downstream process control
- Petrochemical and refinery DCS integration
- Power generation plant automation (coal, gas, nuclear auxiliary systems)
- Pharmaceutical batch process monitoring
- Pulp & paper and water treatment facility control
- Advanced discrete manufacturing with Honeywell Experion PKS backbone
Engineering Advantages
- Optical Isolation: Eliminates ground loops and protects the control network from field-side transients
- Hot-swap Capable: Supports module replacement without system shutdown on compatible carriers
- Deterministic Scan Cycle: Ensures consistent, predictable I/O update rates for time-critical process loops
- Experion PKS Native: Zero-configuration integration with Honeywell Control Builder and Station software
- Long Product Lifecycle: Honeywell’s extended support commitment reduces obsolescence risk for long-horizon plant projects
- Compact Form Factor: High channel density per rack slot minimizes cabinet footprint
System Architecture & Signal Flow
The MU-PAS221 installs into a Series C I/O carrier within the Experion PKS cabinet. Field wiring connects to the carrier’s terminal block; the module reads 24VDC discrete signals from field devices (limit switches, proximity sensors, relay contacts, valve position feedback). Signals are optically isolated, digitized, and transmitted over the Experion backplane to the C300 Controller or equivalent, where they are processed by the control strategy in Honeywell Control Builder. Status and diagnostics are surfaced in Experion Station for operator visibility.
Sourcing & Quality Verification
- All units sourced through authorized distribution channels or directly from Honeywell-certified suppliers
- Each module undergoes incoming inspection: visual, label verification, and functional power-on check
- Serialization and firmware version documented prior to shipment
- Original manufacturer packaging preserved where available
- Certificate of conformance (CoC) available upon request
- Anti-counterfeit verification: holographic labels and OEM part markings cross-checked
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required delivery date, and project details
- Receive Quote: Formal quotation with lead time, pricing, and CoC availability within 24 business hours
- Order Confirmation: Purchase order accepted via email; payment terms discussed per account
- Quality Inspection: Pre-shipment inspection report issued for orders ≥ 5 units
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF available
- After-sales Support: 12-month warranty; technical support via email and phone
Technical FAQ
Q: Is the MU-PAS221 compatible with Experion PKS R500 and later releases?
A: Yes. The MU-PAS221 is designed for the Experion PKS Series C I/O platform and is supported across R400 through current releases. Confirm firmware compatibility with your system version via Honeywell’s compatibility matrix.
Q: Can this module be used in SIL-rated safety loops?
A: The MU-PAS221 is a standard process I/O module. For SIL-rated applications, Honeywell’s Safety Manager or FSC platform with dedicated safety I/O modules is required. Consult your functional safety engineer.
Q: What is the typical lead time for MU-PAS221?
A: In-stock units ship within 3–5 business days. For larger quantities or project-specific requirements, contact us for a confirmed lead time.
Q: Do you provide a warranty?
A: Yes. All modules carry a 12-month warranty against manufacturing defects. DOA units are replaced or refunded within 30 days of receipt.
Q: Can I request a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com and reference part number MU-PAS221. We will provide the official Honeywell product datasheet and installation guide.
