Honeywell 80363972-150 Digital Input Module | TDC 3000 / Experion DCS

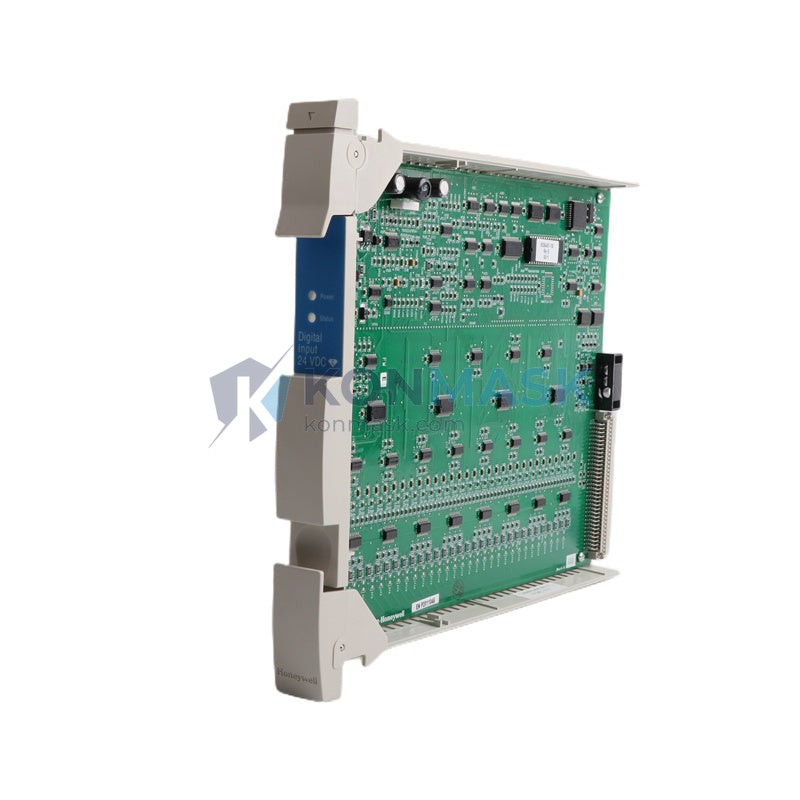

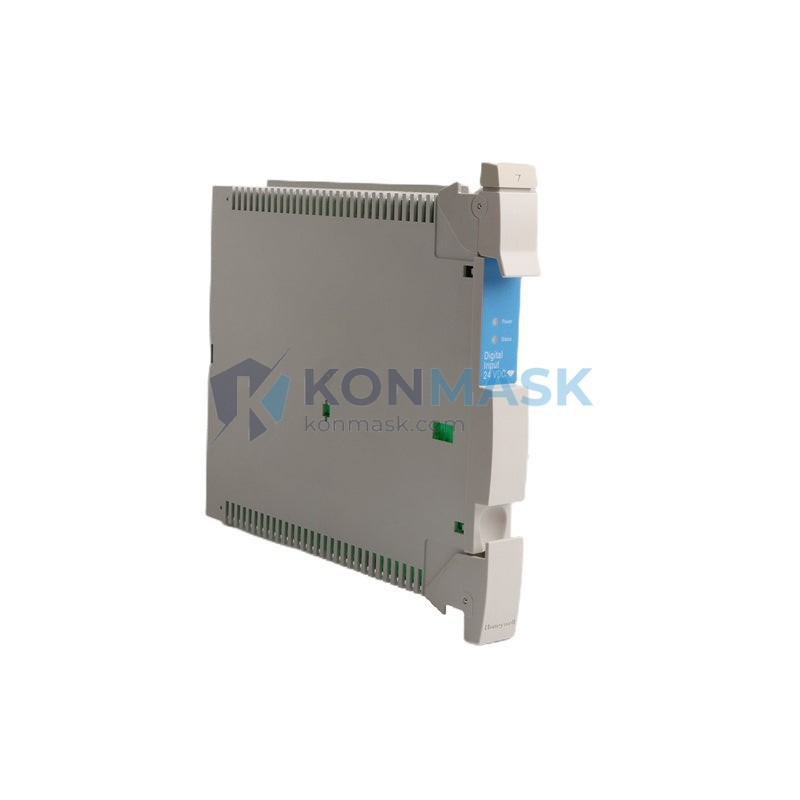

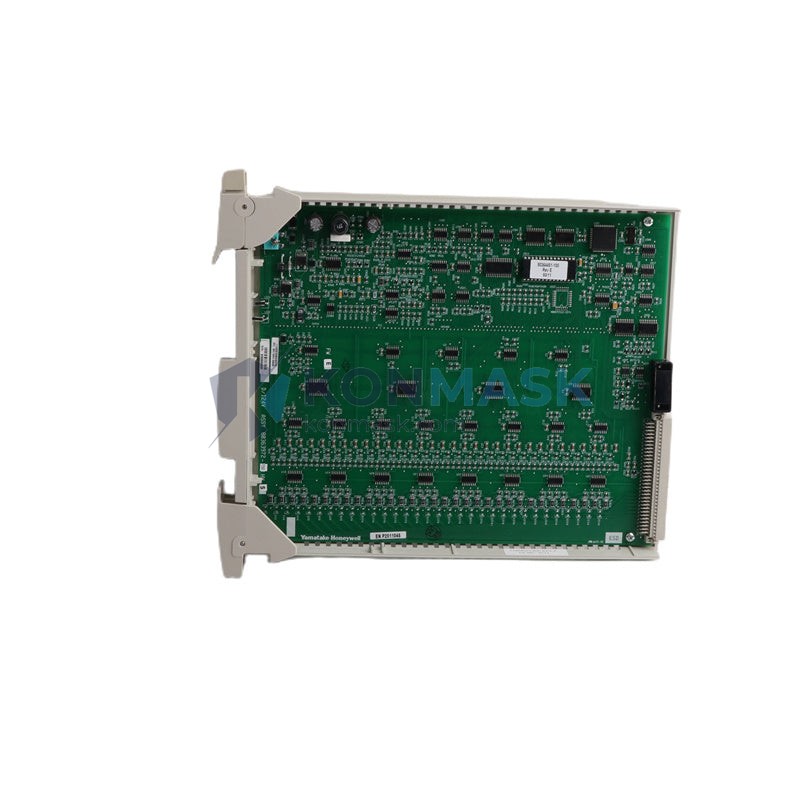

Honeywell 80363972-150 – 16-Channel Digital Input Module | TDC 3000 / Experion PKS DCS Platform

Engineering Background: The Honeywell TDC 3000 and Experion PKS distributed control systems represent the backbone of process automation in continuous-process industries worldwide. Deployed across refineries, power generation facilities, and water treatment plants, these platforms are engineered for deterministic scan cycles, high-availability redundancy, and long-term lifecycle support. The 80363972-150 Digital Input Module occupies a critical role within this architecture: it serves as the primary discrete-signal acquisition interface between field instrumentation and the DCS controller, converting 24 VDC on/off signals from limit switches, valve position feedback, motor status contacts, and safety interlock circuits into structured data readable by the process controller.

Product Positioning: Within the Honeywell 80363972-xxx family, the -150 revision designates a specific hardware revision level with updated conformal coating and enhanced EMI shielding compared to earlier -100 and -125 suffixes, making it the preferred replacement in high-humidity or electrically noisy environments. It is not interchangeable with analog input variants (e.g., 80363969-150) and is distinct from the digital output module (80363973-150). The -150 is the correct choice when the application requires 16 discrete input channels per slot, 24 VDC wet-contact sensing, and compatibility with the standard TDC 3000 I/O Link or Experion C200/C300 controller chassis.

Complete Technical Specifications

Electrical

• Input Channels: 16 discrete (digital) inputs per module
• Input Voltage Range: 18–30 VDC (nominal 24 VDC)
• Input Current (per channel): ≤ 8 mA at 24 VDC
• Logic High Threshold: ≥ 11 VDC
• Logic Low Threshold: ≤ 5 VDC
• Isolation: 500 VAC optical isolation, channel-to-backplane
• Input Impedance: ~3 kΩ per channel
• Scan Rate: Synchronized with controller I/O Link cycle (typically 100–500 ms)
• Power Consumption: ≤ 3.5 W from backplane 5 VDC rail

Mechanical

• Form Factor: Single-slot I/O module, standard TDC 3000 / Experion I/O chassis
• Dimensions: Approx. 250 mm × 100 mm × 25 mm (H × W × D)
• Weight: 450 g (nominal)
• Connector: 40-pin DIN backplane connector; field wiring via 40-terminal field termination assembly (FTA)
• Indicator LEDs: Per-channel status LEDs (green = active high), module fault LED (red)

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Relative Humidity: 5–95% RH, non-condensing
• Conformal Coating: Applied (revision -150); suitable for Class G2 corrosive atmosphere per ISA-71.04
• Vibration: IEC 60068-2-6, 2 g, 10–150 Hz
• Shock: IEC 60068-2-27, 15 g, 11 ms

Certifications

• FM Approved (Class I, Division 2, Groups A–D) for use in North American hazardous locations
• ATEX Category 3G (Zone 2) — consult Honeywell documentation for specific Ex marking
• CE Marked (EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU)
• RoHS Compliant

Data source: Honeywell TDC 3000 I/O Module Specification Sheet (Doc. No. EP-DS-0363972), Honeywell Experion PKS I/O Reference Manual (Doc. No. EP-RM-0200). Specifications subject to revision; verify against current Honeywell documentation for safety-critical applications.

Proven Application Environments

• Petroleum Refinery — Crude Distillation Unit: Monitoring valve open/close position feedback on atmospheric tower overhead condensers under continuous 24/7 operation with ambient temperatures up to 55°C and H₂S-laden atmospheres.
• Coal-Fired Power Plant — Boiler Control System: Acquiring discrete status signals from induced-draft fan motor contactors and damper limit switches, where signal integrity under high electromagnetic interference from large motor drives is critical.
• Municipal Water Treatment — Chlorination Control: Reading pump run/stop status and high-level float switch inputs in a Class G2 corrosive chlorine atmosphere, leveraging the -150 revision’s enhanced conformal coating.
• LNG Terminal — Loading Arm Interlock System: Interfacing with emergency shutdown (ESD) valve position sensors in a Zone 2 hazardous area, utilizing the module’s ATEX Category 3G certification.
• Chemical Plant — Batch Reactor Sequencing: Capturing agitator motor status, jacket valve positions, and vent valve feedback across 16 channels per module to support SIL-rated interlock logic in a Honeywell Safety Manager integrated architecture.
• Offshore Platform — Wellhead Control Panel: Providing discrete input acquisition for Christmas tree valve position monitoring in a salt-fog marine environment, where conformal coating and vibration resistance are non-negotiable.

Engineering Advantages

• For high-EMI environments near large VFDs or switchgear, this digital input module maintains signal integrity, because 500 VAC optical isolation on every channel eliminates ground loop interference and common-mode noise coupling.
• For corrosive-atmosphere installations (H₂S, Cl₂, SO₂), this module extends service life beyond 10 years, because the -150 revision conformal coating meets ISA-71.04 Class G2 severity, preventing PCB trace corrosion that causes premature failure in earlier revisions.
• For Zone 2 / Division 2 hazardous area installations, this module eliminates the need for external barriers on dry-contact inputs, because its FM and ATEX certifications permit direct installation in the classified area without additional intrinsic safety hardware.
• For aging TDC 3000 systems requiring I/O expansion or card replacement, this module provides drop-in compatibility, because it uses the identical 40-pin backplane connector and firmware-recognized module ID as the original factory-installed cards.
• For plants running Experion PKS C200/C300 controllers, this module integrates without configuration changes, because Honeywell’s I/O Link protocol auto-discovers the module type and channel count during controller startup.
• For maintenance teams managing spare-parts inventory, this module consolidates replacement stock, because a single -150 part number covers both TDC 3000 and Experion PKS chassis, reducing the number of unique SKUs held in the instrument store.

System Architecture & Signal Flow

Field dry or wet contacts (24 VDC source) wire to the Field Termination Assembly (FTA) terminal blocks → FTA ribbon cable connects to the 80363972-150 module backplane connector → optical isolators convert field-side signals to logic-level data → module firmware packages 16-channel status into I/O Link data frames → TDC 3000 High-Performance Process Manager (HPPM) or Experion C200/C300 controller reads channel states at each scan cycle → controller logic executes interlock or sequence steps based on discrete input states.

Compatible Controllers & Chassis:

• TDC 3000 High-Performance Process Manager (HPPM) — direct I/O Link compatibility
• TDC 3000 Advanced Process Manager (APM) — compatible with standard I/O chassis
• Experion PKS C200 Controller — requires Experion I/O chassis (not HPPM chassis)
• Experion PKS C300 Controller — compatible via CIOM-A I/O Link adapter

Substitution Conditions: The 80363972-150 may substitute for 80363972-100 and 80363972-125 in all applications where the chassis slot and FTA wiring are unchanged. It is not a substitute for 80363972-150-R (redundant variant) without verifying redundancy manager firmware version. Cross-substitution with third-party compatible modules requires validation of module ID register values against controller firmware revision.

Sourcing & Quality Verification

Modules offered through Konmask.com are sourced from decommissioned plant upgrades, authorized distributor overstock, and certified refurbishment programs. Each unit undergoes a documented inspection process before shipment:

1. Visual Inspection: PCB examined for corrosion, cracked solder joints, damaged connectors, and missing components under 10× magnification.
2. Functional Power-On Test: Module installed in a live TDC 3000 or Experion test chassis; all 16 channels exercised with 24 VDC test signals; LED indicators and I/O Link communication verified.
3. Firmware / Module ID Verification: Module ID register confirmed as recognized by controller firmware; revision suffix (-150) verified against physical label and PCB silkscreen.
4. Packaging & ESD Protection: Module bagged in anti-static packaging, placed in foam-lined carton with desiccant; shipping label includes serial number and test date.

Documentation available upon request: Test report, high-resolution photos of PCB and label, Honeywell original datasheet, certificate of conformance, and export compliance documentation (HS Code 8537.10).

Procurement Process

1. Inquiry & Stock Confirmation: Submit part number, required quantity, and target delivery date via email or phone. Stock availability is confirmed within 24 hours; lead time for sourcing is communicated upfront with no obligation.
2. Technical Review & Quotation: Engineering team reviews application compatibility (controller type, chassis revision, FTA model) and issues a formal quotation with unit price, shipping terms (EXW Xiamen / CIF destination), and payment options (T/T, L/C).
3. Order Fulfillment & Shipment: Upon order confirmation and deposit receipt, modules are re-inspected, packed, and shipped with full documentation package. DHL/FedEx express available for urgent requirements; sea freight for bulk orders.

Technical support is available pre-sale (compatibility verification, cross-reference, datasheet provision) and post-sale (installation guidance, troubleshooting, firmware compatibility questions). Response time: within 24 hours on business days (UTC+8).

Technical FAQ

Q: Is the 80363972-150 compatible with both TDC 3000 and Experion PKS systems?
A: Yes, with an important distinction. In TDC 3000 systems, the module installs directly into HPPM or APM I/O chassis. In Experion PKS systems, it is compatible with C200 and C300 controllers but requires the correct Experion I/O chassis — it cannot be mixed into a TDC 3000 HPPM chassis connected to an Experion controller without the appropriate I/O Link gateway. Always verify chassis model before ordering.

Q: Can the 80363972-150 replace an 80363972-100 or -125 without reconfiguration?
A: In the vast majority of cases, yes. The -150 revision is backward-compatible at the hardware and firmware level; the controller recognizes it by the same module ID. No database download or configuration change is required. The exception is applications where the earlier revision was specifically qualified in a safety instrumented system (SIS) validation — in that case, a management-of-change (MOC) review is required before substitution.

Q: Does this module require ATEX-certified installation accessories (barriers, zener diodes) for Zone 2 use?
A: No, for dry-contact or 24 VDC wet-contact inputs in Zone 2 (ATEX Category 3G), the module itself carries the necessary certification for installation in the classified area. Intrinsic safety barriers are not required for Zone 2 applications. For Zone 1 or Zone 0 applications, the module is not rated and field-mounted barriers or isolators would be required — contact the engineering team for Zone 1 solutions.

---
