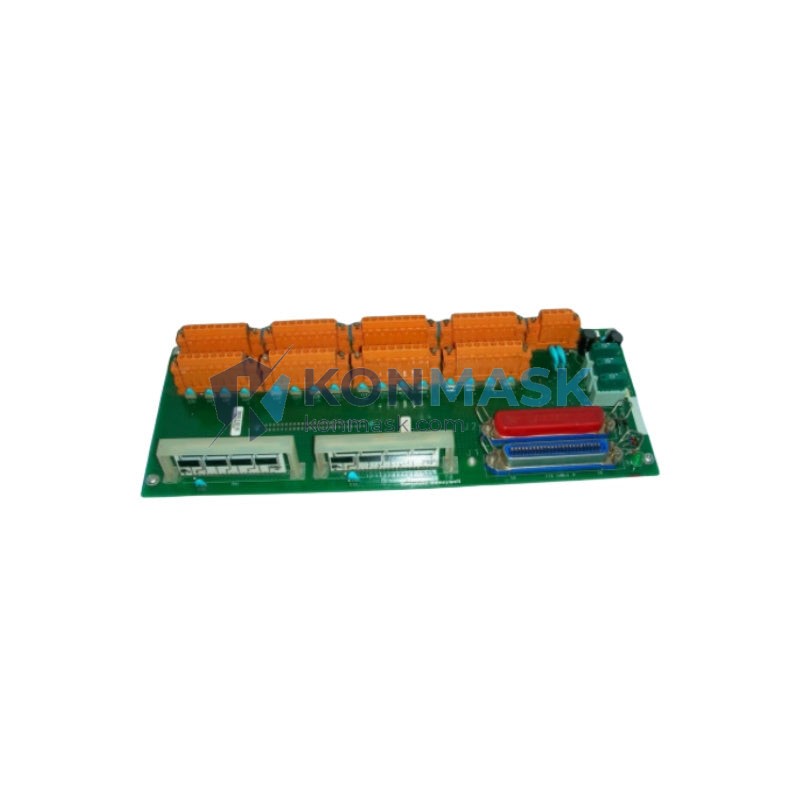

Honeywell MU-TAOY22 – Analog Output Module | TotalPlant Solution (TPS) DCS Platform
Engineering Background
The Honeywell MU-TAOY22 is a precision analog output module engineered for the TotalPlant Solution (TPS) Distributed Control System — Honeywell’s flagship process automation platform widely deployed across refining, petrochemical, power generation, and continuous manufacturing industries. Designed to interface directly with field actuators and control valves, this module delivers reliable 4–20 mA analog output signals with high-resolution conversion, ensuring accurate process variable control in safety-critical environments.
Product Positioning
As a core I/O component within the TPS architecture, the MU-TAOY22 serves procurement engineers and plant maintenance teams seeking verified replacement modules for aging DCS infrastructure. Konmask.com supplies this module from certified surplus and refurbished channels, providing a cost-effective alternative to OEM lead times without compromising functional integrity.
Complete Technical Specifications
- Part Number: MU-TAOY22
- Manufacturer: Honeywell Process Solutions
- Platform: TotalPlant Solution (TPS) / TDC 3000
- Module Type: Analog Output Module
- Output Signal: 4–20 mA (current loop)
- Output Channels: 8 channels (isolated)
- Resolution: 12-bit D/A conversion
- Output Compliance Voltage: Up to 24 VDC loop supply
- Isolation: Channel-to-channel and channel-to-bus isolation
- Communication Bus: TPS Local Control Network (LCN)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% RH, non-condensing
- Power Consumption: Per TPS backplane specification
- Form Factor: Standard TPS I/O card (single-slot)
- Certifications: CE, UL (per original OEM listing)
- Weight: Approx. 200 g
- Country of Origin: United States
Proven Application Environments
- Petroleum refining and upstream oil & gas process control
- Petrochemical and specialty chemical plant automation
- Power generation (coal, gas, nuclear auxiliary systems)
- Pulp & paper and continuous web process lines
- Pharmaceutical batch and continuous manufacturing
- Water treatment and municipal utility SCADA integration
- Steel and metals processing with high-temperature loop control
Engineering Advantages
- High-Resolution Output: 12-bit DAC ensures fine-grained actuator positioning for tight process control loops.
- Full Channel Isolation: Eliminates ground loop interference across multi-actuator installations.
- Hot-Swap Compatible: Supports live module replacement within TPS chassis without process shutdown (per system configuration).
- Backward Compatibility: Fully interoperable with TDC 3000 and legacy TPS I/O subsystems.
- Diagnostic Transparency: Onboard fault detection with status reporting via TPS operator console.
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in harsh plant environments.
System Architecture & Signal Flow
The MU-TAOY22 resides in the TPS I/O Link subsystem, receiving setpoint commands from the High-Performance Process Manager (HPM) or Application Module (AM) via the Local Control Network (LCN). Each output channel independently drives a 4–20 mA current loop to field-mounted control valves, variable frequency drives (VFDs), or positioners. The module’s onboard microprocessor performs real-time D/A conversion and loop integrity monitoring, reporting channel health back to the operator station via the Universal Control Network (UCN) gateway.
Signal Flow: HPM/AM → LCN Bus → MU-TAOY22 DAC → 4–20 mA Field Loop → Control Valve / Actuator
Sourcing & Quality Verification
- Source: Certified surplus and professionally refurbished inventory
- Inspection: Visual, functional, and burn-in testing prior to shipment
- Firmware: Verified against OEM revision baseline
- Packaging: ESD-safe anti-static bag with foam cushioning
- Documentation: Datasheet and test report available upon request
- Warranty: 12-month operational warranty from Konmask.com
Procurement Process
- Submit RFQ via support@konmask.com or the product page inquiry form.
- Receive stock confirmation, lead time, and formal quotation within 24 hours.
- Approve purchase order — payment via T/T, PayPal, or trade terms.
- Module ships within 1–3 business days with tracking and commercial invoice.
- Post-delivery technical support available for integration and commissioning.
Technical FAQ
Q: Is the MU-TAOY22 compatible with TDC 3000 systems?
A: Yes. The MU-TAOY22 is backward compatible with TDC 3000 I/O subsystems sharing the same backplane and LCN architecture.
Q: Can this module be replaced online without shutting down the process?
A: Hot-swap capability depends on your TPS system configuration and HPM redundancy setup. Consult your system integrator before live replacement.
Q: What is the lead time for this module?
A: In-stock units ship within 1–3 business days. Contact us for real-time availability confirmation.
Q: Do you provide a test report?
A: Yes. A functional test report is available upon request for each unit shipped.
Q: What warranty is provided?
A: Konmask.com provides a 12-month warranty covering functional defects under normal operating conditions.
