Plasma CNC Motion Control Solution – HYPERTHERM PCBS-0115/B | Axis Control Series
Where This Product Is Used

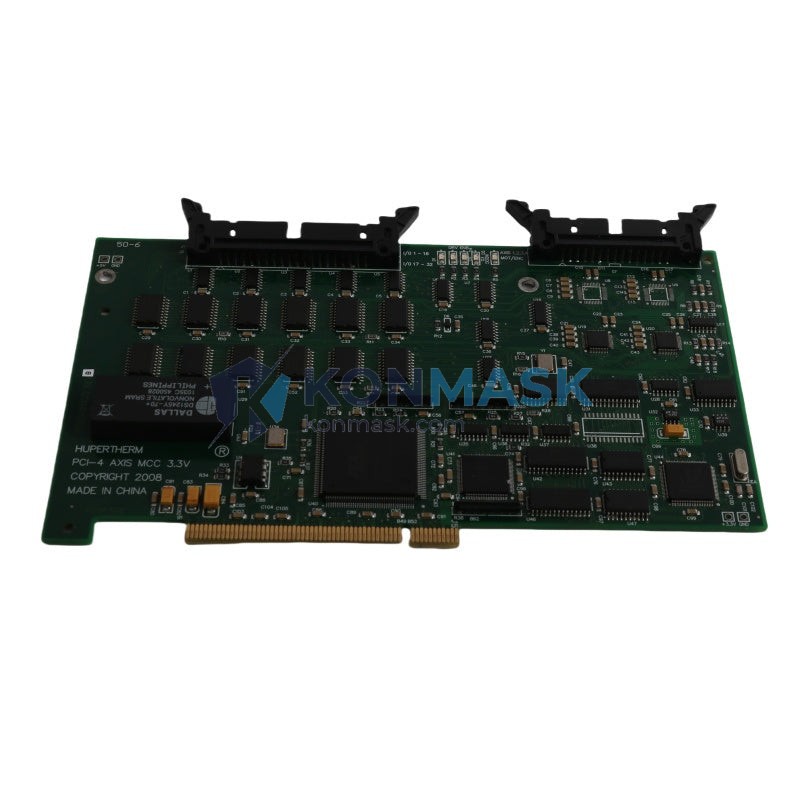

The HYPERTHERM PCBS-0115/B Axis Control Card is a precision motion control printed circuit board engineered for use in Hypertherm plasma cutting systems. It is deployed across a wide range of industrial and fabrication environments where high-accuracy torch positioning and coordinated multi-axis motion are critical:
- Heavy-plate plasma cutting tables – structural steel, shipbuilding, and pressure vessel fabrication
- CNC plasma gantry systems – automated profile cutting for HVAC, construction, and agricultural equipment manufacturing
- Pipe and tube cutting machines – rotary axis coordination for bevel and saddle cuts
- Robotic plasma cells – multi-axis motion synchronization in automotive and aerospace sub-assembly lines
- MRO / field repair – replacement board for Hypertherm systems experiencing axis drift, loss of motion feedback, or servo fault codes
Technical Specifications

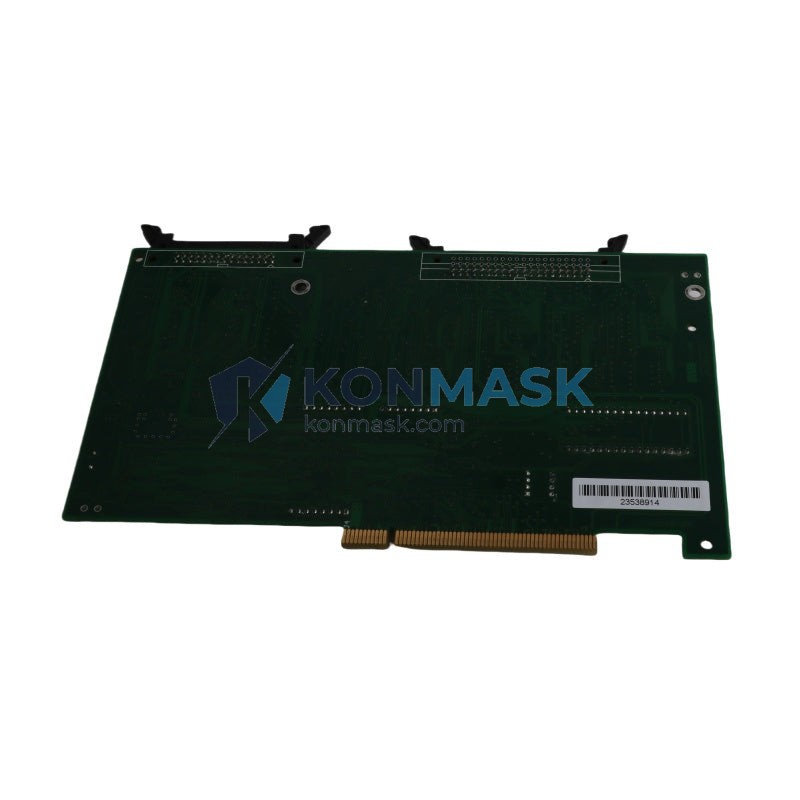

| Part Number | PCBS-0115/B |
| Manufacturer | HYPERTHERM |
| Component Type | Axis Control Card (Motion Control PCB) |

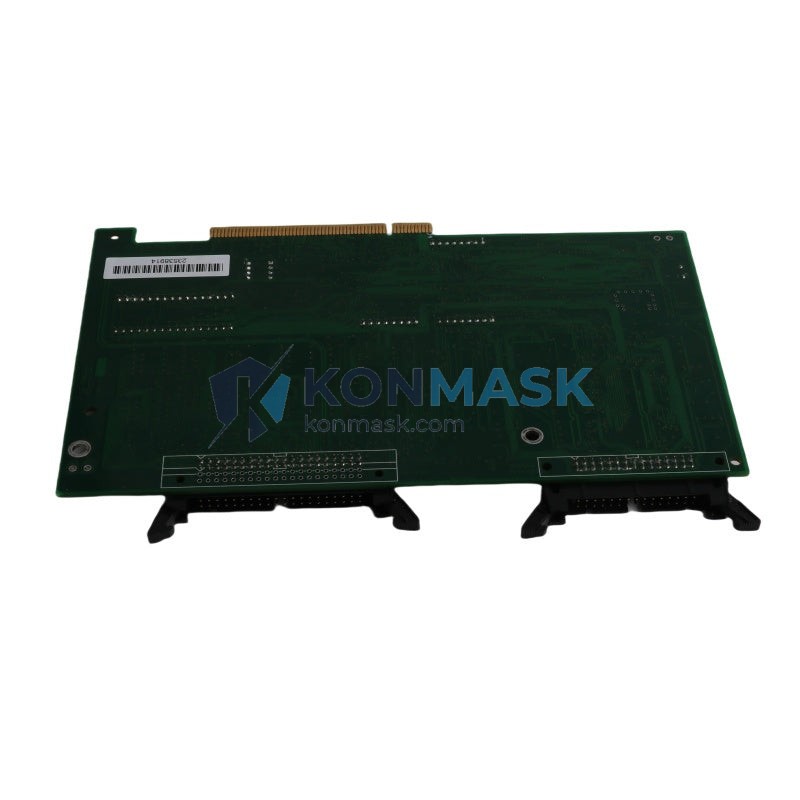

| Form Factor | Plug-in PCB module |
| Function | Multi-axis servo/stepper motion coordination for plasma CNC drives |
| Weight | Approx. 800 g (packaged) |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
| Lead Time | In-stock items ship within 3–5 business days; sourced items 7–21 days |
For full electrical ratings, connector pinout, and firmware revision compatibility, contact our technical team.
Why Engineers Specify This Model
- OEM-matched performance – direct replacement maintains original motion tuning parameters without re-commissioning
- Reduced downtime – a failed axis card halts production; having a verified spare on-hand cuts MTTR from days to hours
- Broad system compatibility – the PCBS-0115/B revision B addresses known signal-integrity issues found in earlier revisions
- Traceable sourcing – every unit at Konmask is documented with origin, inspection records, and condition grading before dispatch
Complete System Bill of Materials
When replacing or upgrading the axis control card, engineers typically also evaluate the following associated components:
- Hypertherm servo drive amplifier board
- Encoder feedback cable assembly (axis-specific)
- Plasma torch height control (THC) interface card
- Main CPU / controller board
- Power supply PCB for motion control bus
- I/O expansion card for limit switches and home sensors
Contact support@konmask.com to source a complete BOM package.
Compliance & Industry Standards
- Designed and manufactured to Hypertherm OEM quality standards
- RoHS compliance status available on request (revision-dependent)
- Suitable for CE-marked machine integrations (end-user responsible for system-level certification)
- ESD-safe packaging and handling throughout the Konmask supply chain
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for global B2B buyers. Our sourcing process for the HYPERTHERM PCBS-0115/B includes:
- Multi-source procurement from authorized distributors, OEM surplus channels, and certified refurbishers
- Visual and functional inspection prior to listing
- Condition grading: New, Surplus New (unused, original packaging), or Refurbished (tested, warranted)
- Secure anti-static packaging with humidity indicator cards for international shipments
- Full traceability documentation available for regulated industries
How to Source This Part
- Submit an inquiry – email support@konmask.com with your required quantity, condition preference, and delivery timeline
- Receive a quote – our team responds within 1 business day with pricing, lead time, and available condition grades
- Confirm & pay – secure payment via T/T bank transfer, PayPal, or other agreed methods
- Ship & track – DHL / FedEx / UPS express worldwide; tracking provided upon dispatch
- Technical support – post-delivery installation guidance available from our engineering team
Application-Specific FAQ
Q: Is the PCBS-0115/B compatible with all Hypertherm plasma table controllers?
A: The /B revision is specific to certain Hypertherm controller generations. Please provide your machine model and existing board revision when inquiring to confirm compatibility.
Q: Can this board be used as a direct drop-in replacement without re-tuning the servo system?
A: In most cases, yes — provided the replacement is the same revision. Cross-revision swaps may require parameter re-entry. Our technical team can advise.
Q: Do you offer refurbished units with a warranty?
A: Yes. Refurbished PCBS-0115/B units are bench-tested and carry a 90-day functional warranty. New and surplus-new units carry manufacturer warranty terms where applicable.
Q: What is the typical lead time for international orders?
A: In-stock units ship within 3–5 business days. Sourced or refurbished units typically require 7–21 business days. Expedited sourcing is available for urgent production needs.
Q: Can you supply multiple units for a spare-parts program?
A: Yes. We support blanket orders and consignment stocking programs for MRO and OEM customers. Contact us to discuss volume pricing.
