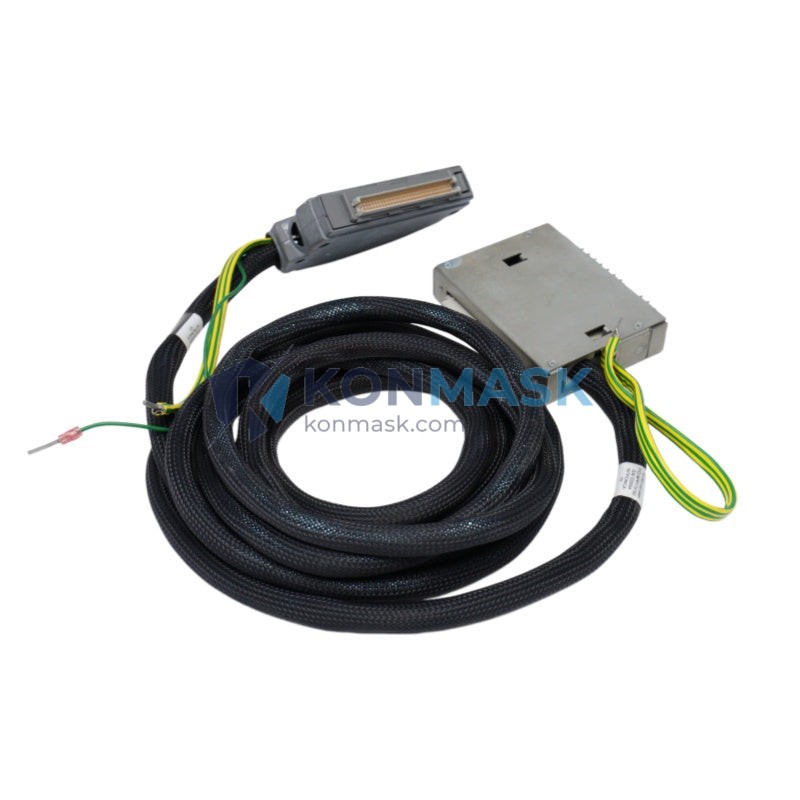

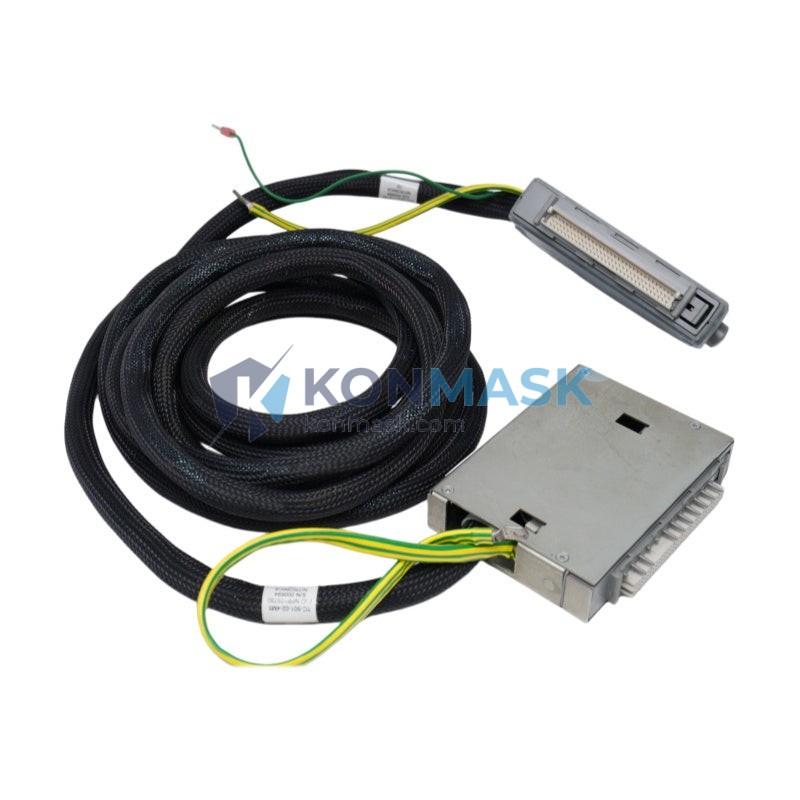

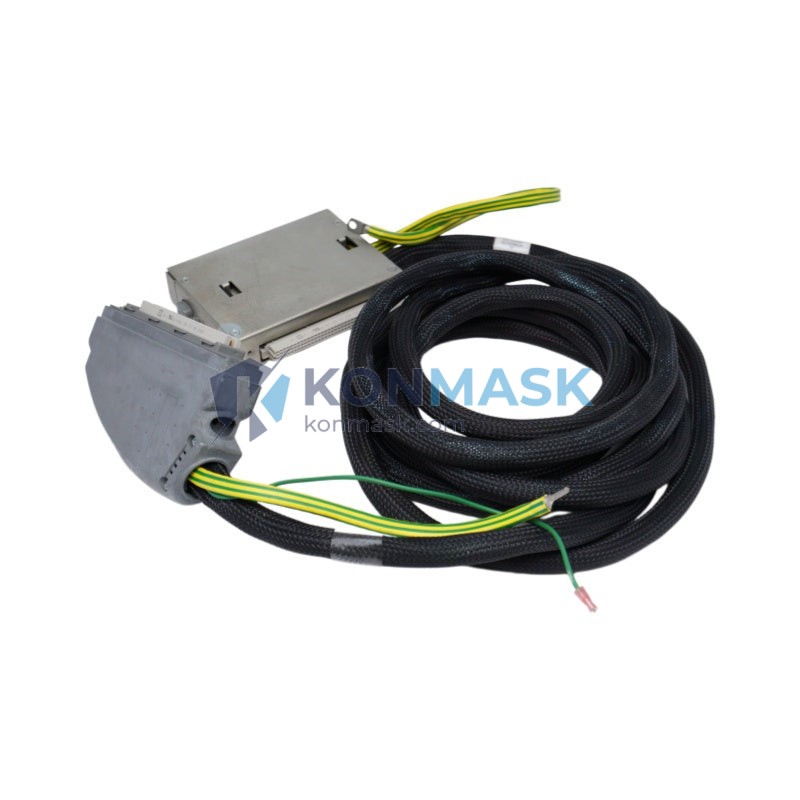

ICS Triplex TC-205-02-8M5 Chassis Power Cable | Replacement, Equivalent & Selection Guide
The ICS Triplex TC-205-02-8M5 is a dedicated chassis power cable engineered for ICS Triplex TMR (Triple Modular Redundancy) safety systems. This cable provides reliable power distribution between chassis modules, ensuring uninterrupted operation in safety-critical industrial environments. Whether you are sourcing an original replacement or evaluating compatible equivalents, this guide covers everything you need to make the right selection.
Technical Specifications
- Part Number: TC-205-02-8M5
- Manufacturer: ICS Triplex
- Description: Chassis Power Cable
- Cable Length: 8.5 m (approx.)
- Weight: 2,680 g
- Application: TMR Safety PLC Chassis Power Interconnect
- Connector Type: Proprietary ICS Triplex chassis connector
- Shielding: Shielded for EMI/RFI protection
- Operating Temperature: -20°C to +70°C (typical industrial range)
- Compliance: Designed for use in SIL 2 / SIL 3 certified TMR systems
Compatible Replacement & Equivalent Models
When the original TC-205-02-8M5 is unavailable or end-of-life, the following options may be evaluated as replacements. Always verify connector pinout, cable length, and system certification requirements before substitution.
- TC-205-02-8M5 (OEM Original) – ICS Triplex, direct fit, recommended for SIL-certified systems
- TC-205-02-xMx variants – Same series with different cable lengths; confirm length suffix before ordering
- Custom-fabricated shielded power cables – Must match connector spec, wire gauge, and shielding; requires engineering validation
- Third-party certified cables – Available from qualified automation cable suppliers; must present ICS Triplex compatibility documentation
Note: Konmask.com supplies genuine OEM parts. Contact our team for cross-reference verification before ordering a substitute.
Why Choose the Original TC-205-02-8M5
- ✅ OEM-certified fit – Designed and tested specifically for ICS Triplex TMR chassis
- ✅ Safety system integrity – Maintains SIL 2/SIL 3 certification compliance; substitutes may void system certification
- ✅ Plug-and-play installation – No modification required; exact connector and length match
- ✅ EMI shielding – Protects signal integrity in high-noise industrial environments
- ✅ Long service life – Industrial-grade materials rated for continuous duty cycles
Typical Applications
- Oil & gas platform safety shutdown systems (ESD)
- Petrochemical plant distributed control systems (DCS)
- Power generation turbine control panels
- Nuclear and critical infrastructure TMR safety systems
- Offshore and onshore process automation chassis interconnects
System Compatibility
The TC-205-02-8M5 is compatible with the following ICS Triplex system families:
- ICS Triplex Trusted™ TMR Safety System – Primary application platform
- ICS Triplex T8000 Series – Verify chassis revision before ordering
- Rockwell Automation / Allen-Bradley TMR platforms – ICS Triplex was acquired by Rockwell; some legacy systems share chassis architecture
Always cross-reference the chassis model number and cable routing diagram in your system documentation before installation.
Selection Guide
Use the following criteria to confirm the correct cable for your application:
- Step 1 – Identify chassis model: Locate the chassis part number on the system nameplate or engineering drawings.
- Step 2 – Confirm cable length: The suffix 8M5 indicates approximately 8.5 m. Measure the routing path before ordering.
- Step 3 – Check connector type: Verify the chassis power connector matches the TC-205-02 series connector profile.
- Step 4 – Verify certification requirements: For SIL-rated systems, only OEM cables maintain system certification. Document the substitution if using an equivalent.
- Step 5 – Contact Konmask: Our technical team can verify compatibility using your system serial number or engineering BOM.
Quality Assurance & Sourcing
- All ICS Triplex parts at Konmask.com are sourced from authorized distributors or verified surplus channels.
- Each unit undergoes visual inspection and part number verification prior to shipment.
- Traceability documentation available upon request for safety-critical applications.
- Packaging preserved in original or equivalent anti-static, moisture-protected materials.
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders or urgent requirements, email [email protected] or call +0086 19859288691.
- Provide your system model, site location, and required delivery date for expedited processing.
- We accept T/T bank transfer, PayPal, and major credit cards. Lead time: typically 3–7 business days for in-stock items.
Replacement & Compatibility FAQ
Q: Can I use a generic shielded cable instead of the TC-205-02-8M5?
A: Technically possible, but not recommended for SIL-certified systems. Generic cables may not meet the connector specification or shielding requirements, and their use may void your system’s safety certification.
Q: Is the TC-205-02-8M5 still in production?
A: ICS Triplex legacy products may be discontinued. Konmask.com maintains surplus stock. Contact us to confirm current availability.
Q: What is the difference between TC-205-02-8M5 and other TC-205-02 variants?
A: The suffix denotes cable length. The 8M5 suffix indicates approximately 8.5 m. Other variants (e.g., 5M0, 10M0) are the same cable in different lengths.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day warranty on all parts against manufacturing defects. Safety-critical applications should be validated by a qualified engineer upon installation.
Q: Can you provide a certificate of conformance (CoC)?
A: Yes, upon request for qualifying orders. Please specify this requirement at the time of order.
