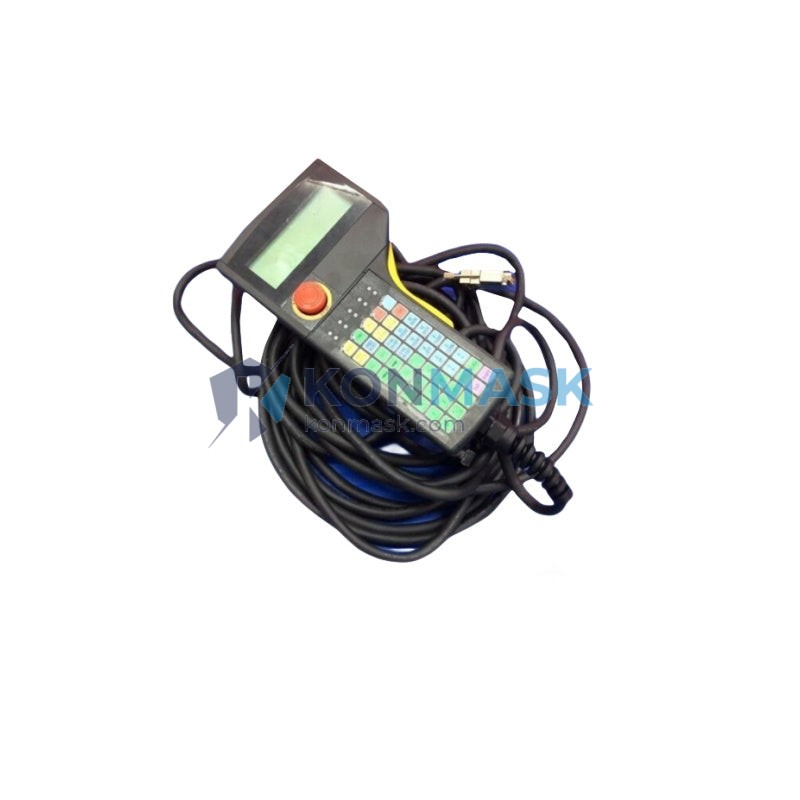

IDEC HG1T-SA12UH-MK1363-L10 – Portable Operator Teaching Pendant | HG1T Series
Engineering Background
The IDEC HG1T Series Teaching Pendant is engineered for direct, hands-on interaction with industrial robots, CNC machines, and motion-control systems. Designed to meet the ergonomic and functional demands of factory-floor engineers, the HG1T-SA12UH-MK1363-L10 delivers precise manual jogging, program editing, and real-time status monitoring in a rugged, cable-tethered form factor.
Product Positioning
This unit is the preferred choice for OEM machine builders and system integrators requiring a standardized, multi-function pendant that integrates seamlessly into IDEC-based control architectures. Its compact housing, tactile keypad, and high-visibility display make it equally suited to commissioning, maintenance, and operator training workflows.
Complete Technical Specifications
- Manufacturer: IDEC Corporation
- Part Number: HG1T-SA12UH-MK1363-L10
- Series: HG1T Teaching Pendant
- Display: High-contrast LCD with backlight
- Keypad: Multi-function tactile keys (12-key alphanumeric + function keys)
- Emergency Stop: Integrated E-Stop mushroom button (safety-rated)
- Enable Switch: 3-position deadman/enable device
- Cable Length: 10 m (L10 suffix)
- Connector: MK1363 multi-pin connector (UH-type housing)
- Enclosure Rating: IP65 (dust-tight, water-jet resistant)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Relative Humidity: 35 % to 85 % RH (non-condensing)
- Weight: Approx. 0.8 kg (pendant only, excluding cable)
- Standards Compliance: CE, UL, RoHS
Proven Application Environments
- Industrial robot teach-in and path programming
- CNC machine tool setup and axis jogging
- Automated assembly line commissioning
- Servo and stepper motion-control system tuning
- PLC-based machine maintenance and diagnostics
- Operator training and simulation environments
Engineering Advantages
- Safety-First Design: Integrated 3-position enable switch and E-Stop comply with IEC 60204-1 and ISO 13849 safety requirements.
- Long-Reach Cable: 10 m tether provides full freedom of movement around large machine envelopes without signal degradation.
- Robust Connector: MK1363 locking connector ensures vibration-resistant, tool-free connection and disconnection.
- Ergonomic Housing: Contoured grip reduces operator fatigue during extended commissioning sessions.
- Wide Compatibility: Designed for use with IDEC SmartAXIS, FC6A, and compatible third-party controllers via adapter.
System Architecture & Signal Flow
The HG1T-SA12UH-MK1363-L10 connects to the host controller via the MK1363 multi-pin connector on a 10 m shielded cable. The pendant transmits operator keypad inputs and enable-switch state to the controller over a dedicated serial/parallel interface. The E-Stop circuit is hardwired in series with the machine safety relay chain, ensuring Category 3 / PLd stop performance independent of software. Display data is driven by the host controller and rendered on the pendant LCD in real time.
Sourcing & Quality Verification
- Origin: Genuine IDEC OEM product — not aftermarket or clone
- Traceability: Each unit ships with manufacturer lot code and date code label
- Inspection: Pre-shipment functional test (keypad, display, E-Stop continuity, enable switch)
- Packaging: Original IDEC anti-static packaging with datasheet insert
- Warranty: 12-month Konmask supply warranty; manufacturer warranty honored where applicable
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via email or the product page enquiry form.
- Step 2 – Quotation: Receive a formal quotation with lead time, unit price, and MOQ within 1 business day.
- Step 3 – Order Confirmation: Issue PO or confirm order via email; proforma invoice issued immediately.
- Step 4 – Payment: T/T bank transfer, PayPal, or other agreed terms.
- Step 5 – Shipment: DHL / FedEx / SF Express with full tracking; export documentation provided on request.
- Step 6 – After-Sales: Technical support and warranty claims handled by Konmask engineering team.
Technical FAQ
Q: Is this pendant compatible with non-IDEC controllers?
A: The HG1T-SA12UH-MK1363-L10 is designed for IDEC controllers. Compatibility with third-party systems requires a custom adapter cable — contact us for wiring diagrams.
Q: What does the “L10” suffix indicate?
A: L10 denotes a 10-metre cable length. Other lengths (L3, L5) are available on request.
Q: Is the E-Stop safety-rated?
A: Yes. The E-Stop and 3-position enable switch meet IEC 60204-1 requirements and support up to Category 3 / PLd safety architectures.
Q: Can I order in bulk / OEM quantities?
A: Yes. Volume pricing and blanket PO arrangements are available. Contact support@konmask.com for a tailored quotation.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Ex-factory orders typically 2–4 weeks depending on IDEC production schedule.
