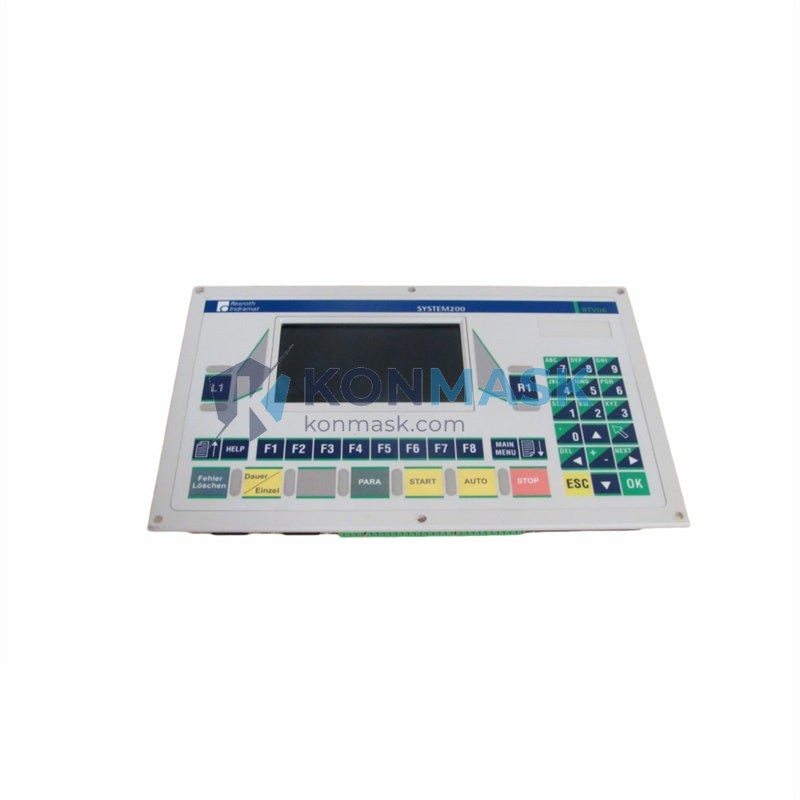

INDRAMAT BTV06.1HN-RS-FW Miniature Control Panel – BTV06 Operator Terminal Series
When a machine operator loses visibility into drive status on the shop floor, production doesn’t just slow — it stops. Without a reliable operator interface, technicians are left blind to fault codes, parameter settings, and real-time drive feedback, turning a minor issue into hours of unplanned downtime. The INDRAMAT BTV06.1HN-RS-FW miniature control panel eliminates that risk by delivering a compact, purpose-built human-machine interface directly at the drive level, where decisions happen fastest.
Within the INDRAMAT BTV06 operator terminal series, the BTV06.1HN-RS-FW occupies a critical mid-range position: it combines the compact footprint demanded by space-constrained control cabinets with the RS-232/RS-485 serial communication capability required for legacy and modern INDRAMAT drive integration. As a genuine INDRAMAT component, it is fully compatible with the DIAX, ECODRIVE, and REXROTH drive families that power tens of thousands of CNC machines, injection molding systems, and automated assembly lines worldwide.
Technical Specifications
- Part Number / SKU: BTV06.1HN-RS-FW
- Brand: INDRAMAT (Bosch Rexroth)
- Series: BTV06 Operator Terminal
- Type: Miniature Control Panel / Handheld Operator Terminal
- Communication Interface: RS (RS-232 / RS-485 Serial)
- Firmware: FW (Factory Firmware Installed)
- Form Factor: Compact / Miniature Panel-Mount
- Weight: 1,100 g
- Manufacturer: INDRAMAT GmbH / Bosch Rexroth AG
- Condition: New / Refurbished / Exchange (specify on inquiry)
Key Features & Benefits
- Compact Miniature Design: Engineered for tight control cabinet installations where standard panels cannot fit, without sacrificing operator functionality.
- RS Serial Communication: Native RS-232/RS-485 interface ensures seamless, low-latency communication with INDRAMAT drive controllers — no additional adapters required.
- Factory Firmware (FW): Ships with pre-installed INDRAMAT firmware, enabling plug-and-play integration with compatible drive systems and reducing commissioning time.
- Drive Parameter Access: Allows operators to read and write drive parameters, monitor fault codes, and execute diagnostic routines directly at the machine.
- Rugged Industrial Construction: Built to withstand the vibration, temperature variation, and EMI environments typical of heavy industrial production floors.
- Drop-in Replacement: Direct OEM-equivalent replacement for failed or end-of-life BTV06.1HN-RS-FW units — no rewiring or software reconfiguration required.
Industry & Equipment Applications
- CNC Machining Centers: Operator interface for INDRAMAT-driven spindle and axis drives in milling, turning, and grinding machines.
- Injection Molding Machines: Drive monitoring and fault diagnostics for servo-driven clamping and injection units.
- Automated Assembly Lines: Real-time drive status display for multi-axis servo systems in automotive and electronics manufacturing.
- Printing & Packaging Machinery: Parameter management for high-speed servo drives requiring precise speed and torque control.
- Textile & Winding Equipment: Tension control and drive diagnostics for continuous-process industrial machinery.
- Robotics & Material Handling: Commissioning and maintenance interface for INDRAMAT-powered robotic drive systems.
System Integration & Compatible Parts
The BTV06.1HN-RS-FW is designed to integrate directly with the INDRAMAT / Bosch Rexroth drive ecosystem. Compatible systems and frequently paired components include:
- INDRAMAT DIAX02, DIAX03, DIAX04 AC Servo Drive Controllers
- INDRAMAT ECODRIVE 01, 03 Series (DKC, DKS)
- Bosch Rexroth IndraDrive (HCS, HMS, HMD series)
- INDRAMAT TDM, KDS, MDD, MKD Servo Motors
- BTV04, BTV06, BTV16 Operator Terminal Series (cross-compatible accessories)
- INDRAMAT IBS, DSS, and MSK motor feedback cables
Our Quality Assurance Process
Every INDRAMAT BTV06.1HN-RS-FW unit sourced and supplied by Konmask.com undergoes a structured verification process before shipment:
- Visual Inspection: Housing, connector pins, display, and keypad checked for physical integrity.
- Part Number Verification: Label and internal firmware version confirmed against OEM documentation.
- Functional Test (where applicable): Communication interface and display functionality verified on compatible test bench.
- Secure Packaging: Anti-static packaging with foam cushioning to prevent transit damage.
- Traceability: Each unit ships with a Konmask inspection record and sourcing documentation.
How to Order
- Submit an Inquiry: Contact us via the form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Approve the proforma invoice and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Tracking: Your order is dispatched with full tracking information and export documentation.
- After-Sales Support: Our technical team remains available for integration questions post-delivery.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drive, and HMI components — not general electronics. Our team speaks your engineering language.
- Global Sourcing Network: Access to genuine and refurbished INDRAMAT / Bosch Rexroth parts from verified international suppliers.
- Fast Response: Inquiries answered within 24 hours. Urgent requirements handled with priority sourcing.
- Export Experience: Serving B2B buyers in Europe, Southeast Asia, the Middle East, and the Americas with compliant export documentation.
- Technical Pre-Sales Support: Not sure if this is the right part? Our engineers will verify compatibility before you commit to an order.
Frequently Asked Questions
Q: Is the BTV06.1HN-RS-FW compatible with Bosch Rexroth IndraDrive systems?
A: The BTV06.1HN-RS-FW was originally designed for INDRAMAT drive systems. Compatibility with newer Bosch Rexroth IndraDrive series depends on the specific firmware and communication protocol version. Please contact our technical team with your drive model number for a compatibility confirmation before ordering.
Q: What does “RS-FW” mean in the part number?
A: “RS” denotes the RS-232/RS-485 serial communication interface variant of the BTV06 panel. “FW” indicates that the unit ships with factory-installed firmware, ready for immediate integration without additional programming.
Q: Can I use this panel as a direct replacement for a failed BTV06.1HN-RS-FW?
A: Yes. The BTV06.1HN-RS-FW is a direct OEM-equivalent replacement. It uses the same connector pinout, communication protocol, and firmware baseline as the original unit, making it a drop-in replacement in most installations.
Q: Do you offer warranty on this product?
A: Konmask.com provides a standard warranty period on all supplied units. Specific warranty terms are confirmed at the time of quotation based on unit condition (new, refurbished, or exchange). Contact us for details.
Q: What is the typical lead time for the BTV06.1HN-RS-FW?
A: Lead time varies based on current stock availability. In-stock units typically ship within 3–5 business days. For sourced units, lead time is 7–21 business days. Submit an inquiry for a real-time availability check.
Q: Can you provide export documentation for customs clearance?
A: Yes. Konmask.com provides full export documentation including commercial invoice, packing list, and certificate of origin as required by the destination country.
