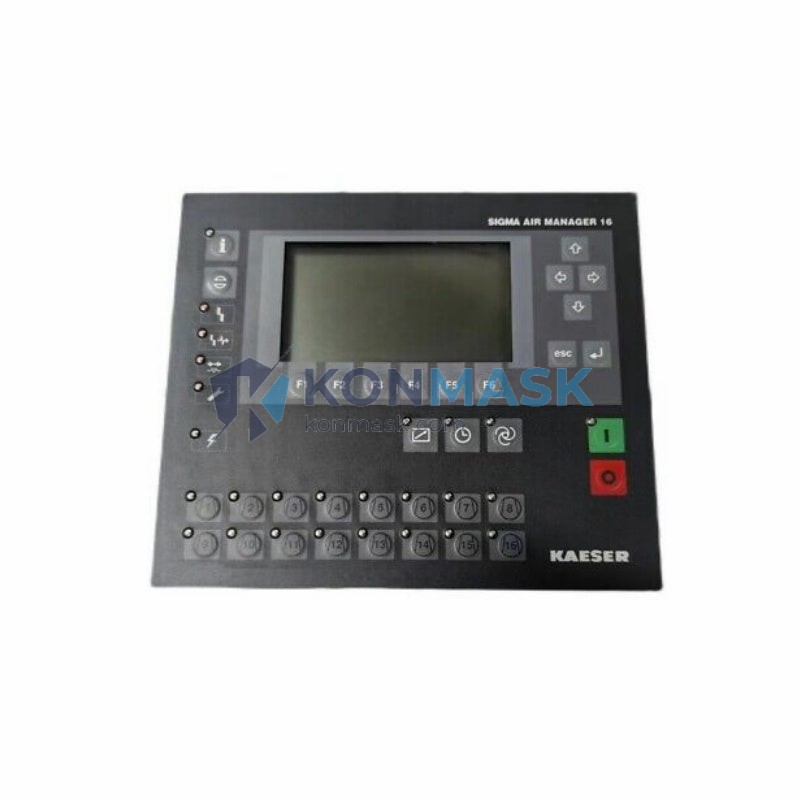

KAESER 6BK1200-0KC00-0AA0 – Compressor Control Panel | KS06 Series Platform
Engineering Background: In a compressed air system, the control panel is the brain of the entire operation. Without a functioning control panel, the compressor cannot regulate pressure, monitor motor load, execute safety shutdowns, or communicate fault codes to maintenance personnel. A failed or missing KAESER control panel means unplanned downtime, potential equipment damage, and cascading production losses across pneumatic-dependent processes — from automotive assembly lines to pharmaceutical packaging.
Product Positioning: The KAESER 6BK1200-0KC00-0AA0 (cross-reference: A5E00083216, firmware/hardware variant KS06) is the dedicated electronic control panel for KAESER rotary screw compressors equipped with the SIGMA CONTROL or equivalent KS-series controller architecture. This unit manages the full operational lifecycle of the compressor: start/stop sequencing, load/unload control, pressure band management, temperature monitoring, service interval tracking, and fault diagnostics. It occupies a critical position in KAESER’s industrial compressed air portfolio and is widely deployed in manufacturing, energy, and process industries globally.
Complete Technical Specifications
- Part Number: 6BK1200-0KC00-0AA0
- Cross-Reference / Board ID: A5E00083216
- Hardware Variant: KS06
- Manufacturer: KAESER Kompressoren SE
- Series / Platform: KS06 / SIGMA CONTROL Compatible
- Product Category: Compressor Control Panel / Controller Board
- Weight: 4,600 g (4.6 kg)
- Condition: New / Refurbished / Tested (specify at inquiry)
- Warranty: 12 months (Konmask standard)
Note: Electrical ratings (voltage, current, I/O count) vary by compressor model. Confirm compatibility with your compressor serial number before ordering.
Proven Application Environments
- KAESER rotary screw compressors (SM, SK, BSD, CSD, DSD series and equivalents)
- Centralized compressed air stations in automotive manufacturing plants
- Pharmaceutical and food-grade production facilities requiring precise pressure control
- Textile mills, paper mills, and heavy process industries
- Mining and tunneling operations with continuous-duty compressed air demand
- Energy sector — gas compression auxiliary systems
- OEM machine builders integrating KAESER compressed air modules
Engineering Advantages
- Integrated Diagnostics: Onboard fault logging and service interval counters reduce mean time to repair (MTTR)
- Pressure Band Control: Precise load/unload hysteresis management extends compressor service life
- Motor Protection: Thermal overload monitoring and phase-loss detection prevent catastrophic motor failure
- Communication Ready: Compatible with KAESER SIGMA NETWORK for remote monitoring and SCADA integration
- Direct Replacement: Drop-in compatibility with existing KS06-series wiring harnesses — no panel modification required
- Robust Construction: Industrial-grade PCB and enclosure rated for compressor room environments (vibration, heat, humidity)
System Architecture & Signal Flow
The 6BK1200-0KC00-0AA0 control panel interfaces with the compressor’s sensor network (pressure transducers, temperature sensors, oil level switches) via dedicated analog and digital I/O channels. The onboard microcontroller processes real-time sensor data against configurable setpoints, executing load/unload commands to the main contactor and star-delta starter. Fault events are logged with timestamps and displayed on the integrated operator panel. The KS06 hardware variant supports serial communication output for integration with building management systems (BMS) or plant-level SCADA via RS-485 or proprietary SIGMA NETWORK protocol.
Sourcing & Quality Verification
- Source Traceability: All units sourced from authorized distributors or verified OEM surplus channels
- Incoming Inspection: Visual inspection, board-level continuity check, and functional power-on test
- Anti-Counterfeit: Label authentication and PCB marking verification against KAESER OEM standards
- Packaging: ESD-safe anti-static bag + foam-lined export carton
- Documentation: Test report and certificate of conformity available on request
Procurement Process
- Submit Inquiry: Contact us via the form below or email [email protected] with your compressor model and serial number
- Compatibility Confirmation: Our engineers verify the 6BK1200-0KC00-0AA0 matches your specific compressor configuration
- Quotation: Receive a formal quotation with lead time, warranty terms, and shipping options within 24 hours
- Order Confirmation: Confirm PO; payment via T/T, L/C, or agreed terms
- Dispatch & Tracking: Ships via DHL / FedEx / sea freight with full tracking and export documentation
Technical FAQ
- Q: Is 6BK1200-0KC00-0AA0 the same as A5E00083216?
- A: Yes. A5E00083216 is the board-level part number (Siemens OEM component reference used in KAESER assemblies), while 6BK1200-0KC00-0AA0 is the KAESER assembly part number. KS06 denotes the hardware/firmware variant. All three identifiers refer to the same physical unit.
- Q: Which KAESER compressor models use this control panel?
- A: This panel is used across multiple KAESER rotary screw compressor series. Please provide your compressor model and serial number so our engineers can confirm exact compatibility.
- Q: Can this panel be reprogrammed or does it retain original firmware?
- A: Units supplied by Konmask retain original KAESER firmware. Custom parameter configuration (pressure setpoints, service intervals) is performed during commissioning by a qualified KAESER technician.
- Q: What is the lead time?
- A: In-stock units ship within 3–5 business days. For sourced units, typical lead time is 7–15 business days. Contact us for current stock status.
- Q: Do you provide installation support?
- A: We provide technical documentation and remote guidance. On-site installation should be performed by a certified KAESER service engineer.
