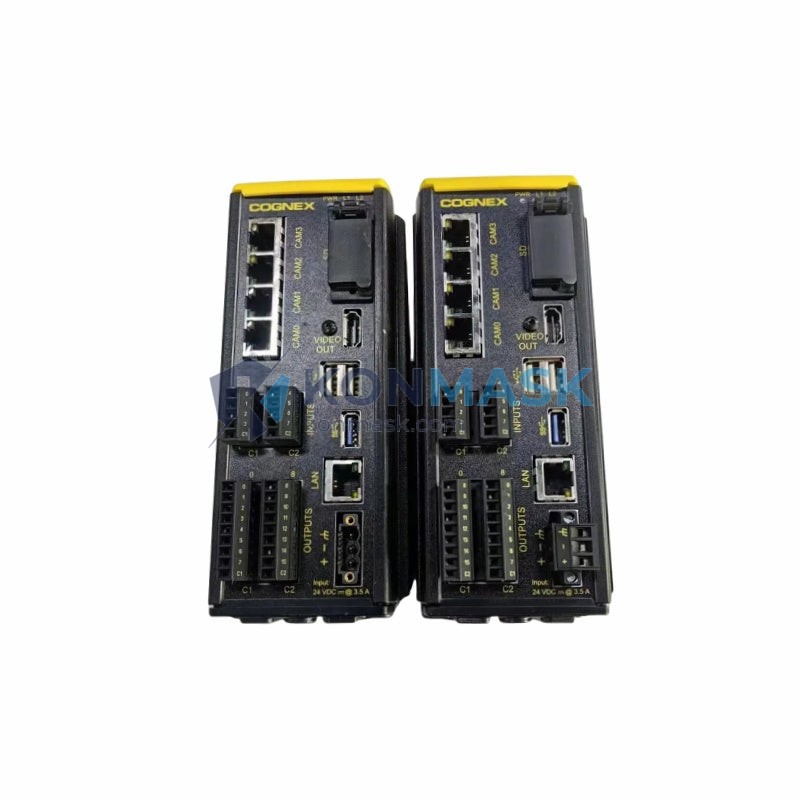

Cognex ISV2-01P-X – In-Sight Vision Controller System Unit | In-Sight 2000 Series Platform
Engineering Background: In modern automated production lines, machine vision is the “eyes” of the system — responsible for defect detection, dimensional measurement, barcode reading, and positional guidance. When a vision controller fails or is unavailable, the entire inspection station goes offline, halting production and triggering costly downtime. The Cognex ISV2-01P-X Controller System Unit (P/N 825-10567-1R, PCB assembly 821-10005-1R) is the core processing brain of the In-Sight 2000 series vision system. Without it, no image acquisition, no pass/fail logic, and no PLC communication is possible.
Product Positioning: The ISV2-01P-X is the integrated controller module within Cognex’s In-Sight 2000 platform — one of the world’s most widely deployed embedded vision systems in electronics manufacturing, automotive assembly, pharmaceutical packaging, and food & beverage inspection. As a field-replaceable controller unit, it is the critical spare part that keeps In-Sight 2000 vision sensors operational across global production facilities. Konmask.com supplies this unit as a verified replacement and spare component for MRO and capital procurement teams.
Complete Technical Specifications
- Manufacturer: Cognex Corporation
- Part Number (Main): ISV2-01P-X
- Assembly Reference: 825-10567-1R
- PCB Sub-Assembly: 821-10005-1R
- Product Series: In-Sight 2000 Series
- Module Type: Controller System Unit (Vision Processing Module)
- Platform: In-Sight 2000 Embedded Vision Sensor
- Communication Interface: Ethernet (EtherNet/IP, PROFINET compatible via In-Sight system)
- I/O: Discrete I/O via In-Sight 2000 system connector
- Operating Temperature: 0°C to +50°C (per In-Sight 2000 platform specification)
- Power Supply: Supplied via In-Sight 2000 system power rail
- Weight: Approx. 4.6 kg (packaged)
- Condition: New / Refurbished Available — specify at inquiry
Note: Specifications are based on Cognex In-Sight 2000 platform documentation. Always verify compatibility with your specific sensor model before ordering.
Proven Application Environments
- Electronics & PCB Manufacturing: Solder joint inspection, component presence/absence verification, barcode traceability on SMT lines
- Automotive Assembly: Part orientation detection, VIN/label reading, weld bead inspection on robotic assembly cells
- Pharmaceutical & Medical Device: Label verification, fill-level inspection, tamper-evident seal detection on packaging lines
- Food & Beverage: Date code verification, cap presence inspection, foreign object detection
- Logistics & Warehousing: Barcode and QR code reading on high-speed conveyor sorting systems
- Consumer Goods: Print quality inspection, packaging completeness verification
Engineering Advantages
- Drop-in Replacement: Designed as a field-replaceable unit for In-Sight 2000 series sensors — minimizes downtime during maintenance
- Proven Platform Reliability: Cognex In-Sight 2000 is deployed in millions of inspection points globally, with a well-established spare parts ecosystem
- Dual Part Number Traceability: Both 825-10567-1R (assembly) and 821-10005-1R (PCB) references ensure precise BOM matching for MRO procurement
- Industrial-Grade Construction: Designed for 24/7 continuous operation in factory environments with vibration, dust, and temperature variation
- EasyBuilder & Spreadsheet Interface: Compatible with Cognex’s intuitive vision tool software — no specialized programming required for standard inspection tasks
System Architecture & Signal Flow
The ISV2-01P-X Controller System Unit sits at the heart of the In-Sight 2000 vision sensor architecture. Image data captured by the CMOS sensor array is passed to the controller for real-time processing using Cognex’s PatMax® and other vision algorithms. The controller executes the inspection job (stored in onboard flash memory), evaluates pass/fail criteria, and outputs results via discrete I/O lines and Ethernet to the host PLC or SCADA system. The 825-10567-1R assembly integrates the processor, memory, I/O logic, and communication stack into a single replaceable module — ensuring that field service teams can restore full vision system functionality without specialized calibration equipment.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Each unit inspected for physical integrity, connector condition, and part number label accuracy prior to shipment
- Dual part number (825-10567-1R / 821-10005-1R) cross-referenced against Cognex BOM documentation
- Packaging: Anti-static ESD bag + foam-lined carton for safe international shipping
- Warranty: 90-day replacement warranty on verified units (terms apply)
- Certificate of conformance available upon request
Procurement Process
- Submit Inquiry: Contact us via the form below or email [email protected] with your required quantity and delivery timeline
- Quote & Lead Time: We respond within 1 business day with pricing, availability, and estimated delivery
- Order Confirmation: Purchase order or proforma invoice issued upon agreement
- Quality Check & Dispatch: Unit inspected, packed in ESD-safe packaging, and shipped via DHL / FedEx / UPS with tracking
- After-Sales Support: Technical assistance available for installation and compatibility verification
Technical FAQ
Q: Is the ISV2-01P-X compatible with all In-Sight 2000 series sensors?
A: The ISV2-01P-X is the controller unit for the In-Sight 2000 platform. Please confirm your specific sensor model (e.g., IS2000-01, IS2000M-130) with our team before ordering to ensure exact compatibility.
Q: What is the difference between 825-10567-1R and 821-10005-1R?
A: 825-10567-1R is the top-level assembly part number for the complete controller system unit. 821-10005-1R is the PCB sub-assembly reference. Both numbers refer to the same physical unit and are used interchangeably in Cognex service documentation.
Q: Can this unit be reprogrammed with a new inspection job?
A: Yes. Once installed in a compatible In-Sight 2000 sensor, the controller can be configured using Cognex In-Sight Explorer software via Ethernet connection.
Q: Do you offer expedited shipping for urgent production line repairs?
A: Yes. We offer express shipping options (DHL Express, FedEx Priority) for urgent MRO requirements. Please indicate urgency in your inquiry.
Q: Is a new or refurbished unit available?
A: Both conditions may be available depending on current stock. Please specify your preference when submitting your inquiry.
