Servo Drive Solution – Kollmorgen AKD-P00606-NAEC-0000 | AKD-P Series
Where This Product Is Used

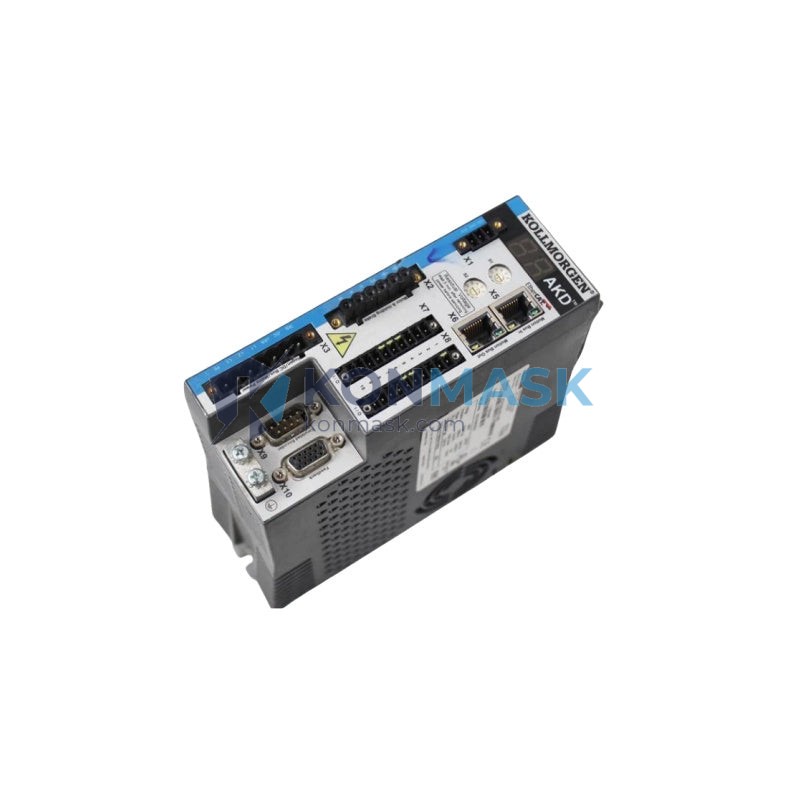

The Kollmorgen AKD-P00606-NAEC-0000 is a high-performance EtherCAT servo drive engineered for demanding industrial motion control applications. Engineers and system integrators deploy this drive across a wide range of industries:
- CNC Machining Centers – Precise multi-axis contouring and spindle synchronization
- Industrial Robotics – Joint-level torque and velocity control in articulated arms
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling lines
- Semiconductor & Electronics Assembly – Sub-micron positioning on gantry and wafer-handling stages
- Printing & Converting – Web tension control and register synchronization
- Medical Devices – Surgical robot axes and diagnostic imaging positioners
- Material Handling & AGVs – Coordinated drive systems for automated guided vehicles
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | AKD-P00606-NAEC-0000 |
| Series | AKD-P |
| Manufacturer | Kollmorgen |
| Continuous Output Current | 6 A |
| Peak Output Current | 18 A (3× continuous) |
| Supply Voltage | 120–240 VAC, 1Ø / 3Ø, 50/60 Hz |
| Fieldbus / Communication | EtherCAT (CoE – CiA 402) |
| Feedback Supported | SFD3, EnDat 2.2, BiSS-C, Resolver, Incremental Encoder |
| Control Modes | Position, Velocity, Torque (CSP / CSV / CST) |
| Safe Torque Off (STO) | SIL 2 / PLd (IEC 62061 / EN 13849-1) |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +40 °C (derate above 40 °C) |
| Weight | ~1.1 kg |
| Certifications | CE, UL, cUL, RoHS |
Why Engineers Specify This Model
- Native EtherCAT (CoE) – Deterministic ≤1 ms cycle time enables tight multi-axis synchronization without external motion controllers
- Universal Feedback Compatibility – Supports SFD3, EnDat 2.2, BiSS-C, resolver, and incremental encoders from a single hardware platform
- Integrated Safety (STO SIL 2) – Eliminates external safety relays, reducing panel footprint and wiring cost
- Auto-Tuning via WorkBench – Kollmorgen’s PC-based commissioning software reduces setup time from hours to minutes
- Compact DIN-Rail Form Factor – Optimized for space-constrained control cabinets
- Wide Feedback Ecosystem – Plug-and-play with the full Kollmorgen AKM, AKM2G, and CDDR motor families
Complete System Bill of Materials
For a fully operational servo axis, the following companion components are typically required:
- Servo Motor – Kollmorgen AKM or AKM2G series (matched to 6 A drive rating)
- Feedback Cable – Kollmorgen SFD3 or EnDat shielded cable assembly
- Power Cable – Motor power cable with mating M23 or M17 connector
- Mains Filter – Line EMC filter (required for CE compliance)
- Regen Resistor – External braking resistor for high-inertia or frequent-deceleration applications
- EtherCAT Master – Compatible PLC or motion controller (e.g., Beckhoff CX series, Omron NJ/NX)
- 24 VDC Control Supply – Isolated SMPS for drive logic power
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment (North America)
- IEC 61800-5-2 – Functional Safety for Adjustable Speed Drives (STO SIL 2)
- EN ISO 13849-1 – Safety of Machinery, PLd
- RoHS 2011/65/EU – Restriction of Hazardous Substances
- EtherCAT Technology Group (ETG) Conformance Tested
Quality Assurance & Sourcing
Every AKD-P00606-NAEC-0000 unit offered through Konmask.com is:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for physical integrity, label authenticity, and firmware version prior to dispatch
- Shipped in anti-static, shock-protected packaging with original documentation where available
- Backed by Konmask’s quality guarantee and post-sale technical support
How to Source This Part
Ready to order or need a formal quotation? Contact our industrial automation team:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed within 24 hours
- MOQ: 1 unit | Volume pricing available for 5+ units
- Payment: T/T, PayPal, credit card, and trade assurance accepted
Application-Specific FAQ
Q: Can the AKD-P00606-NAEC-0000 operate as a standalone motion controller?
A: No. The AKD-P series requires an EtherCAT master (PLC or IPC) to issue motion commands via CoE. It does not have an onboard PLC or standalone indexer.
Q: Is this drive compatible with third-party motors?
A: Yes, with limitations. The drive supports standard feedback protocols (EnDat 2.2, BiSS-C, resolver), enabling use with compatible third-party motors. Motor parameters must be manually configured in WorkBench.
Q: What is the difference between AKD-P and AKD-B/AKD-N?
A: The AKD-P is the standard panel-mount variant. AKD-B is a bookshelf/modular variant sharing a common DC bus; AKD-N is a decentralized drive designed for motor-mounted installation.
Q: Does this unit include the STO safety function?
A: Yes. The AKD-P00606-NAEC-0000 includes dual-channel STO (Safe Torque Off) rated SIL 2 / PLd, accessible via the X1 safety connector.
Q: Can I use Kollmorgen WorkBench software for commissioning?
A: Yes. WorkBench (free download from Kollmorgen) connects via USB or EtherCAT and provides oscilloscope, auto-tuning, and parameter management tools.
