Process Control & Motion Application Solution – Allen-Bradley 1756-L64 | ControlLogix Logix5564 Series
In high-throughput discrete manufacturing and continuous process plants, control system bottlenecks cost real money. A mid-range PLC with insufficient user memory forces engineers to split logic across multiple controllers, adding latency, wiring complexity, and failure points. Plants running legacy 5/20 or SLC 500 platforms report unplanned downtime averaging 4–8 hours per incident, with each hour costing $50,000–$250,000 in lost production across automotive, food & beverage, and chemical sectors.

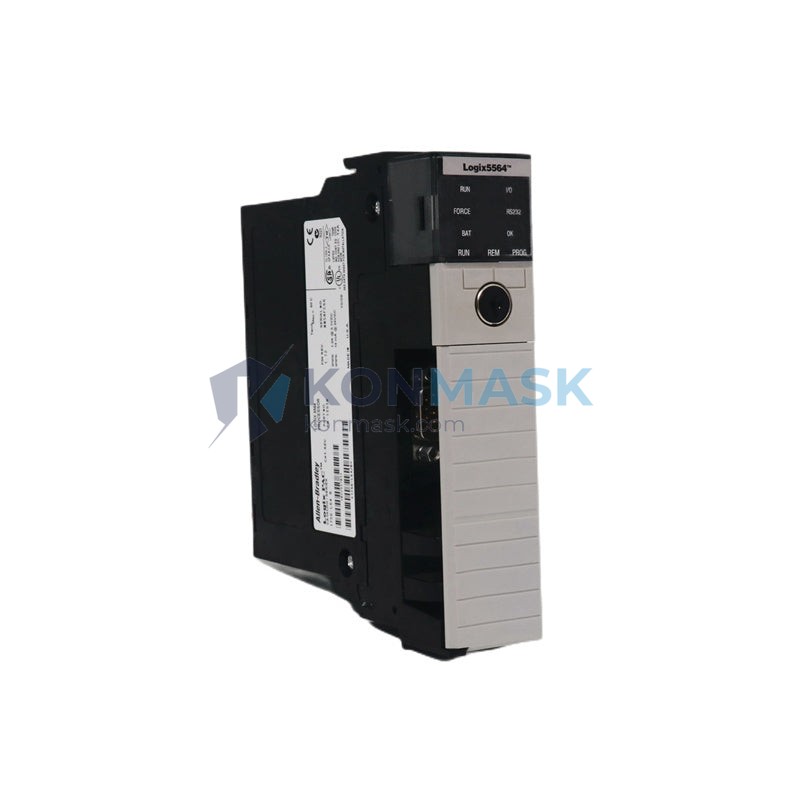

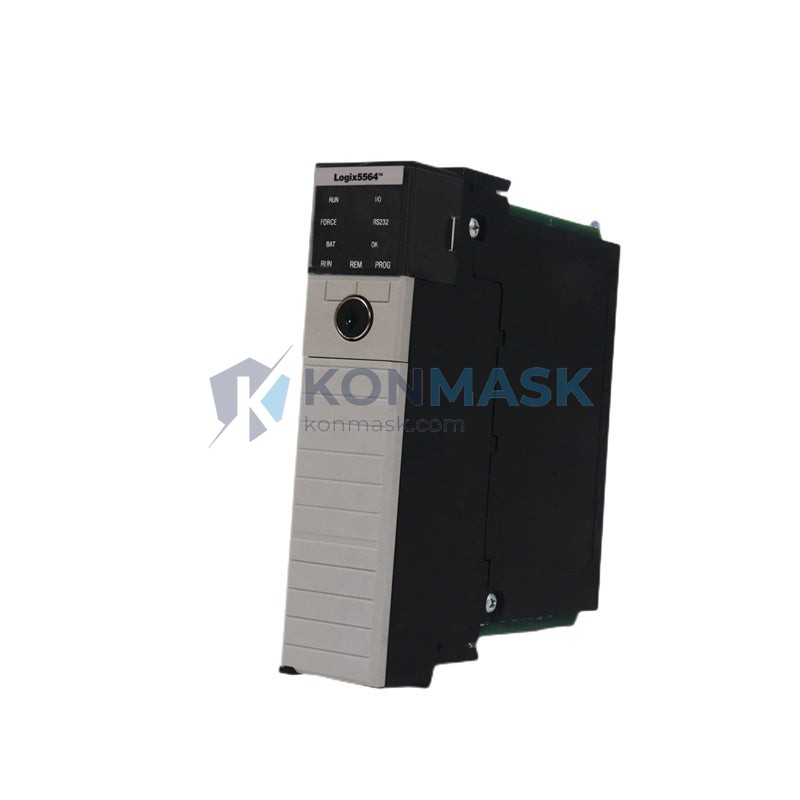

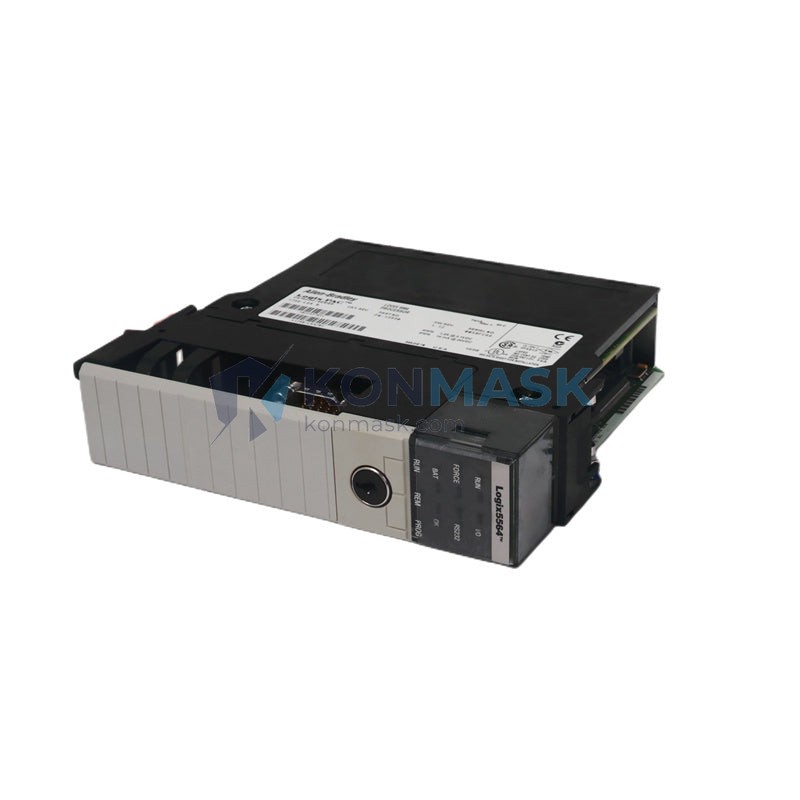

The Allen-Bradley 1756-L64 ControlLogix Logix5564 Processor eliminates this bottleneck at the architecture level. With 8 MB of user memory, deterministic EtherNet/IP communication, and native support for up to 100 axes of coordinated motion, the 1756-L64 consolidates what previously required three separate controllers into a single, hot-swappable chassis slot. Engineers gain a unified programming environment (Studio 5000 Logix Designer), real-time diagnostics, and the scalability to grow from 500 I/O points to 128,000 without a platform change.
Where This Product Is Used
Automotive Body & Powertrain Assembly
• Robotic welding cells requiring ±0.1 mm positional repeatability at 1,500 parts/hour — the 1756-L64 coordinates up to 100 servo axes via CIP Motion over EtherNet/IP, meeting ISO 10218-1 robot safety integration requirements.
• Transfer line sequencing with 2,000+ discrete I/O points across 40-station lines, operating in 40–60 °C ambient with IP54 enclosures.
• End-of-line functional test rigs demanding <1 ms scan-time consistency for torque and leak verification.
Oil & Gas Upstream / Midstream
• Wellhead and compressor station control in Class I Div 2 / ATEX Zone 2 environments, where the 1756-L64 pairs with 1756-IF16 analog input modules for 4–20 mA pressure and flow transmitter loops.
• Pipeline SCADA integration via DNP3 or Modbus TCP bridged through 1756-EN2T EtherNet/IP modules, supporting IEC 61511 SIL 2 functional safety architectures.
• Gas turbine governor control requiring 10 ms or better closed-loop response across temperature ranges of −40 °C to +70 °C.
Food & Beverage Processing
• CIP (Clean-In-Place) sequence control for dairy and beverage lines, where the 1756-L64’s structured text programming handles multi-phase recipe management per ISA-88 batch standards.
• High-speed packaging lines at 600–1,200 packs/minute using coordinated motion for form-fill-seal machines, meeting FDA 21 CFR Part 11 audit trail requirements via FactoryTalk Historian integration.
• Pasteurization and retort temperature control with redundant thermocouple inputs and alarm management per NFPA 72.
Chemical & Pharmaceutical Manufacturing
• Continuous reactor control with PID loop execution at 10 ms scan rates, managing exothermic reactions where ±0.5 °C temperature deviation triggers safety interlocks per IEC 61511.
• Batch dispensing systems requiring 21 CFR Part 11-compliant electronic batch records, integrated with Rockwell FactoryTalk Batch.
• Solvent handling areas (Zone 1/2) using intrinsically safe I/O modules in the same 1756 chassis, reducing panel footprint by 35%.
Water & Wastewater Treatment
• SCADA-driven pump station control across distributed lift stations, with the 1756-L64 acting as a primary controller communicating to remote 1756 chassis via fiber EtherNet/IP rings (IEC 62439-3 PRP/HSR).
• Membrane bioreactor (MBR) aeration control using analog PID with adaptive tuning, meeting EPA 40 CFR Part 503 biosolids management standards.
• Chlorination dosing with redundant controller configurations (1756-L64 + 1756-L64 in ControlLogix Redundancy) for 99.99% uptime SLA compliance.
Material Handling & Intralogistics
• Automated Storage and Retrieval Systems (AS/RS) with 32-axis crane and conveyor coordination, operating 24/7 in −25 °C cold-store environments.
• Sortation systems processing 10,000+ parcels/hour using high-speed counter modules and vision system integration via EtherNet/IP.
• AGV fleet management integration via MQTT/OPC-UA gateway, meeting IEC 61496 safety light curtain interlock standards.
Technical Specifications
| Catalog Number | 1756-L64 |
| Series | ControlLogix Logix5564 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| User Memory | 8 MB — supports large ladder/ST programs for multi-process plants without memory partitioning |
| I/O Capacity | Up to 128,000 I/O points — scales from single-machine to plant-wide architectures |
| Motion Axes | Up to 100 coordinated axes via CIP Motion — covers full robotic cell and multi-axis gantry applications |
| Communication | EtherNet/IP (via 1756-EN2x modules), ControlNet, DeviceNet — deterministic, producer/consumer model |
| Scan Time | Configurable; typical 1–10 ms for process loops, <1 ms for motion tasks |
| Operating Temperature | 0 °C to +60 °C (storage: −40 °C to +85 °C) |
| Relative Humidity | 5–95% non-condensing |
| Power Supply | Supplied via 1756 chassis backplane (1756-PA72 or 1756-PB72) |
| Chassis Compatibility | All 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot) |
| Programming Software | Studio 5000 Logix Designer v21 and above |
| Languages Supported | Ladder Diagram, Function Block, Structured Text, Sequential Function Chart (IEC 61131-3) |
| Redundancy | Supported via 1756-RM2 redundancy module — critical for SIL 2 and high-availability applications |
| Weight | 320 g |
| Certifications | UL, CE, cUL, ATEX (with appropriate I/O), RCM, KC |
Why Engineers Specify This Model
In multi-axis robotic welding cells, the 1756-L64 delivers deterministic 100-axis CIP Motion coordination because its dual-port EtherNet/IP architecture eliminates motion jitter below 250 µs, meeting ISO 10218-1 robot controller response requirements.
In SIL 2 process safety architectures, the 1756-L64 delivers seamless integration with GuardLogix 1756-L6xS safety controllers because both share the same Studio 5000 programming environment and 1756 chassis backplane, meeting IEC 61511 functional safety lifecycle requirements without a separate safety PLC.
In ISA-88 batch manufacturing, the 1756-L64 delivers 8 MB of structured text recipe storage because its memory architecture supports concurrent multi-phase batch execution without program fragmentation, meeting FDA 21 CFR Part 11 electronic record integrity requirements.
In cold-store AS/RS operations, the 1756-L64 delivers reliable operation at −25 °C ambient because the 1756 chassis backplane power distribution is rated for full temperature range without derating, meeting IEC 60068-2-1 cold environment endurance requirements.
In water treatment redundant SCADA systems, the 1756-L64 delivers sub-100 ms controller switchover via 1756-RM2 redundancy because its synchronous memory mirroring operates over the dedicated redundancy fiber link, meeting IEC 62439-3 high-availability network requirements.
In pharmaceutical dispensing lines, the 1756-L64 delivers audit-trail-ready batch data because its FactoryTalk Batch integration timestamps every recipe step at the controller level, meeting 21 CFR Part 11 and EU Annex 11 electronic records requirements.
Complete System Bill of Materials
The following components form a complete ControlLogix control system around the 1756-L64 processor:
| Cat. No. | Description | Role in System |
|---|---|---|
| 1756-L64 | ControlLogix Logix5564 Processor (this item) | Central logic execution, motion coordination, and program storage |
| 1756-A10 | 10-Slot ControlLogix Chassis | Backplane housing for processor and I/O modules |
| 1756-PA72 | 120/240 VAC Power Supply | Backplane power; required for all 1756 chassis configurations |
| 1756-EN2T | EtherNet/IP Bridge Module | Connects processor to plant EtherNet/IP network and remote I/O |
| 1756-IF16 | 16-Channel Analog Input Module | 4–20 mA / 0–10 V process variable inputs (pressure, flow, temperature) |
| 1756-OF8 | 8-Channel Analog Output Module | Control valve and VFD setpoint outputs |
| 1756-IB32 | 32-Point 24 VDC Digital Input Module | Discrete sensor, limit switch, and pushbutton inputs |
| 1756-OB32 | 32-Point 24 VDC Digital Output Module | Solenoid valve, relay, and indicator outputs |
| 1756-RM2 | Redundancy Module | Enables hot-standby controller redundancy for high-availability applications |
| 1756-L6xS | GuardLogix Safety Processor | SIL 2 safety logic in same chassis; shares I/O backplane with 1756-L64 |
| 2198-Hxxx | Kinetix 5700 Servo Drive | CIP Motion servo axis drive; controlled directly by 1756-L64 over EtherNet/IP |
| 9324-RLD300ENE | Studio 5000 Logix Designer License | Programming, configuration, and online diagnostics software |
Compliance & Industry Standards
UL 508A — Underwriters Laboratories; confirms the 1756-L64 meets industrial control panel safety standards required for North American market installations and insurance compliance.
CE Marking (EN 61131-2) — European conformity for programmable controllers; mandatory for installations in EU member states and required by EPC contractors on European projects.
cUL (CSA C22.2 No. 142) — Canadian Standards Association; required for Canadian industrial installations and accepted by most North American AHJs alongside UL.
ATEX / IECEx (with appropriate I/O) — Explosive atmosphere certification; when paired with ATEX-rated 1756 I/O modules, the system is deployable in Zone 1/2 (Gas) and Zone 21/22 (Dust) hazardous areas per IEC 60079.
RCM (Australia/New Zealand) — Regulatory Compliance Mark; required for installations in AU/NZ and accepted by project engineers on Asia-Pacific EPC contracts.
IEC 61131-3 — International standard for PLC programming languages; the 1756-L64 supports all five languages, enabling code portability and reducing vendor lock-in risk for end users.
ODVA EtherNet/IP Conformance — Open DeviceNet Vendors Association; guarantees interoperability with any ODVA-certified device on the plant network without custom drivers.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1756-L64 exclusively through authorized Rockwell Automation distributors, certified surplus dealers with documented chain-of-custody, and direct OEM decommission programs. We do not source from anonymous brokers or unverified secondary markets.
4-Step Inspection Process:
① Visual & Physical Inspection — Firmware label verification, connector pin integrity check, housing condition assessment, and counterfeit indicator screening per IDEA-STD-1010B.
② Functional Power-On Test — Module is powered in a live 1756 chassis; processor boot sequence, memory self-test, and backplane communication are verified against factory specifications.
③ Firmware Version Verification — Firmware revision is read via RSLinx and documented; customers can request specific firmware versions where available.
④ Final Documentation Package — Each unit ships with inspection report, firmware record, and optional third-party test certificate upon request.
Available Documentation: Inspection report · Firmware revision record · Original Rockwell Automation datasheet · Third-party functional test certificate (on request) · Certificate of Conformance (on request)
How to Source This Part
Step 1 — Submit Your Requirement
Contact us via [email protected] or +0086 19859288691 with your catalog number (1756-L64), required quantity, firmware version preference, and delivery deadline. For urgent plant-down situations, mark your inquiry URGENT for priority handling.
Step 2 — Receive Quote Within 24 Hours
Our technical team confirms stock availability, firmware revision, lead time, and pricing within 24 business hours. We provide a formal quotation with inspection report summary and shipping options (DHL Express, FedEx International Priority, sea freight for bulk orders).
Step 3 — Worldwide Delivery
We ship to 80+ countries. Export documentation (commercial invoice, packing list, HS code 8537.10) is prepared for customs clearance. Typical DHL Express transit: 3–7 business days to North America, Europe, Southeast Asia, and the Middle East. Bulk orders qualify for consolidated freight with full insurance coverage.
Application-Specific FAQ
Q: Can the 1756-L64 handle both process control PID loops and high-speed motion control simultaneously in a single chassis?
A: Yes. The 1756-L64 supports multi-tasking with separate Continuous, Periodic, and Event tasks. Process PID loops run in the Continuous task at 10 ms scan rates while CIP Motion servo tasks execute at 1 ms or faster in dedicated Periodic tasks — both on the same processor without interference. This is the standard architecture for hybrid process-and-motion applications such as filling-and-capping lines and robotic palletizers.
Q: Is the 1756-L64 suitable for SIL 2 safety applications in chemical plant reactor control?
A: The 1756-L64 itself is a standard (non-safety) controller. For SIL 2 reactor control per IEC 61511, it is paired with a GuardLogix 1756-L6xS safety processor in the same chassis. The 1756-L64 handles standard process control while the GuardLogix executes the safety instrumented function (SIF). This dual-controller architecture is the Rockwell-certified approach for SIL 2 applications and is widely used in chemical and oil & gas facilities.
Q: What is the recommended upgrade path for plants currently running 1756-L55 or 1756-L61 processors on aging automotive assembly lines?
A: The 1756-L64 is a direct chassis-slot replacement for all prior Logix5500-series processors. The existing 1756 chassis, I/O modules, and wiring remain unchanged. Programs created in RSLogix 5000 are imported into Studio 5000 Logix Designer and converted with the built-in migration tool. Rockwell Automation’s Controller Migration Guide (Publication 1756-UM001) documents the step-by-step process. Konmask can supply the 1756-L64 pre-loaded with your existing firmware revision to minimize commissioning time on the assembly line.
