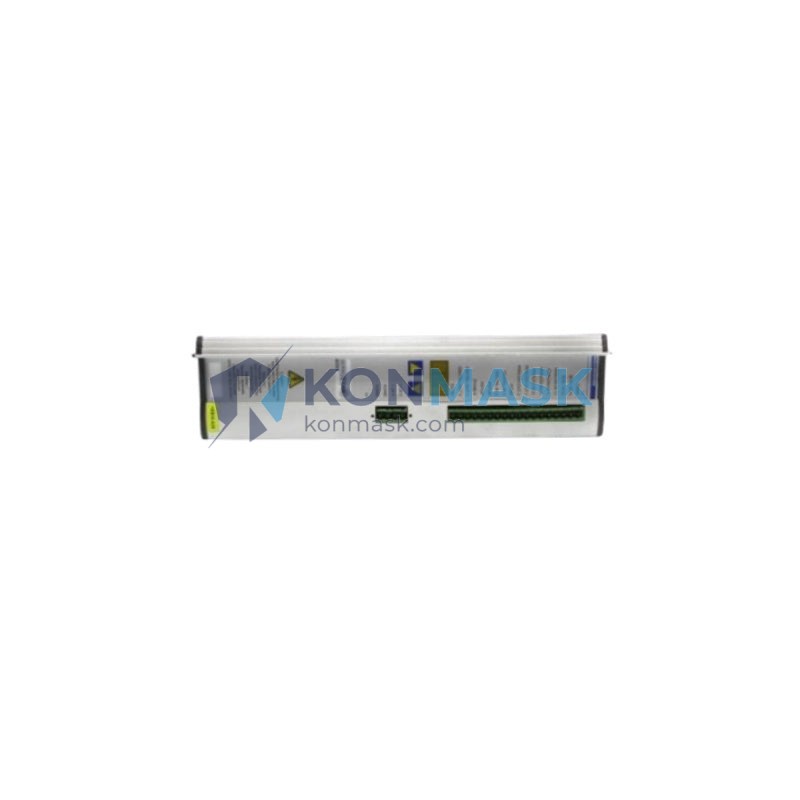

Precision Motion Control Solution – KOLLMORGEN SERVOSTAR 601 | SERVOSTAR 600 Series
Where This Product Is Used
The KOLLMORGEN SERVOSTAR 601 is a single-axis digital servo amplifier engineered for demanding industrial motion control applications. Engineers and system integrators specify this drive across a wide range of industries and use cases:
- CNC Machine Tools – Axis feed drives, spindle orientation, and tool-changer positioning on machining centers and lathes.
- Industrial Robotics – Joint actuation in articulated arms, SCARA robots, and gantry systems requiring tight torque and velocity loops.
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling lines where synchronization and repeatability are critical.
- Semiconductor & Electronics Manufacturing – Wafer handling, PCB drilling, and SMT placement machines demanding sub-micron positioning.
- Printing & Converting – Web tension control, register correction, and cut-to-length applications.
- Material Handling & Conveyors – Servo-driven sortation, indexing tables, and automated storage/retrieval systems (AS/RS).
- Medical & Laboratory Automation – Diagnostic imaging stages, fluid dispensing, and sample handling robots.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SERVOSTAR 601 |
| Series | SERVOSTAR 600 |
| Manufacturer | KOLLMORGEN |
| Drive Type | Single-Axis Digital AC Servo Amplifier |
| Continuous Output Current | 1 A (rms) |
| Peak Output Current | 3 A (rms) |
| Supply Voltage | 115 / 230 VAC, 1-phase or 3-phase, 50/60 Hz |
| DC Bus Voltage | 325 / 650 VDC |
| Control Modes | Torque, Velocity, Position |
| Command Interface | ±10 V Analog, Step/Direction, Encoder Following |
| Fieldbus Options | CANopen, PROFIBUS-DP, DeviceNet, EtherCAT (option card) |
| Feedback Supported | Resolver, Incremental Encoder, SinCos Encoder, EnDat, Hiperface |
| Digital I/O | 7 Inputs / 3 Outputs (programmable) |
| Analog I/O | 2 Analog Inputs, 1 Analog Output |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +45 °C (ambient) |
| Storage Temperature | -25 °C to +70 °C |
| Humidity | ≤ 85% RH, non-condensing |
| Dimensions (H × W × D) | Approx. 220 × 60 × 170 mm |
| Weight | Approx. 0.9 kg |
| Certifications | CE, UL, cUL |
| Programming Software | KOLLMORGEN WorkBench (free download) |
Why Engineers Specify This Model
- Compact 1 A Footprint – The SERVOSTAR 601 is the entry-level current rating in the SERVOSTAR 600 family, ideal for small servo motors (sub-100 W) where panel space is at a premium.
- Universal Feedback Compatibility – Supports resolver, incremental encoder, SinCos, EnDat, and Hiperface in a single hardware platform, eliminating the need for separate drive variants per motor type.
- Multi-Mode Control – Seamlessly switches between torque, velocity, and position control modes via software, reducing BOM complexity in multi-axis machines.
- Fieldbus Flexibility – Optional CANopen, PROFIBUS-DP, DeviceNet, and EtherCAT cards allow integration into virtually any PLC or motion controller ecosystem.
- Auto-Tuning & WorkBench Software – KOLLMORGEN WorkBench provides one-click auto-tuning, oscilloscope, and Bode plot tools, dramatically reducing commissioning time.
- Safe Torque Off (STO) – Integrated SIL 2 / PLd safety function meets EN 61800-5-2 without external safety relays, simplifying machine safety architecture.
- Proven Global Install Base – The SERVOSTAR 600 series has been deployed in millions of axes worldwide since its introduction, ensuring long-term parts and support availability.
Complete System Bill of Materials
For a fully operational servo axis using the SERVOSTAR 601, engineers typically specify the following complementary components:
- Servo Motor – KOLLMORGEN AKM, Goldline, or compatible third-party motor rated ≤ 100 W continuous
- Motor Cable – KOLLMORGEN shielded power cable (motor-specific length)
- Feedback Cable – Resolver or encoder cable matched to motor feedback type
- 24 VDC Control Power Supply – Minimum 2 A capacity for logic and I/O
- AC Line Filter – EMC line filter per CE/UL installation requirements
- Braking Resistor – External resistor for high-inertia or frequent deceleration cycles
- Fieldbus Option Card – CANopen / PROFIBUS / EtherCAT card (if network control required)
- WorkBench PC Interface Cable – RS-232 or USB-to-serial adapter for commissioning
- DIN Rail & Panel Hardware – Mounting rail, terminal blocks, and cable management
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)
- UL / cUL Listed – Recognized under UL 508C (Power Conversion Equipment) for North American markets
- EN 61800-5-1 – Adjustable speed electrical power drive systems — safety requirements
- EN 61800-5-2 – Functional safety (STO: SIL 2 / PLd)
- EN 61800-3 – EMC requirements for drive systems (Category C2)
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU
Quality Assurance & Sourcing
At Konmask.com, every KOLLMORGEN SERVOSTAR 601 unit is subject to our multi-point quality process:
- Authenticity Verification – Units are cross-referenced against KOLLMORGEN factory serial number databases and date codes.
- Visual & Functional Inspection – Each drive is inspected for physical integrity, connector condition, and label legibility before listing.
- Traceability – Full lot traceability maintained from supplier to shipment; documentation available upon request.
- Packaging – Anti-static ESD bags, foam-lined cartons, and moisture-barrier packaging for safe international transit.
- Warranty – 90-day replacement warranty against defects in materials and workmanship.
How to Source This Part
- Add to Cart – Click “Add to Cart” and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Request a Quote – For volume orders (5+ units) or urgent requirements, email support@konmask.com for a dedicated quote within 24 hours.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock availability confirmed at time of order.
- Export Documentation – We provide commercial invoice, packing list, and certificate of origin for customs clearance. HS Code: 8504.40 (power supply units for electronic use).
- Technical Support – Pre-sales engineering support available via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Can the SERVOSTAR 601 control a KOLLMORGEN AKM servo motor directly?
A: Yes. The SERVOSTAR 600 series is factory-optimized for KOLLMORGEN AKM motors. Motor data files are pre-loaded in WorkBench for plug-and-play commissioning.
Q: What is the difference between SERVOSTAR 601, 603, 606, and 610?
A: The numeric suffix denotes continuous output current in amps (601 = 1 A, 603 = 3 A, 606 = 6 A, 610 = 10 A). All share the same hardware platform and software.
Q: Is EtherCAT supported natively?
A: EtherCAT requires the optional EtherCAT option card (KOLLMORGEN part number S00706). The base unit supports CANopen and RS-232 natively.
Q: Can I use a third-party motor with the SERVOSTAR 601?
A: Yes. The drive supports custom motor data entry in WorkBench. Resolver and incremental encoder feedback from third-party motors are fully supported.
Q: What PLC brands are compatible?
A: The SERVOSTAR 601 integrates with Siemens S7, Allen-Bradley ControlLogix/CompactLogix, Mitsubishi MELSEC, Omron NJ/NX, Beckhoff TwinCAT, and any PLC supporting ±10 V analog or standard fieldbus protocols.
Q: Is this unit new or refurbished?
A: Please confirm with our team at the time of inquiry. We clearly label all units as new, surplus new (unused), or tested-good refurbished. All grades carry our 90-day warranty.
