KUKA 00-138-379 Safety Board | Robot Safety Controller – Replacement, Equivalent & Selection Guide

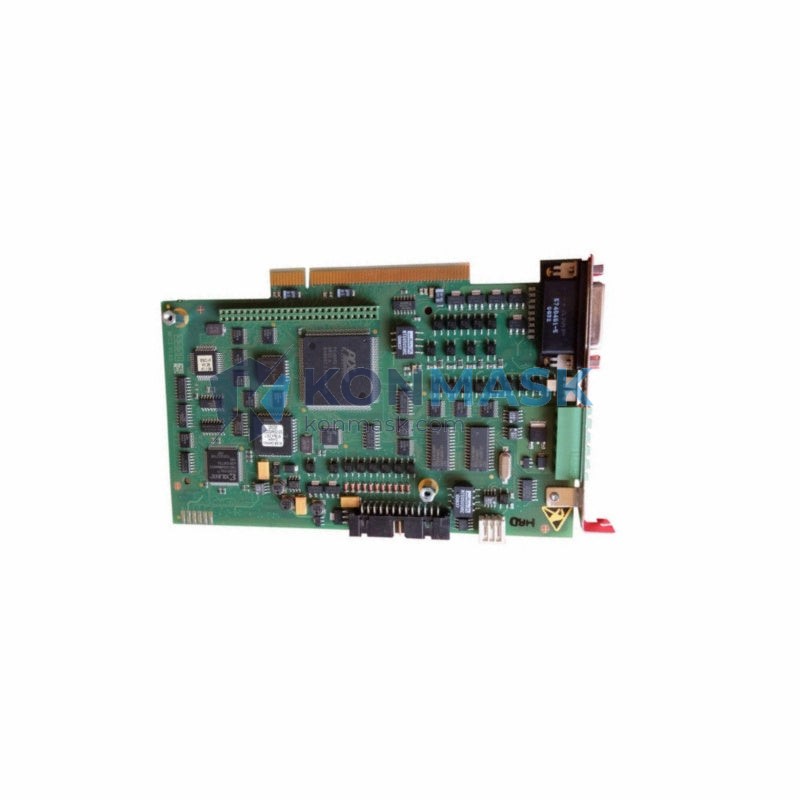

The KUKA 00-138-379 is an OEM safety board designed for KUKA industrial robot controllers. It serves as the core safety monitoring unit responsible for emergency stop circuits, safety gate interlocks, and protective stop logic within KUKA KRC-series robot systems. Konmask.com supplies this component as a verified OEM part and qualified equivalent, supporting procurement engineers with fast sourcing, cross-reference data, and technical validation.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 00-138-379 |
| Manufacturer | KUKA Robotics |
| Component Type | Safety Board / Safety Controller PCB |
| Compatible Platform | KUKA KRC Series Robot Controllers |
| Function | Emergency stop monitoring, safety gate interlock, protective stop logic |
| Safety Category | IEC 62061 / ISO 13849 compliant safety circuit |
| Form Factor | PCB module, DIN-rail / cabinet mount |
| Origin | Germany (OEM) |
| Weight | approx. 560 g |
| Condition Available | New OEM / Tested Refurbished / Exchange |
Compatible Replacement & Equivalent Models
The following models are commonly cross-referenced or used as functional equivalents in KUKA robot safety circuits. Always verify firmware revision and connector pinout before substitution:
- KUKA 00-138-379 — OEM original (this listing)
- KUKA 00-116-344 — Earlier safety board revision, KRC2 platform
- KUKA 00-130-468 — Safety interface board, KRC4 compatible variant
- KUKA 00-168-894 — Updated safety board with extended I/O
- Pilz PNOZ m B0 — Third-party safety relay equivalent for E-stop circuits
- Sick i10-E0213 — Safety interlock switch compatible with KUKA gate circuits
Note: Third-party equivalents require engineering validation. Contact Konmask for cross-reference confirmation before ordering.
Why Choose the Original Model
- Guaranteed firmware compatibility — OEM boards ship with the correct firmware revision pre-loaded for your KRC controller generation.
- Certified safety rating — Maintains IEC 62061 SIL 2 / ISO 13849 PLd compliance without re-validation.
- Plug-and-play replacement — Identical connector layout eliminates wiring modification risk.
- Warranty continuity — Using OEM parts preserves KUKA service contract eligibility.
- Traceability — Full OEM batch traceability for audit and compliance documentation.
Typical Applications
- KUKA KRC2 / KRC4 / KRC4 compact robot controller safety circuit repair
- Emergency stop (E-stop) channel replacement after fault or damage
- Safety gate and light curtain interlock integration
- Protective stop (PS) and operational stop (OS) logic restoration
- Preventive maintenance board swap in high-cycle automotive welding lines
- Spare parts inventory for multi-robot production cells
System Compatibility
| KUKA Controller | Compatibility | Notes |
|---|---|---|
| KRC2 (ed05 / ed2005) | ✅ Confirmed | Standard fit |
| KRC4 | ✅ Confirmed | Verify hardware revision |
| KRC4 compact | ⚠️ Conditional | Confirm PCB revision with Konmask |
| KRC4 smallsize | ⚠️ Conditional | Requires engineering review |
| KRC5 | ❌ Not compatible | Different safety architecture |
Selection Guide
Use the following decision flow to select the correct safety board for your KUKA robot system:
- Identify your controller model — Check the KRC cabinet label for model and serial number.
- Record the existing board part number — Located on the PCB silkscreen or KUKA service documentation.
- Check firmware revision — Required firmware version is listed in the KUKA KSS software version notes.
- Confirm connector type — Compare X11 / X13 safety connector pinout against your wiring diagram.
- Choose supply condition — New OEM for critical production lines; tested refurbished for backup/spare inventory.
- Contact Konmask — Provide controller serial number for final cross-reference confirmation.
Quality Assurance & Sourcing
- All boards are inspected and function-tested prior to dispatch.
- OEM units sourced directly from authorized KUKA distribution channels.
- Refurbished units undergo full safety circuit continuity and isolation testing.
- Packaging includes anti-static ESD protection and moisture barrier.
- Certificate of conformity and test report available on request.
- Konmask maintains traceability records for all safety-critical components.
How to Order
- Add to cart or contact Konmask directly for volume pricing.
- Provide your KUKA controller model and serial number for cross-reference validation.
- Specify required condition: New OEM / Tested Refurbished / Exchange.
- Confirm shipping destination — DDP / DAP terms available for international orders.
- Receive proforma invoice within 1 business day; dispatch within 3–5 business days for stock items.
Replacement & Compatibility FAQ
Q: Can I use a refurbished 00-138-379 in a safety-critical application?
A: Yes, provided the board has passed full safety circuit testing and you have received the test report. Konmask provides documentation for all refurbished safety boards.
Q: Is the 00-138-379 compatible with KRC5 controllers?
A: No. KRC5 uses a fundamentally different safety architecture. Please contact Konmask for the correct KRC5 safety board part number.
Q: Do I need to re-validate my safety system after replacing this board?
A: When replacing with an identical OEM part number and firmware revision, re-validation is typically not required. Consult your safety engineer and KUKA service documentation for your specific installation.
Q: What is the lead time for new OEM stock?
A: In-stock items ship within 3–5 business days. Out-of-stock OEM orders typically require 2–4 weeks. Contact Konmask for real-time availability.
Q: Can Konmask provide a functional equivalent to reduce cost?
A: Yes. Konmask can recommend validated third-party equivalents for non-safety-critical auxiliary circuits. For primary safety channels, OEM is strongly recommended.
