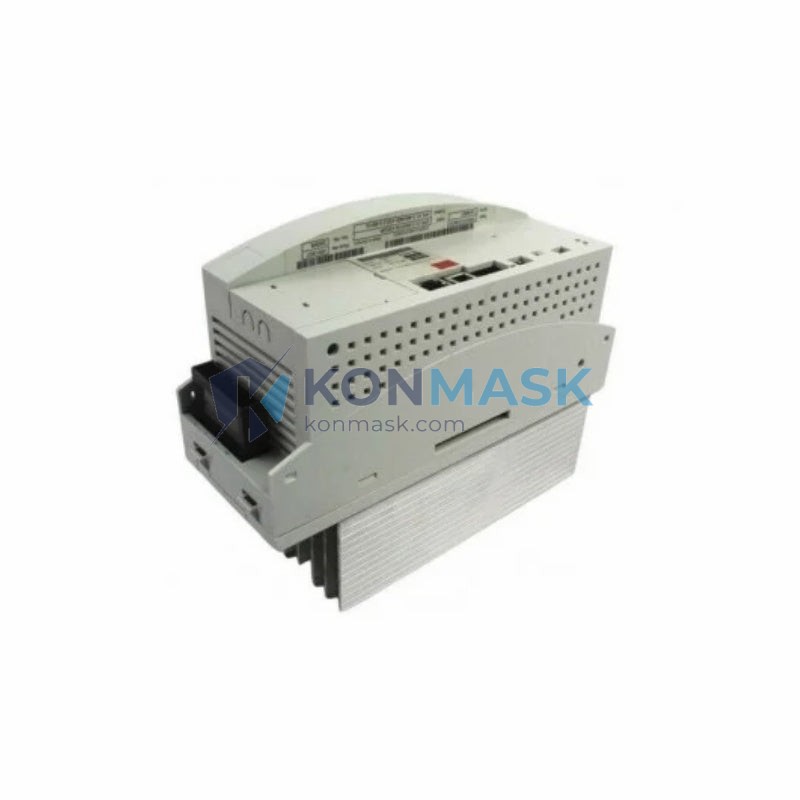

KUKA KSD1-16 (00-122-285) – Axis Servo Drive Amplifier | KRC2 Robot Controller Platform
Engineering Background: The KSD1-16 is a dedicated servo drive amplifier module developed by KUKA Roboter GmbH for integration within the KRC2 robot controller cabinet. Designed to deliver precise torque and velocity control for individual robot axes, it forms the power electronics backbone of KUKA’s second-generation controller architecture — widely deployed across automotive body-in-white, arc welding, material handling, and general-purpose industrial automation lines.
Product Positioning: Part number 00-122-285 identifies the standard 16A continuous-current variant of the KSD1 series. This module is a direct OEM replacement for failed or degraded drive channels in KRC2 cabinets, enabling maintenance teams to restore full 6-axis operation without controller replacement. Konmask.com supplies this unit as a tested, verified spare with full traceability documentation.
Complete Technical Specifications
- Manufacturer: KUKA Roboter GmbH
- Part Number: 00-122-285
- Model / Series: KSD1-16
- Controller Platform: KRC2 (all variants incl. KRC2 ed05)
- Module Type: Axis Servo Drive Amplifier
- Continuous Output Current: 16 A
- Supply Voltage: DC Bus from KPS (KRC2 Power Supply Unit)
- Communication Interface: KUKA proprietary DSE-IBS backplane bus
- Axis Compatibility: A1–A6 (axis-specific firmware may apply)
- Cooling: Forced air via KRC2 cabinet internal fan system
- Weight: approx. 323 g
- Country of Origin: Germany
- Condition: Genuine OEM / Refurbished-Tested (specify at order)
Proven Application Environments
- Automotive body-in-white (BIW) spot welding lines
- Arc welding and laser welding cells
- Automotive paint shop and sealing robots
- Material handling, palletizing, and press-tending
- Machine tending and CNC load/unload automation
- General-purpose 6-axis articulated robot applications
Engineering Advantages
- Drop-in Replacement: Plug-compatible with KRC2 DSE backplane — no re-wiring or cabinet modification required.
- Axis-Level Redundancy: Replace only the failed drive channel; remaining axes continue operation during maintenance window.
- OEM Firmware Compatibility: Operates with standard KUKA KRC2 system software (V4.x and V5.x) without firmware re-flashing in most configurations.
- Compact Form Factor: Slot-mount design minimizes cabinet footprint and simplifies hot-swap procedures.
- Proven Field Reliability: KSD1 series has accumulated millions of operating hours across global automotive and general industry installations since the late 1990s.
System Architecture & Signal Flow
Within the KRC2 cabinet, the KSD1-16 receives its DC bus power from the KPS600 or KPS1500 power supply unit. Control commands are transmitted via the DSE-IBS (Interbus-S derivative) backplane from the DSE board (Drive System Electronics). The KSD1-16 converts these digital torque/velocity setpoints into PWM-modulated three-phase output to the corresponding robot axis motor. Encoder feedback is routed back through the RDC (Resolver-to-Digital Converter) board, closing the position loop at the KRC2 controller level.
Fault states (overcurrent, overtemperature, bus fault) are reported via the backplane to the KRC2 safety circuit and logged in the KUKA system error log (KRC:LOG).
Sourcing & Quality Verification
- Traceability: Each unit ships with a Konmask inspection record including visual, functional, and load-test results.
- Anti-Counterfeit: Label integrity, PCB revision markings, and KUKA part number laser engraving verified prior to dispatch.
- Packaging: ESD-safe anti-static bag + foam-lined carton; suitable for international air and sea freight.
- Warranty: 90-day replacement warranty against manufacturing defects (DOA policy applies).
Procurement Process
- Confirm your KRC2 cabinet serial number and current KSD1 slot assignment (A1–A6).
- Submit your purchase order or inquiry to [email protected] with part number 00-122-285.
- Receive proforma invoice and lead-time confirmation within 1 business day.
- Payment via T/T, PayPal, or trade-platform escrow.
- Dispatch within 2–3 business days; DHL/FedEx express available for urgent requirements.
Technical FAQ
Q: Is the KSD1-16 (00-122-285) compatible with KRC2 ed05?
A: Yes. The KSD1-16 is compatible across all KRC2 variants including the ed05 (enhanced) cabinet revision.
Q: Can I use this module on any axis (A1–A6)?
A: In most KRC2 configurations, KSD1-16 modules are interchangeable across axes. However, axis-specific firmware variants exist for some robot models — confirm with your KUKA service documentation or contact us before ordering.
Q: What is the difference between KSD1-16 and KSD1-32?
A: The suffix denotes continuous output current rating: 16 A vs. 32 A. The KSD1-32 is used for higher-torque axes (typically A1/A2/A3 on larger payload robots). Always match the replacement to the original module rating.
Q: Do you provide a test report?
A: Yes. A Konmask functional test record is included with every shipment upon request.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 5–15 business days. Contact us for real-time stock status.
