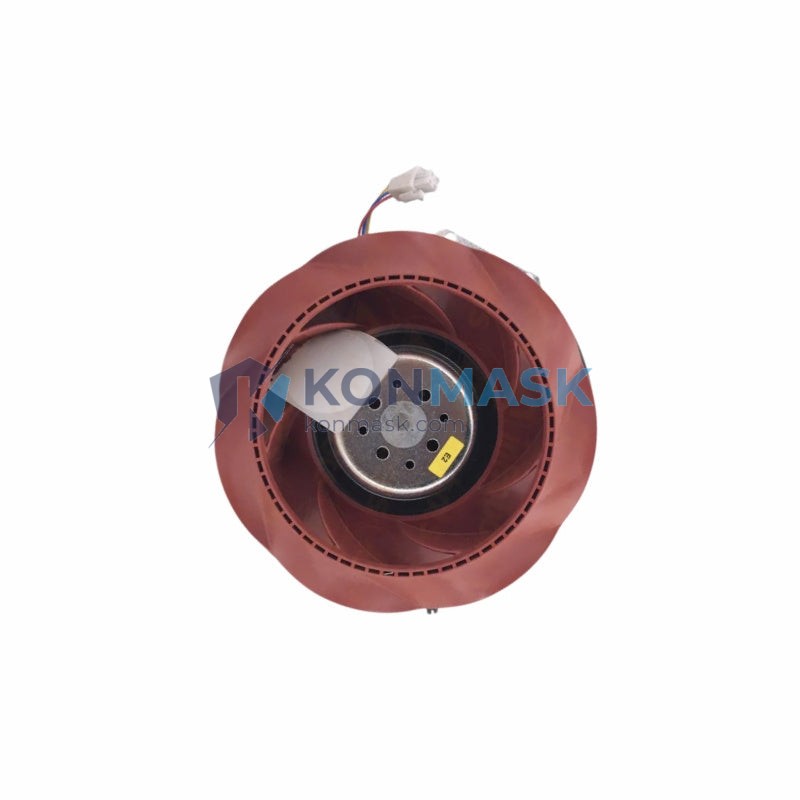

KUKA 00-176-743 – Control Cabinet Main Cooling Fan | KRC Robot Controller Platform
Engineering Background: Industrial robot controllers generate substantial heat during continuous operation. The KUKA KRC series control cabinet relies on forced-air cooling to maintain safe operating temperatures for servo drives, power supplies, and CPU modules. A failed or degraded main cooling fan is one of the most common causes of thermal shutdown faults (e.g., KSS error: cabinet temperature exceeded), leading to unplanned downtime on production lines.
Product Positioning: The KUKA 00-176-743 is the OEM-specified main cooling fan for KRC robot control cabinets. It is a direct drop-in replacement that restores full thermal management performance without requiring firmware changes or mechanical modification. Sourced from verified supply channels, this unit is the preferred choice for maintenance engineers seeking a reliable, specification-matched spare.
Complete Technical Specifications
- Part Number: 00-176-743
- Manufacturer: KUKA Robotics
- Compatible Platform: KRC Control Cabinet Series (KRC2, KRC4 variants)
- Function: Main cabinet forced-air cooling fan
- Mounting: Direct OEM replacement, panel-mount
- Weight: 560 g (approx.)
- Condition: New / Refurbished (specify at inquiry)
- Warranty: 12 months from shipment date
Proven Application Environments
- Automotive Body Shop: Spot welding and seam welding robot cells running 24/7 — thermal management is critical to prevent servo drive overtemperature faults.
- Automotive Paint Shop: KUKA KRC-controlled painting robots in high-ambient-temperature spray booths where cabinet cooling is under constant load.
- General Assembly: Multi-robot assembly lines where a single cabinet fan failure can halt an entire cell and trigger cascading production stops.
- Foundry & Heavy Industry: High-dust, high-heat environments where fan bearing wear is accelerated — planned replacement with 00-176-743 is standard PM practice.
- Logistics & Palletizing: Continuous-duty palletizing robots where controller uptime directly impacts throughput KPIs.
- Electronics Manufacturing: Precision assembly cells requiring stable thermal conditions to maintain robot repeatability within spec.
Engineering Advantages
- OEM Part Number Match: Eliminates compatibility risk — no cross-referencing or dimensional verification required.
- Drop-In Replacement: Identical connector pinout, mounting footprint, and airflow direction to the original unit.
- Thermal Fault Prevention: Restores designed airflow volume (CFM) to prevent KSS overtemperature alarms and unplanned shutdowns.
- Extended MTBF: New bearing assembly resets the wear clock, extending mean time between failures for the cooling subsystem.
- Reduced Downtime Risk: Stocking one unit as a critical spare reduces MTTR (Mean Time To Repair) from days to minutes.
System Architecture & Signal Flow
In the KRC control cabinet, the main cooling fan draws ambient air through filtered intake panels and exhausts heated air from the cabinet interior. The fan is monitored by the KRC controller’s thermal management circuit — a fan failure or speed drop below threshold triggers a fault code and initiates a controlled shutdown to protect servo drives and the KPC (controller PC). The 00-176-743 integrates directly into this monitoring loop, ensuring fault-free operation upon installation.
- Intake → Cabinet filter → Fan (00-176-743) → Heat exchanger / drive bay → Exhaust
- Fan speed signal feeds back to KRC thermal monitoring module
- Alarm threshold: fan speed below rated RPM triggers KSS warning → shutdown sequence
Sourcing & Quality Verification
- Supply Chain: Sourced from authorized KUKA spare parts distributors and verified OEM channels.
- Inspection: Each unit undergoes visual inspection, dimensional check, and electrical continuity verification before shipment.
- Traceability: Part number and batch documentation available upon request for MRO audit compliance.
- Packaging: Anti-static, shock-protected packaging with OEM part number labeling.
- Counterfeit Prevention: Konmask.com does not source from grey-market or unverified brokers — all units are traceable to authorized supply.
Procurement Process
- Submit your inquiry via [email protected] or the on-page contact form with your robot model and KRC cabinet serial number.
- Receive a formal quotation with lead time, unit price, and shipping options within 24 business hours.
- Confirm purchase order — payment via T/T, PayPal, or trade terms for approved accounts.
- Unit ships with full documentation (packing list, inspection report, commercial invoice).
- Post-delivery technical support available for installation guidance.
Technical FAQ
Q: Which KUKA KRC cabinet models is 00-176-743 compatible with?
A: This fan is specified for the KRC series control cabinets. Please confirm your cabinet model (KRC2 / KRC4) and serial number at inquiry for definitive compatibility confirmation.
Q: What fault code indicates a failed main cooling fan?
A: Common indicators include KSS overtemperature warnings, cabinet temperature exceeded faults, and fan monitoring alarms. Consult your KRC error log for specific fault codes.
Q: Can I install this fan without KUKA service authorization?
A: Fan replacement is a standard maintenance task. However, always follow KUKA’s lockout/tagout procedures and consult your KRC maintenance manual before performing cabinet work.
Q: What is the recommended replacement interval?
A: KUKA recommends periodic inspection of cabinet cooling components. In high-duty-cycle or high-ambient-temperature environments, proactive replacement every 3–5 years is common practice.
Q: Do you offer volume pricing for MRO stocking programs?
A: Yes. Contact [email protected] with your annual volume estimate for a tiered pricing proposal.
