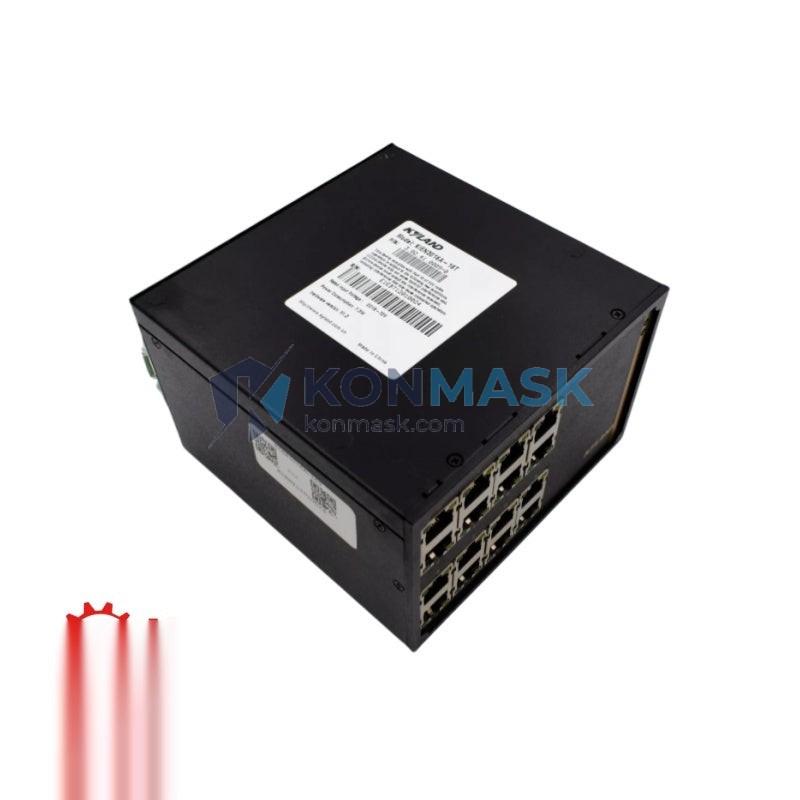

Industrial Automation Solution – KYLAND KIEN3016BGE-16T | KIEN3000 Series
Where This Product Is Used
The KYLAND KIEN3016BGE-16T is purpose-built for mission-critical industrial network infrastructure. Engineers and system integrators deploy this switch across a wide range of demanding environments:
- Factory Automation & Manufacturing Lines – Backbone Ethernet connectivity for PLCs, HMIs, robots, and motion controllers in high-EMI production floors.
- SCADA & Process Control Systems – Reliable ring-topology networking for oil & gas, water treatment, and chemical plant DCS architectures.
- Power Utility & Substation Automation – IEC 61850-compliant network segments connecting IEDs, RTUs, and protection relays in high-voltage substations.
- Rail & Transportation – Trackside and on-board Ethernet backbone for signaling, CCTV, and passenger information systems.
- Intelligent Building & Infrastructure – BMS, access control, and IP surveillance networks requiring extended temperature tolerance and DIN-rail mounting.
- Mining & Heavy Industry – Ruggedized Ethernet for remote monitoring and control in vibration-prone, dusty, or corrosive environments.
Technical Specifications
- Model: KIEN3016BGE-16T
- Brand / Manufacturer: KYLAND Technology Co., Ltd.
- Series: KIEN3000
- Port Configuration: 16 × 10/100/1000BASE-T RJ45 Gigabit Ethernet ports
- Management: Fully Managed (Layer 2+)
- Switching Capacity: 32 Gbps non-blocking
- Redundancy Protocols: RSTP / MSTP; KYLAND proprietary KRPR ring (recovery <20 ms)
- VLAN: IEEE 802.1Q, up to 4094 VLANs
- QoS: IEEE 802.1p, 4 priority queues per port
- Security: 802.1X port authentication, MAC address filtering, IP source guard
- Management Interfaces: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% – 95% RH (non-condensing)
- Power Input: Dual redundant DC 12–48 V
- Power Consumption: ≤ 18 W (typical)
- Mounting: DIN-rail / Wall-mount
- Protection: IP30 enclosure; 4 kV surge protection per port
- Dimensions (W×H×D): 45 × 140 × 105 mm (approx.)
- Weight: ~1,000 g
- Certifications: CE, FCC, UL, RoHS
Why Engineers Specify This Model
- Sub-20 ms Ring Recovery – KYLAND’s KRPR protocol restores network connectivity faster than RSTP, preventing process interruptions in time-sensitive control loops.
- All-Gigabit Port Density – 16 × GbE ports in a compact 45 mm DIN-rail form factor eliminate the need for uplink bottlenecks common in 100 Mbps switches.
- Wide Temperature Range (-40°C to +75°C) – Operates reliably in outdoor cabinets, unheated substations, and cold-storage facilities without additional thermal management.
- Dual Redundant Power Inputs – Eliminates single-point-of-failure on the power rail; supports 12–48 VDC for compatibility with standard 24 VDC industrial panels.
- Advanced Security Stack – 802.1X, IP source guard, and SSH/SNMPv3 meet modern OT cybersecurity requirements (IEC 62443 alignment).
- 4 kV Port Surge Protection – Protects against lightning-induced transients and ESD events common in field installations.
Complete System Bill of Materials
Typical control-cabinet BOM pairing the KIEN3016BGE-16T:
- KYLAND KIEN3016BGE-16T – Core managed Ethernet switch (this unit)
- 24 VDC DIN-rail power supply (e.g., MEAN WELL MDR-60-24)
- Siemens SIMATIC S7-1500 or equivalent PLC
- Industrial fiber media converter (if fiber uplink required)
- Cat6A shielded patch cables (rated for industrial flex)
- DIN-rail terminal blocks and cable management accessories
- Uninterruptible power supply (UPS) module for critical nodes
Compliance & Industry Standards
- CE – European Conformity (EMC Directive 2014/30/EU; LVD 2014/35/EU)
- FCC Part 15 Class A – Electromagnetic interference compliance for industrial environments
- UL 61010-1 – Safety for electrical equipment for measurement, control, and laboratory use
- RoHS 2 (2011/65/EU) – Restriction of hazardous substances
- IEEE 802.3 / 802.1Q / 802.1p / 802.1X / 802.1w / 802.1s – Full IEEE Ethernet standards compliance
- IEC 61850 Ready – Suitable for substation automation network segments
Quality Assurance & Sourcing
Konmask.com sources the KYLAND KIEN3016BGE-16T exclusively through authorized distribution channels and verified industrial component suppliers. Every unit undergoes:
- Visual and dimensional inspection upon receipt
- Firmware version verification against KYLAND’s official release notes
- Functional power-on test and port link verification
- Anti-static packaging and humidity-indicator card inclusion for long-haul shipping
We maintain full traceability from manufacturer lot to shipment, ensuring authenticity for OEM integrators and end-users alike.
How to Source This Part
- In-Stock Orders: Add to cart and check out — most orders ship within 1–3 business days from our warehouse.
- Bulk / Project Quotes: Email support@konmask.com with your BOM quantity and project timeline for volume pricing.
- Lead-Time Items: If stock is temporarily unavailable, contact us — we can confirm factory lead times and reserve allocation for your project.
- Technical Pre-Sales: Our engineering team can assist with network topology review, redundancy design, and compatibility verification before purchase.
Application-Specific FAQ
Q: Can the KIEN3016BGE-16T support IEC 61850 GOOSE messaging for substation protection?
A: Yes. The switch supports multicast filtering and QoS prioritization required for GOOSE and Sampled Values traffic. Verify VLAN and multicast configuration with your protection relay vendor.
Q: Is the switch compatible with Siemens PROFINET or Rockwell EtherNet/IP?
A: Yes. As a standard IEEE 802.3 managed switch, it is transparent to PROFINET and EtherNet/IP traffic. Ensure LLDP and multicast settings are configured per your PLC vendor’s network guide.
Q: What is the ring recovery time and which protocol is used?
A: KYLAND’s proprietary KRPR (KYLAND Rapid Ring Protection) achieves <20 ms recovery. Standard RSTP/MSTP is also supported for interoperability with third-party switches.
Q: Can I power the switch from a 24 VDC panel bus?
A: Yes. The dual redundant power inputs accept 12–48 VDC, making 24 VDC panel power fully compatible.
Q: Does the switch support SNMPv3 for OT network monitoring?
A: Yes. SNMPv3 with authentication and encryption is supported, along with RMON for traffic statistics — compatible with most industrial NMS platforms including Nagios, Zabbix, and KYLAND’s own NMS.
