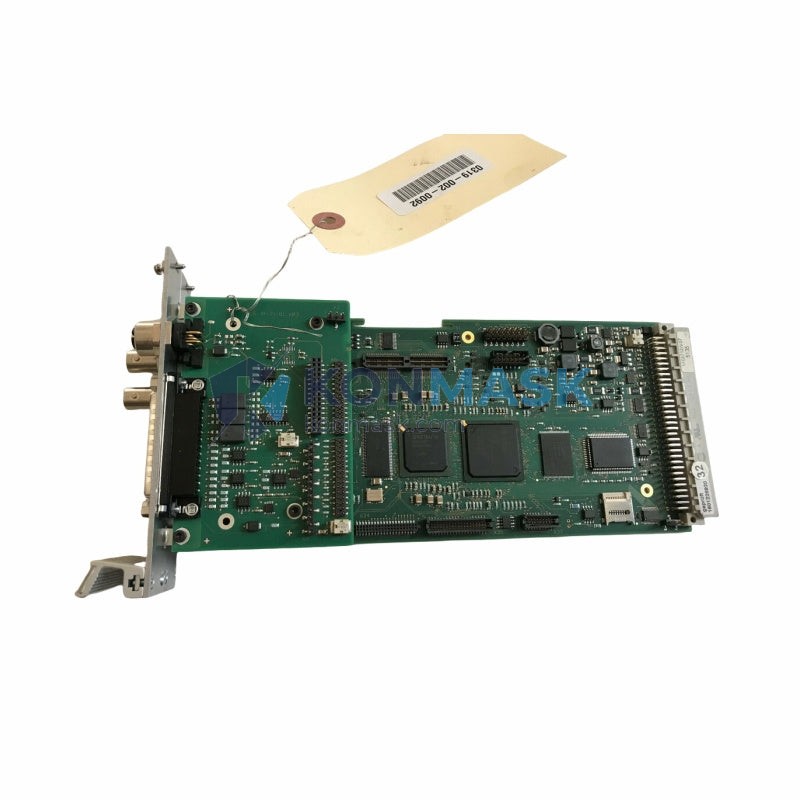

Lam Research 18-22-30-A1-1613166 Controller PCB Card | Semiconductor Etch System Control Board
Engineering Background: The Lam Research 1613166 Controller PCB Card (assembly part 18-22-30-A1-1613166) is a precision-engineered printed circuit board designed for use in Lam Research plasma etch and deposition systems. These controller boards serve as the central signal-processing and command-execution interface within the equipment’s electrical architecture, ensuring deterministic process control in high-throughput semiconductor fabrication environments.
Product Positioning: Sourced and verified by Konmask.com, this PCB is positioned as a direct OEM-equivalent replacement for facilities requiring minimal downtime and maximum process repeatability. It is suited for fab maintenance teams, equipment refurbishers, and spare-parts procurement engineers managing Lam Research tool fleets.
Complete Technical Specifications
- Part Number (SKU): 18-22-30-A1-1613166
- Reference PN: 1613166
- Assembly Designation: 18-22-30-A1
- Component Type: Controller PCB Card
- Manufacturer: Lam Research Corporation
- Country of Origin: United States
- Form Factor: Plug-in PCB card (rack/chassis mount)
- Weight: 5,300 g (approx. shipping weight)
- Application: Plasma etch / CVD / semiconductor process equipment
- Condition: Used / Refurbished / New (specify at inquiry)
Proven Application Environments
- Lam Research Rainbow, Versys, and Kiyo etch platform families
- 300 mm and 200 mm wafer process chambers requiring precision RF and DC control
- High-volume production fabs with continuous 24/7 tool uptime requirements
- Equipment refurbishment and second-life tool programs
- University and R&D lab semiconductor process tools
Engineering Advantages
- OEM-Equivalent Compatibility: Direct drop-in replacement; no firmware modification required in supported configurations
- Signal Integrity: Multi-layer PCB construction with controlled impedance traces for noise-sensitive control signals
- Thermal Reliability: Designed for sustained operation in thermally demanding fab enclosures
- Reduced MTTR: Swap-ready form factor minimizes mean time to repair during unplanned downtime events
- Traceable Provenance: Each unit inspected and documented prior to shipment
System Architecture & Signal Flow
The 18-22-30-A1-1613166 PCB interfaces with the host system controller via the equipment’s internal backplane bus. It receives process recipe commands, translates them into actuator-level control signals, and returns status/feedback data to the supervisory control layer. Key signal paths include digital I/O for interlock management, analog conditioning for sensor inputs, and communication interfaces for real-time process monitoring. The board is designed to operate within Lam Research’s proprietary control architecture and is compatible with the associated software and firmware revisions of the target platform.
Sourcing & Quality Verification
- All units undergo visual inspection for physical damage, burnt components, and connector integrity
- Functional bench testing performed where applicable prior to listing
- Serialization and revision markings verified against Lam Research documentation
- Secure anti-static packaging with moisture barrier for international shipment
- Certificate of conformance available upon request for regulated procurement environments
Procurement Process
- Submit your part number inquiry or RFQ via [email protected]
- Receive stock confirmation, condition report, and lead time within 1 business day
- Review and approve proforma invoice
- Payment processed via T/T, PayPal, or approved trade terms
- Unit shipped with tracking; ETA provided at dispatch
- Post-delivery technical support available for integration questions
Technical FAQ
Q: Is this board compatible with my specific Lam tool model?
A: Compatibility depends on your tool’s BOM revision. Please provide your tool serial number or system configuration and we will confirm fitment before shipment.
Q: What warranty is provided?
A: Konmask offers a 90-day functional warranty on all verified units. Extended warranty terms available for volume orders.
Q: Can you supply the matching firmware or software?
A: Firmware is typically resident on the board or managed by the host system. Contact us with your tool’s software version for guidance.
Q: Do you accept returns?
A: Yes, within 30 days of receipt for units in original condition. DOA claims handled within 5 business days.
Q: What is the lead time for out-of-stock units?
A: Sourcing lead time is typically 2–6 weeks depending on market availability. Submit an RFQ to be notified when stock is confirmed.
