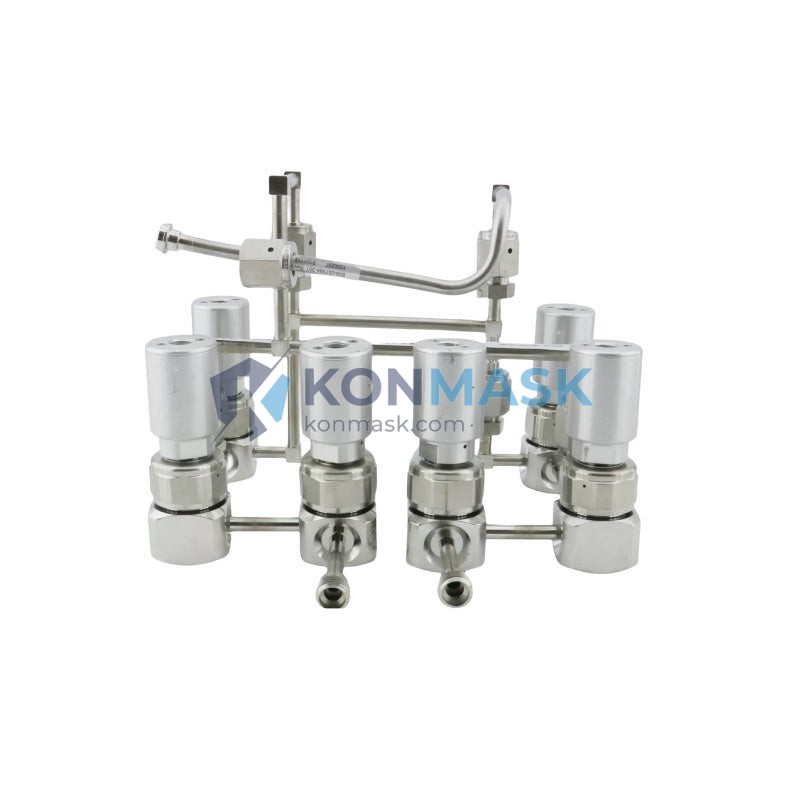

Genuine LAM RESEARCH 839-034095-301 5-Way Manifold Valve Assembly | Etch & CVD Series – Verified Source
Konmask.com supplies authentic LAM RESEARCH 839-034095-301 5-Way Manifold Valve Assemblies sourced directly through verified OEM and authorized distribution channels. Every unit undergoes our 4-step quality verification before shipment, ensuring your semiconductor process equipment operates at peak reliability.
Cross-Reference SKUs: 839-034095-301 | 839-034098-101 | 0190-50951 | 6LV-BNBW4-C | 0050-09639
Technical Specifications
| Manufacturer | LAM RESEARCH |
| Primary Part Number | 839-034095-301 |
| Cross-Reference Part Numbers | 839-034098-101 / 0190-50951 / 6LV-BNBW4-C / 0050-09639 |
| Description | 5-Way Manifold Valve Assembly |
| Product Type | Manifold Valve Assembly |
| Application | Semiconductor Etch & CVD Process Equipment |
| Weight | 2,600 g (approx.) |
| Condition | New / Refurbished (specify at inquiry) |
| Origin | OEM / Authorized Supply Chain |
Our 4-Step Quality Verification Process
At Konmask.com, every critical semiconductor component passes through a rigorous verification protocol before it reaches your facility:
- Source Authentication – We trace each unit to its OEM origin or authorized distributor, with full documentation available upon request.
- Visual & Dimensional Inspection – Trained technicians inspect for physical integrity, correct labeling, and dimensional conformance against OEM specifications.
- Functional Pre-Check – Where applicable, valve actuation, seal integrity, and port alignment are verified prior to packaging.
- Documentation Review – Certificates of conformance, traceability records, and packing lists are prepared and included with every shipment.
Key Features & Benefits
- 5-Way Manifold Design – Enables multi-port gas or fluid routing in a compact, integrated assembly, reducing system complexity and leak points.
- OEM-Grade Materials – Constructed to LAM RESEARCH’s original material specifications for chemical compatibility and long service life in aggressive process environments.
- Drop-In Replacement – Engineered to match original mounting dimensions and port configurations for direct installation without modification.
- Verified Authenticity – Every unit is traceable to its supply chain origin; counterfeit-free guarantee backed by our sourcing policy.
- Reduced Downtime – Ready-to-ship inventory and expedited logistics options minimize fab downtime during unplanned maintenance events.
Typical Applications
- LAM RESEARCH Etch systems (Kiyo, Flex, Versys series)
- LAM RESEARCH CVD / ALD process chambers
- Gas delivery manifold sub-systems requiring 5-way valve routing
- Preventive maintenance (PM) kits for scheduled chamber rebuilds
- Spare parts inventory for semiconductor fabs and equipment service providers
Compatible System Components
This manifold valve assembly is designed for integration within LAM RESEARCH process equipment platforms. Compatible ancillary components typically include:
- Gas line fittings and VCR/face-seal connectors
- Pneumatic actuator assemblies
- MFC (Mass Flow Controller) inlet/outlet manifolds
- Process chamber gas distribution rings
- Valve driver PCBs and solenoid control modules
Contact our technical team to confirm compatibility with your specific tool configuration and chamber revision.
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock and lead-time units available – contact us for real-time inventory status.
- Shipping Regions: Worldwide, including USA, EU, Japan, South Korea, Taiwan, Southeast Asia, and the Middle East.
- Logistics Partners: DHL Express, FedEx International Priority, UPS, and freight forwarding for bulk orders.
- Export Compliance: All shipments are processed in accordance with applicable export control regulations (EAR/ECCN where applicable).
- Lead Time: Typically 3–10 business days depending on destination and stock status.
Certifications & Compliance Statement
Konmask.com is committed to supplying components that meet or exceed OEM quality standards. Our sourcing and quality processes are aligned with:
- ISO 9001 quality management principles
- RoHS compliance documentation available upon request
- Full traceability records maintained for a minimum of 3 years
- Anti-counterfeiting policy: all parts are sourced exclusively from verified supply chains
Certificates of Conformance (CoC) and Material Test Reports (MTR) are available for qualifying orders. Please specify your documentation requirements at the time of inquiry.
How to Order
- Submit an Inquiry – Contact us via email at [email protected] or via the product page with your required quantity and delivery timeline.
- Receive a Quote – Our team will respond within 1 business day with pricing, availability, and lead time confirmation.
- Order Confirmation – Upon agreement, a proforma invoice is issued. Payment terms: T/T, PayPal, or as agreed.
- Shipment & Tracking – Your order is packed, documented, and dispatched with full tracking information provided.
- After-Sales Support – Our technical team remains available post-delivery for installation guidance or warranty queries.
Authenticity & Trust FAQ
Q: How do I know the part is genuine?
A: Every unit is sourced from verified OEM or authorized distribution channels. We provide full supply chain documentation upon request, including CoC and traceability records.
Q: Can you supply multiple cross-reference part numbers?
A: Yes. Part numbers 839-034095-301, 839-034098-101, 0190-50951, 6LV-BNBW4-C, and 0050-09639 all refer to the same assembly or direct equivalents. We can confirm the exact revision upon inquiry.
Q: Do you offer a warranty?
A: Yes. We offer a standard 90-day warranty against manufacturing defects on all new units. Extended warranty options are available for volume orders.
Q: What if the part doesn’t fit my system?
A: Our technical team will work with you to identify the correct revision or alternative. We accept returns for incorrectly supplied parts within 30 days of receipt.
Q: Can I order in bulk for PM kits?
A: Absolutely. We support bulk procurement for scheduled PM programs. Contact us for volume pricing and blanket order arrangements.
