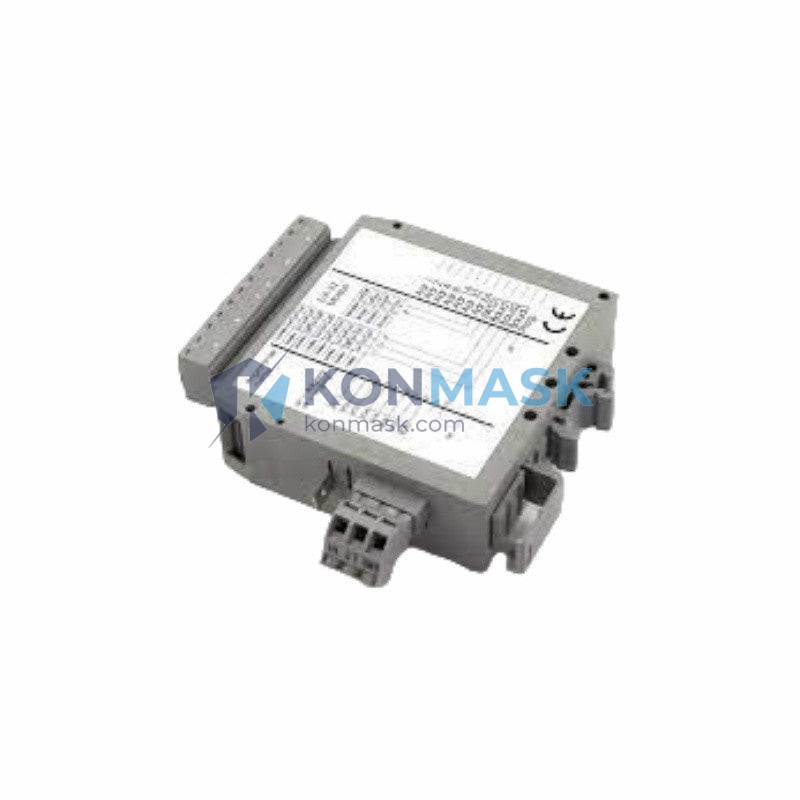

LENZE EMZ9374IB – PROFIBUS DP Communication Module | 8200 Vector Drive Platform
Engineering Background: The LENZE 8200 Vector series represents one of Europe’s most widely deployed variable-frequency drive platforms in discrete manufacturing and process automation. As fieldbus integration became the backbone of modern plant networks, LENZE engineered the EMZ9374IB as the dedicated PROFIBUS DP interface card — enabling seamless, deterministic communication between 8200 Vector drives and SIMATIC, Beckhoff, or any IEC 61158-compliant PLC master.
Product Positioning: The EMZ9374IB is a plug-in communication module designed exclusively for LENZE 8200 Vector frequency inverters. It provides a certified PROFIBUS DP slave interface (up to 12 Mbit/s), allowing full parameter access, setpoint control, and real-time status feedback over the fieldbus — eliminating analog wiring and enabling centralized drive management from the PLC level.
Complete Technical Specifications
- Part Number / SKU: EMZ9374IB
- Manufacturer: LENZE SE (Germany)
- Compatible Platform: LENZE 8200 Vector Series Frequency Inverters
- Communication Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Baud Rate: Auto-detect, up to 12 Mbit/s
- Node Address: Configurable via DIP switch (1–125)
- Connector: 9-pin Sub-D (DB9) female, PROFIBUS standard pinout
- GSD File: Required for PLC master configuration (LENZE-supplied)
- Process Data: Cyclic I/O data exchange (PPO types supported)
- Parameter Access: Acyclic DP-V1 services for full drive parameterization
- Power Supply: Powered internally via drive backplane (no external supply required)
- Installation: Plug-in module, tool-free insertion into 8200 Vector option slot
- Weight: Approx. 80 g
- Country of Origin: Germany
- Certifications: CE, UL (drive-level)
Proven Application Environments
- Conveyor and material handling systems with SIMATIC S7 / S5 PLC masters
- Pump and fan control in water treatment and HVAC plants
- Packaging machinery requiring synchronized multi-axis speed control via PROFIBUS
- Automotive assembly lines with centralized drive monitoring
- Food & beverage processing with hygienic-area inverter installations
- Retrofit projects replacing hardwired analog control with fieldbus architecture
Engineering Advantages
- Plug-and-Play Integration: No additional power supply or external interface hardware required — installs directly into the 8200 Vector option slot in under 60 seconds.
- Full DP-V1 Support: Enables acyclic parameter read/write from the PLC, supporting predictive maintenance and remote diagnostics without stopping the drive.
- Auto Baud Rate Detection: Eliminates manual baud rate configuration; the module synchronizes automatically to the master’s network speed.
- Deterministic Cycle Times: PROFIBUS DP guarantees real-time cyclic data exchange, critical for coordinated motion and process control.
- Reduced Wiring Complexity: Replaces multiple analog I/O cables with a single shielded PROFIBUS cable, lowering installation cost and EMI susceptibility.
- OEM-Grade Reliability: Manufactured to LENZE’s industrial quality standards, rated for continuous operation in harsh factory environments.
System Architecture & Signal Flow
The EMZ9374IB inserts into the communications option slot on the front of the 8200 Vector inverter. Once installed, the drive appears as a PROFIBUS DP slave on the network. The PLC master cyclically exchanges process data (speed setpoint, control word, actual speed, status word) via PPO message frames. Acyclic DP-V1 channels allow the PLC to read or write any drive parameter (e.g., acceleration ramp, current limit) without interrupting cyclic operation. Node addressing is set via onboard DIP switches prior to installation; the GSD file is loaded into the PLC engineering tool (e.g., STEP 7, TIA Portal) to define the I/O configuration.
Sourcing & Quality Verification
- All units sourced from authorized LENZE distributors or verified industrial surplus channels.
- Each module undergoes visual inspection, label verification, and functional pre-check before dispatch.
- Original LENZE part markings, revision codes, and date codes are preserved and documented.
- Counterfeit-risk assessment performed on every batch — we do not source from unverified grey-market channels.
- Certificate of conformity and test records available upon request for critical applications.
Procurement Process
- Step 1 – Confirm Compatibility: Verify your 8200 Vector inverter model accepts the EMZ9374IB option module (consult your drive’s nameplate or LENZE documentation).
- Step 2 – Request Quote: Contact us via the form below or email [email protected] with your required quantity and delivery timeline.
- Step 3 – Order Confirmation: We confirm stock availability, issue a proforma invoice, and arrange payment (T/T, PayPal, or trade terms for approved accounts).
- Step 4 – Dispatch & Tracking: Units are packed in anti-static ESD packaging and shipped via DHL / FedEx with full tracking. Typical lead time: 3–7 business days.
- Step 5 – After-Sales Support: Our engineering team provides installation guidance, GSD file sourcing, and commissioning support post-delivery.
Technical FAQ
Q: Is the EMZ9374IB compatible with all 8200 Vector variants?
A: The module is designed for the LENZE 8200 Vector series. Compatibility depends on the specific inverter variant and firmware version. Please confirm your drive’s option slot type before ordering.
Q: Do I need a GSD file for my PLC?
A: Yes. A GSD (General Station Description) file is required to configure the PROFIBUS master. LENZE provides this file; we can supply it upon request.
Q: Can I use this module with PROFIBUS PA or PROFINET?
A: No. The EMZ9374IB is specifically a PROFIBUS DP module. For PROFINET connectivity, a different LENZE option module is required.
Q: What PPO types are supported?
A: The module supports standard PROFIBUS drive profile PPO types as defined in the LENZE 8200 Vector PROFIBUS documentation. Contact us for the specific PPO configuration guide.
Q: Is the module available new or refurbished?
A: We supply both new OEM units and professionally inspected surplus stock. Condition is clearly stated on each listing. All units carry our quality guarantee.
