LNIC TM1071D Intelligent Travel Transmitter | Replacement, Equivalent & Selection Guide

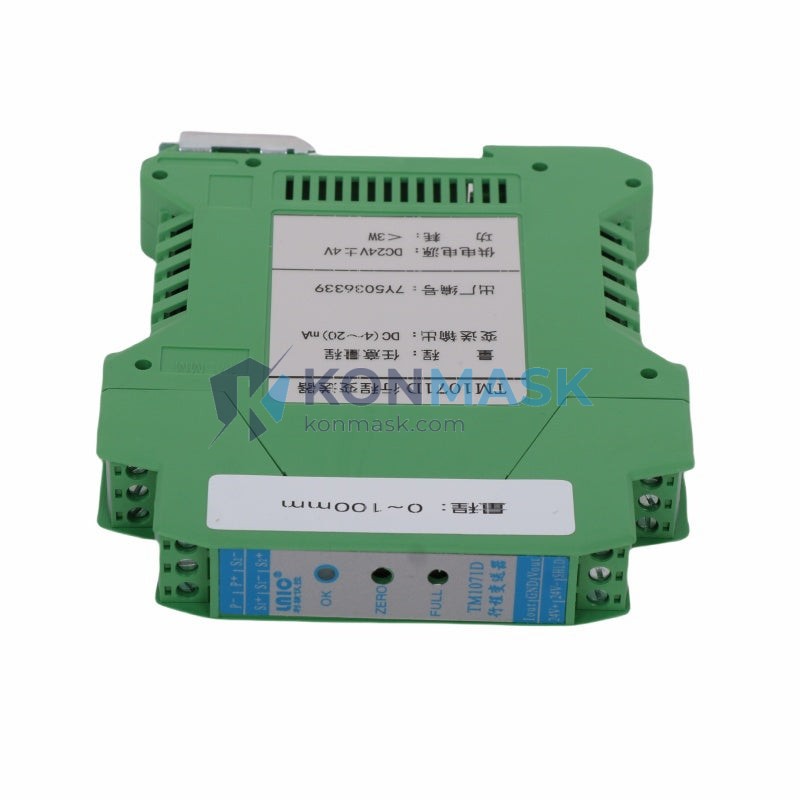

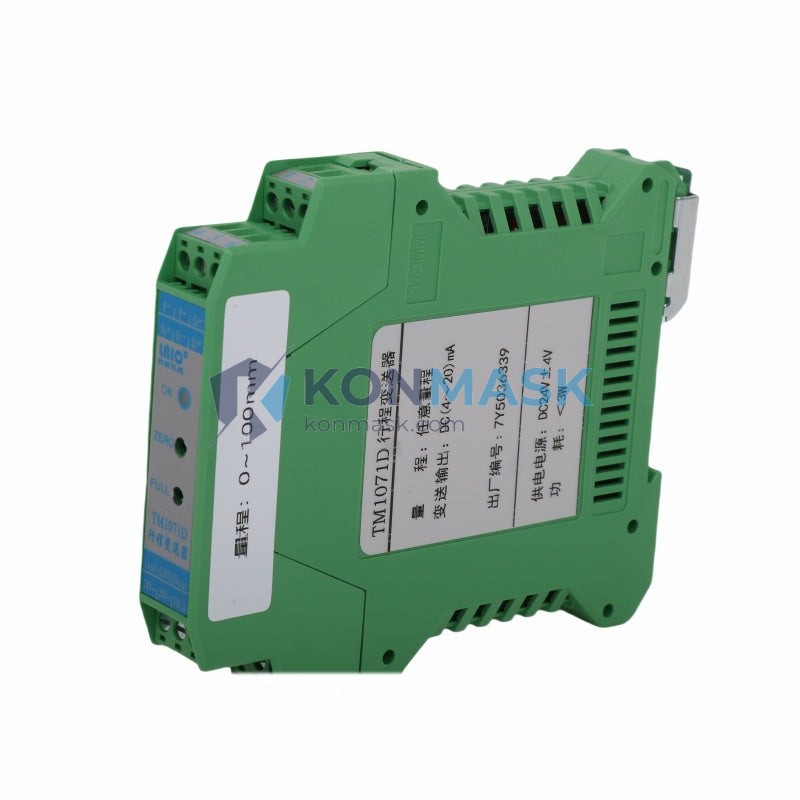

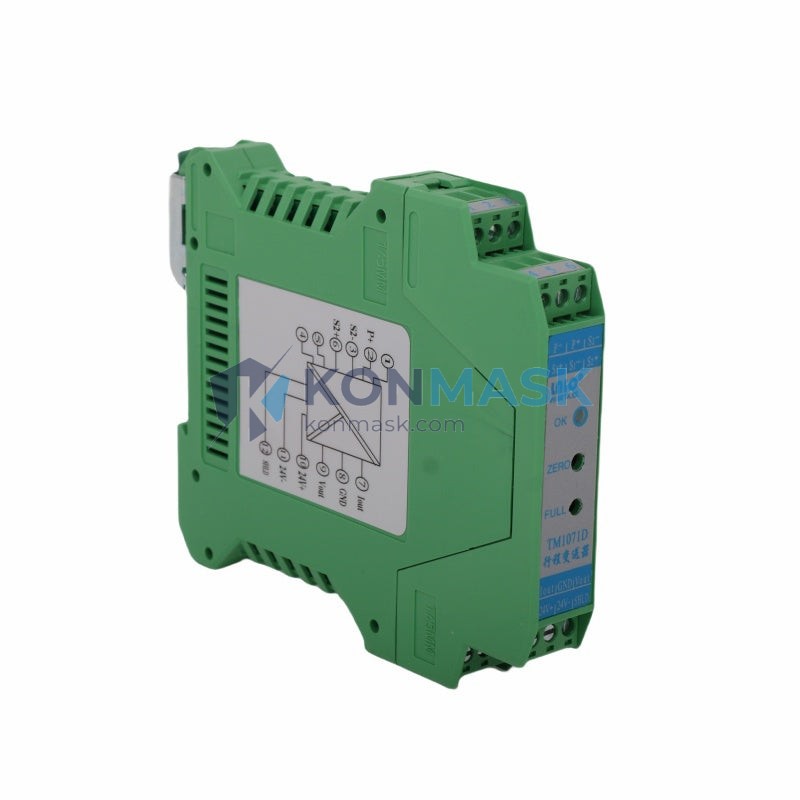

The LNIC TM1071D is a high-precision intelligent travel transmitter (position transmitter) designed for industrial process control and automation systems. It converts linear or angular displacement into a standard 4–20 mA or 0–10 V analog signal, enabling accurate position feedback in valve actuators, cylinders, and control loops. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Model: TM1071D
- Brand: LNIC
- Series: TM Series Intelligent Travel Transmitter
- Output Signal: 4–20 mA (2-wire) / 0–10 V (optional)
- Measurement Range: 0–100 mm (standard); custom ranges available
- Linearity: ≤ ±0.5% F.S.
- Repeatability: ≤ 0.1% F.S.
- Supply Voltage: 24 V DC (loop-powered)
- Protection Rating: IP65
- Operating Temperature: -20°C to +85°C
- Connection: M12 connector or terminal block
- Housing Material: Aluminum alloy
- Weight: Approx. 100 g
- Certifications: CE
Compatible Replacement & Equivalent Models
The TM1071D is a direct or functional replacement for the following models. Always verify electrical and mechanical compatibility before substitution:
- LNIC TM1071 — Previous-generation base model; TM1071D adds enhanced linearity and IP65 rating
- LNIC TM1072D — Extended-range variant (0–200 mm); same signal interface
- Gefran PY Series (e.g., PY-2-A-050) — Functional equivalent for linear position feedback; verify connector pinout
- Novotechnik T-Series (e.g., T-100) — Similar 4–20 mA output; check stroke length and mounting dimensions
- Balluff BTL Series — Magnetostrictive alternative for higher precision applications
- Sick LFP Cubic — Optical equivalent for non-contact measurement environments
Note: Cross-reference part numbers carefully. Contact support@konmask.com for compatibility verification.
Why Choose the Original LNIC TM1071D
- Factory-original LNIC component — guaranteed specification compliance
- Proven reliability in high-cycle industrial environments
- Plug-and-play replacement for existing LNIC TM-series installations
- Consistent 4–20 mA output eliminates recalibration in most retrofit scenarios
- IP65 sealing suitable for dusty and mildly wet environments
- Backed by Konmask.com quality inspection and traceability
Typical Applications
- Valve actuator position feedback (pneumatic and electric actuators)
- Hydraulic cylinder stroke measurement
- Linear slide and guide position monitoring
- Process control loops requiring 4–20 mA position signal
- Automated assembly and material handling systems
- Petrochemical, power generation, and water treatment plants
System Compatibility
The TM1071D integrates directly with standard industrial control platforms accepting 4–20 mA analog inputs, including:
- PLC Systems: Siemens S7-300/400/1200/1500, Allen-Bradley CompactLogix/ControlLogix, Mitsubishi Q/FX Series, Omron CJ/CS Series
- DCS Platforms: Honeywell Experion, ABB 800xA, Emerson DeltaV, Yokogawa CENTUM
- SCADA/HMI: Compatible with any system accepting standard 4–20 mA analog input cards
- Signal Conditioners: Works with standard loop-powered isolators and signal splitters
Selection Guide
Use the following criteria to confirm the TM1071D is the right choice for your application:
- Stroke / Travel Range: Confirm your required measurement range matches 0–100 mm (standard). For longer strokes, consider TM1072D or TM1073D.
- Output Signal: Verify your controller accepts 4–20 mA (2-wire loop-powered). For voltage output, specify 0–10 V variant at order.
- Mounting: Check rod-end thread (M6 standard) and body mounting dimensions against your actuator or bracket.
- Environment: IP65 is suitable for most industrial environments. For washdown or submersion, request IP67/IP68 variant.
- Temperature: Standard range -20°C to +85°C. High-temperature variants available on request.
- Connector: Default M12 4-pin. Terminal block version available — specify at order.
Quality Assurance & Sourcing
All LNIC TM1071D units supplied by Konmask.com are:
- Sourced directly from authorized LNIC distribution channels
- Inspected for physical integrity and label authenticity before dispatch
- Shipped with original manufacturer packaging where available
- Traceable by batch and serial number upon request
- Covered by Konmask.com’s standard quality guarantee
We specialize in industrial automation components for B2B buyers requiring reliable, spec-accurate parts with fast lead times.
How to Order
- Online: Add to cart directly on this page — stock availability shown in real time
- Email RFQ: support@konmask.com — include model, quantity, and required delivery date
- Phone / WhatsApp: +0086 19859288691
- Bulk / OEM Orders: Contact us for volume pricing and lead time confirmation
- Shipping: DHL / FedEx / UPS international express; sea freight available for large orders
Replacement & Compatibility FAQ
Q: Can the TM1071D replace a Gefran PY-2-A-050 directly?
A: Functionally yes for 4–20 mA output, but verify connector pinout and rod-end thread before installation. Contact us for a detailed cross-reference.
Q: Is the TM1071D suitable for ATEX / hazardous area use?
A: The standard TM1071D is not ATEX-rated. Please contact us if you require an intrinsically safe or explosion-proof variant.
Q: What is the difference between TM1071 and TM1071D?
A: The TM1071D is the enhanced version with improved linearity (≤±0.5% vs ≤±1%), IP65 protection, and an M12 connector as standard.
Q: Can I use this with a Siemens S7-1200 analog input module?
A: Yes. The 4–20 mA 2-wire output is fully compatible with Siemens SM 1231 AI and equivalent analog input modules.
Q: Do you provide calibration certificates?
A: Calibration certificates can be provided on request for an additional fee. Please specify at time of order.
