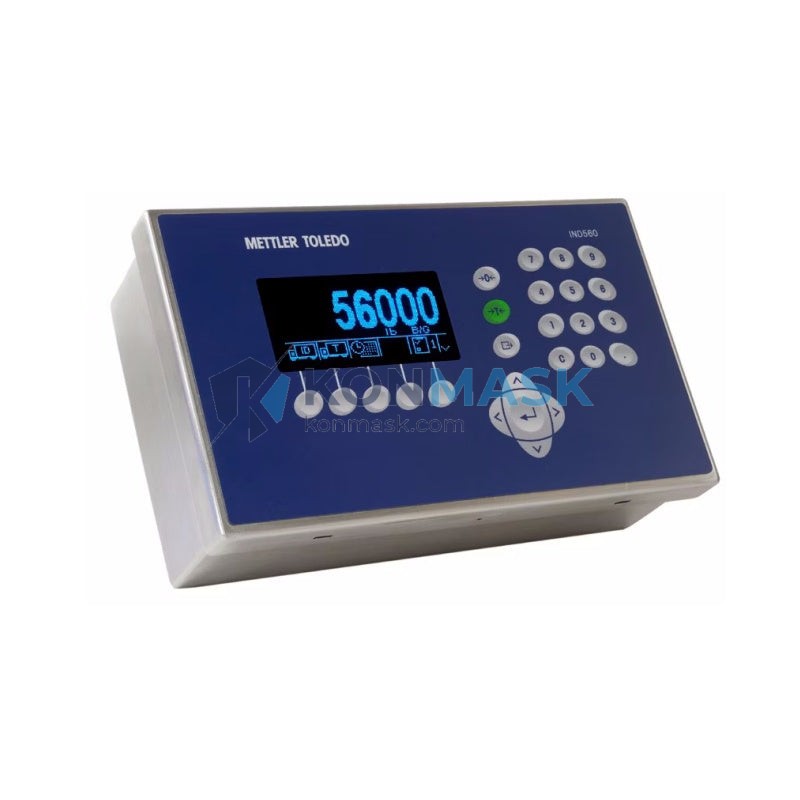

Mettler Toledo IND560 – High-Performance Industrial Weighing Terminal | IND500 Platform
Engineering Background: The IND560 is Mettler Toledo’s flagship panel-mount weighing terminal engineered for demanding industrial environments. Built on the proven IND500 platform, it delivers OIML/NTEP-certified accuracy with a robust stainless-steel enclosure rated IP65/IP69K, making it the preferred choice for food processing, chemical batching, logistics, and heavy manufacturing applications.
Product Positioning: Designed for procurement engineers who require a certified, configurable, and network-ready weighing controller, the IND560 bridges the gap between basic indicators and full-scale process controllers — offering PLC-grade I/O flexibility without the complexity of a DCS integration.
Complete Technical Specifications
- Model: IND560 (Deckmate / Panel Mount)
- Platform: Mettler Toledo IND500 Series
- Display: 5.7″ color VGA touchscreen (640×480), sunlight-readable option available
- Weighing Ranges: Single, dual, or multi-interval (up to 3 ranges)
- Resolution: Up to 1:30,000 (single range); 1:60,000 (dual range)
- Load Cell Input: 4–8 load cells (350 Ω each); excitation 5 VDC or 10 VDC
- A/D Conversion: 24-bit sigma-delta; 366 Hz update rate
- Accuracy Class: OIML R76 / NTEP Class III / IIIL
- Enclosure: Stainless steel 316L; IP65 / IP69K (Deckmate floor-mount version)
- Operating Temperature: –10°C to +40°C (standard); –20°C to +40°C (extended)
- Power Supply: 100–240 VAC, 50/60 Hz; optional 24 VDC
- Standard I/O: 2× RS-232, 1× RS-485, USB host/device, Ethernet 10/100 Base-T
- Optional I/O: Analog output (4–20 mA), discrete I/O (8 in / 8 out), PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET
- Memory: 100 tare records, 999 ID records, alibi memory up to 300,000 records
- Approvals: CE, UL, cUL, ATEX Zone 2/22 (optional)
- Weight: 3.4 kg (Deckmate floor-mount assembly)
Proven Application Environments
- Food & Beverage: Checkweighing, batching, and recipe formulation lines requiring washdown-rated hardware
- Chemical & Pharmaceutical: Hazardous-area installations (ATEX option) with audit-trail alibi memory for GMP compliance
- Logistics & Warehousing: Floor-scale truck loading, pallet weighing, and shipping verification with ERP/WMS integration via Ethernet
- Heavy Manufacturing: Steel, mining, and aggregate batching with high-capacity floor scales and multi-range operation
- Retail & Trade: Legal-for-trade certified applications requiring OIML/NTEP approval
Engineering Advantages
- Fieldbus Flexibility: Native support for PROFIBUS, DeviceNet, EtherNet/IP, and PROFINET eliminates the need for external gateways when integrating with Siemens, Allen-Bradley, or Omron PLCs
- Alibi Memory: Up to 300,000 tamper-proof transaction records satisfy legal metrology and audit requirements without external logging hardware
- Dual-Range Operation: Single instrument covers coarse and fine weighing ranges, reducing capital expenditure versus two-scale installations
- IP69K Rating: Withstands high-pressure, high-temperature washdown (80 bar, 80°C) — critical for food-grade and chemical environments
- Touchscreen HMI: Operator-configurable softkeys and multilingual interface reduce training time and localization costs
- ATEX Zone 2/22 Option: Certified for use in explosive atmospheres without external barriers in many configurations
System Architecture & Signal Flow
The IND560 accepts analog load cell signals (mV/V) via a shielded 9-pin D-sub connector, conditions the signal through a 24-bit A/D converter, and outputs calibrated weight data simultaneously to the local display, serial ports, Ethernet, and optional fieldbus modules. Discrete I/O lines (optoisolated, 24 VDC) interface directly with PLC digital I/O cards for setpoint control, print triggers, and zero/tare commands. The optional 4–20 mA analog output mirrors the live weight reading for integration with DCS analog input cards or chart recorders.
Typical Integration Path: Load Cell Array → IND560 A/D → Ethernet/IP Module → Allen-Bradley ControlLogix PLC → SCADA/MES
Sourcing & Quality Verification
- All IND560 units sourced through authorized Mettler Toledo distribution channels or verified secondary-market suppliers with full traceability documentation
- Each unit undergoes incoming inspection: power-on test, display verification, load cell input calibration check, and communication port validation
- Calibration certificates and factory test reports available upon request
- Serial number verification against Mettler Toledo’s global product registry available for new-in-box units
- Warranty: 12 months from shipment date (Konmask.com standard); OEM warranty honored where applicable
Procurement Process
- Step 1 – Inquiry: Submit your application requirements (scale capacity, environment rating, fieldbus protocol, certifications needed) via email or the contact form
- Step 2 – Quotation: Receive a formal quotation with lead time, shipping options (DHL/FedEx/sea freight), and payment terms within 24 hours
- Step 3 – Order Confirmation: Purchase order accepted; proforma invoice issued for T/T or L/C payment
- Step 4 – Shipment: Units shipped with commercial invoice, packing list, and certificate of origin; tracking provided within 24 hours of dispatch
- Step 5 – After-Sales: Technical support via email/WhatsApp; replacement parts and repair service available
Technical FAQ
Q: Can the IND560 replace an IND560x (hazardous area) unit in a standard environment?
A: Yes. The standard IND560 is fully compatible with the same load cell wiring and communication protocols. The ATEX-rated IND560x is required only for Zone 1/21 installations.
Q: What PLC protocols are natively supported?
A: EtherNet/IP, PROFIBUS DP, DeviceNet, PROFINET, and Modbus TCP via optional interface modules. Serial Modbus RTU is available on the standard RS-485 port.
Q: Is the IND560 compatible with third-party load cells?
A: Yes, provided the load cells meet the mV/V input specification (0.5–3 mV/V) and impedance requirements. Mettler Toledo load cells are recommended for OIML-certified installations.
Q: Can alibi memory data be exported?
A: Yes, via USB drive or Ethernet FTP transfer in CSV or proprietary format compatible with Mettler Toledo DataBridge software.
Q: What is the minimum order quantity?
A: Single units accepted. Volume pricing available for orders of 5+ units.
