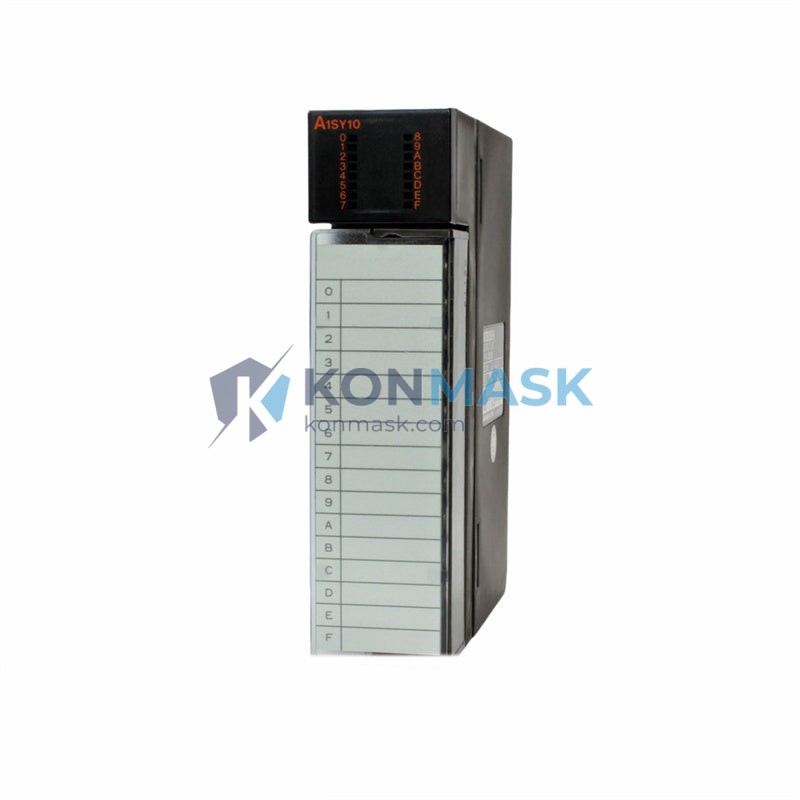

Genuine Mitsubishi A1SY10 Digital Output Local Unit Module | MELSEC-A Series – Verified Source
The Mitsubishi A1SY10 is a transistor-type digital output local unit module designed for the MELSEC-A Series programmable logic controller (PLC) platform. Sourced directly through verified industrial supply channels, this module delivers reliable discrete output control for demanding automation environments. At Konmask.com, every unit undergoes our 4-step quality verification process before shipment — giving B2B buyers the confidence they need when sourcing critical control-system components.
Technical Specifications
| Model / SKU | A1SY10 |
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-A (AnS Series) |
| Module Type | Digital Output — Local Unit Module |
| Output Type | Transistor (Sink/Source) |
| Number of Output Points | 16 points |
| Rated Load Voltage | 12–24 VDC |
| Max Load Current | 0.5 A per point |
| Isolation Method | Photocoupler isolation |
| Response Time | 1 ms or less (OFF→ON / ON→OFF) |
| Operating Temperature | 0 °C to 55 °C |
| Weight | Approx. 1,240 g (packaged) |
| Compliance | CE, UL, cUL |
Our 4-Step Quality Verification Process
Every Mitsubishi A1SY10 unit sold through Konmask.com passes the following verification protocol before dispatch:
- Visual Inspection — Housing integrity, label authenticity, connector condition, and anti-counterfeit markings checked against OEM reference standards.
- Electrical Bench Test — All 16 output channels are energized and verified for correct switching response and load current compliance.
- Firmware / Version Check — Hardware revision and firmware version are confirmed against Mitsubishi Electric’s official documentation.
- Documentation Package — Each unit ships with a test report, traceability record, and original datasheet reference link.
Key Features & Benefits
- 16-point transistor digital output — high-density I/O for compact panel designs
- Photocoupler isolation protects the CPU from field-side voltage transients
- Fast 1 ms response time supports high-speed sequential control
- Direct plug-in compatibility with MELSEC-A Series base units — no adapter required
- Proven long-service-life design with extensive installed base worldwide
- Backed by Konmask.com’s authenticity guarantee and post-sale technical support
Typical Applications
- Discrete output control for conveyor, packaging, and assembly lines
- Solenoid valve and relay actuation in process automation
- Motor starter and contactor control in panel-builder projects
- Retrofit and spare-part replacement for existing MELSEC-A installations
- OEM machine builders requiring verified, traceable PLC components
Compatible System Components
- Base Units: A1S32B, A1S33B, A1S35B, A1S38B, A1S52B, A1S55B, A1S58B
- CPU Modules: A1SCPU, A1SHCPU, A1SJHCPU, A1SCPUC24-R2
- Power Supply: A1S61PN, A1S62PN, A1S63P
- Programming Software: GX Developer, GX Works2 (legacy mode)
- Related Output Modules: A1SY10EU, A1SY18A, A1SY28A, A1SY40
Global Sourcing & Shipping Capabilities
Konmask.com maintains established sourcing relationships across Asia-Pacific, Europe, and North America to ensure consistent availability of MELSEC-A Series components — including discontinued and long-lead-time SKUs such as the A1SY10.
- Shipping Origin: China (Fujian)
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days
- Carriers: DHL Express, FedEx International, SF Express, EMS
- Export Documentation: Commercial invoice, packing list, certificate of origin available on request
- Customs HS Code: 8537.10 (Programmable Controllers / Control Panels)
Certifications & Compliance Statement
The Mitsubishi A1SY10 is manufactured under Mitsubishi Electric’s ISO 9001-certified quality management system. Units supplied by Konmask.com are sourced from authorized distribution channels or verified secondary-market suppliers and are subject to our internal QC protocol described above. We do not sell refurbished units as new. All compliance documentation is available upon request prior to purchase.
- CE Marking (EMC Directive)
- UL / cUL Listed
- RoHS Compliant (verify with specific production lot)
- ISO 9001 Manufacturer QMS
How to Order
- Add the A1SY10 to your cart and proceed to checkout, or
- Contact us directly for bulk orders, custom lead times, or procurement documentation requirements:
- Email: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Request a formal quotation (RFQ) — we respond within 1 business day
- Payment terms available for qualified B2B accounts (T/T, L/C, PayPal)
Authenticity & Trust FAQ
Q: How do I know the A1SY10 I receive is genuine Mitsubishi?
A: Every unit passes our 4-step verification process. We provide a test report and traceability record with each shipment. If you have any authenticity concern upon receipt, contact us within 7 days for a full resolution.
Q: Is this a new or used unit?
A: We clearly state the condition of each unit in the product listing. Unless explicitly marked “refurbished” or “used,” all units are new or new-surplus (unused, original packaging).
Q: Can you provide an official Mitsubishi datasheet?
A: Yes. Contact us and we will provide the official Mitsubishi Electric A1SY10 hardware manual reference and datasheet.
Q: Do you offer a warranty?
A: Yes — 12-month warranty against manufacturing defects on all new units. Refurbished units carry a 90-day warranty.
Q: Can you supply other MELSEC-A Series modules?
A: Absolutely. We stock and source the full MELSEC-A Series range. Send us your BOM or parts list for a consolidated quote.
