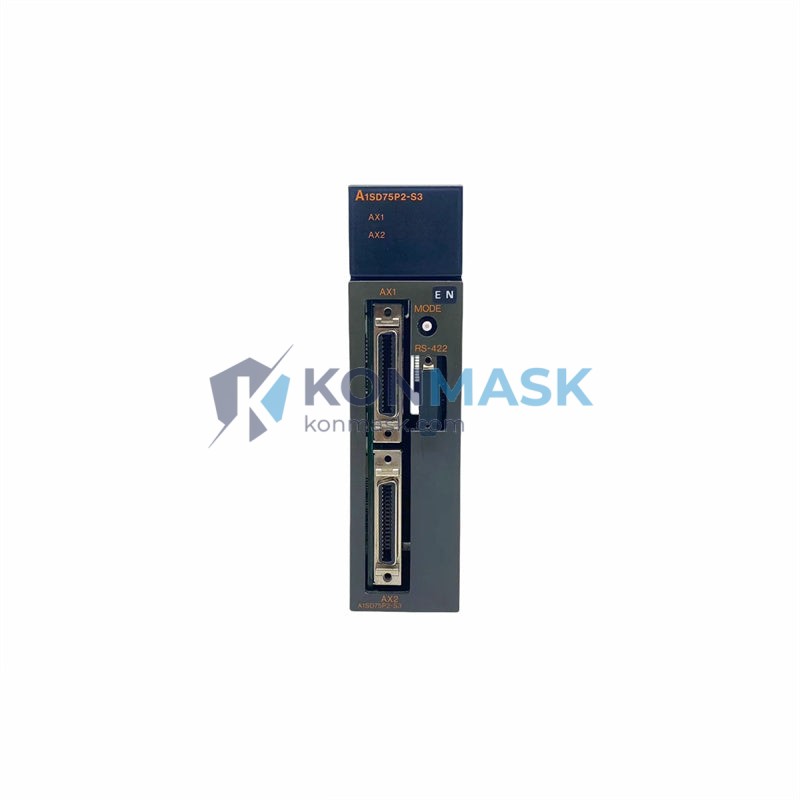

Mitsubishi A1SD75P2-S3 2-Axis Positioning Module | Replacement, Equivalent & Selection Guide
The Mitsubishi Electric A1SD75P2-S3 is a high-performance 2-axis pulse-train positioning module designed for the MELSEC-A series programmable logic controller platform. It delivers precise motion control for industrial automation applications including CNC-adjacent positioning, conveyor indexing, and multi-axis servo coordination. This page provides full technical specifications, verified replacement equivalents, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A1SD75P2-S3 |
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-A (A1S Slim) |
| Control Axes | 2 axes (independent) |
| Output Type | Pulse train (open collector / differential line driver) |
| Max Output Pulse | 200 kpps per axis |
| Positioning Data Points | 600 points per axis |
| Control Method | PTP (Point-to-Point), Linear interpolation |
| Interface | MELSEC-A bus (A1S backplane) |
| Power Consumption | 5 VDC, 0.55 A (from backplane) |
| Weight | Approx. 1,140 g (module + connector) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | −20 °C to 75 °C |
| Country of Origin | Japan |
| Certification | CE, UL |
Compatible Replacement & Equivalent Models
When the A1SD75P2-S3 is discontinued, hard to source, or cost-prohibitive, the following models are verified functional or drop-in equivalents. Always confirm firmware revision and connector pinout before substitution.
| Model | Axes | Series | Compatibility Notes |
|---|---|---|---|
| A1SD75P2 | 2 | MELSEC-A | Base model without -S3 revision; functionally equivalent in most applications |
| A1SD75P1-S3 | 1 | MELSEC-A | Single-axis variant; use two units for 2-axis replacement |
| A1SD75P3-S3 | 3 | MELSEC-A | 3-axis superset; backward compatible, extra axis unused |
| QD75P2 | 2 | MELSEC-Q | Platform upgrade path; requires Q-series CPU and backplane migration |
| QD75P2N | 2 | MELSEC-Q | Enhanced version of QD75P2 with SSCNET support |
| LD75P2 | 2 | MELSEC-L | Compact form factor; suitable for new designs, not direct drop-in |
Note: Cross-series replacements (Q/L series) require program migration. Contact our technical team for migration support.
Why Choose the Original A1SD75P2-S3
- Proven reliability — field-tested in thousands of MELSEC-A installations worldwide over 20+ years
- Zero migration cost — direct slot replacement in existing A1S/A2S/A3 backplanes with no program changes
- -S3 revision — includes hardware and firmware improvements over the base A1SD75P2 for enhanced noise immunity
- Pulse output precision — 200 kpps max ensures smooth servo/stepper control at high speeds
- 600-point positioning data — sufficient for complex multi-step motion profiles without external memory
Typical Applications
- Servo motor positioning on assembly lines and transfer machines
- Stepper motor indexing for packaging and labeling equipment
- X-Y table control in PCB drilling and laser cutting machines
- Conveyor synchronization and pick-and-place automation
- Retrofit and maintenance of legacy MELSEC-A control panels
System Compatibility
The A1SD75P2-S3 is compatible with the following Mitsubishi MELSEC-A series CPU and base units:
- A1SCPU, A1SHCPU, A1SJHCPU, A1SJCPU(-S3/-S6/-S8)
- A2SCPU, A2SHCPU, A2UCPU, A3UCPU
- A1S-series slim backplanes: A1S52B, A1S55B, A1S58B, A1S65B, A1S68B
- Programming software: GX Developer (SW8D5C-GPPW) or later
Not compatible with Q-series, iQ-R series, or FX-series backplanes without an adapter.
Selection Guide
Use the decision tree below to confirm the right module for your application:
- Existing MELSEC-A system? → A1SD75P2-S3 is the direct fit. No migration needed.
- Need 1 axis only? → Consider A1SD75P1-S3 to reduce cost.
- Need 3 axes? → Upgrade to A1SD75P3-S3 on the same backplane.
- Planning a platform upgrade? → Migrate to QD75P2 (Q-series) for longer lifecycle and SSCNET III/H support.
- New compact design? → Evaluate LD75P2 for MELSEC-L slim form factor.
- Budget-sensitive retrofit? → Refurbished A1SD75P2 (base revision) is a cost-effective option; contact us for availability.
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified secondary market channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test before shipment
- Packaging: Anti-static bag + foam-lined carton; original Mitsubishi packaging preserved where available
- Warranty: 90-day replacement warranty against DOA (Dead on Arrival) defects
- Traceability: Serial number and date code recorded for every unit shipped
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders (5+ units) or urgent requirements, email [email protected] for a dedicated quote.
- Include your required quantity, delivery address, and any specific revision or date-code requirements in your inquiry.
- We accept T/T bank transfer, PayPal, and major credit cards. Net-30 terms available for verified business accounts.
Replacement & Compatibility FAQ
Q: Can I replace A1SD75P2-S3 with A1SD75P2 (no -S3 suffix)?
A: Yes, in most cases. The -S3 suffix denotes a hardware revision with improved noise immunity. The base model is functionally compatible but may exhibit sensitivity differences in high-EMI environments.
Q: Is the A1SD75P2-S3 compatible with MELSEC-Q series?
A: No. The A1SD75P2-S3 uses the A-series bus and cannot be physically or electrically installed in a Q-series backplane. Use QD75P2 for Q-series systems.
Q: Can this module control servo drives directly?
A: Yes, via pulse train output (open collector or differential). It is compatible with most pulse-input servo amplifiers including Mitsubishi MR-J2S, MR-J3, and equivalent third-party drives.
Q: What programming software is required?
A: GX Developer (SW8D5C-GPPW) version 8 or later is recommended. The module is configured via the AD75 positioning software package or GX Configurator-AP.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Contact [email protected] with your order number or inquiry reference and we will provide the relevant Mitsubishi technical documentation.
