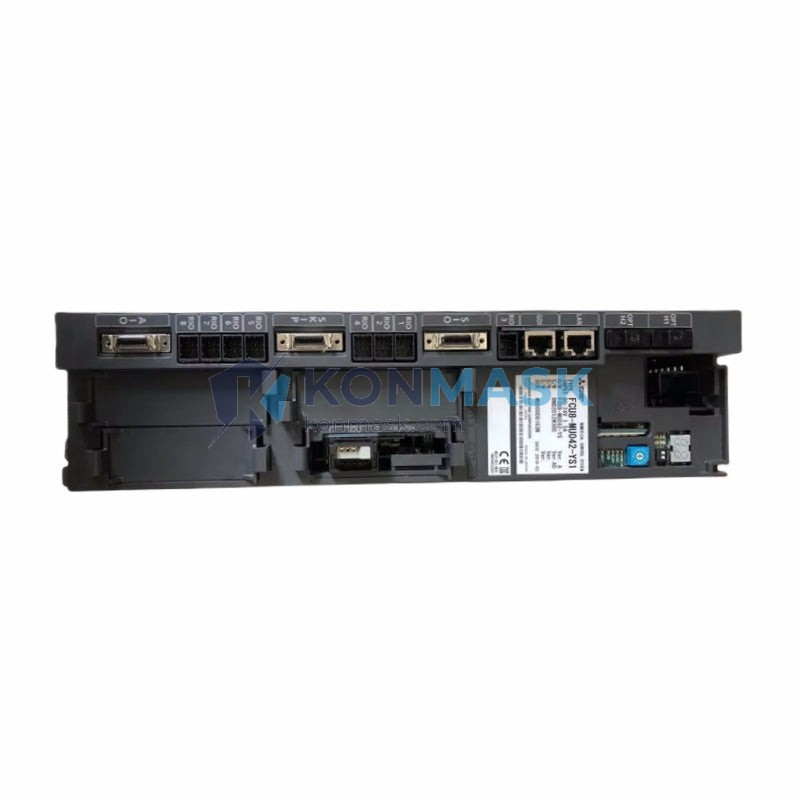

Mitsubishi FCU8-MU042-YS1 – High-Performance Programmable Automation Controller | C80 CNC Platform
Engineering Background: The FCU8-MU042-YS1 is a core motion/logic controller module developed by Mitsubishi Electric for its C80 series CNC platform — a scalable, open-architecture numerical control system designed for multi-axis machining centers, turning centers, and compound machine tools. The C80 platform bridges traditional CNC rigidity with modern PAC (Programmable Automation Controller) flexibility, enabling seamless integration of PLC ladder logic, motion control, and HMI within a single unified architecture.
Product Positioning: Targeted at OEM machine builders and end-user maintenance teams operating Mitsubishi C80-based equipment, the FCU8-MU042-YS1 serves as a direct OEM replacement or system expansion module. It is the preferred procurement choice for facilities requiring zero-downtime replacement with guaranteed compatibility across the C80 hardware ecosystem.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | FCU8-MU042-YS1 |
| Manufacturer | Mitsubishi Electric Corporation |
| Product Series | C80 CNC Series |
| Module Type | Programmable Automation Controller (PAC) |
| Platform | Mitsubishi C80 Open CNC Architecture |
| Control Axes | Multi-axis (per C80 system configuration) |
| Communication Interface | High-speed bus (C80 backplane compatible) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Country of Origin | Japan |
| Weight (approx.) | 19 kg (packaged) |
| Compliance | CE, RoHS |
Proven Application Environments
- Multi-axis CNC machining centers (3–5 axis)
- CNC turning centers and compound lathes
- High-speed drilling and tapping machines
- Aerospace and automotive precision manufacturing lines
- Mold and die machining facilities
- OEM machine tool builders integrating Mitsubishi C80 platforms
- Maintenance replacement for existing C80 installations
Engineering Advantages
- Native C80 Compatibility: Plug-and-play replacement within the C80 hardware ecosystem — no firmware re-engineering required.
- PAC Architecture: Combines PLC logic, motion control, and real-time I/O management in a single module, reducing panel footprint and wiring complexity.
- High-Speed Processing: Optimized for low-latency servo loop closure and interpolation accuracy critical to precision machining.
- Open Architecture: Supports integration with third-party HMI, SCADA, and MES systems via standard industrial protocols.
- Long-Term Availability: Mitsubishi Electric’s industrial product lifecycle policy ensures extended parts availability and technical support.
System Architecture & Signal Flow
The FCU8-MU042-YS1 operates as the central processing unit within the C80 controller cabinet. It interfaces directly with the C80 backplane bus, communicating with servo amplifier units (MDS-E/EH series), I/O expansion modules, and the GOT series HMI. The module executes CNC interpolation, PLC scan cycles, and real-time axis position feedback processing concurrently, with deterministic cycle times ensuring synchronization across all connected axes and peripheral devices.
Signal flow: HMI / GOT Terminal → FCU8-MU042-YS1 (PAC Core) → C80 Backplane Bus → MDS Servo Amplifiers → Servo Motors / Spindle Drives
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels with full traceability.
- Each module undergoes incoming inspection including visual, label, and functional verification prior to dispatch.
- Original OEM packaging and documentation preserved where available.
- Certificates of conformity and test reports available upon request for critical procurement.
- Anti-counterfeit verification: serial number cross-reference available for Mitsubishi Electric authorized units.
Procurement Process
- Submit Inquiry: Contact us via email at support@konmask.com or WhatsApp/phone at +0086 19859288691 with your required quantity and delivery timeline.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Confirm purchase order; proforma invoice issued for payment processing.
- Quality Inspection: Pre-shipment inspection completed; photos and documentation provided upon request.
- Shipping: Dispatched via DHL / FedEx / sea freight with full tracking. Export documentation (commercial invoice, packing list, CO) included.
- After-Sales Support: Technical assistance available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the FCU8-MU042-YS1 a direct drop-in replacement for my existing C80 controller?
A: Yes, provided your system is configured on the C80 platform. Confirm your existing module part number matches FCU8-MU042-YS1 before ordering.
Q: Can this module be used with Mitsubishi M80 or M800 series controllers?
A: No. The FCU8 prefix designates C80 series hardware. M80/M800 series use different module families (FCU8-DX/FCU8-EX etc.). Please verify your platform before procurement.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day warranty against manufacturing defects. Extended warranty options are available — contact us for details.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For sourced units, lead time is typically 2–4 weeks depending on availability.
Q: Can you provide export documentation for customs clearance?
A: Yes. Full export documentation including commercial invoice, packing list, and certificate of origin is provided with every international shipment.
