MITSUBISHI MR-MC01-S100 PCB Assembly – MR-MC01 DL240 / F2-08TRS / D2-FILL / D2-06BDC1-1 / EME35-10J Motion Control Board
When a critical PCB assembly fails inside a MITSUBISHI servo or motion control system, the entire production line comes to a halt. Unplanned downtime in automotive stamping, semiconductor fabrication, or precision machining can cost thousands of dollars per hour. The MITSUBISHI MR-MC01-S100 PCB ASSY — encompassing sub-assemblies MR-MC01 DL240, F2-08TRS, D2-FILL, D2-06BDC1-1 (P/N 6151654230), and EME35-10J — is the exact OEM-specification board that restores your system to full operational status without the risk of compatibility issues from aftermarket substitutes.

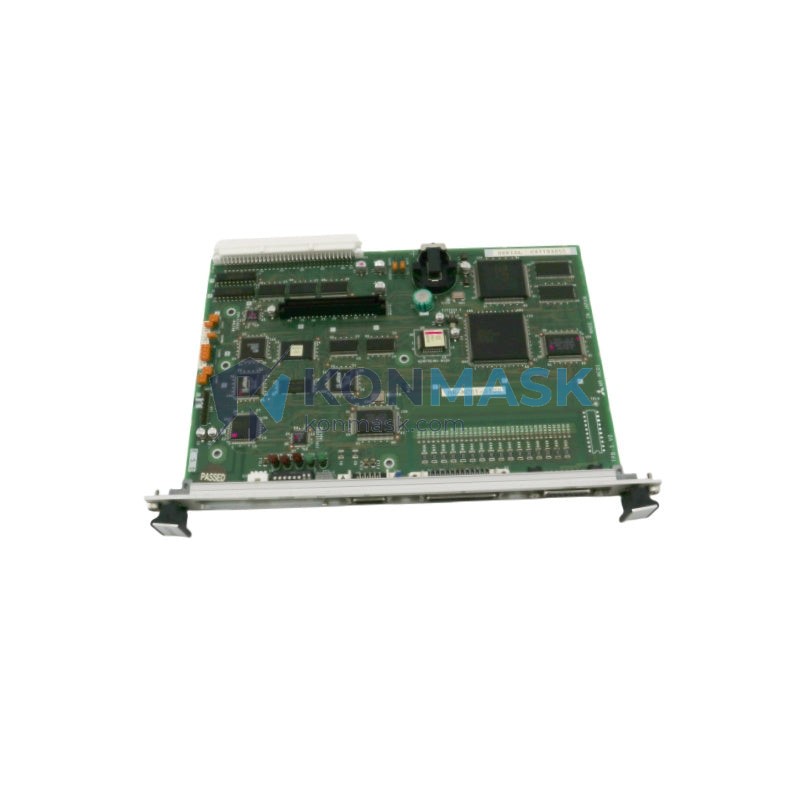

The MR-MC01-S100 is a core motion controller PCB assembly within MITSUBISHI Electric’s servo and motion control ecosystem. Designed to interface with MELSEC-series PLCs and MR-J series servo amplifiers, this board handles high-speed pulse processing, encoder feedback, and multi-axis synchronization. Its role in global factory automation — from Japanese automotive plants to European packaging lines — makes it one of the most sought-after replacement boards in the industrial MRO market.
Technical Specifications
- Part Number / SKU: MR-MC01-S100
- Sub-Assembly References: MR-MC01 DL240, F2-08TRS, D2-FILL, D2-06BDC1-1, EME35-10J
- Internal P/N: 6151654230
- Component Type: PCB Assembly (ASSY)
- Manufacturer: MITSUBISHI Electric Corporation
- Product Family: MR-MC01 Motion Controller Series
- Compatible Systems: MELSEC-Q / MELSEC-L Series PLC, MR-J2S / MR-J3 / MR-J4 Servo Amplifiers
- Weight: Approx. 1,450 g (board + packaging)
- Condition: New / Refurbished / Tested (specify at inquiry)
Key Features & Benefits
- OEM-Exact Replacement: Matches original MITSUBISHI factory specifications — no firmware re-flashing or parameter reconfiguration required in most applications.
- Multi-Reference Compatibility: A single board covering DL240, F2-08TRS, D2-FILL, D2-06BDC1-1, and EME35-10J sub-references simplifies procurement and reduces spare-parts inventory complexity.
- High-Speed Signal Integrity: Engineered for precise encoder pulse counting and real-time motion feedback in demanding servo control environments.
- Rapid Downtime Recovery: Stocked for immediate dispatch — critical for MRO buyers who cannot afford extended lead times from OEM channels.
- Traceable Sourcing: Every unit at Konmask.com is sourced through verified supply chains with documentation available upon request.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding cells, stamping press servo drives, and transfer line motion controllers.
- Semiconductor & Electronics: Wafer handling equipment, SMT pick-and-place machines, and AOI systems.
- Packaging & Printing: High-speed servo-driven packaging lines and register-control printing systems.
- Machine Tool & CNC: Multi-axis machining centers using MITSUBISHI servo amplifiers with MELSEC PLC integration.
- Food & Beverage: Servo-controlled filling, capping, and labeling equipment requiring precise motion synchronization.
System Integration & Compatible Parts
The MR-MC01-S100 PCB ASSY is designed to operate within MITSUBISHI Electric’s integrated motion control architecture. Compatible and commonly paired components include:
- MITSUBISHI Q172DCPU / Q173DCPU Motion CPU Modules
- MITSUBISHI MR-J4 / MR-J3 Series Servo Amplifiers
- MITSUBISHI QX40 / QY40P I/O Modules
- MITSUBISHI Q61P / Q62P Power Supply Modules
- MITSUBISHI MR-HBUS / SSCNET III Fiber Cables
Contact our technical team to confirm compatibility with your specific system configuration before ordering.
Our Quality Assurance Process
At Konmask.com, every PCB assembly undergoes a structured verification process before shipment:
- Visual Inspection: Board-level inspection for physical damage, corrosion, and component integrity.
- Functional Test (where applicable): Bench-tested against known-good reference systems for refurbished units.
- Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning to prevent transit damage.
- Documentation: Test reports and sourcing certificates available upon request for quality-critical applications.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email [email protected].
- Provide your exact part number (MR-MC01-S100) and any sub-reference codes from your failed board’s label.
- Specify required quantity, condition preference (new / refurbished / tested), and delivery timeline.
- Receive a formal quotation within 1 business day with pricing, lead time, and shipping options.
- Confirm order and receive tracking information upon dispatch.
Why Choose Konmask.com?
- 🔧 Industrial Automation Specialists: Focused exclusively on PLC, DCS, servo, and motion control components — not a generalist marketplace.
- 🌍 Global B2B Supply: Serving MRO buyers, system integrators, and OEM service teams across Asia, Europe, and the Americas.
- 📦 Fast Dispatch: In-stock items ship within 1–3 business days; expedited options available for critical downtime situations.
- 🛡️ Verified Sourcing: Transparent supply chain with traceability documentation — essential for regulated industries.
- 💬 Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility checks, and installation guidance.
Frequently Asked Questions
Q: Is the MR-MC01-S100 a new or refurbished part?
A: We stock both new and professionally refurbished units. Please specify your preference when submitting an inquiry, and we will confirm availability and pricing accordingly.
Q: Can you confirm compatibility with my specific MITSUBISHI system?
A: Yes. Please provide your servo amplifier model, PLC CPU type, and any existing motion controller references. Our technical team will verify compatibility before you commit to an order.
Q: What is the lead time for the MR-MC01-S100?
A: In-stock units typically ship within 1–3 business days. For out-of-stock situations, we will provide an estimated lead time in your quotation.
Q: Do you provide a warranty?
A: Yes. Refurbished units carry a 90-day functional warranty. New units follow the manufacturer’s standard warranty terms. Details are included in the formal quotation.
Q: Can I return the part if it does not resolve my issue?
A: Returns are handled case-by-case. Please contact [email protected] within 7 days of receipt if you experience any issues. We prioritize resolution for all B2B customers.
