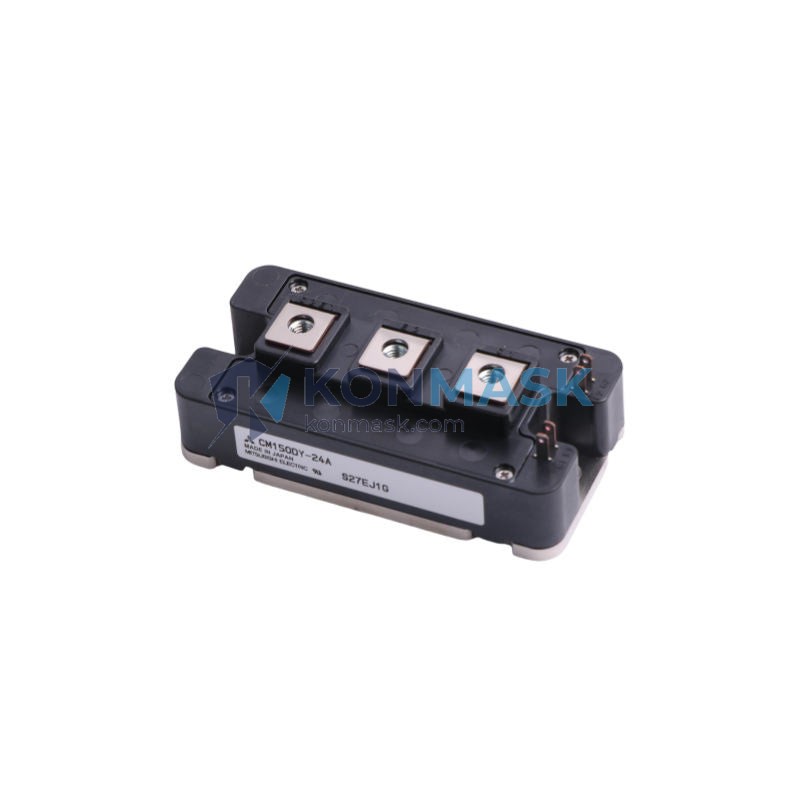

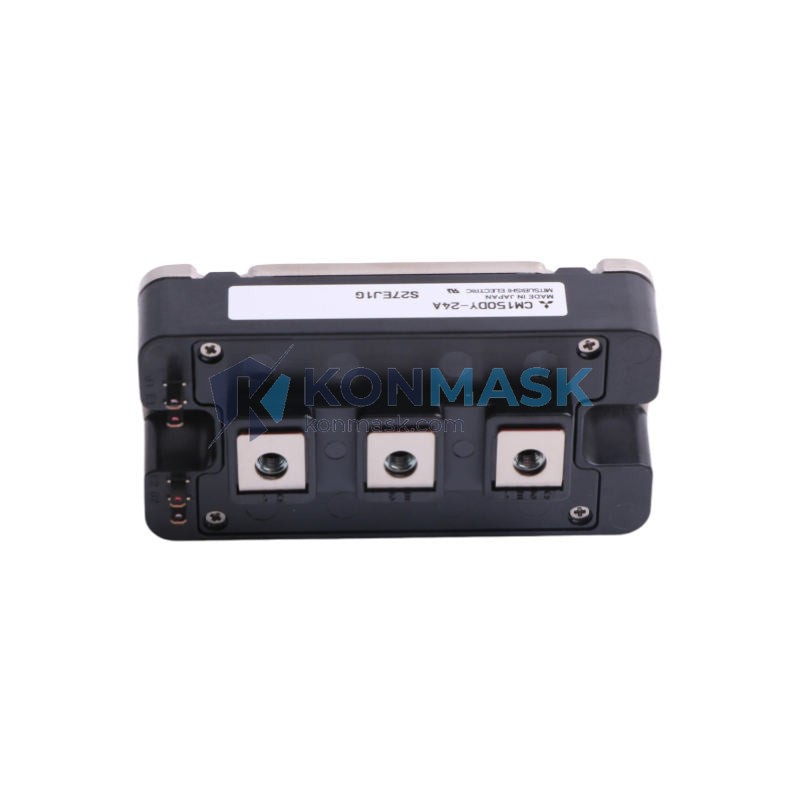

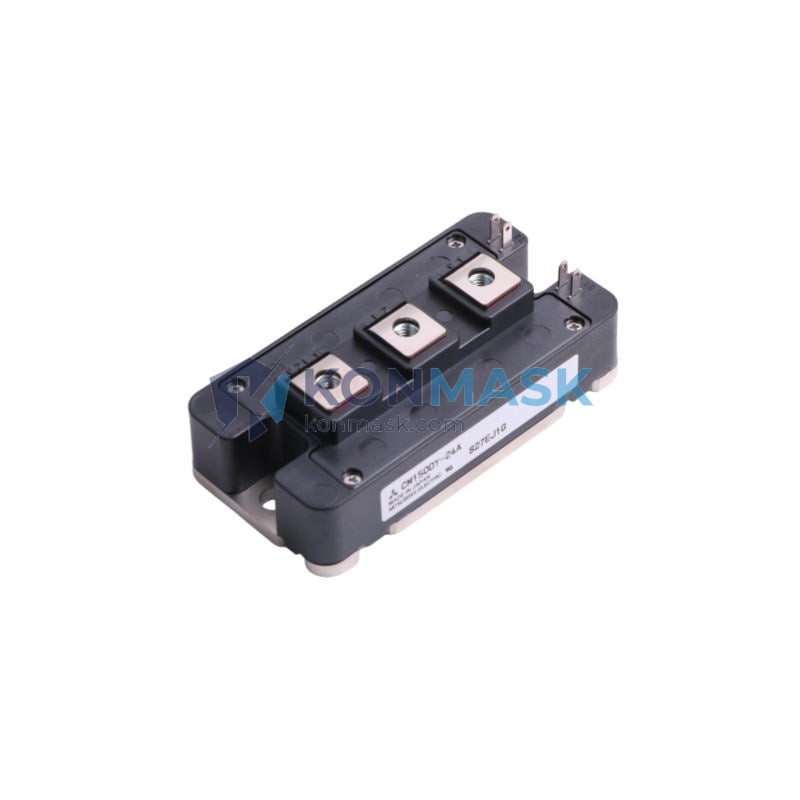

Genuine Mitsubishi CM150DY-24A IGBT Power Module 150A 1200V | NF Series – Verified Source
The Mitsubishi CM150DY-24A is a high-performance dual IGBT power module rated at 150A / 1200V, engineered for demanding industrial drive and power conversion applications. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity inspection before dispatch.
Technical Specifications
- Part Number: CM150DY-24A
- Manufacturer: Mitsubishi Electric Corporation
- Series: NF Series (Dual IGBT)
- Collector Current (IC): 150 A
- Collector-Emitter Voltage (VCES): 1200 V
- Gate-Emitter Voltage (VGES): ±20 V
- Configuration: Dual (2-in-1) IGBT Module
- Package: Standard flat-base module
- Mounting: Screw terminal, heatsink-mountable
- Weight: Approx. 280 g
- Country of Origin: Japan
Our 4-Step Quality Verification Process
- Step 1 – Source Audit: All units are procured from authorized distributors or factory-direct channels with traceable documentation.
- Step 2 – Visual Inspection: Laser-etched markings, date codes, and package integrity are verified against Mitsubishi Electric factory standards.
- Step 3 – Electrical Pre-screening: Key parameters (VCES, VGE threshold, leakage) are spot-checked using calibrated test equipment.
- Step 4 – Secure Packaging: Anti-static foam tray, moisture barrier bag, and shock-resistant outer carton — every shipment.
Key Features & Benefits
- Low saturation voltage (VCE(sat)) for reduced conduction losses
- Fast switching speed — ideal for high-frequency PWM inverter designs
- Integrated freewheeling diodes for simplified circuit design
- Robust short-circuit withstand capability (10 µs rated)
- Wide operating temperature range: –40°C to +150°C (Tj)
- RoHS-compliant construction
Typical Applications
- AC variable-frequency drives (VFD) and servo amplifiers
- Industrial UPS and energy storage inverters
- Welding power supplies and induction heating equipment
- Elevator and crane motor control systems
- Solar and wind power conversion systems
Compatible System Components
- Gate driver ICs: M57962L, M57959L (Mitsubishi recommended)
- Heatsinks: Standard 62 mm pitch flat-base compatible
- Thermal interface: Silicone grease or phase-change pad (≤0.1°C·cm²/W)
- Complementary modules: CM150DY-12A (600V variant), CM200DY-24A (200A upgrade)
Global Sourcing & Shipping Capabilities
Konmask.com ships the CM150DY-24A worldwide from our warehouse in China. Standard lead time is 1–3 business days for in-stock units. Express courier (DHL / FedEx / UPS) available to 180+ countries. All export documentation, commercial invoices, and packing lists are provided. Bulk and OEM orders welcome — contact us for volume pricing.
Certifications & Compliance Statement
- Mitsubishi Electric product — manufactured under ISO 9001 quality management system
- RoHS Directive 2011/65/EU compliant
- CE marking applicable for end-product integration
- HS Code: 8541.10 (Semiconductor devices)
How to Order
- Confirm your required quantity and delivery destination.
- Add to cart or contact us directly for bulk pricing: support@konmask.com
- Receive order confirmation with tracking number within 24 hours.
- Inspect upon arrival — we back every shipment with a 30-day authenticity guarantee.
Authenticity & Trust FAQ
Q: Are these genuine Mitsubishi parts?
A: Yes. All CM150DY-24A units are sourced from verified supply chains. We provide documentation upon request.
Q: Can you provide test reports or certificates of conformance?
A: Yes, available for bulk orders (MOQ 5 pcs). Contact us before purchase.
Q: What if I receive a defective unit?
A: We offer a 30-day replacement guarantee. Contact support@konmask.com with photos and your order number.
Q: Do you accept returns?
A: Yes, unused units in original packaging may be returned within 14 days.
Q: Can I get a datasheet?
A: The official Mitsubishi Electric CM150DY-24A datasheet is available — email us or request via the contact form.
