Mitsubishi FX1-16MR PLC Module | Replacement, Equivalent & Selection Guide

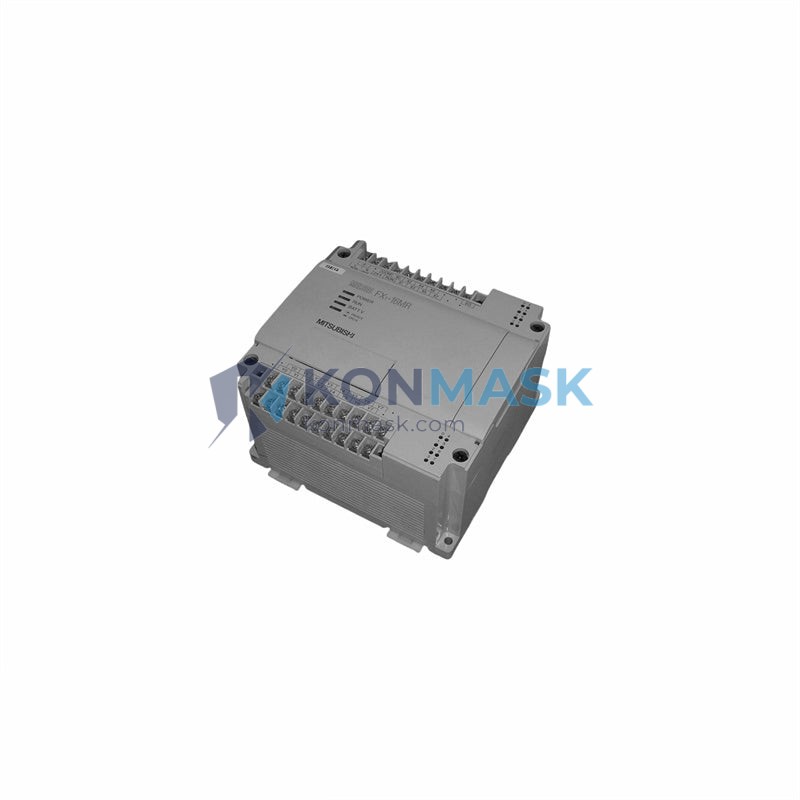

The Mitsubishi FX1-16MR is a compact, high-reliability programmable logic controller (PLC) from Mitsubishi Electric’s FX1 series, featuring 16 I/O points with relay output. Widely deployed in industrial automation, machine control, and process management applications, this module remains a benchmark for entry-level to mid-range PLC performance. At Konmask.com, we help engineers and procurement teams source the FX1-16MR and identify verified compatible replacements and equivalents.
Technical Specifications
- Model: FX1-16MR
- Brand: Mitsubishi Electric
- Series: FX1
- I/O Points: 16 (8 inputs / 8 outputs)
- Output Type: Relay (R)
- Power Supply: AC 100–240V
- Input Voltage: DC 24V
- Program Memory: 2,000 steps
- Processing Speed: 0.74–1.0 μs/step (basic instructions)
- Communication: RS-422 (built-in programming port)
- Operating Temperature: 0–55°C
- Storage Temperature: -25–75°C
- Weight: Approx. 870 g
- Certifications: CE, UL
Compatible Replacement & Equivalent Models
When the FX1-16MR is discontinued or unavailable, the following models offer functional compatibility or direct drop-in replacement potential. Always verify I/O count, output type, and power supply before substitution.
- Mitsubishi FX1S-14MR-001 — Smaller I/O count (14 pts), same relay output; suitable for space-constrained retrofits
- Mitsubishi FX1N-16MR-001 — Direct upgrade path; expanded memory (8,000 steps), same 16 I/O relay configuration
- Mitsubishi FX2N-16MR-001 — Higher-performance equivalent; supports special function modules and high-speed counters
- Mitsubishi FX3G-14MR/ES — Modern replacement with USB programming port and built-in analog I/O option
- Mitsubishi FX3U-16MR/ES — Premium upgrade; high-speed processing, extensive expansion capability
- Siemens S7-1200 CPU 1212C DC/DC/RLY — Cross-brand alternative for new installations; requires reprogramming
- Omron CP1E-N20DR-A — Cross-brand equivalent with 20 I/O relay output; compatible I/O voltage levels
Note: Cross-brand replacements require program migration and wiring verification. Contact our technical team for assistance.
Why Choose the Original FX1-16MR
- Proven Reliability: Decades of field deployment in demanding industrial environments
- Native Compatibility: Seamless integration with existing Mitsubishi FX-series expansion modules, HMIs, and SCADA systems
- No Reprogramming Required: Drop-in replacement for existing FX1-16MR installations without code changes
- Relay Output Durability: Handles resistive, inductive, and lamp loads up to 2A per point
- Compact Footprint: Ideal for panel space optimization in retrofit and OEM applications
Typical Applications
- Conveyor and material handling systems
- Packaging machinery and filling lines
- HVAC and building automation control panels
- Pump and motor sequencing control
- Small-scale process automation and batch control
- OEM machine builders requiring compact, cost-effective PLC solutions
System Compatibility
- Programming Software: GX Developer, GX Works2 (FX1 series support)
- Expansion Modules: FX1-8EX, FX1-8EYR, FX2N-2AD, FX2N-2DA (verify compatibility per datasheet)
- HMI: Mitsubishi GOT1000/GOT2000 series via RS-422
- Communication Adapters: FX-232AW, FX-USB-AW for PC connectivity
- SCADA: Compatible with most SCADA platforms via Mitsubishi FX protocol drivers
Selection Guide
Use the following criteria to determine whether the FX1-16MR is the right choice or if an alternative is needed:
- I/O Count ≤ 16 points: FX1-16MR is optimal; for 24+ points, consider FX1N-24MR or FX3G-24MR
- Output Type — Relay: FX1-16MR (suffix MR); for transistor output, select FX1-16MT
- High-Speed Counter Required: Upgrade to FX1N-16MR or FX3U-16MR for built-in HSC support
- Analog I/O Required: Add FX2N-2AD/2DA expansion or upgrade to FX3G with built-in analog
- Network/Fieldbus Required: FX3U with CC-Link or PROFIBUS adapter recommended
- Budget-Constrained Retrofit: FX1-16MR original or FX1N-16MR upgrade offers best cost-performance ratio
Quality Assurance & Sourcing
- All FX1-16MR units sourced through authorized distribution channels or verified surplus with full traceability
- Each unit undergoes incoming inspection: visual check, label verification, and functional power-on test
- Anti-counterfeit measures: holographic labels, serial number verification against Mitsubishi Electric records where available
- Packaging: original OEM packaging preferred; industrial anti-static packaging for surplus stock
- Warranty: 12-month warranty against manufacturing defects on new units; 90-day warranty on tested surplus
How to Order
-
Step 1: Confirm your exact model number:
FX1-16MR(check nameplate on existing unit) - Step 2: Specify quantity and required delivery timeline
- Step 3: Request a quote via support@konmask.com or add directly to cart
- Step 4: Provide shipping address — we ship worldwide with DHL, FedEx, and UPS express options
- Step 5: Receive order confirmation with tracking within 24 hours of payment
For urgent requirements or bulk orders (10+ units), contact us directly for priority sourcing and volume pricing.
Replacement & Compatibility FAQ
Q: Is the FX1N-16MR a direct replacement for the FX1-16MR?
A: Yes, the FX1N-16MR is the most compatible upgrade. It shares the same 16 I/O relay output configuration and is backward-compatible with FX1 programs with minor adjustments in GX Developer.
Q: Can I use FX3G or FX3U to replace the FX1-16MR?
A: Functionally yes, but these are newer-generation CPUs. Program migration from FX1 to FX3 series is straightforward in GX Works2, though wiring and expansion module compatibility should be verified.
Q: Is the FX1-16MR still in production?
A: The FX1 series has been discontinued by Mitsubishi Electric. Konmask.com maintains stock of new-old-stock (NOS) and tested surplus units. We recommend the FX1N or FX3G series for new designs.
Q: What is the difference between FX1-16MR and FX1-16MT?
A: The suffix “MR” denotes relay output; “MT” denotes transistor (NPN) output. Relay outputs handle AC/DC loads and are more robust for general switching; transistor outputs are faster and suited for high-frequency switching and servo/stepper applications.
Q: Do you provide programming support or migration assistance?
A: Yes. Our technical team can assist with program backup, migration guidance, and compatibility verification. Contact support@konmask.com with your project details.
