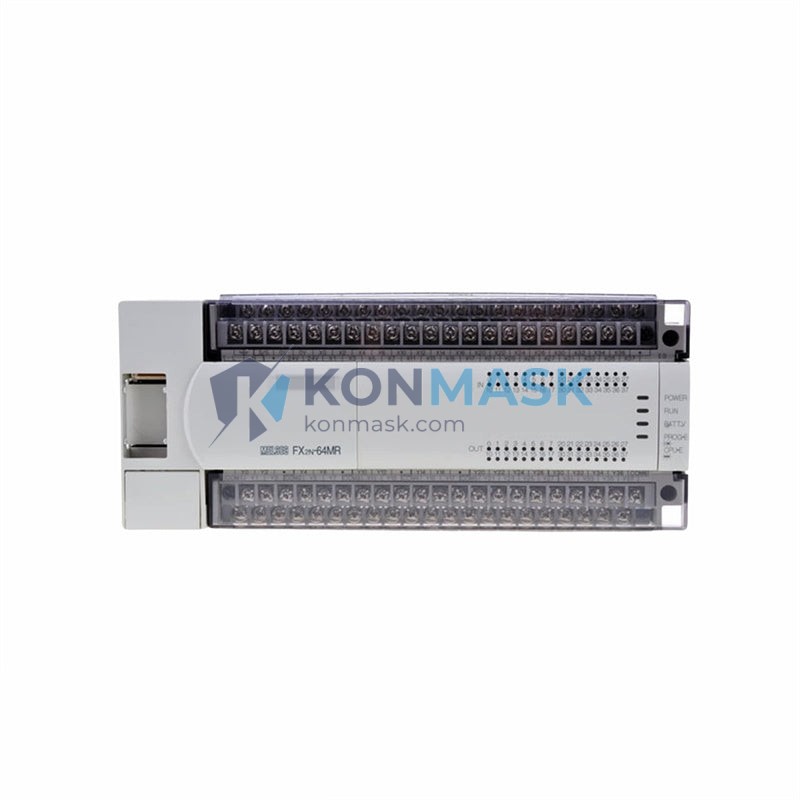

Mitsubishi FX2N-64MR-001 Programmable Controller – FX2N Series Compact PLC
Imagine a high-speed packaging line suddenly halting mid-shift — conveyor belts frozen, robotic arms locked, and operators scrambling with no diagnostic feedback. Without a reliable programmable controller at the heart of the system, even a minor I/O failure cascades into hours of costly downtime. The Mitsubishi FX2N-64MR-001 is the component that prevents exactly this scenario: a battle-tested, field-proven PLC that keeps discrete manufacturing processes running with precision and resilience.
Within the renowned Mitsubishi Electric FX2N series — one of the most widely deployed compact PLC families in global industrial automation — the FX2N-64MR-001 occupies a strategic mid-range position. Its 64-point relay output configuration makes it the preferred choice for applications demanding robust mixed I/O control without the footprint or cost of a large-frame controller. Trusted by system integrators across automotive, food & beverage, textile, and material handling industries worldwide, this model represents the benchmark for compact PLC reliability.
Technical Specifications
- Model: FX2N-64MR-001
- Brand: Mitsubishi Electric
- Series: FX2N
- I/O Points: 64 (32 inputs / 32 outputs)
- Output Type: Relay (MR)
- Program Memory: 8,000 steps (expandable to 16,000 steps)
- Processing Speed: 0.08 µs/basic instruction
- Power Supply: 100–240 VAC, 50/60 Hz
- Communication Ports: RS-422 (built-in), expandable via optional boards
- Expansion Capability: Up to 8 expansion modules (max 256 I/O points)
- Built-in Functions: High-speed counters, pulse output, interrupt inputs, real-time clock (with optional battery)
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 1,060 g
- Compliance: CE, UL, cUL
Key Features & Benefits
- High-Speed Execution: 0.08 µs per basic instruction enables real-time response in fast-cycle applications such as pick-and-place and servo positioning.
- Relay Output Durability: Relay contacts rated for AC/DC loads, providing galvanic isolation and compatibility with a wide range of actuators, solenoids, and motor starters.
- Scalable Architecture: Expand from 64 to up to 256 I/O points by adding FX2N expansion modules — no base unit replacement required.
- Rich Instruction Set: Over 200 applied instructions including PID control, floating-point arithmetic, and data communication.
- Compact Footprint: DIN-rail mountable design minimizes panel space while delivering full mid-range PLC capability.
- Proven Reliability: MTBF exceeding industry standards; widely used in 24/7 production environments globally.
- Easy Programming: Compatible with Mitsubishi GX Developer and GX Works2 software; supports ladder, SFC, and structured text.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding lines, assembly conveyor control, torque tool management
- Food & Beverage: Filling and capping machines, pasteurization control, packaging lines
- Textile & Apparel: Loom control, dyeing machine sequencing, fabric tension management
- Material Handling: Palletizers, sorters, automated storage and retrieval systems (ASRS)
- Printing & Packaging: Register control, die-cutting machines, label applicators
- Water Treatment: Pump sequencing, valve control, level monitoring
- HVAC & Building Automation: Chiller plant control, air handling unit sequencing
System Integration & Compatible Parts
The FX2N-64MR-001 is designed for seamless integration within the Mitsubishi Electric FX2N ecosystem. Compatible and commonly paired components include:
- Expansion I/O Modules: FX2N-16EX, FX2N-16EYR, FX2N-32ER
- Analog Modules: FX2N-4AD, FX2N-4DA, FX2N-8AD
- Communication Modules: FX2N-232-BD, FX2N-485-BD, FX2N-CNV-BD
- Positioning Modules: FX2N-1PG, FX2N-10PG
- HMI Panels: Mitsubishi GOT1000/GOT2000 series
- Programming Software: GX Developer 8.x, GX Works2
- Power Supply: FX2N-PSU (external power supply unit)
Our Quality Assurance Process
At Konmask.com, every FX2N-64MR-001 unit undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified original-equipment channels.
- Visual Inspection: Label authenticity, housing integrity, connector condition, and serial number validation.
- Functional Testing: Power-on test, I/O point verification, and communication port check using Mitsubishi GX Works2.
- Anti-Static Packaging: ESD-safe bags with foam cushioning and moisture-barrier outer cartons.
- Documentation: Test report and certificate of conformity included with every shipment.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page.
- Provide your required quantity, delivery destination, and any project timeline requirements.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours.
- Upon PO confirmation, we arrange export documentation (commercial invoice, packing list, COO) and ship via DHL / FedEx / sea freight as required.
Why Choose Konmask.com?
- ✅ Specialist Focus: 100% dedicated to industrial automation components — PLC, DCS, servo, HMI, and drives.
- ✅ Global Reach: Serving B2B buyers in 60+ countries with export-ready documentation.
- ✅ Technical Support: Pre-sales engineering consultation and post-sales integration guidance.
- ✅ Fast Response: RFQ responses within 24 hours; urgent orders prioritized.
- ✅ Secure Transactions: T/T, L/C, and escrow payment options available.
Frequently Asked Questions
Q: Is the FX2N-64MR-001 still in production?
A: The FX2N series has reached end-of-life status from Mitsubishi Electric. However, Konmask.com maintains stock of genuine new and refurbished units to support ongoing maintenance and replacement needs. Contact us for current availability.
Q: What is the difference between FX2N-64MR and FX2N-64MT?
A: The MR suffix denotes relay output, suitable for AC/DC loads and offering galvanic isolation. The MT suffix denotes transistor output, which provides faster switching speeds (ideal for pulse output applications) but is limited to DC loads.
Q: Can the FX2N-64MR-001 communicate with SCADA systems?
A: Yes. Via the built-in RS-422 port and optional communication boards (FX2N-232-BD, FX2N-485-BD), the unit supports Modbus RTU, MC Protocol, and various SCADA/HMI communication protocols.
Q: What programming software is required?
A: Mitsubishi GX Developer (v8.x) or GX Works2 is required. Both support ladder diagram, SFC, and structured text programming for the FX2N series.
Q: Do you provide a warranty?
A: Yes. All units sold by Konmask.com carry a 12-month warranty against manufacturing defects. Replacement or repair is arranged at no additional cost within the warranty period.
