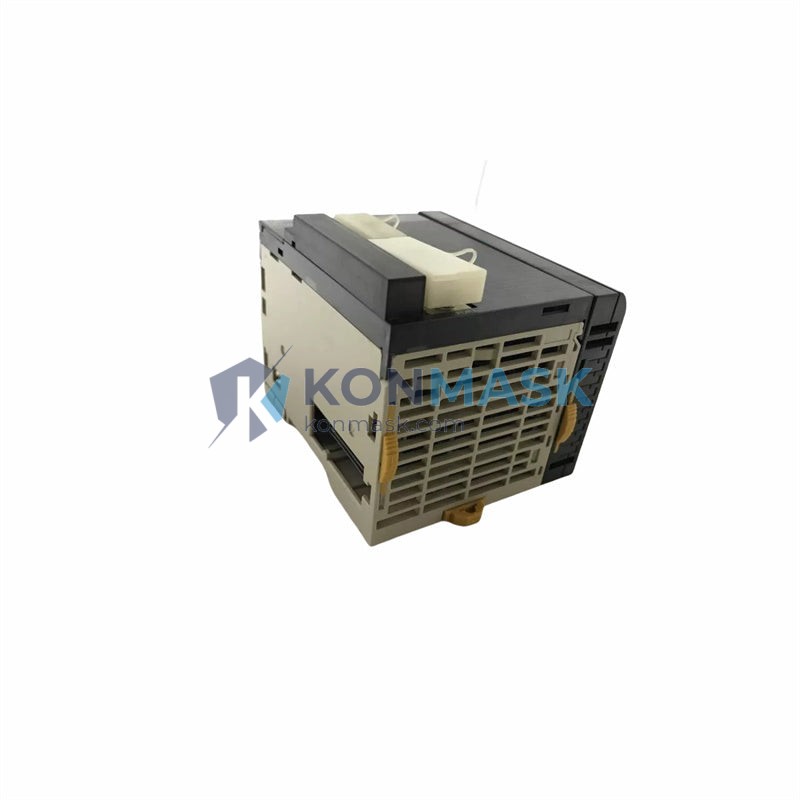

Manufacturing & Process Automation Solution – OMRON CJ1G-CPU43H | CJ1G Series
Where This Product Is Used
The OMRON CJ1G-CPU43H is a high-performance CPU module from the CJ1G Series, widely deployed across demanding industrial environments:
- Discrete Manufacturing: Automotive assembly lines, stamping presses, and robotic welding cells requiring deterministic scan-cycle control.
- Packaging & Labeling: High-speed pick-and-place, filling, and sealing machines where precise I/O synchronization is critical.
- Food & Beverage Processing: Hygienic conveyor control, batch mixing, and CIP (Clean-in-Place) sequencing with strict timing requirements.
- Pharmaceutical & Life Sciences: Validated process control for tablet pressing, blister packaging, and environmental monitoring systems.
- Water & Wastewater Treatment: Pump station sequencing, dosing control, and SCADA-integrated remote I/O management.
- Building Automation & HVAC: Centralized BMS integration for chiller plants, AHU control, and energy management.
Technical Specifications
| Model | CJ1G-CPU43H |
| Series | CJ1G (CJ Series) |
| Manufacturer | OMRON Corporation |
| Program Capacity | 30K Steps |
| Data Memory | 32K Words DM + 4K Words EM |
| I/O Points (Max) | 2,560 Points |
| Instruction Execution Speed | 0.04 μs / basic instruction |
| Communication Ports | Built-in RS-232C × 1; peripheral port × 1 |
| Interrupt Inputs | Supported (I/O interrupt, scheduled interrupt) |
| Power Supply | Via CJ-series Power Supply Unit (sold separately) |
| Operating Temperature | 0 – 55 °C |
| Storage Temperature | -20 – 75 °C |
| Humidity | 10 – 90% RH (non-condensing) |
| Weight | Approx. 4,560 g (packaged) |
| Compliance | CE, UL, cUL |
Why Engineers Specify This Model
- High-Speed Execution: 0.04 μs per basic instruction enables tight real-time control loops for servo and motion-adjacent applications.
- Scalable I/O Architecture: Supports up to 2,560 I/O points via CJ-series expansion units — no backplane required, reducing panel footprint.
- Proven CJ Platform: The CJ1G series has a decade-long installed base in Asia-Pacific and European manufacturing, ensuring long-term spare-parts availability.
- Seamless OMRON Ecosystem: Native compatibility with CX-Programmer, CX-One, and EtherNet/IP network units for unified engineering environments.
- Interrupt & Scheduled Task Support: Enables event-driven programming patterns critical for packaging and safety interlock logic.
Complete System Bill of Materials
A typical CJ1G-CPU43H control panel requires the following companion components:
- Power Supply Unit: CJ1W-PA205R or CJ1W-PD025 (DC input)
- Backplane / Rack: Not required — CJ series uses direct side-mount bus connectors
- Digital I/O Modules: CJ1W-ID211 (DC input), CJ1W-OD211 (transistor output)
- Analog I/O Modules: CJ1W-AD081-V1 (analog input), CJ1W-DA041 (analog output)
- Communication Unit: CJ1W-ETN21 (EtherNet/IP), CJ1W-SCU21-V1 (serial)
- Programming Software: CX-Programmer v9.x or CX-One Suite
- Programming Cable: CS1W-CN226 or USB-CIF02
Compliance & Industry Standards
- CE Marking (EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU)
- UL 508 / cUL Listed — Industrial Control Equipment
- RoHS Compliant
- IEC 61131-3 Programming Standard (Ladder, Structured Text, Function Block Diagram)
- SEMI S2 / S8 compatible system design support
Quality Assurance & Sourcing
All units offered through Konmask.com are:
- Sourced from verified industrial distributors and authorized supply channels.
- Inspected for original OMRON labeling, firmware version, and physical integrity prior to dispatch.
- Shipped with anti-static packaging and humidity indicator cards where applicable.
- Supported by pre-sale technical consultation — our engineers can verify compatibility with your existing CJ-series rack configuration.
How to Source This Part
- Add to Cart directly on this page for standard lead times.
- Request a Quote for volume orders (5+ units) or urgent project requirements.
- Contact Our Team at support@konmask.com or +0086 19859288691 for BOM-level procurement support.
- Specify Your Application: Share your panel drawing or I/O list — we’ll confirm the correct CPU variant (CPU42H / CPU43H / CPU44H / CPU45H) for your program size.
Application-Specific FAQ
Q: Can the CJ1G-CPU43H communicate with OMRON HMI panels (NS series)?
A: Yes. Via the built-in RS-232C port or an EtherNet/IP unit (CJ1W-ETN21), the CPU43H connects natively to NS5, NS8, NS10, and NS12 HMI terminals using OMRON’s FINS/Host Link protocol.
Q: Is this CPU compatible with CJ2 expansion units?
A: No. CJ1G and CJ2 series use the same physical bus form factor but are not cross-compatible at the firmware/software level. Ensure all I/O units are CJ1-series rated.
Q: What is the maximum program size for the CPU43H vs CPU44H?
A: CPU43H supports 30K steps; CPU44H supports 60K steps. For programs exceeding 30K steps, specify the CPU44H (CJ1G-CPU44H).
Q: Can this unit be used as a replacement for a CJ1M-CPU13?
A: The CJ1G-CPU43H offers a larger program capacity and more I/O than the CJ1M series. Program migration via CX-Programmer is straightforward, but verify I/O unit compatibility before substitution.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 12-month functional warranty on all verified units. Contact us for warranty claim procedures.
