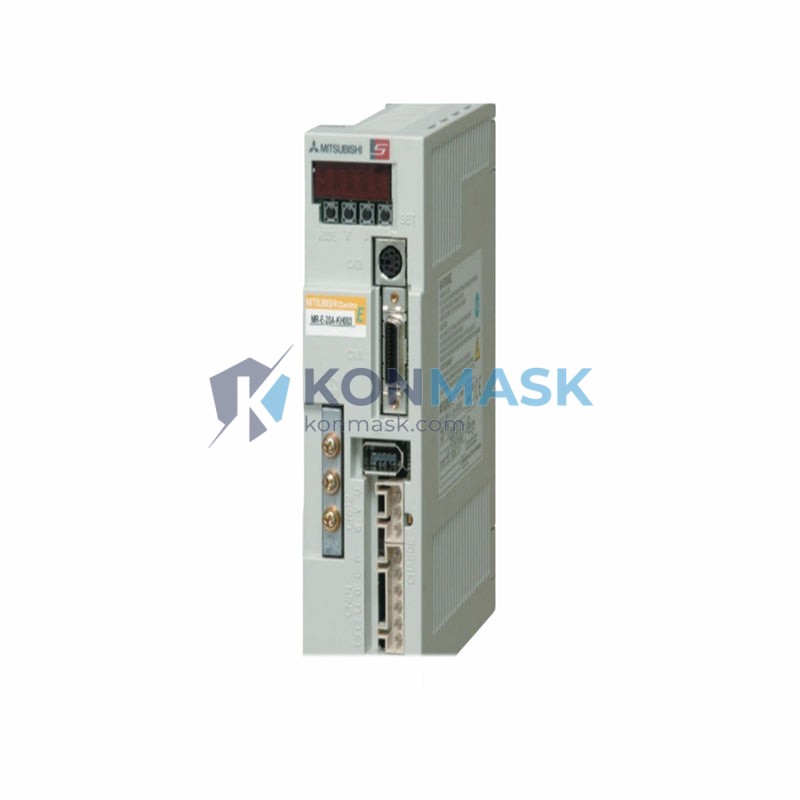

Mitsubishi MR-E-200A-KH003 – 2kW AC Servo Drive Amplifier | MELSERVO-E Platform
Engineering Background
The Mitsubishi MR-E-200A-KH003 is a compact, high-performance AC servo amplifier from Mitsubishi Electric’s MELSERVO-E series — an economical yet capable servo platform engineered for general-purpose motion control in industrial machinery. Designed for OEM machine builders and system integrators, the MR-E series delivers precise torque, speed, and position control with minimal wiring complexity.
Product Positioning
The MR-E-200A-KH003 targets cost-sensitive automation projects that still demand reliable closed-loop servo performance. With a 2kW (200A) rated output and 200V AC single-phase/three-phase input, this amplifier is ideal for mid-range axis control in packaging lines, conveyor systems, CNC auxiliary axes, and general factory automation. The -KH003 suffix denotes the connector kit variant, ensuring plug-and-play compatibility with Mitsubishi HF-KE and HF-SE series servo motors.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MR-E-200A-KH003 |
| Series / Platform | MELSERVO-E (MR-E Series) |
| Manufacturer | Mitsubishi Electric Corporation |
| Rated Output Power | 2.0 kW |
| Input Voltage | 200–230V AC, Single-Phase / Three-Phase |
| Input Frequency | 50 / 60 Hz |
| Output Current (Continuous) | 11.0 A |
| Control Mode | Position / Speed / Torque (switchable) |
| Encoder Interface | Incremental encoder (2500 p/rev) |
| Command Interface | Pulse train input (open collector / line driver) |
| Max Input Pulse Frequency | 500 kpps (line driver) / 200 kpps (open collector) |
| Regenerative Braking | Built-in resistor (external option available) |
| Dynamic Brake | Built-in |
| Protective Functions | Overcurrent, Overvoltage, Undervoltage, Overheat, Encoder error |
| Ambient Temperature | 0°C to +55°C (operating); -20°C to +65°C (storage) |
| Humidity | ≤ 90% RH (non-condensing) |
| Vibration Resistance | 5.9 m/s² (0.6G), 10–55 Hz |
| Enclosure Rating | IP20 (open chassis, panel-mount) |
| Dimensions (W×H×D) | Approx. 55 × 170 × 168 mm |
| Weight | Approx. 1.5 kg |
| Compatible Motors | Mitsubishi HF-KE / HF-SE series (2kW frame) |
| Communication | RS-422 (MR Configurator compatible) |
| Connector Kit | Included (-KH003 variant) |
| Compliance | CE, UL, cUL |
| Country of Origin | Japan |
Proven Application Environments
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling axes requiring precise position repeatability
- CNC Machine Tools – Auxiliary feed axes, tool changers, and rotary indexing tables
- Conveyor & Material Handling – Synchronized multi-axis belt drives and sorting systems
- Textile & Printing Equipment – Tension control and registration mark tracking
- Semiconductor & Electronics Assembly – SMT gantry axes and wafer handling stages
- General Factory Automation – Any application requiring closed-loop speed/position control up to 2kW
Engineering Advantages
- Auto-Tuning – One-touch gain adjustment minimizes commissioning time on new machines
- Vibration Suppression – Adaptive notch filter reduces mechanical resonance in low-rigidity systems
- Compact Footprint – 55mm width enables high-density panel layouts without sacrificing power
- Plug-and-Play (-KH003) – Connector kit included; no separate accessory order required
- Dual Command Interface – Accepts both open-collector and line-driver pulse inputs for broad PLC compatibility
- Built-in Regenerative Resistor – Handles moderate deceleration loads without external hardware
- MR Configurator Support – Full parameter management, oscilloscope, and diagnostics via RS-422 PC interface
System Architecture & Signal Flow
The MR-E-200A-KH003 operates as a single-axis closed-loop servo amplifier within a standard pulse-train command architecture:
- Command Source → PLC or motion controller outputs pulse train (position) or analog ±10V (speed/torque)
- Servo Amplifier (MR-E-200A-KH003) → Receives command, closes position/speed/torque loop via encoder feedback
- Servo Motor (HF-KE/HF-SE 2kW) → Converts electrical command to mechanical torque and motion
- Encoder Feedback → 2500 p/rev incremental encoder returns position data to amplifier for closed-loop correction
- I/O Interface → Digital I/O for servo-on, alarm reset, limit switches, and ready signals to host PLC
- PC Diagnostics → RS-422 port connects to MR Configurator for parameter tuning and fault analysis
Sourcing & Quality Verification
All units offered by Konmask.com undergo a structured incoming inspection protocol:
- Visual inspection: housing integrity, connector condition, label legibility, and date code verification
- Power-on functional test: DC bus charge, alarm-free initialization, and encoder communication check
- Parameter read-back via MR Configurator to confirm factory defaults or document any prior configuration
- Anti-static packaging with desiccant and shock-absorbing foam for safe international transit
- Each unit ships with a Konmask inspection report and traceable lot documentation
We source exclusively from verified industrial surplus channels, authorized distributors, and decommissioned OEM lines — no gray-market or counterfeit product.
Procurement Process
- Inquiry – Submit your BOM or part number via email or the product page inquiry form
- Stock Confirmation – We confirm availability, condition grade, and lead time within 1 business day
- Quotation – Formal quotation issued with unit price, shipping cost, and payment terms
- Order Placement – Purchase order or online checkout accepted; T/T, PayPal, and credit card supported
- Inspection & Dispatch – Unit inspected, photographed, and dispatched within 2–3 business days
- Tracking & Support – Shipment tracking provided; post-delivery technical support available
Lead Time: In-stock units ship within 3 business days. Out-of-stock sourcing: 7–21 business days depending on supply chain.
Technical FAQ
Q: Is the MR-E-200A-KH003 compatible with Mitsubishi MELSEC PLCs?
A: Yes. It accepts pulse-train commands from any MELSEC PLC with a positioning module (e.g., QD75, LD75). Analog speed/torque mode is also compatible with analog output modules.
Q: What servo motor does this amplifier pair with?
A: The MR-E-200A is designed for Mitsubishi HF-KE204 / HF-SE204 (2kW, 200V) servo motors. Confirm motor nameplate ratings before substitution.
Q: Can I use an external regenerative resistor?
A: Yes. The MR-E series supports an external regenerative resistor (MR-RB series) when the built-in resistor capacity is insufficient for high-duty-cycle deceleration applications.
Q: What does the -KH003 suffix mean?
A: The -KH003 suffix indicates the unit is supplied with the connector kit pre-included, eliminating the need to order MR-J2CN1 or equivalent connector accessories separately.
Q: Is this unit CE and UL certified?
A: Yes. The MR-E series carries CE marking (EMC Directive, Low Voltage Directive) and UL/cUL listing, making it suitable for deployment in European and North American machinery.
Q: What warranty does Konmask provide?
A: We offer a 90-day functional warranty on all tested units. Extended warranty options are available upon request for volume orders.
