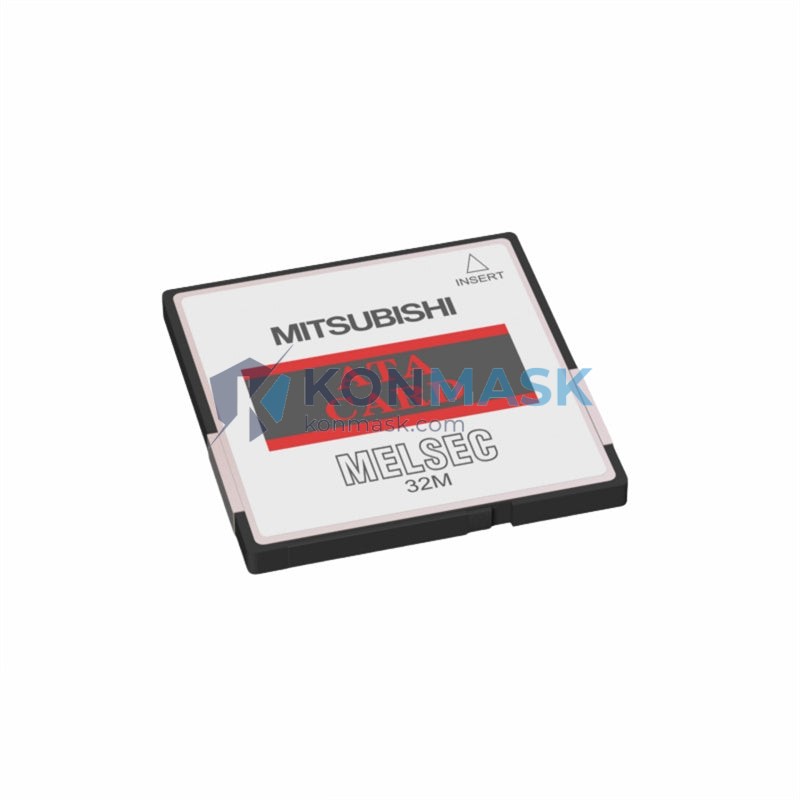

PLC Program Storage Solution – Mitsubishi Electric Q2MEM-32MBA | MELSEC-Q Series
Where This Product Is Used
The Mitsubishi Electric Q2MEM-32MBA is a 32MB Flash Memory Card engineered for demanding industrial environments where reliable program storage and fast data access are non-negotiable. Engineers specify this module across a wide range of sectors:
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and engine assembly stations running complex MELSEC-Q multi-CPU configurations rely on the Q2MEM-32MBA to store large ladder and structured-text programs with zero data loss during power cycling.
- Food & Beverage Processing: High-speed filling, capping, and labeling machines use this card to retain recipe programs and batch parameters, enabling rapid product changeovers without re-downloading from an engineering workstation.
- Energy & Utilities: Substation automation panels and water treatment SCADA systems use the Q2MEM-32MBA as a secure backup medium, ensuring control logic is instantly recoverable after a CPU replacement in the field.
- Semiconductor & Electronics Fabrication: Cleanroom equipment controllers store motion profiles and process sequences on this card, supporting hot-swap CPU maintenance without production downtime.
- Material Handling & Logistics: Automated storage and retrieval systems (AS/RS) and sorter controllers use the card to distribute identical programs across multiple Q-series CPUs on the same rack.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | Q2MEM-32MBA |
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-Q |
| Memory Type | Flash ROM (Battery-free) |
| Capacity | 32 MB |
| Compatible CPUs | Q02(H), Q06H, Q12H, Q25H, Q12PH, Q25PH, Q12PRH, Q25PRH and other Q-series CPUs |
| Card Format | SRAM/Flash PC Card (ATA standard) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -25 °C to 75 °C |
| Weight | Approx. 20 g |
| Dimensions | 54 mm × 85.6 mm × 5 mm (PC Card Type II) |
| Write Endurance | 100,000 write cycles (typical) |
| Data Retention | 10 years (without battery) |
| RoHS Compliance | Yes |
Why Engineers Specify This Model
- Battery-Free Flash Storage: Unlike SRAM cards, the Q2MEM-32MBA retains data indefinitely without a backup battery, eliminating the risk of program loss from battery depletion during long shutdowns or storage.
- Large 32 MB Capacity: Accommodates extensive ladder programs, structured text, function blocks, and comment data for complex multi-axis or multi-process applications without capacity constraints.
- Plug-and-Play CPU Replacement: Insert the card into a replacement CPU and power on — the Q-series CPU automatically reads the program, dramatically reducing MTTR in critical production environments.
- Genuine OEM Reliability: Manufactured to Mitsubishi Electric’s stringent quality standards, ensuring full compatibility with GX Works2 / GX Works3 and Q-series system firmware.
- Compact Form Factor: Standard PC Card Type II interface fits all Q-series CPU memory card slots without adapters or modifications.
Complete System Bill of Materials
For a complete MELSEC-Q control system build using the Q2MEM-32MBA, engineers typically specify:
- Q-series CPU Module (e.g., Q06HCPU, Q25HCPU)
- Q2MEM-32MBA — Program Memory Card (this item)
- Q-series Power Supply Module (e.g., Q61P, Q62P)
- Q-series Base Unit (e.g., Q33B, Q35B, Q38B)
- Q-series I/O Modules (digital/analog input-output)
- QJ71E71-100 Ethernet Interface Module
- GX Works2 or GX Works3 Engineering Software License
- SC-09 or USB-SC09-FX Programming Cable
Compliance & Industry Standards
- RoHS 2011/65/EU: Compliant — free from restricted hazardous substances.
- CE Marking: Meets applicable EU directives for industrial control equipment.
- UL Listed: Recognized under applicable UL standards for industrial automation components.
- IEC 61131-2: Compatible with programmable controllers conforming to this international standard.
- SEMI S2 / S8: Suitable for semiconductor equipment applications requiring safety and environmental guidelines compliance.
Quality Assurance & Sourcing
At Konmask.com, every Q2MEM-32MBA unit is:
- Sourced directly from authorized Mitsubishi Electric distributors or verified OEM supply chains.
- Inspected for physical integrity, label authenticity, and packaging condition prior to dispatch.
- Shipped with original manufacturer packaging and documentation where available.
- Backed by our quality guarantee — if the part is not as described, we make it right.
We specialize in industrial automation components for B2B buyers, MRO procurement teams, and system integrators who require traceable, spec-accurate parts on short lead times.
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout directly on this page.
- Request a Quote — For bulk orders (>5 units), contact [email protected] for volume pricing.
- Expedited Sourcing — Call or WhatsApp +0086 19859288691 for same-day response.
- Cross-Reference Check — Share your CPU model and we will confirm compatibility before you order.
Application-Specific FAQ
Q: Can the Q2MEM-32MBA be used with Q02CPU (standard, non-H)?
A: Compatibility depends on CPU firmware version. The Q2MEM-32MBA is primarily rated for Q02HCPU and higher. Contact us to confirm.
Q: Does this card support both program storage and file register storage simultaneously?
A: Yes. The Q-series CPU can partition the Flash card to store both program memory and file register (ZR) data, subject to total capacity limits.
Q: Is a battery required to maintain data?
A: No. The Q2MEM-32MBA uses Flash ROM technology — non-volatile, retains data without any battery.
Q: Can I write to this card directly from GX Works2?
A: Yes. GX Works2 and GX Works3 both support writing programs directly to the Q2MEM-32MBA via the CPU’s memory card slot.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 2–4 weeks. Contact us for real-time availability.
