Mitsubishi RX312B BN634A589G53 – High-Density I/O Expansion Module | MELSEC RX312 Platform
Engineering Background
The Mitsubishi Electric MELSEC series represents decades of proven reliability in discrete manufacturing, process control, and motion automation. The RX312 platform was engineered to address high-channel-count I/O requirements in compact panel footprints, making it a preferred choice for automotive assembly lines, semiconductor fabs, and precision machine tools across Asia-Pacific and global OEM markets.
Product Positioning

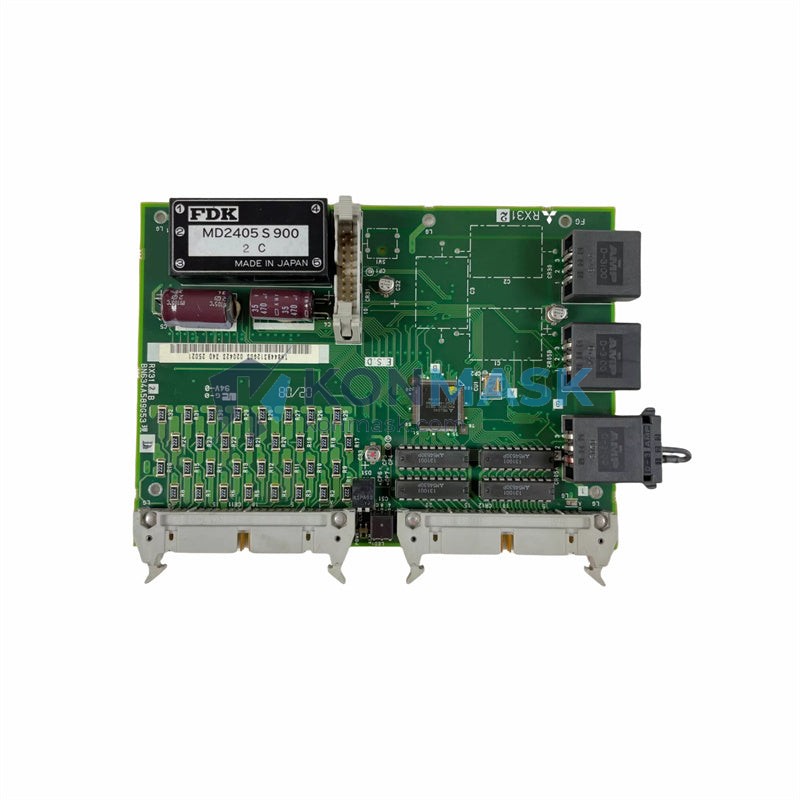

The RX312B (BN634A589G53) is a high-density digital input/output board designed for integration within Mitsubishi MELSEC programmable logic controller systems. It serves as an expansion I/O carrier, extending the channel capacity of the host CPU rack without additional communication overhead. Procurement engineers sourcing replacement or expansion boards for legacy MELSEC installations will find this module a direct, specification-matched solution.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | RX312B |
| Manufacturer Part Number | BN634A589G53 |
| Series / Platform | MELSEC RX312 |
| Module Type | Digital I/O Expansion Board |
| Manufacturer | Mitsubishi Electric Corporation |
| Country of Origin | Japan |
| HS Code | 8537.10 |
| Net Weight | 4,460 g (approx.) |
| Communication Interface | Backplane bus (rack-mounted) |
| Mounting | DIN rail / rack slot |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +75 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Per IEC 61131-2 |
| Certifications | CE, UL (verify with datasheet) |
Note: Full electrical specifications (voltage, current ratings, channel count) should be confirmed against the official Mitsubishi Electric datasheet for BN634A589G53 prior to installation.
Proven Application Environments
- Automotive Manufacturing – Body welding lines, transfer press control, and robotic cell I/O expansion
- Semiconductor & Electronics – Wafer handling equipment, SMT line controllers, and test fixture automation
- Food & Beverage Processing – Conveyor sequencing, filling machine control, and packaging line PLCs
- Machine Tool & CNC – Auxiliary I/O for multi-axis machining centers and grinding systems
- Building Automation – HVAC control panels and energy management systems using MELSEC infrastructure
- Water Treatment – Pump station monitoring and valve sequencing in distributed I/O architectures
Engineering Advantages
- Direct Rack Integration – Slots into standard MELSEC base units with zero additional wiring for backplane communication
- High Channel Density – Maximizes I/O count per rack slot, reducing panel footprint and BOM cost
- Proven MTBF – Mitsubishi Electric industrial-grade components rated for continuous 24/7 operation
- Legacy Compatibility – Drop-in replacement for existing RX312 installations; no firmware changes required
- Noise Immunity – Optical isolation on I/O channels protects CPU from field-side transients
- Compact Form Factor – Standard MELSEC module width minimizes rack space consumption
System Architecture & Signal Flow
The RX312B mounts directly into a MELSEC base unit slot. Field-side digital signals are received or driven through the front connector, optically isolated, and transferred across the backplane bus to the host CPU module. The CPU maps the I/O points into its device memory (X/Y registers), enabling ladder logic or structured text programs to read inputs and write outputs with deterministic scan-cycle timing. No external communication module or network adapter is required for local rack expansion.
Typical Rack Configuration:
- Host CPU (e.g., Q-series or A-series compatible base) → RX312B in adjacent slot → Field terminal block wiring
- Multiple RX312B modules may be installed in a single base unit subject to power budget constraints
Sourcing & Quality Verification
- Authentic Origin – Units sourced from verified industrial surplus, OEM overstock, or authorized distribution channels
- Pre-Shipment Inspection – Each module undergoes visual inspection for PCB integrity, connector condition, and label authenticity
- Traceability – Manufacturer part number BN634A589G53 cross-referenced against Mitsubishi Electric documentation
- Packaging – Anti-static bag + foam-lined carton; humidity indicator card included on request
- Warranty – 90-day functional warranty against DOA; extended warranty available upon request
Procurement Process
- Confirm Part Number – Verify RX312B / BN634A589G53 against your existing rack label or Mitsubishi Electric BOM
- Request Quote – Contact [email protected] for volume pricing, lead time, and export documentation
- Place Order – Secure checkout via Konmask.com; T/T wire transfer and PayPal accepted
- Shipping – DHL / FedEx express worldwide; EXW Xiamen or CIF available; commercial invoice + packing list provided
- Incoming Inspection – Recommended: power-on bench test before rack installation
Technical FAQ
Q: Is the RX312B compatible with Q-series MELSEC base units?
A: Compatibility depends on the specific base unit model and slot configuration. Please consult the Mitsubishi Electric hardware manual or contact our technical team with your base unit model number for confirmation.
Q: Can I use this module as a standalone controller?
A: No. The RX312B is an expansion I/O board and requires a host CPU module and compatible base unit to operate.
Q: Do you provide the GX Works programming software?
A: We supply hardware only. GX Works2 / GX Works3 software is available through Mitsubishi Electric’s official software licensing channels.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, typical sourcing lead time is 2–4 weeks. Contact us for real-time availability.
Q: Can you provide a certificate of conformity or test report?
A: Yes, upon request we can provide an inspection report. CE/UL certificates are subject to the specific unit’s production batch.
