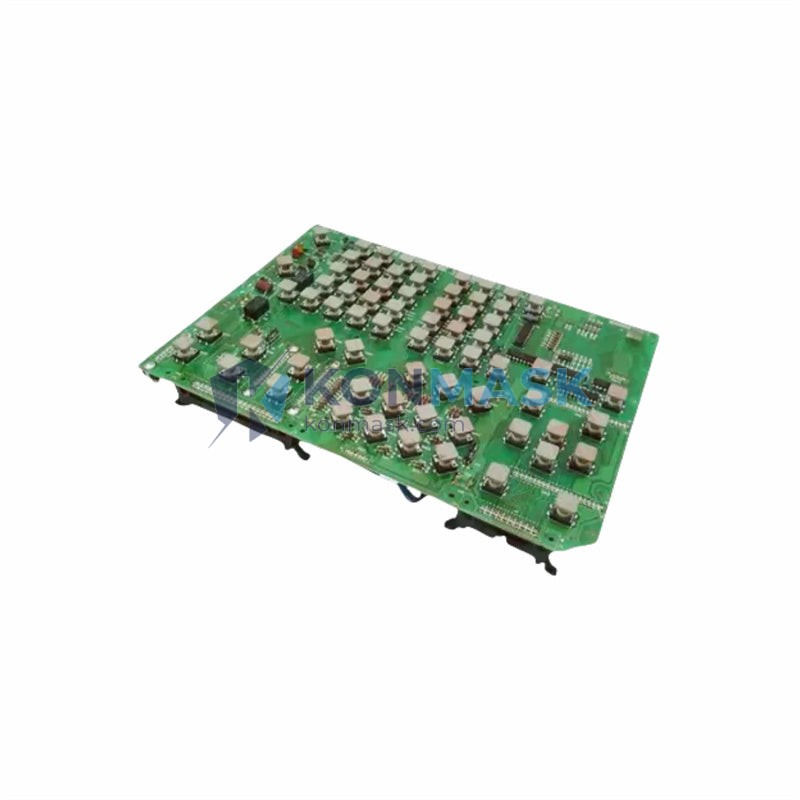

Mitsubishi AB12C-2098 KS-6YZM01B-P Keypad Circuit Board – CNC Control Panel Interface
When a CNC machine’s keypad circuit board fails, the entire machining center goes dark. Operators lose the ability to input commands, navigate menus, or execute programs. Production halts, deadlines slip, and the cost of downtime compounds by the hour. In high-throughput manufacturing environments — automotive stamping, aerospace milling, precision mold-making — every minute offline translates directly into lost revenue and broken delivery commitments.
The Mitsubishi AB12C-2098 KS-6YZM01B-P is the OEM keypad circuit board designed for Mitsubishi CNC control systems. As a core human-machine interface (HMI) component, it bridges operator input with the CNC controller’s logic engine. Within the Mitsubishi CNC ecosystem — trusted by thousands of machine tool builders and end-users across Asia, Europe, and the Americas — this board represents the precision-engineered standard for reliable, responsive panel operation. Its global installed base makes it one of the most sought-after replacement PCBs in the industrial automation aftermarket.
Technical Specifications
- Part Number: AB12C-2098 KS-6YZM01B-P
- Manufacturer: Mitsubishi Electric
- Component Type: Keypad Circuit Board (PCB)
- Function: CNC operator panel keypad interface
- Form Factor: OEM replacement board
- Weight: 4,460 g (packaged)
- Compatibility: Mitsubishi CNC control panel systems (verify with your machine documentation)
- Condition: New / Refurbished / Tested (specify at inquiry)
Key Features & Benefits
- OEM-Grade Precision: Manufactured to Mitsubishi Electric’s original design specifications, ensuring full electrical and mechanical compatibility with the target control system.
- Immediate Downtime Recovery: Drop-in replacement eliminates the need for custom wiring or firmware modification — restore machine operation in minimal time.
- Robust PCB Construction: Multi-layer board design with high-quality solder joints and conformal coating options for resistance to industrial environments (vibration, dust, humidity).
- Reliable Keypad Response: Tactile switch matrix engineered for consistent actuation force and long service life under repetitive operator use.
- Traceable Quality: Each unit sourced through verified supply channels with inspection records available upon request.
Industry & Equipment Applications
- CNC Machining Centers: Vertical and horizontal machining centers using Mitsubishi CNC controllers requiring operator panel replacement.
- Turning Centers & Lathes: Multi-axis CNC lathes where the keypad board interfaces with the main control unit.
- Automotive Manufacturing: High-volume production lines where panel reliability is critical to shift output targets.
- Aerospace & Defense: Precision machining facilities with strict uptime requirements and OEM-only part policies.
- Mold & Die Industry: EDM and milling operations where CNC panel integrity directly affects dimensional accuracy.
- General Industrial Automation: Any facility operating Mitsubishi CNC-equipped machine tools requiring certified spare parts.
System Integration & Compatible Parts
The AB12C-2098 KS-6YZM01B-P keypad circuit board is designed to integrate within the Mitsubishi CNC operator panel assembly. When planning a repair or preventive maintenance, consider sourcing compatible components such as:
- Mitsubishi CNC display units and LCD panels
- Mitsubishi operator panel main boards
- Mitsubishi CNC servo amplifier modules
- Mitsubishi CNC power supply units
- Ribbon cables and panel interconnect harnesses
Contact our technical team at [email protected] to confirm compatibility with your specific machine model and control system version before ordering.
Our Quality Assurance Process
At Konmask.com, every Mitsubishi spare part undergoes a structured verification process before shipment:
- Source Verification: Parts are procured from authorized distributors or verified surplus channels with full traceability documentation.
- Visual Inspection: Each board is inspected for physical damage, corrosion, burnt components, and solder integrity.
- Functional Testing: Where applicable, boards are bench-tested against known-good reference systems to confirm operational status.
- Secure Packaging: Anti-static ESD packaging with foam cushioning ensures safe transit to your facility worldwide.
- Documentation: Test reports and inspection certificates available upon request for quality-critical applications.
How to Order
- Submit an Inquiry: Contact us via email at [email protected] or call +0086 19859288691 with your part number and required quantity.
- Receive a Quote: Our team will confirm availability, condition, lead time, and pricing within 1 business day.
- Confirm & Pay: Approve the proforma invoice and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Tracking: Parts are dispatched with full tracking via DHL, FedEx, UPS, or freight forwarder as required.
- After-Sales Support: Our technical team remains available post-delivery for installation guidance and compatibility questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLC modules, DCS parts, CNC boards, and servo systems — giving us deep product knowledge your generalist supplier cannot match.
- Global B2B Supply: Serving OEMs, system integrators, and maintenance teams across 50+ countries with reliable cross-border logistics.
- Fast Response: Inquiry-to-quote turnaround within 24 hours. Emergency sourcing support available for critical downtime situations.
- Verified Stock: No phantom inventory. We confirm physical availability before quoting.
- Long-Term Partnership: We support your ongoing MRO and spare parts strategy, not just one-off transactions.
Frequently Asked Questions
Q: Is the AB12C-2098 KS-6YZM01B-P a new or refurbished part?
A: We supply both new and professionally refurbished units depending on availability. The condition will be clearly stated in your quotation. All refurbished units are tested and certified before shipment.
Q: How do I confirm this board is compatible with my CNC machine?
A: Please provide your machine model, CNC controller model, and existing part number when submitting your inquiry. Our engineers will verify compatibility before processing your order.
Q: What is the lead time for this part?
A: Lead time depends on current stock status. In-stock items typically ship within 2–5 business days. Out-of-stock items may require 2–6 weeks for sourcing. Contact us for real-time availability.
Q: Do you offer a warranty on this keypad circuit board?
A: Yes. We offer a standard 90-day warranty against manufacturing defects and functional failure under normal operating conditions. Extended warranty options are available — ask your sales contact.
Q: Can you supply multiple units for a stocking program?
A: Absolutely. We support bulk orders and consignment stocking arrangements for maintenance teams and distributors. Contact us to discuss volume pricing and delivery schedules.
Q: What shipping methods are available for international orders?
A: We ship worldwide via DHL Express, FedEx International, UPS, and sea/air freight for larger orders. All shipments include tracking and commercial invoice documentation for customs clearance.
