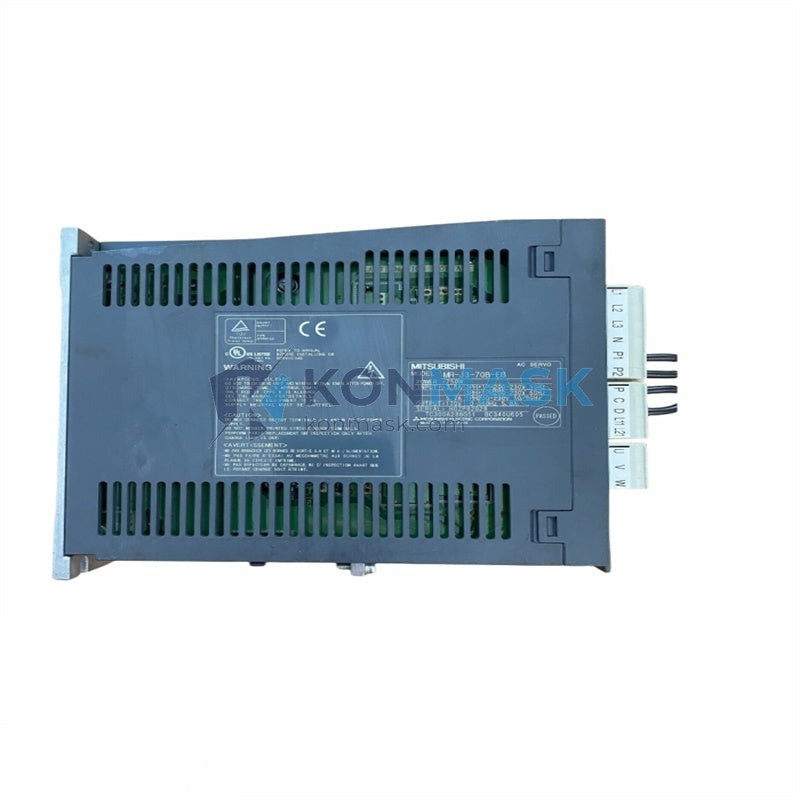

Mitsubishi MR-J3-70B Servo Amplifier – MELSERVO-J3 Series
When a servo amplifier fails on a high-speed CNC machining center or a precision assembly robot, the entire production line grinds to a halt. Unplanned downtime in industrial automation is not merely an inconvenience — it translates directly into scrapped workpieces, missed delivery windows, and escalating maintenance costs. The Mitsubishi MR-J3-70B servo amplifier is the precision drive unit engineered to prevent exactly that scenario, delivering reliable, high-response motion control that keeps critical machinery running at specification.
Within Mitsubishi Electric’s acclaimed MELSERVO-J3 series, the MR-J3-70B occupies the 700 W output class — a sweet spot for medium-duty axes requiring both dynamic torque response and compact drive footprint. The J3 platform is globally recognized as one of the most widely deployed servo drive families in discrete manufacturing, with an installed base spanning automotive body shops, semiconductor handling equipment, packaging lines, and precision machine tools across Asia, Europe, and the Americas.
Technical Specifications
- Model: MR-J3-70B
- Series: MELSERVO-J3
- Manufacturer: Mitsubishi Electric
- Rated Output: 700 W
- Control Mode: Position / Speed / Torque (SSCNET III fiber optic bus)
- Interface: SSCNET III (high-speed synchronous serial network)
- Encoder Compatibility: 262,144 pulse/rev (18-bit) incremental / absolute encoder
- Power Supply: 3-phase / 1-phase 200–230 VAC, 50/60 Hz
- Regenerative Option: Built-in regenerative resistor; external option supported
- Protection Class: IP20 (panel-mount)
- Operating Temperature: 0 °C to 55 °C
- Communication: USB (MR Configurator2 compatible)
- Safety Function: STO (Safe Torque Off) via hardware
- Weight: Approx. 1.0 kg
Note: All specifications are sourced from Mitsubishi Electric official documentation. Konmask.com does not modify or fabricate technical parameters.
Key Features & Benefits
- SSCNET III Fiber Optic Bus: Eliminates electromagnetic interference on the command link, enabling deterministic microsecond-level synchronization across multi-axis systems — critical for coordinated motion in gantry and robot applications.
- High-Resolution 18-Bit Encoder Support: 262,144 pulses per revolution delivers sub-micron positioning repeatability, meeting the demands of precision grinding, laser cutting, and electronic assembly.
- Advanced Auto-Tuning: One-touch tuning and adaptive vibration suppression reduce commissioning time and maintain stable performance even as mechanical load characteristics change over the machine lifecycle.
- Integrated STO Safety: Hardware-level Safe Torque Off function supports IEC 62061 / ISO 13849 safety architectures without external safety relays, simplifying CE-compliant machine design.
- Compact Drive Footprint: Slim profile optimized for high-density panel layouts, reducing control cabinet size and wiring complexity.
- MR Configurator2 Software: USB-connected PC tool for parameter management, gain tuning, waveform monitoring, and predictive maintenance diagnostics.
Industry & Equipment Applications
- CNC Machine Tools: Feed axis and spindle orientation drives on machining centers, lathes, and grinding machines.
- Industrial Robotics: Joint drives for 6-axis articulated robots and SCARA systems integrated with Mitsubishi iQ Platform controllers.
- Semiconductor & Electronics Manufacturing: Wafer handling, die bonding, and PCB drilling equipment requiring micron-level accuracy.
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and labeling lines demanding rapid acceleration and precise registration.
- Printing & Converting: Web tension control and register correction on flexographic and digital printing presses.
- Automotive Assembly: Servo-driven press, welding positioner, and conveyor indexing applications.
System Integration & Compatible Parts
The MR-J3-70B is designed for seamless integration within the Mitsubishi Electric iQ Platform and MELSERVO-J3 ecosystem. Typical compatible components include:
- Servo Motors: HF-KP, HF-MP, HF-SP series (700 W class) with MR-J3 connectors
- Motion Controllers: Q172DCPU, Q173DCPU, QD75MH (SSCNET III compatible)
- Regenerative Options: MR-RB032, MR-RB12 external resistor units
- Cables & Connectors: MR-J3BUS optical fiber cables (0.5 m – 50 m), MR-PWS1CBL encoder cables
- Battery Unit: MR-J3BAT (for absolute position retention)
- EMC Filter: FR-BIF series line filters for CE compliance
Contact Konmask.com to source complete drive train assemblies or replacement parts for your existing MR-J3 installation.
Our Quality Assurance Process
Every unit supplied by Konmask.com undergoes a structured verification process before dispatch:
- Authenticity Check: Serial number and date code verification against Mitsubishi Electric production records.
- Visual Inspection: Examination of PCB, connectors, heatsink, and housing for damage, corrosion, or counterfeit indicators.
- Functional Power-On Test: Where applicable, units are powered and communication integrity is confirmed.
- Secure Packaging: Anti-static ESD bags, foam cushioning, and moisture-barrier outer cartons for international freight.
- Documentation: Test report and packing list included with every shipment.
How to Order
- Submit your inquiry via the Contact Us page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Confirm the purchase order; we accept T/T bank transfer and other B2B payment terms by arrangement.
- Shipment dispatched with tracking number and commercial invoice / packing list documentation.
- Post-delivery technical support available via email and phone.
Why Choose Konmask.com?
- Specialized Industrial Focus: We stock and source PLC modules, DCS components, servo drives, and automation hardware — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas.
- Fast Inquiry Response: Dedicated technical sales team responds to RFQs within 24 hours on business days.
- Competitive Pricing: Direct sourcing relationships enable competitive pricing on both new and refurbished units.
- Reliable Logistics: DHL, FedEx, and freight forwarding options with full export documentation support.
- After-Sales Support: Technical guidance on installation, parameter configuration, and compatibility questions.
Frequently Asked Questions
Q: Is the MR-J3-70B compatible with SSCNET II controllers?
A: No. The MR-J3-70B uses SSCNET III (fiber optic), which is not backward-compatible with SSCNET II (copper). Ensure your motion controller supports SSCNET III before ordering.
Q: Can the MR-J3-70B operate in standalone pulse-train mode?
A: The MR-J3-70B is the SSCNET III bus-type variant. For standalone pulse-train (PP) input, the equivalent model is the MR-J3-70A. Please confirm your controller interface before purchase.
Q: What servo motor should be paired with the MR-J3-70B?
A: Mitsubishi recommends HF-KP73, HF-MP73, or HF-SP73 series motors (700 W) for optimal performance. Contact us to source matched motor-amplifier sets.
Q: Do you supply new or refurbished units?
A: Konmask.com supplies both new (factory-sealed) and professionally refurbished units. Stock type is confirmed in the quotation. All units pass our QA process regardless of condition.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For sourced units, lead time is typically 7–15 business days depending on origin. Expedited options are available on request.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. Official Mitsubishi Electric documentation is available upon request. Contact support@konmask.com.
