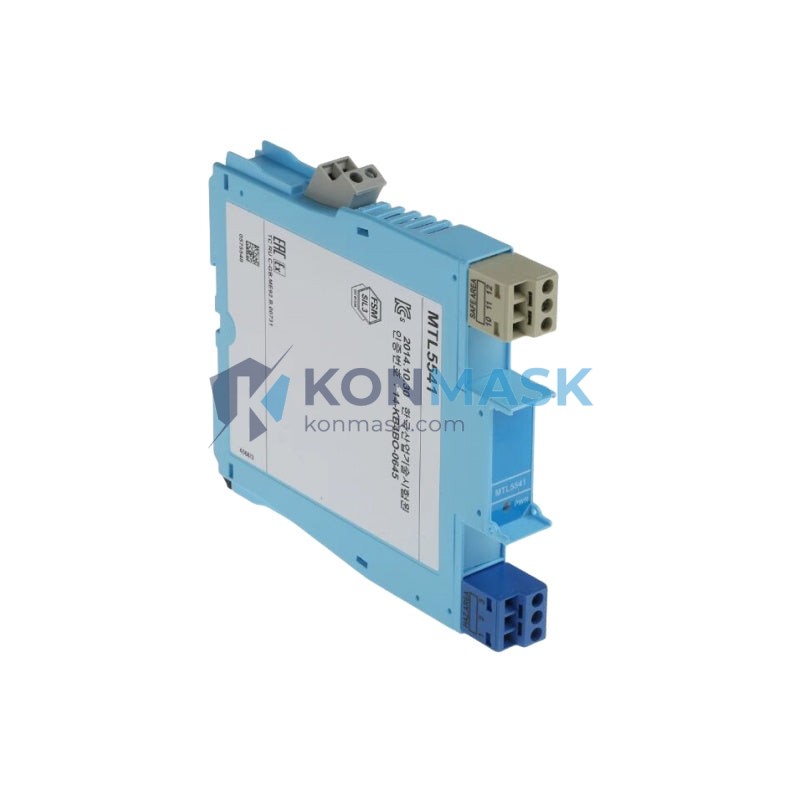

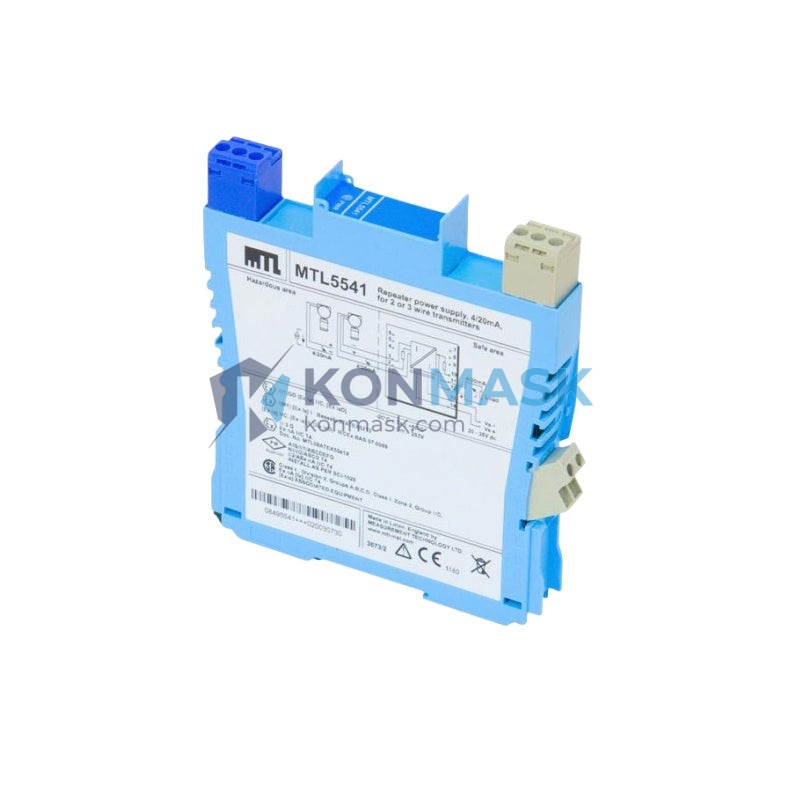

MTL MTL5541 – Repeater Power Supply | MTL5000 Zener Barrier Series
Engineering Background: The MTL5541 is a DIN-rail mounted repeater power supply designed to interface 4–20 mA current loop field instruments located in hazardous (Zone 0/1/2) areas with safe-area control systems. It belongs to MTL Instruments’ established MTL5000 series — a platform widely adopted across oil & gas, chemical processing, and power generation industries for intrinsically safe signal conditioning.
Product Positioning: The MTL5541 serves as the critical galvanic isolation and power conditioning link between field transmitters and DCS/PLC analog input cards. It eliminates ground loops, provides HART signal transparency, and ensures IS compliance without requiring separate Zener barriers or isolators — simplifying panel design and reducing BOM count.
Complete Technical Specifications
| Model | MTL5541 |
| Manufacturer | MTL Instruments (Eaton MTL) |
| Series | MTL5000 |
| Function | Repeater Power Supply / 4–20 mA Isolator |
| Input (Field Side) | 4–20 mA, 2-wire HART transmitter |
| Output (Safe Side) | 4–20 mA current loop output |
| Supply Voltage | 24 V DC (nominal), 20–35 V DC range |
| Isolation | Galvanic isolation, field ↔ safe area |
| HART Compatibility | Yes — transparent to HART protocol |
| Hazardous Area Certification | ATEX / IECEx — Zone 0, 1, 2 (Group IIC) |
| Intrinsic Safety Entity Parameters | Ui, Ii, Pi per certification label |
| Mounting | DIN rail (EN 60715 TS35) |
| Housing Width | 12.5 mm (single-width module) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Weight | Approx. 100 g |
| Approvals | ATEX, IECEx, FM, CSA |
Proven Application Environments
The MTL5541 is specified by process engineers across the following industries and use cases:
- Oil & Gas Upstream: Wellhead pressure and temperature transmitter loops in Zone 1 classified areas, interfacing to SCADA/DCS analog input modules.
- Petrochemical & Refining: Level and flow measurement loops in classified process areas where galvanic isolation prevents ground-loop interference across large plant earthing systems.
- LNG & Gas Processing: Cryogenic temperature transmitter loops requiring IS certification and HART pass-through for remote calibration.
- Power Generation: Boiler and turbine instrumentation loops where IS barriers are mandated by plant safety philosophy.
- Water & Wastewater: Pump station and wet-well level transmitter loops in Zone 2 classified pump rooms.
- Pharmaceutical Manufacturing: Clean-room and solvent-handling areas requiring IECEx-certified field interfaces.
Engineering Advantages
- Single-module simplicity: Combines power supply, isolation, and signal repeating in one 12.5 mm DIN-rail slot — no separate Zener barrier + isolator combination required.
- HART transparency: Full HART signal pass-through enables remote device management, diagnostics, and calibration without breaking the IS loop.
- Galvanic isolation: Eliminates ground loops and common-mode interference common in large industrial plants with distributed earthing.
- Wide supply range: 20–35 V DC input accommodates standard 24 V DC panel supplies with tolerance for voltage drop across long cable runs.
- High packing density: 12.5 mm width allows up to 80 channels per metre of DIN rail — critical for high-channel-count marshalling panels.
- Proven platform reliability: MTL5000 series has 30+ years of field deployment history across major EPC contractors and end-user plants globally.
System Architecture & Signal Flow
In a typical IS loop using the MTL5541:
- Field Transmitter (Zone 1/0): 2-wire 4–20 mA HART transmitter (e.g., pressure, temperature, level) powered from the safe area via the MTL5541.
- MTL5541 (Safe Area, Marshalling Panel): Receives field loop current, provides galvanic isolation, repeats the 4–20 mA signal to the safe-area output terminals. HART signals pass transparently in both directions.
- DCS/PLC Analog Input Card (Safe Area): Receives the isolated 4–20 mA signal. HART master (handheld or asset management system) communicates through the MTL5541 to the field device.
- Power Supply (Safe Area): Standard 24 V DC panel supply feeds the MTL5541 via the MTL5000 series power bus or direct terminal connection.
This architecture ensures full IEC 60079-11 intrinsic safety compliance while maintaining HART communication integrity across the isolation barrier.
Sourcing & Quality Verification
- Authorised supply chain: Konmask sources MTL5541 units through verified industrial automation distributors and authorised MTL/Eaton channel partners.
- Authenticity checks: Each unit is inspected for correct MTL labelling, certification markings (ATEX/IECEx plate), and original packaging integrity before dispatch.
- Traceability: Batch and serial number records maintained for all stocked units — available on request for plant documentation packages.
- Condition: New (factory-sealed) units supplied as standard. Reconditioned units available on request with full inspection report.
- Lead time: In-stock units ship within 1–3 business days. Ex-stock availability confirmed at time of order.
Procurement Process
- Submit enquiry: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive quotation: Formal quotation issued within 4 business hours including unit price, lead time, and shipping options.
- Place order: Purchase order accepted via email. Proforma invoice issued for prepayment or net terms (approved accounts).
- Dispatch & tracking: Units shipped with full documentation (datasheet, certification copies, packing list). Tracking number provided same day.
- After-sales support: Technical support available post-delivery for installation queries, loop commissioning, and HART configuration guidance.
Technical FAQ
Q: Can the MTL5541 be used with 3-wire or 4-wire transmitters?
A: No. The MTL5541 is designed for 2-wire (loop-powered) 4–20 mA HART transmitters. For 3-wire or 4-wire devices, a different MTL5000 series model is required — contact us for selection guidance.
Q: Does the MTL5541 support HART multidrop mode?
A: The MTL5541 is optimised for point-to-point HART loops. Multidrop configurations should be verified against the specific entity parameters and loop resistance budget.
Q: What is the maximum cable length to the field device?
A: Cable length is limited by the IS entity parameters (maximum loop resistance) and the transmitter’s minimum operating voltage. Typical installations support 500–1000 m with standard IS cable — a loop resistance calculation is recommended for each installation.
Q: Is the MTL5541 compatible with the MTL5000 series power bus?
A: Yes. The MTL5541 is designed to mount on the MTL5000 series DIN-rail power bus, allowing shared 24 V DC supply distribution across multiple modules without individual terminal wiring.
Q: Can I use the MTL5541 as a direct replacement for older MTL4000 series barriers?
A: The MTL5541 provides equivalent functionality to certain MTL4000 series Zener barriers but with added galvanic isolation. A loop resistance and entity parameter review is recommended before substitution — our technical team can assist.
Q: What certifications are required for Zone 0 installations?
A: For Zone 0, the field device must carry Group IIC, Category 1G certification. The MTL5541’s IS entity parameters must be verified against the field device’s maximum input parameters (Ui, Ii, Pi, Ci, Li) per IEC 60079-14.
