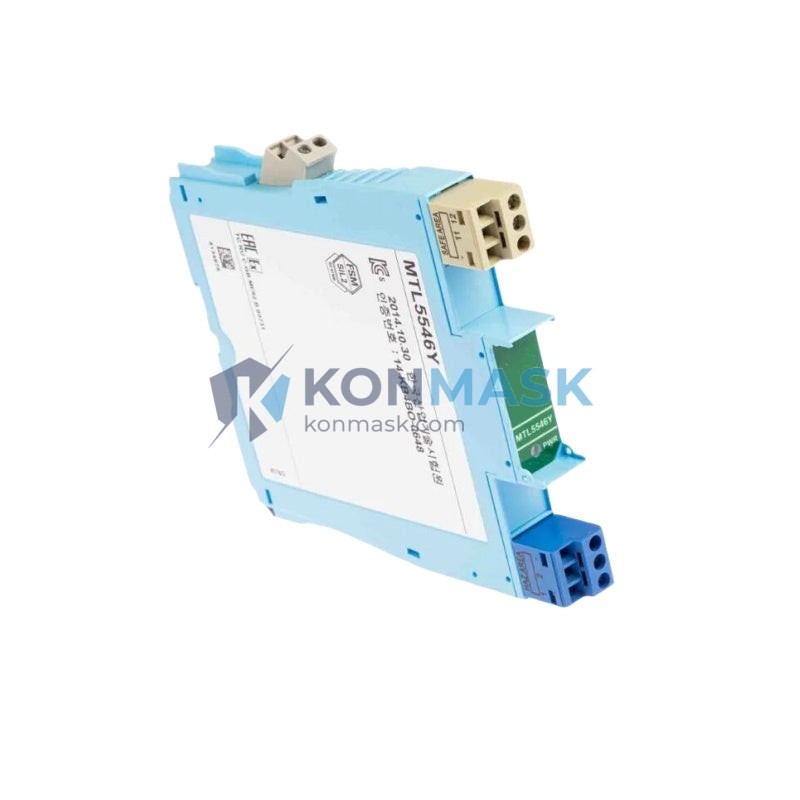

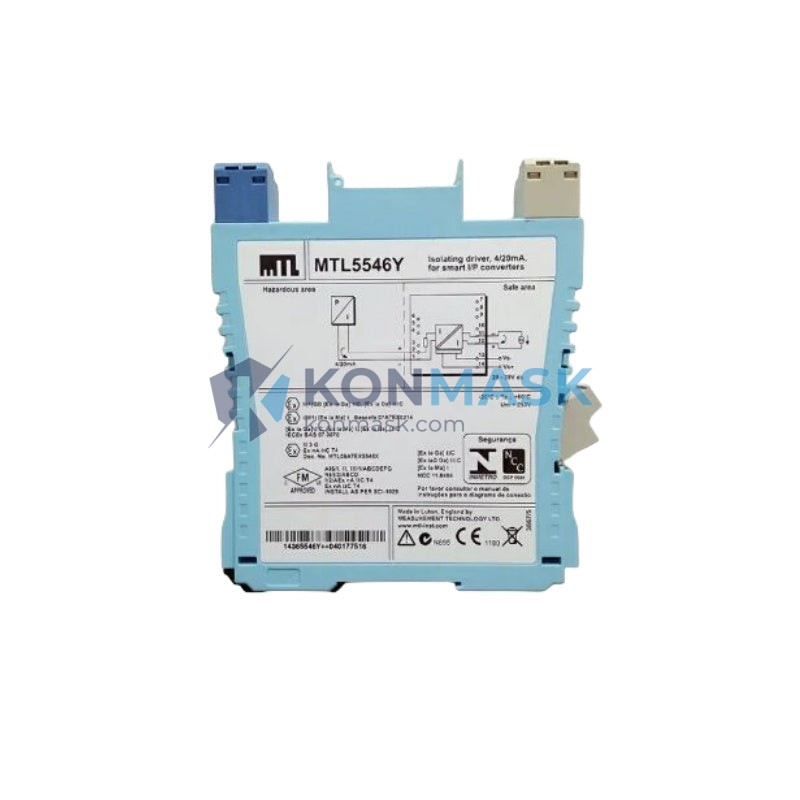

MTL MTL5546Y Isolating Driver | Replacement, Equivalent & Selection Guide
The MTL MTL5546Y is a high-performance isolating driver module designed for industrial process control and automation systems. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Model: MTL5546Y
- Brand / Manufacturer: MTL Instruments (Eaton MTL)
- Function: Isolating Driver
- Output Type: Current output for driving field devices (e.g., I/P converters, positioners)
- Input Signal: 4–20 mA (loop-powered or active)
- Output Signal: 4–20 mA isolated
- Isolation: Galvanic isolation between input, output, and power supply
- Power Supply: 24 V DC (nominal)
- Hazardous Area Certification: ATEX / IECEx (Zone 1 / Zone 2 suitable)
- Mounting: DIN rail
- Operating Temperature: -20°C to +60°C
- Housing: Compact plug-in module, MTL5000 series compatible
- Compliance: CE, ATEX, IECEx
Note: Always verify specifications against the official MTL5546Y datasheet before final design-in. Contact Konmask for the latest revision datasheet.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the MTL5546Y. Compatibility depends on your specific application, wiring configuration, and certification requirements.
- MTL5546: Standard (non-Y suffix) variant — verify output load and loop compliance before substitution.
- MTL5546B: Variant with modified output characteristics — confirm signal range compatibility.
- P+F KFD2-STC4-Ex1: Pepperl+Fuchs equivalent isolating driver; ATEX certified, DIN rail mount. Verify terminal mapping.
- P+F KFD2-STC4-Ex1.2O: Two-channel variant; suitable for dual-output applications.
- R. Stahl IS-Trennschaltverstärker series: Functional equivalent for Zone 1 applications; confirm I/O signal levels.
- Turck IM34-11Ex-Hi/24VDC: Alternative isolating driver; check output current range and load resistance.
- Phoenix Contact MACX MCR-SL-RPSSI-I-UP: Modular equivalent; verify ATEX certification scope.
Important: Replacement selection must account for loop resistance, output load, hazardous area zone classification, and system bus compatibility. Konmask engineers can assist with cross-reference validation.
Why Choose the Original MTL5546Y
- Proven field reliability: MTL5000 series modules are widely deployed in oil & gas, chemical, and power generation plants globally.
- Certified for hazardous areas: ATEX/IECEx certification ensures compliance in Zone 1 and Zone 2 environments without additional engineering review.
- Plug-in form factor: Hot-swap capable within MTL5000 backplane — minimizes downtime during maintenance.
- Backward compatibility: Drop-in replacement within existing MTL5000 series installations — no rewiring required.
- Long-term availability: Supported by Eaton MTL’s global spare parts and service network.
Typical Applications
- Driving I/P converters and electropneumatic positioners in process control loops
- 4–20 mA signal isolation in DCS and PLC output circuits
- Intrinsically safe barrier replacement in retrofit projects
- Signal conditioning in oil & gas upstream/downstream facilities
- Chemical plant distributed control systems (DCS)
- Power generation and utilities automation panels
- Water treatment and pipeline SCADA systems
System Compatibility
- Backplane / Carrier: MTL5000 series DIN rail carrier (MTL5000-CARRIER or equivalent)
- DCS Integration: Compatible with Honeywell, Yokogawa, ABB, Emerson DeltaV, and Siemens PCS 7 output modules via standard 4–20 mA interface
- PLC Compatibility: Works with any PLC analog output card providing 4–20 mA; verified with Siemens S7-300/400/1500, Allen-Bradley ControlLogix, and Schneider Modicon M340/M580
- Field Device Compatibility: Suitable for driving Fisher, Flowserve, Rotork, and Samson positioners and I/P converters
- Power Supply: Standard 24 V DC plant supply; compatible with Siemens SITOP, Phoenix Contact QUINT, and equivalent PSUs
Selection Guide
Use the following criteria to confirm the MTL5546Y is the correct module for your application, or to identify the most suitable alternative:
- Step 1 — Define hazardous area zone: Zone 1 or Zone 2? Confirm ATEX/IECEx category required (II 2G or II 3G).
- Step 2 — Confirm signal type: Is the input 4–20 mA active or loop-powered? Verify source impedance.
- Step 3 — Check output load: What is the maximum load resistance of the field device? Ensure the driver’s output compliance voltage is sufficient.
- Step 4 — Verify backplane compatibility: Is an MTL5000 series carrier already installed? If yes, MTL5546Y is a direct plug-in replacement.
- Step 5 — Review certifications: Does your project require SIL 2 functional safety certification? Contact Konmask for SIL-rated alternatives if required.
- Step 6 — Confirm channel count: Single-channel (MTL5546Y) or dual-channel requirement? Evaluate MTL5546B or P+F two-channel equivalents if dual output is needed.
Quality Assurance & Sourcing
- Authenticity: All MTL5546Y units sourced by Konmask are procured through verified supply chains. Certificates of conformity and traceability documentation available on request.
- Condition: New, surplus new, and tested-used stock available — clearly labeled at time of quotation.
- Testing: Functional testing performed prior to dispatch; test reports available for critical applications.
- Packaging: Anti-static packaging with original or equivalent protective materials; export-compliant labeling.
- Lead Time: In-stock items ship within 1–3 business days; contact us for current stock status.
How to Order
- Part Number: MTL5546Y
- Add to cart directly on this page, or contact our team for bulk pricing and project quotations.
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Response Time: Within 24 hours on business days (UTC+8)
- For OEM, MRO, and EPC procurement teams: request a formal quotation with lead time, COC, and datasheet via email.
Replacement & Compatibility FAQ
Q: Can I replace MTL5546Y with MTL5546 directly?
A: In most cases yes, but verify the Y-suffix specification differences in the datasheet — the Y variant may have modified output or certification scope. Contact Konmask for a cross-reference check.
Q: Is the MTL5546Y SIL 2 rated?
A: The standard MTL5546Y is not typically SIL 2 certified as a standalone module. For functional safety applications, consult the MTL safety manual or contact Konmask for SIL-rated alternatives.
Q: Can I use a Pepperl+Fuchs KFD2-STC4-Ex1 as a drop-in replacement?
A: Functionally equivalent in most 4–20 mA driver applications, but terminal pinout and backplane are different — rewiring will be required. Not a plug-in replacement for MTL5000 carriers.
Q: What is the maximum output load resistance of the MTL5546Y?
A: Refer to the official MTL5546Y datasheet for the exact output compliance voltage and maximum load. Konmask can provide the datasheet on request.
Q: Do you supply MTL5546Y with a certificate of conformity?
A: Yes. COC and traceability documentation are available for all new stock. Please request at time of order.
