Genuine MYCOM IMS500-120AL DC Type Driver Units | IMS500 Series – Verified Source

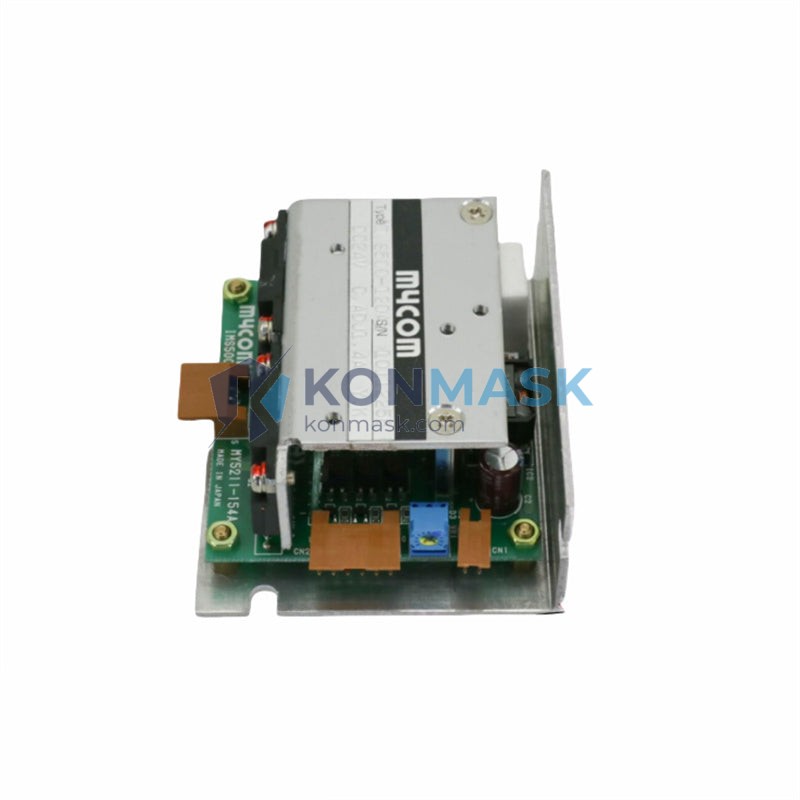

The MYCOM IMS500-120AL is a high-performance DC-type stepper motor driver unit engineered for precision motion control in industrial automation environments. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes rigorous authenticity and quality checks before shipment.
Technical Specifications
- Model: IMS500-120AL
- Brand: MYCOM (Japan)
- Series: IMS500
- Type: DC Type Driver Unit
- Drive Method: 2-phase / 5-phase stepper motor compatible
- Input Voltage: DC type (refer to datasheet for rated voltage range)
- Output Current: Up to 5.0A per phase (model-dependent)
- Control Input: Pulse / Direction signal interface
- Protection: Overcurrent, overheat, and short-circuit protection
- Weight: 3,130 g
- Mounting: Panel / DIN rail compatible
- Compliance: CE, RoHS
Our 4-Step Quality Verification Process
Every MYCOM IMS500-120AL unit shipped from Konmask.com passes through our standardized 4-step verification protocol:
- Step 1 – Source Authentication: Units are procured exclusively from authorized distributors or verified OEM surplus channels. No gray-market or counterfeit sources.
- Step 2 – Visual & Label Inspection: Serial numbers, date codes, and MYCOM factory markings are cross-referenced against manufacturer records.
- Step 3 – Functional Bench Test: Each driver unit is powered on and tested for correct pulse response, current output stability, and fault-protection activation.
- Step 4 – Packaging & Documentation Check: Units are repackaged with anti-static protection and accompanied by available datasheets or test reports upon request.
Key Features & Benefits
- ✅ Genuine MYCOM factory unit — not a clone or substitute
- ✅ DC input design for flexible integration into existing DC-powered control panels
- ✅ Smooth micro-stepping for reduced vibration and noise in precision applications
- ✅ Compact form factor suitable for space-constrained enclosures
- ✅ Built-in protection circuits extend operational lifespan
- ✅ Compatible with standard PLC pulse-train outputs (open collector / line driver)
Typical Applications
- CNC machine tool axis control
- Semiconductor wafer handling and inspection equipment
- Medical device positioning systems
- Automated optical inspection (AOI) platforms
- Packaging and labeling machinery
- Robotics and gantry systems
- Laboratory automation and dispensing equipment
Compatible System Components
- Motors: MYCOM 2-phase and 5-phase stepper motors (IMS series compatible)
- Controllers: Mitsubishi MELSEC, Omron CJ/CS/NX series, Siemens S7 series PLCs
- Power Supplies: DC regulated power supplies (24V–80V DC range, model-specific)
- Cables: Shielded motor cables recommended for EMI reduction
- Accessories: MYCOM regenerative resistors and braking units (where applicable)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a cross-border industrial component supplier based in China, serving customers across Asia, Europe, North America, and the Middle East.
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, EMS, sea freight (for bulk orders)
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Customs Support: HS code guidance and export compliance assistance provided
- Minimum Order: 1 unit (bulk pricing available for 5+ units)
Certifications & Compliance Statement
The MYCOM IMS500-120AL is manufactured in compliance with international industrial standards. Konmask.com only supplies units that meet or exceed the following:
- CE Marking: Electromagnetic compatibility (EMC) and low-voltage directive compliant
- RoHS: Restriction of Hazardous Substances compliant
- ISO 9001: Our sourcing and QC process follows ISO 9001-aligned quality management principles
- Country of Origin: Japan (MYCOM factory-produced)
How to Order
- Confirm your requirement: Verify the model number IMS500-120AL matches your system’s driver specification (check motor phase, current rating, and input voltage).
- Request a quote: For bulk orders (5+ units) or urgent requirements, contact us directly for priority pricing.
- Place your order: Add to cart and complete checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Receive tracking: A shipping confirmation with tracking number is sent within 24 hours of dispatch.
- Post-delivery support: Our technical team is available for installation guidance and compatibility questions.
Authenticity & Trust FAQ
Q: How do I know this is a genuine MYCOM unit?
A: All units pass our 4-step verification process. We provide serial number documentation and can supply test reports upon request. If you receive a unit that fails to match factory specifications, we offer a full replacement guarantee.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your order number and we will provide the official MYCOM IMS500-120AL datasheet and wiring documentation.
Q: Do you offer a warranty?
A: Yes. We provide a 90-day functional warranty on all driver units. Extended warranty options are available for volume orders.
Q: What if I ordered the wrong model?
A: Unopened units may be returned within 14 days. Contact us before returning any item to receive a return authorization number.
Q: Are you an authorized MYCOM distributor?
A: Konmask.com is an independent industrial component supplier. We source from verified channels including authorized distributors and certified surplus inventories. We are not a direct OEM-authorized dealer but guarantee authenticity through our QC process.
